Foundations — Empirical formula vs molecular formula — determination from % composition

Before you can read "$n=M_{\text{molar}}/M_{\text{empirical}}$" or "divide grams by atomic mass", every one of those little words has to mean something you can see. Below, each symbol is earned before the next one uses it.

0. The starting picture: atoms as beads

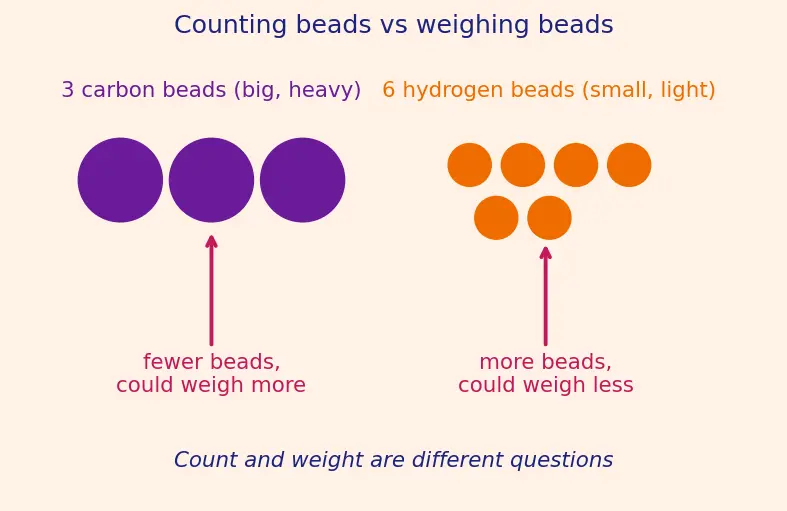

Look at the figure: three carbon beads (violet) and six hydrogen beads (orange). The important truth the picture shows is that counting beads and weighing beads are two different questions. Six small orange beads might weigh less than three big violet beads even though there are more of them. Hold on to that — it is the reason the whole procedure exists.

1. Element and compound

Why the topic needs this: because the pattern is fixed, there is a single true ratio to discover. If compounds had random ratios, no formula would exist to find.

2. Chemical formula and subscripts

The small number below and to the right — the subscript — is a count of beads. No subscript means the count is $1$ (oxygen in $H_{2}O$ has an invisible "$1$").

3. Ratio — the heart of everything

The figure shows three glass jars holding water in the same $2:1$ bead ratio but wildly different total amounts. Why this matters: percent composition (coming in §7) only ever tells you the ratio — it has thrown the size away. That is exactly why the empirical formula (a ratio) falls out easily but the molecular formula (a real size) needs one extra fact.

4. Mass, and why beads have different weights

The trap the whole topic is built to dodge: equal mass does not mean equal count. 40 g of carbon and 40 g of oxygen are the same mass but different numbers of beads, because an oxygen bead is heavier than a carbon bead.

5. Atomic mass — a price tag per bead

Think of atomic mass as a price tag: it converts between "how many beads" and "how heavy". If you know the total weight of carbon and the weight of one packet of carbon, you can work out how many packets you had — that division is the master move of §8.

$\text{number of packets}=\frac{\text{grams you have}}{\text{grams per packet}}$

6. The mole — the bridge between grams and count

This is the single most important idea on the page.

So the chain is:

$\text{grams}\stackrel{÷\text{atomic mass}}{\to }\text{moles}=\text{a faithful count of beads}$

Why the topic needs it: moles are the only way to turn a mass we measured into an atom ratio we can write as a formula. Skip the mole and you are comparing grams to grams — the classic fatal error.

7. Percent composition by mass

Example: glucose is $40.0\%C$. That means: out of every 100 g of glucose, 40 g is carbon. Note it is a share of mass, not of count — which is why §5 and §6 must come first to translate it.

8. Putting the symbols together — the master chain

Now every arrow in the parent recipe is made of symbols you own:

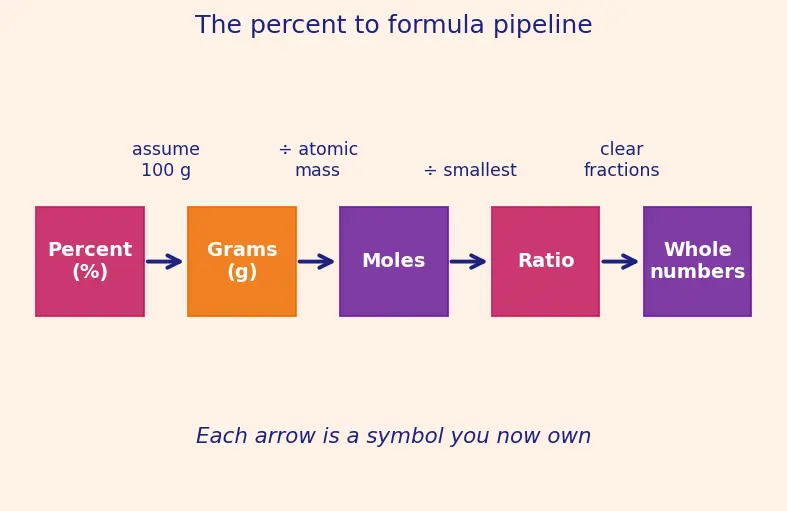

The figure traces one element through the pipeline. Read it left to right:

1. Percent ($\%$) — a mass share (§7).
2. Grams ($\text{g}$) — assume 100 g so percent becomes grams (§4, §7).
3. Moles — divide grams by atomic mass; the mole makes this a true bead count (§5, §6).
4. Ratio — divide every element's moles by the smallest, so the least-abundant becomes $1$ (§3).
5. Whole numbers — clear any leftover fraction so the ratio is all integers (§3), giving the empirical formula.

9. The last two symbols: $M$ and $n$

Why the topic needs it: percent composition threw away the size (§3), so it can only reveal the ratio (empirical). The measured $M$ is the one extra fact that restores the size — and $n$ is the number that carries it. This is the whole reason Combustion Analysis (which gives percents) must be paired with a separate mass measurement, and why the finished molecular formula can then feed Stoichiometry.

Prerequisite map

Equipment checklist

Self-test: cover the right side and see if you can say each answer out loud.
