Molar mass calculations: Visual walkthrough — Chemistry deep dive

We will use only three ideas, and we define each before it enters:

a particle (one atom or one molecule) — a single tiny object,
a mole — a fixed huge count of particles (the number is $N_A$),
mass is additive — stick two things together, the masses add.

That's the whole toolkit. Let's go.

Step 1 — What a chemical formula literally says

WHAT: We read the formula as a shopping list of atoms.

WHY: Everything downstream is just adding up masses of a known number of atoms. If we mis-count here, every later number is wrong. So we start by seeing the count, not computing anything.

PICTURE: Below, water $H_{2} O$ is drawn as exactly what its formula says — two hydrogen balls and one oxygen ball. The subscript $2$ became two circles, nothing more.

$element A A how many A_{x} element B B how many B_{y}$

Step 2 — Give each atom a weight

WHAT: We attach a tiny weight label to every ball in the picture.

WHY: We can't build a molecule's mass without first knowing what each brick weighs. $m_{A}$ and $m_{B}$ are those brick weights.

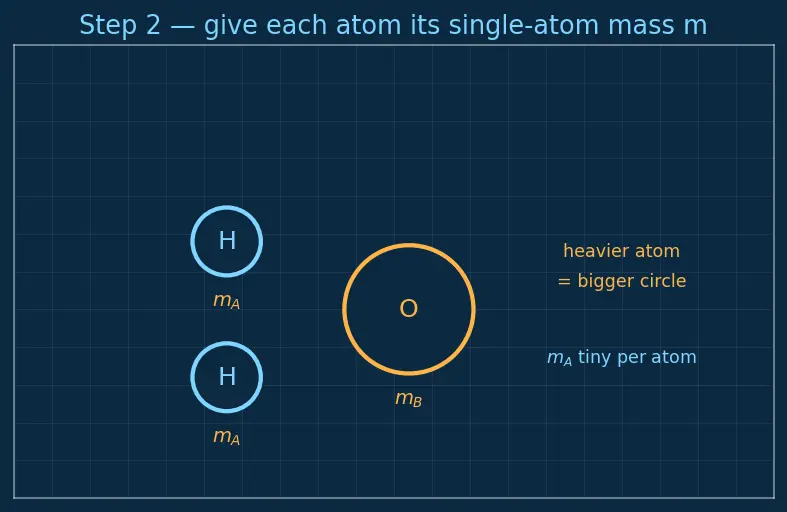

PICTURE: Same water molecule, now each ball carries its own single-atom mass tag. The oxygen ball is drawn heavier (bigger) than the hydrogen balls — heavier atom, heavier tag.

$mass of ONE atom of A m_{A} mass of ONE atom of B m_{B}$

Step 3 — Weigh one molecule (mass is additive)

WHAT: We add the weight tags of every ball in one molecule.

WHY: A molecule is just its atoms held together, so its mass is the sum of its atoms' masses — the additive rule from the callout. We multiply each single-atom mass by its headcount from Step 1.

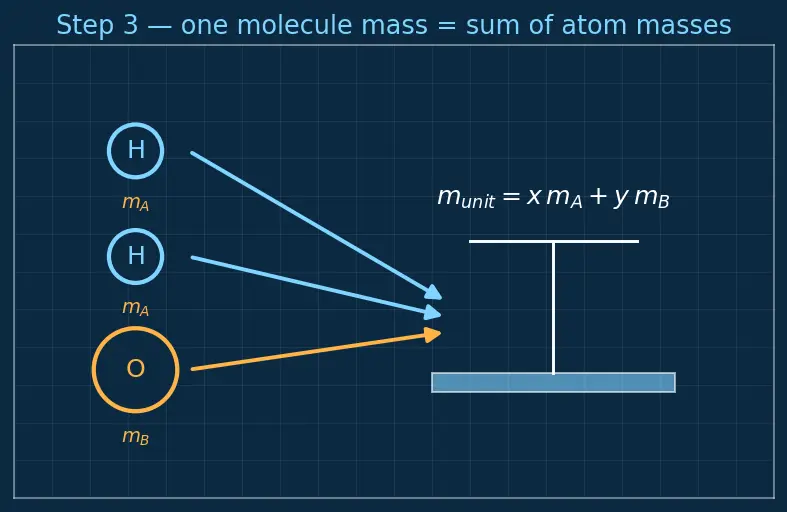

PICTURE: The two hydrogen tags and the one oxygen tag drop onto a balance pan; the pan reads their sum. Each arrow is colour-matched to the atom it came from.

m_{unit} = count of A x one A m_{A} + count of B y one B m_{B}

Read it aloud: "mass of one unit equals (how many $A$ ) times (weight of one $A$ ), plus (how many $B$ ) times (weight of one $B$ )." That is the whole molecule on a scale.

Step 4 — Meet the mole: count by weighing a huge pile

WHAT: We stop looking at one molecule and grab exactly $N_{A}$ copies of it.

WHY: We can weigh a big pile in the lab, but we can never weigh a single molecule. So we scale up from "one molecule" to "one mole of molecules" — a pile big enough to see and weigh.

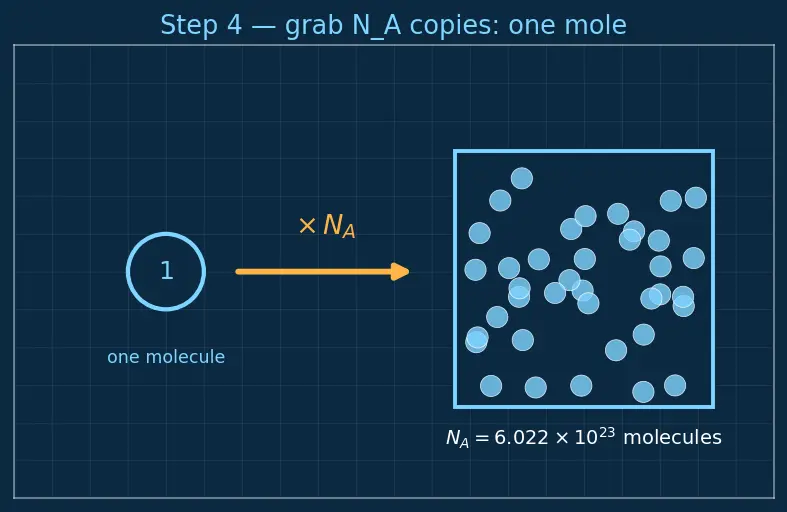

PICTURE: One molecule on the left; an arrow labelled $\times N_{A}$ blows it up into a jar packed with $N_{A}$ identical molecules on the right. The jar is what a chemist actually holds.

Step 5 — Weigh the whole mole (multiply the one-molecule mass by $N_{A}$ )

WHAT: We take the one-molecule mass from Step 3 and multiply it by $N_{A}$ , because the jar holds $N_{A}$ molecules.

WHY: $N_{A}$ identical objects weigh $N_{A}$ times as much as one. Then we use the schoolbook rule that lets us distribute the multiplier over a sum — spreading $N_{A}$ onto each term separately.

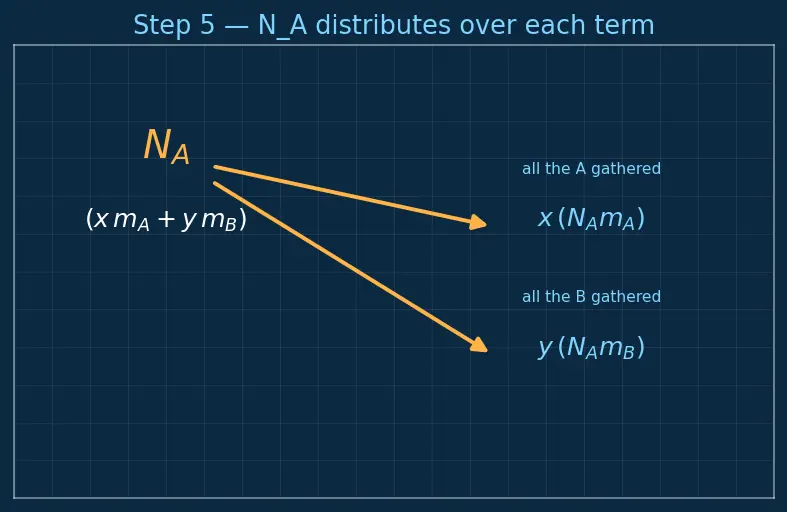

PICTURE: The single multiplier $N_{A}$ (amber) fans out along two arrows, landing on the $A$ -term and the $B$ -term separately. This is the distributive step made visible.

M = N_{A} m_{unit} = N_{A} (x m_{A} + y m_{B}) = x group all the A (N_{A} m_{A}) + y group all the B (N_{A} m_{B})

Term by term:

$M$ — the mass of one mole of the compound, the thing we're hunting.
$N_{A} m_{unit}$ — one molecule's mass scaled up by the mole count.
$x (N_{A} m_{A})$ — all the $A$ -atoms, gathered: $N_{A} m_{A}$ is " $N_{A}$ atoms of $A$ weighed together."

Step 6 — Recognise the elements' molar masses hiding inside

WHAT: We rename the two groups from Step 5 with the symbols we already know from the periodic table.

WHY: We never actually measure $m_{A}$ (one atom's mass); the periodic table hands us $M_{A}$ (one mole's mass) directly. So we swap the awkward $N_{A} m_{A}$ for the friendly $M_{A}$ — same quantity, cleaner name.

PICTURE: The two grouped bundles from Step 5 each collapse into a single labelled block: $N_{A} m_{A} \to M_{A}$ and $N_{A} m_{B} \to M_{B}$ . The equation shortens before your eyes.

M = x M_{A} + y M_{B}

$x M_{A}$ — take element $A$ 's molar mass, multiply by how many $A$ 's the formula has.
$y M_{B}$ — same for $B$ .
Add. Done. This is the parent note's central claim, now derived, not asserted.

Step 7 — The degenerate case: a pure element ( $y = 0$ )

WHAT: Plug $y = 0, x = 1$ into the boxed result.

WHY: A good formula can't break at the edges. Testing the simplest possible input (one element, no second atom) is how we check we didn't secretly assume "a compound needs two elements."

PICTURE: A single element block. The $B$ -term is greyed out to zero, leaving $M = M_{A}$ : "the molar mass of an element equals its own atomic molar mass," exactly as the parent stated.

M = x 1 M_{A} + y 0 M_{B} = M_{A}

The same logic extends to three, four, or more elements — just keep adding one term per element ( $x M_{A} + y M_{B} + z M_{C} + \dots$ ). Nothing new is needed; brackets and hydrate dots (like $CuSO_{4} \cdot 5 H_{2} O$ ) are just careful headcounting back in Step 1.

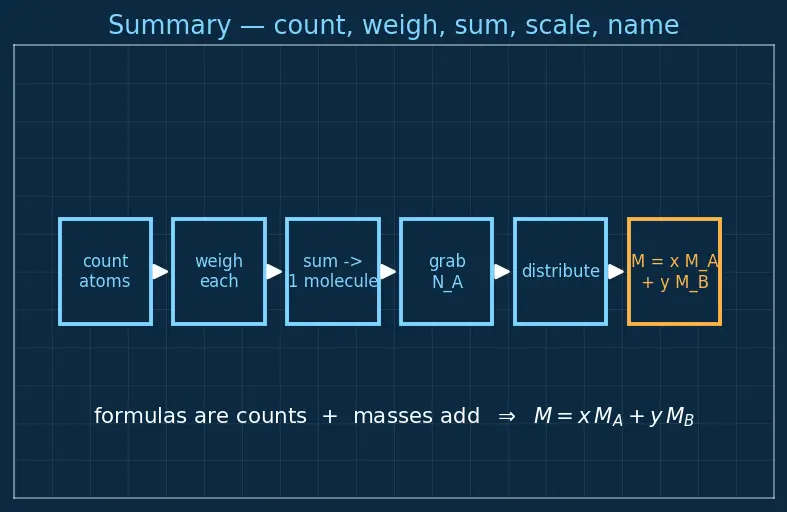

The one-picture summary

The whole journey on one blueprint: count atoms (Step 1) → weigh each atom (Step 2) → sum into one molecule (Step 3) → grab $N_{A}$ of them (Step 4) → scale and distribute (Step 5) → rename the bundles (Step 6) → $M = x M_{A} + y M_{B}$ .

Recall Feynman retelling — the whole walkthrough in plain words

A formula like $H_{2} O$ is a shopping list: two hydrogen bricks, one oxygen brick. Each brick has a definite (tiny) weight. Glue the bricks into a molecule and the weights just add — that's the weight of one molecule. But one molecule is far too light to put on a scale. So we grab an absolutely enormous, fixed number of identical molecules — call that count $N_{A}$ , one mole. The pile weighs $N_{A}$ times one molecule. When we spread that $N_{A}$ across the hydrogen part and the oxygen part separately, each part becomes " $N_{A}$ atoms of that element weighed together" — and that is exactly what the periodic table already prints for us as the element's molar mass. So the giant, weighable pile ends up weighing (number of H's)×(molar mass of H) plus (number of O's)×(molar mass of O). That's $M = x M_{A} + y M_{B}$ : not a rule to memorise, but the only thing it could be once you agree that formulas are counts and masses add.

Recall Quick self-checks

In $M = x M_{A} + y M_{B}$ , what does $x$ mean? ::: The subscript — the number of atoms of element $A$ in one formula unit (a headcount, not a mass multiplier). Where does the jump from "one molecule" to "one mole" happen? ::: Step 4/5 — multiplying the one-molecule mass by $N_{A}$ . Why can we replace $N_{A} m_{A}$ with $M_{A}$ ? ::: Because the molar mass of an element is defined as the mass of $N_{A}$ of its atoms — they are the same quantity. Check the formula for a pure element (set $y = 0, x = 1$ ). ::: $M = M_{A}$ , which correctly says an element's molar mass equals its atomic molar mass.
