Pure substances vs mixtures — elements, compounds, homogeneous - heterogeneous: Visual walkthrough

Overview

Give me a jar. Inside could be gold, water, air, salty ocean water, or muddy sand. This walkthrough builds — from nothing — a decision machine that tells you exactly which of four boxes your jar belongs in:

Element (like gold),
Compound (like water),
Homogeneous mixture (like saltwater),
Heterogeneous mixture (like sand-in-water).

We will earn every idea with a picture. By the end you will look at any jar and know the answer, and you will know why the boundary sits exactly where it does — not by memorising, but by watching particles move. This deepens the parent note (topic note).

Step 1 — Start from the only thing we can trust: zoom in until you see particles

WHAT. Forget names for a moment. Take any sample and imagine zooming in with a magic microscope until you can see the tiniest building blocks. We will call each little ball a particle. A particle is just "the smallest independent unit floating around in that sample" — for now, a coloured dot.

WHY. Every difference between element / compound / mixture turns out to be a difference in what the dots are and how they are arranged. If we sort by what we see, we can't be fooled by looks (saltwater and pure water both look clear). So we start at the particle level, the one place where the truth is written.

PICTURE. Below, one single sample is zoomed in three times. At full zoom we finally see individual dots. From here on, every classification is a statement about these dots.

Figure — Pure substances vs mixtures — elements, compounds, homogeneous - heterogeneous

Step 2 — Question 1: is there only ONE kind of ball? → Element

WHAT. Look only at the type of each ball (its colour in our pictures = the kind of atom, meaning the number of protons in its nucleus). If every ball is the same colour, the sample is an element.

WHY. "Same colour everywhere" means you cannot chop the sample into two chemically different piles no matter how you cut. A chemical reaction rearranges balls; it can never turn a blue ball into a green one (that would need a nuclear change). So a one-colour sample is chemically un-simplify-able — the definition of an element.

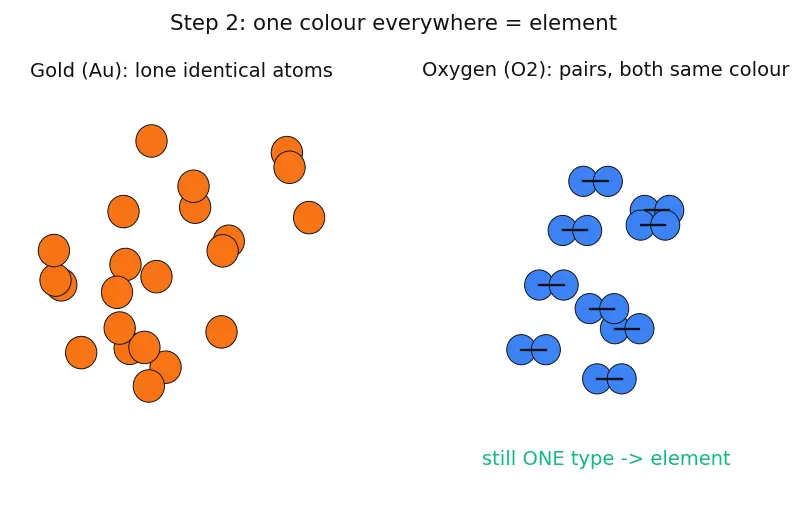

PICTURE. Left: gold — a sea of identical balls (one colour). Right: oxygen gas — the balls are glued in pairs ( $O_{2}$ ), but both balls in every pair are the same colour. Still one type ⇒ still an element.

Step 3 — Two colours, but glued in one fixed cluster everywhere → Compound

WHAT. Now suppose there are two or more colours. Look closer: are the different colours chemically glued into one repeating little cluster, and is that cluster identical everywhere? If yes → compound.

WHY. Gluing is a chemical bond — shared or transferred electrons that lock atoms in a fixed count. Because bonds only form in whole-number counts dictated by the atoms, the cluster is always the same: water is always 2 white + 1 red, never 3 white + 1 red. That "always the same recipe" is the Law of Definite Proportions.

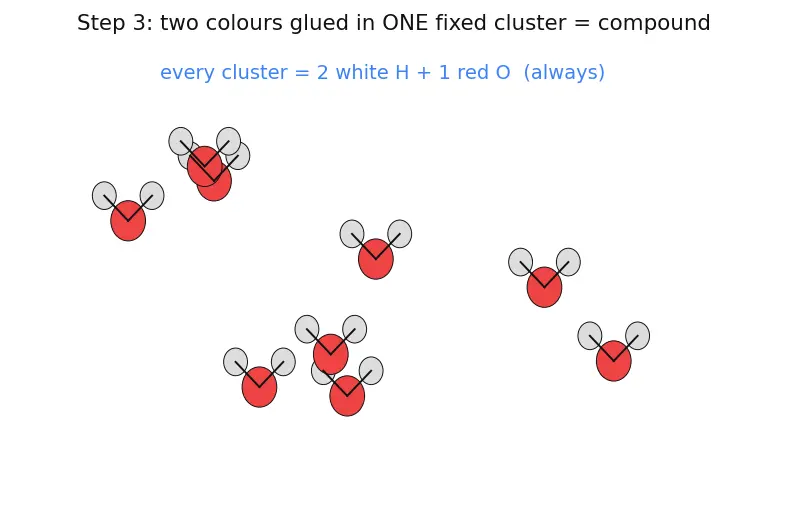

PICTURE. Water. Every cluster is the identical bent shape: two hydrogen balls + one oxygen ball. Nowhere in the whole sample do you find a lonely hydrogen or a 3:1 cluster.

Step 4 — The mass fingerprint of a compound (a number you can measure)

WHAT. Because the cluster is always the same, the mass ratio of the elements inside is also always the same. For water we can compute it once and trust it forever.

WHY. You can't see "2 white + 1 red" with your eyes, but you can weigh things. So we turn the fixed count into a fixed mass ratio — a measurable fingerprint that catches impostors. If a "water" sample weighs out to a different ratio, it isn't pure water; it's a mixture.

PICTURE. A balance: on one side the mass of the 2 hydrogen atoms, on the other the mass of the 1 oxygen atom. The pointer always lands at the same tilt.

Recall

A compound is two-or-more colours ::: glued into one fixed repeating cluster with a fixed mass ratio. What makes water's H:O ratio unchangeable ::: bonds form in whole-number counts set by electrons, not by amount poured.

Step 5 — Two colours, NOT glued: mixtures, and the first split

WHAT. Suppose there are two colours but they are not chemically glued — the balls just mingle, keeping their own identity. That is a mixture. Immediately a new question appears: is the mingling perfectly even, or lumpy?

WHY. In a mixture nothing is locked, so you can pour in any ratio — composition is variable. But how evenly the two kinds spread decides whether it looks the same everywhere. That evenness is the split between homogeneous and heterogeneous, and it is decided by a tug-of-war we can actually calculate (next two steps).

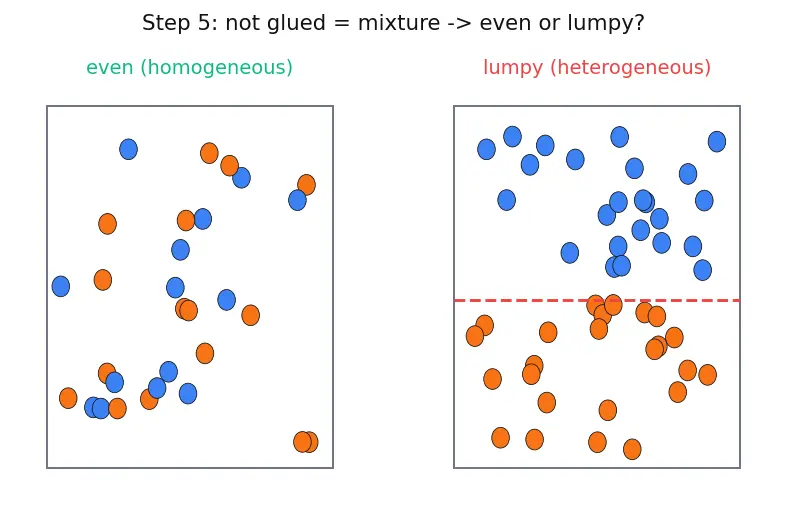

PICTURE. Same two colours shown twice: left, perfectly stirred (even); right, separated into a top layer and bottom layer (lumpy). Same ingredients — different arrangement.

Step 6 — The tug-of-war that decides even vs lumpy: thermal jiggle vs gravity

WHAT. Each particle feels two competing pushes: (1) thermal jiggling — random kicks from temperature that scatter it everywhere; (2) gravity — a steady downward pull that tries to sink it. Whichever wins decides even-vs-lumpy.

WHY. This is the mechanism behind Step 5's picture. If jiggle energy ≫ gravity energy, particles never settle → uniform → homogeneous. If gravity wins, they sink into layers → heterogeneous. We measure "who wins" by comparing two energies.

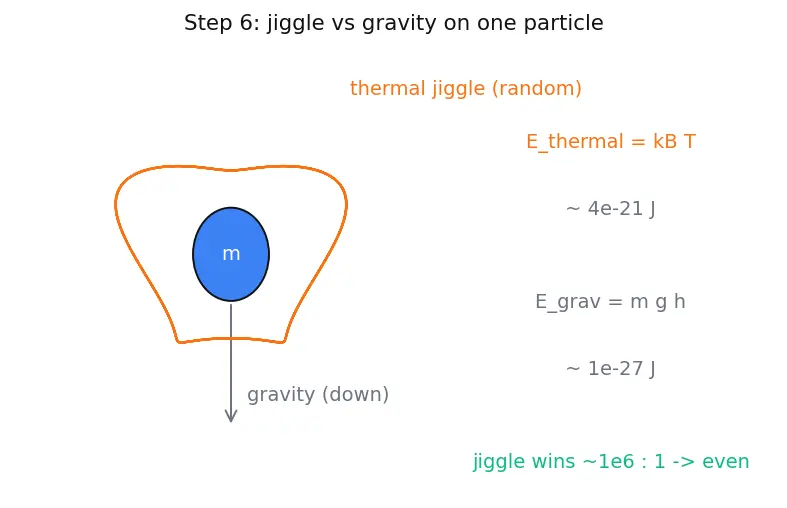

PICTURE. One particle with two arrows: a big scribbly random arrow (thermal) and a small straight down arrow (gravity), with an energy scoreboard beside it.

Step 7 — Make the particle bigger: gravity wins, and it turns lumpy

WHAT. Keep everything the same but grow the particle. Mass grows like radius cubed, so $E_{grav} = m g h$ shoots up, while $E_{thermal} = k_{B} T$ doesn't change at all. Past a size threshold, gravity wins and particles sink → heterogeneous.

WHY. This is why sand-in-water is heterogeneous but salt-in-water is homogeneous — same physics, different particle size. We quantify the sinking speed with a settling law so "slowly settles" becomes a real number.

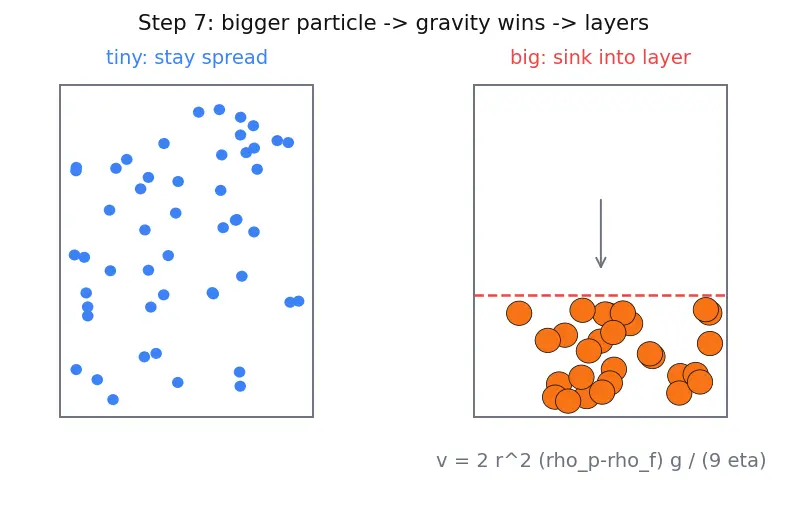

PICTURE. A tall column: tiny particles stay evenly spread (top strip), big particles have sunk into a bottom layer (bottom strip), with a sinking-speed arrow.

Step 8 — The degenerate & edge cases (never get caught out)

WHAT. We now nail the tricky corners the four boxes might seem to miss.

WHY. A decision machine is only trustworthy if it handles every input, including weird ones.

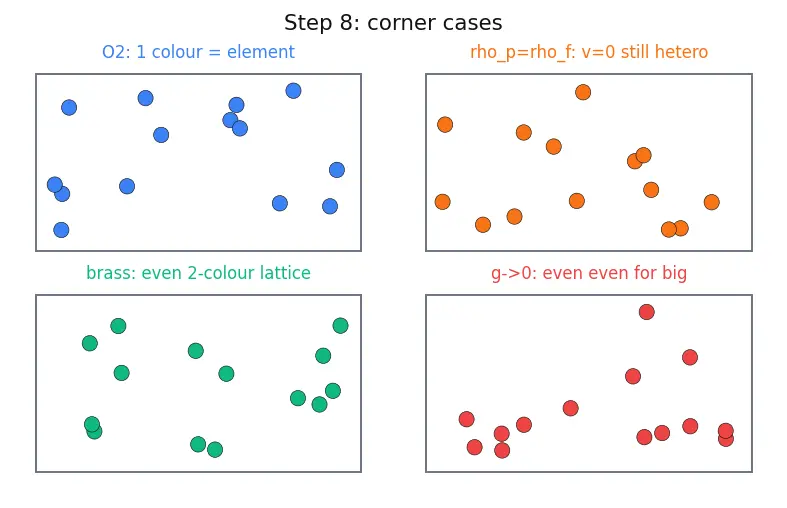

PICTURE. A four-panel gallery of the awkward cases.

Worked example The corner cases, resolved

$O_{2}$ (molecule but one colour): count colours → 1 → element, not a compound.
Density-matched suspension ( $ρ_{p} = ρ_{f}$ ): in $v = \frac{2 r ^{2} ( ρ _{p} - ρ _{f} ) g}{9 η}$ the bracket is $0$ ⇒ $v = 0$ ⇒ never settles. Still heterogeneous if particles are big/optically distinct (you can see separate phases even though nothing sinks) — evenness of appearance, not just settling, is the test.
Alloy like brass (solid solution): balls frozen in a lattice but two colours randomly interspersed and evenly so ⇒ homogeneous mixture.
Air (gas solution): several colours, freely mingling, jiggle utterly dominates ⇒ homogeneous — a solution can be a gas.
Zero of gravity ( $g \to 0$ , e.g. orbit): $E_{grav} \to 0$ , jiggle always wins, so even large particles stay dispersed — mixtures that are heterogeneous on Earth can float uniform in space. This confirms our mechanism, not just a memorised rule.

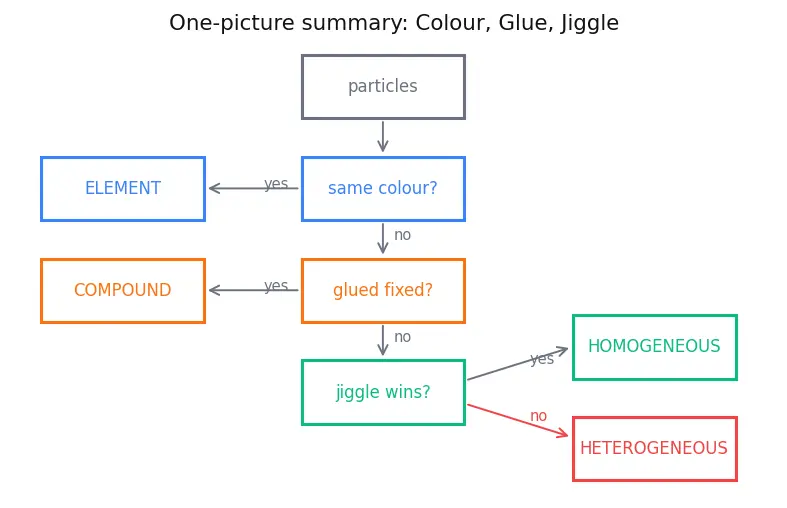

The one-picture summary

Everything above is one flowchart of two questions, plus one energy comparison. The figure below compresses all eight steps: what kind of balls → glued or not → even or lumpy.

Recall Feynman retelling (say it out loud, no symbols)

Imagine shrinking down until every bit of stuff looks like coloured balls. First I ask: are all the balls the same colour? If yes, I'm holding an element — even oxygen, whose balls come glued in pairs, still counts because both balls in a pair match. If the colours differ, I ask: are the different colours chemically glued into the exact same little cluster everywhere? If yes, it's a compound, like water, whose two-white-one-red cluster never changes — which is why its weight recipe is a fixed fingerprint. If the colours are just mingling and not glued, it's a mixture, and one last question splits it: do the balls stay evenly spread? That's a tug-of-war between random temperature kicks and gravity's downward pull. For tiny molecule-sized balls the kicks win a million-to-one, so they never settle — that's an even, see-through solution. Grow the balls and gravity takes over: they sink into visible layers — a lumpy heterogeneous mixture. Same physics, just particle size turning the dial. That's the whole of matter, sorted, with no memorising — only balls, glue, jiggle, and gravity.

Prerequisites & neighbours: Atomic theory and structure · Chemical bonding basics · Solutions and concentration units · Separation techniques in chemistry · Phase diagrams and phase changes · Stoichiometry and the mole concept · Coligative properties.
