Describe gene regulatory networks

What is a GRN?

HOW does one gene regulate another? (first principles)

WHAT is the physical mechanism?

Gene $X$ is transcribed → mRNA → translated → protein $X$ (often a transcription factor).
Protein $X$ diffuses to the DNA and binds a specific sequence (the promoter / operator) near gene $Y$ .
If $X$ recruits RNA polymerase → activation. If $X$ blocks polymerase → repression.

HOW do we turn this into math? We ask: how fast does protein $Y$ accumulate?

Rate of change of $Y$ = (production) − (removal):

$\frac{dY}{dt} = \underbrace{f(X)}_{\text{production, set by regulator }X} - \underbrace{\gamma\,Y}_{\text{degradation + dilution}}$

Why this form? Every protein is made at some rate depending on its regulators, and destroyed/diluted at a rate proportional to how much is present (first-order decay). $\gamma$ = degradation rate constant.

Deriving the input function $f(X)$ (Hill function)

Why not just $f(X)=kX$ ? Because binding is saturable — a promoter has a finite number of binding sites. Once TF is abundant, adding more can't increase binding. So we model occupancy.

Let $X$ bind the promoter with dissociation constant $K$ . Probability the site is bound:

$P_{\text{bound}} = \frac{X/K}{1 + X/K} = \frac{X}{K + X}$

Why this fraction? From equilibrium $[\text{bound}]/[\text{free}] = X/K$ ; normalising over (bound + unbound) gives the fraction above — a classic saturation curve.

Real promoters bind cooperatively ( $n$ TF molecules together), giving the Hill function:

$\boxed{\;f(X)=\beta\,\frac{X^{n}}{K^{n}+X^{n}}\;}\quad(\text{activator})$ $f(X)=\beta\,\frac{K^{n}}{K^{n}+X^{n}}\quad(\text{repressor})$

$\beta$ = maximal production rate.
$K$ = activation threshold (value of $X$ giving half-max).
$n$ = Hill coefficient (cooperativity → steepness → switch-like behaviour).

Why $n$ makes it switch-like: large $n$ makes the curve nearly a step at $X=K$ — the gene is essentially OFF then ON. That is how digital-like decisions emerge from analog chemistry.

Steady state

Set $\frac{dY}{dt}=0$ : $\gamma Y^* = f(X) \;\Rightarrow\; Y^* = \frac{f(X)}{\gamma}$

Why useful? Tells you the final protein level for a fixed input — the "output" of the circuit.

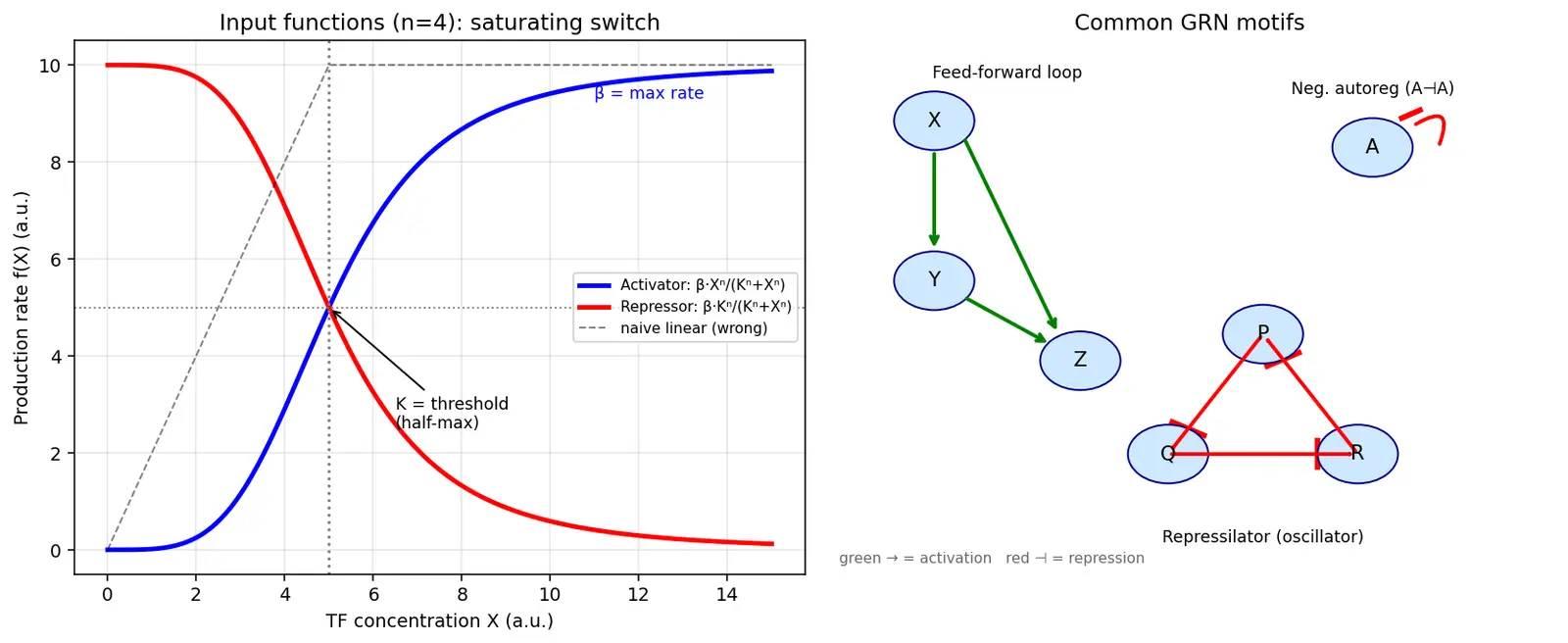

Figure — Describe gene regulatory networks

Network motifs (the 80/20 core)

Real GRNs are built from a few recurring wiring patterns = network motifs (Uri Alon). Learn these 3 and you understand most circuits:

Worked example — will gene Y switch ON?

Worked example Activator with a threshold

Gene $Y$ is activated by TF $X$ with $\beta = 10$ , $K = 5$ , $n = 4$ , $\gamma = 1$ . Input $X = 8$ . Find $Y^*$ .

Step 1 — compute Hill fraction: $\dfrac{X^n}{K^n+X^n} = \dfrac{8^4}{5^4+8^4}=\dfrac{4096}{625+4096}=\dfrac{4096}{4721}\approx0.868$ . Why this step? This is the fraction of time the promoter is bound & active.

Step 2 — production rate: $f(X)=10\times0.868=8.68$ . Why? Max rate $\beta$ scaled by occupancy.

Step 3 — steady state: $Y^*=f(X)/\gamma = 8.68/1 = 8.68$ . Why? At steady state production = degradation.

Interpretation: $X=8 > K=5$ , so the switch is ON (near-max output). With $n=4$ the transition around $K$ is sharp.

Common mistakes

Flashcards

What are the nodes and edges of a GRN?

Nodes = genes/TFs; edges = directed regulatory interactions (→ activation, ⊣ repression).

Why is a GRN a directed graph?

Regulation is causal and one-way per edge: A's product controls B's transcription, not vice versa.

Write the general ODE for a regulated protein Y.

dY/dt = f(X) - \gamma Y

(production minus degradation/dilution).

What is the Hill activation function?

f(X)=\beta X^n/(K^n+X^n)

Physical meaning of K in the Hill function?

The activation threshold — the TF concentration giving half-maximal expression.

What does the Hill coefficient n control?

Cooperativity → steepness of the response; large n gives a sharp switch-like ON/OFF.

Steady-state output of a regulated gene?

Y^* = f(X)/\gamma

(production = degradation).

What does negative autoregulation (X ⊣ X) achieve?

Faster response and reduced noise / homeostatic output level.

What behaviour does positive feedback create?

Bistability — a toggle switch with cellular memory.

What does a coherent feed-forward loop do?

Sign-sensitive delay: filters brief input pulses, responds only to persistent signals.

What wiring makes a repressilator oscillate?

A ring of an odd number of repressors (e.g. A⊣B⊣C⊣A).

Why doesn't more TF always increase output?

Promoter binding saturates; the Hill function plateaus at β.

Recall Feynman: explain to a 12-year-old

Imagine each gene is a light switch, and each light switch has a tiny robot arm that can flip other switches. Some arms turn switches ON, some turn them OFF. Draw all the arms and switches and you get a map of who flips whom — that's a gene regulatory network. Because the arms feed back on each other, the cell can do clever things: a room that stays lit even after you let go of the switch (memory), or Christmas lights that blink on their own (an oscillator). Same switches, wired differently → totally different light show. That's how one set of genes builds a brain cell or a skin cell.
