Explain transcription factors and enhancers

Core Question

How do cells turn genes on and off with precision, allowing liver cell and a neuron to have the same DNA but completely different identities?

The Big Picture

WHY evolution built this system:

• A human has ~20,000 genes but needs to create200+ cell types
• Same gene needs different expression levels in different tissues
• Fast response to environmental signals without changing DNA sequence
• Allows for evolutionary innovation through new TF-enhancer combinations

Part 1: Transcription Factors—The Molecular Switches

The Mechanism: How TFs Actually Work

WHAT happens at the molecular level:

1. DNA Recognition Domain binds to specific sequence (typically 6-12 base pairs)

   • Common motifs: helix-turn-helix, zinc finger, leucine zipper, helix-loop-helix
   • Recognizes major/minor groove geometry + base-specific hydrogen bonds
   • WHY specific binding? Shape complementarity + H-bonds between amino acids and DNA bases create a "lock-and-key" fit

2. Activation or Repression Domain recruits other proteins

   • Activators: Recruit mediator complex, histone acetyltransferases (HATs), chromatin remodelers
   • Repressors: Recruit histone deacetylases (HDACs), compete for binding sites, or block activator access
   • HOW does recruitment work? Protein-protein interaction surfaces on the TF domain bind to complementary surfaces on co-factors

3. The Full Assembly

   Promoter brought close → RNA Pol II + GTFs stabilized → Transcription starts

Derivation of TF Binding Affinity:

The binding equilibrium between TF and DNA follows: $\text{TF} + \text{DNA} \rightleftharpoons \text{TF-DNA}$

The dissociation constant is: $K_d = \frac{[\text{TF}][\text{DNA}]}{[\text{TF-DNA}]}$

WHY this matters: Lower $K_d$ = tighter binding = more specific regulation. TypicalF $K_d$ values are nanomolar (10⁻⁹ M).

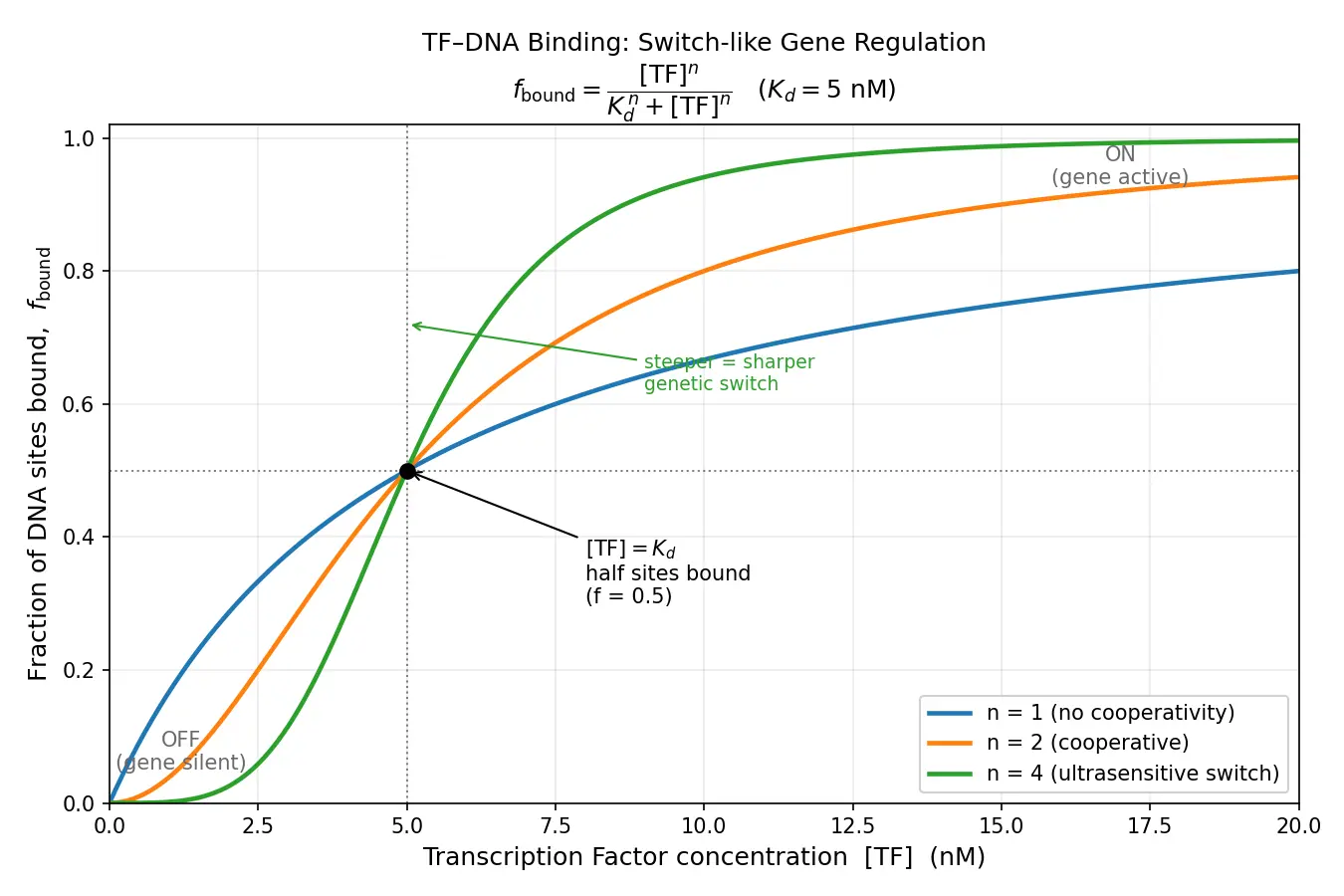

The fraction of DNA sites bound is: $f_{\text{bound}} = \frac{[\text{TF}]}{K_d + [\text{TF}]}$

Deriving this: At equilibrium, solve for [TF-DNA]:

• Total DNA sites: $D_{\text{total}} = [\text{DNA}] + [\text{TF-DNA}]$
• Rearrange $K_d$ equation: $[\text{TF-DNA}] = \frac{[\text{TF}] \cdot [\text{DNA}]}{K_d}$
• Fraction bound: $f = \frac{[\text{TF-DNA}]}{D_{\text{total}}}$
• Substitute and simplify to get Hill-like equation above

WHY this shape? It's a switch-like response—small changes in TF concentration near $K_d$ cause large changes in binding.

Deriving cooperativity: If two TFs must bind together:

• $\text{DNA} +2\text{TF} \rightleftharpoons \text{DNA-TF}_2$
• Equilibrium: $K_d' = \frac{[\text{DNA}][\text{TF}^2}{[\text{DNA-TF}_2]}$
• This squares the TF concentration dependence → steper switch

WHY cooperativity? Creates ultrasensitive switches—gene stays OFF until TF concentration crosses a threshold, then rapidly turns ON. Prevents "leaky" expression.

Part 2: Enhancers—The Long-Range Control Centers

Key Properties of Enhancers

1. Position Independence

• Can work50 kb (kilobases) away from promoter
• WHY? DNA can loop through3D space to bring enhancer and promoter together
• Mediated by mediator complex and cohesin proteins that stabilize loops

2. Orientation Independence

• Works whether sequence is forward or reverse
• WHY? Because it's the protein-binding surface that matters, not the direction of reading

3. Combinatorial Logic

• A single enhancer has binding sites for 5-15 different TFs
• HOW does this create specificity?
  • Liver enhancer: binds HNF4α + CEBP/α + FOXA2 (all present in liver)
  • Neuron enhancer: binds NEUROD1 + ASCL1 + BRN2 (all present in neurons)
  • Same gene, different enhancers = different expression patterns

The DNA Loping Model

HOW does an enhancer 50 kb away activate a promoter?

Step-by-step mechanism:

1. TFs bind to enhancer sequences (cooperative binding)
2. TFs recruit mediator complex (25-30 protein subunits)
3. Mediator has surfaces that bind RNA Pol II at the promoter
4. DNA between enhancer and promoter forms a loop
   • Loop stabilized by cohesin (ring-shaped protein complex)
   • Facilitated by CTCF (architectural protein) marking boundaries
5. Enhancer-bound mediator contacts promoter-bound RNA Pol II
6. Stabilization + recruitment of GTFs (general transcription factors) → transcription initiation

WHY loping instead of tracking along DNA?

• Much faster (diffusion in 3D space vs. 1D sliding)
• Allows multiple enhancers to additively boost transcription
• Provides insulation (CTCF boundaries prevent wrong enhancer-promoter pairs)

The system:

• β-globin gene has a promoter at position 0
• LCR enhancer is 50 kb upstream (50,000 bp away)
• LCR has binding sites for GATA1, NF-E2, and KLF1 (all TFs abundant in red blood cell precursors)

What happens:

1. As red blood cell matures, GATA1 concentration increases
2. GATA1 binds LCR (cooperatively with NF-E2)
3. LCR loops to contact β-globin promoter
4. Transcription rate increases 1000-fold
5. Result: Cell produces 300 million hemoglobin molecules

WHY this step? (Walkthrough of cooperative binding)

• Step 1→2: GATA1 alone binds weakly ($K_d \sim 100$ nM)
• Adding NF-E2: Cooperativity drops effective $K_d$ to 1 nM (100× stronger)
• This ensures enhancer only activates when BOTH TFs are present (cell identity lock)

Numbers:

• Basal transcription (no LCR): ~1 mRNA/hour
• With LCR active: ~1000 mRNA/hour
• This is why β-globin is 2% of all mRNA in red blood cells

The system:

• Shh gene one chromosome
• ZRS enhancer is 1megabase away (1,000,000 bp!)
• ZRS has sites for HOXD13 and ETS1 (present in developing limb bud)

What happens:

1. Limb bud forms, HOXD13 and ETS1 are expressed
2. TFs bind ZRS
3. Giant DNA loop forms (mediated by cohesin complexes)
4. Sh promoter contacts ZRS
5. Shh is expressed ONLY in posterior limb margin
6. Shh protein diffuses to form morphogen gradient → digits form

WHY this specific pattern?

• HOXD13 is only in posterior limb (gradient from trunk Hox genes)
• Without ZRS: no limbs form (human ZRS mutations →ectrodactyly, missing limbs)

The math of morphogen gradients: Shh concentration decays exponentially from source: $C(x) = C_0 e^{-x/\lambda}$ where $\lambda$ is decay length (~300 μm in limb bud).

Deriving this: Diffusion + degradation at steady state:

• Fick's second law: $D \frac{\partial^2 C}{\partial x^2} = kC$ (degradation rate $k$)
• General solution: $C(x) = Ae^{x/\lambda} + Be^{-x/\lambda}$, where $\lambda = \sqrt{D/k}$
• Boundary conditions: $C(0) = C_0$, $C(\infty) = 0$ → $A=0$, $B=C_0$

WHY does this matter? Cells "read" Shh concentration to decide digit identity (thumb vs. pinky based on [Shh]).

Part 3: The Combinatorial Code

The math:

• 10TF binding sites one enhancer
• Each site can be bound (1) or unbound (0)
• Possible states: $2^{10} = 1024$ different "input codes"
• Each code → different transcriptional output

But reality is more nuanced: $\text{Transcription rate} = \beta_0 + \sum_{i=1}^{n} \beta_i \cdot [\text{TF}_i] + \sum_{i<j} \beta_{ij} \cdot [\text{TF}_i][\text{TF}_j]$

Reading this equation:

• $\beta_0$: Basal rate (no TFs)
• $\beta_i$: Independent contribution of TF $i$
• $\beta_{ij}$: Synergistic effect when both TF $i$ and TF $j$ are present

Deriving synergy: If two TFs on an enhancer help each other recruit mediator:

• TF1 alone recruits mediator with efficiency $\alpha_1$
• TF2 alone recruits mediator with efficiency $\alpha_2$
• Together: Efficiency is not $\alpha_1 + \alpha_2$ but $\alpha_1 \cdot \alpha_2 \cdot S$ where $S > 1$ (synergy factor)
• This creates the $\beta_{ij}$ interaction term

Real example: Liver-specific albumin enhancer requires:

• HNF4α AND CEBP/α AND FOXA2 all present
• If any one is missing, transcription drops to <1% of normal
• This is called an AND gate in logic

Common Mistakes & Misconceptions

The reality: Enhancers can be 1 megabase away (1,000,000 bp). The ZRS enhancer for Sonic Hedgehog is a classic example. DNA loping through 3D space brings distant elements together.

The fix: Always remember the3D nucleus. DNA is not a flat string but a tangled ball. Chromosome conformation capture (3C, Hi-C) experiments show these long-range loops directly.

WHY does biology use distant enhancers?

• Evolutionary flexibility: New enhancers can arise far from genes without disrupting coding sequence
• Insulation: CTCF boundaries between enhancer and gene prevent crosstalk

The reality: Human genes average 4-8 enhancers each, and some (like Shh) have >10. Each enhancer drives expression in a different tissue or developmental stage.

Example: PAX6 (eye development gene) has:

• Enhancer 1: Active in lens → lens expression
• Enhancer 2: Active in retina → retina expression
• Enhancer 3: Active in brain → forebrain expression
• Enhancer 4: Active in pancreas → pancreatic expression

The fix: Think "gene expression program" not "on/off switch." Each enhancer is a module that responds to a specific cellular context.

The reality: TFs almost always work in multi-protein complexes. A typical active enhancer has 8-15 different TFs bound simultaneously, plus mediator (~30 subunits), cohesin, chromatin remodelers, and histone modifiers.

The math of cooperativity: If 4 TFs each bind with $K_d = 100$ nM independently, saturation requires very high concentrations. But with cooperativity (Hill coefficient $n=4$), effective $K_d$ drops to ~1 nM, allowing sharp, threshold-like activation.

The fix: Always think "TF complex" not "TF." The pioneer factor FOXA2 doesn't activate alone—it opens chromatin for other TFs to bind.

Active Recall Questions

So how does a cell know which books to read? It uses special proteins called transcription factors—think of them as librarians with sticky notes. These librarians walk around, find specific instruction books, and stick notes on them that say "READ THIS ONE!" or "SKIP THIS ONE!"

But here's the cool part: The sticky notes (called enhancers) can be super far away from the actual book—like on a different shelf! But the library is actually tangled mess, so when the librarian puts a sticky note far away, they can bend the shelf to bring the note and the book together. It's like reaching across a mesy room to grab your phone charger without standing up.

Why does this matter? Because your liver cells and brain cells have the SAME library books, but different librarians with different sticky notes. That's how one set of instructions makes200 different types of cells!

Memory Aids

Connections & Integration

Prerequisites:

• DNA Structure and Replication — Understanding of DNA sequences and major/minor grooves
• Transcription in Prokaryotes — Contrast with simpler operator/promoter model
• Chromatin Structure — How nucleosomes block TF access

Related Concepts:

• Epigenetics and Histone Modifications — TFs recruit histone-modifying enzymes
• Signal Transduction Pathways — Signals activate TFs (e.g., steroid hormones → nuclear receptors)
• Cell Differentiation — Master regulators (MyoD, GATA1) are TFs that define cell fate
• Mutations in Regulatory Regions — Enhancer mutations cause disease without changing protein sequence

Extends to:

• RNA Processing and Alternative Splicing — TFs also control splicing factors
• MicroRNA Regulation — TFs regulate miRNA genes
• Cancer and Oncogenes — Mutant TFs (like MYC amplification) drive cancer

Flashcards

#flashcards/biology

What is a transcription factor? :: A protein that binds to specific DNA sequences in regulatory regions and controls the rate of transcription by recruiting or blocking RNA polymerase II machinery.

Define combinatorial gene regulation :: The principle that multiple transcription factors binding to the same enhancer create specific expression patterns—like an AND gate requiring all factors present for activation.
