Explain xylem and phloem structure - function

1. Xylem — the water pipes

WHAT is it made of?

Tracheids — long, tapered, dead cells; water passes through pits.
Vessel elements — wider, stacked end-to-end; end walls dissolve to form a continuous vessel (an open tube). Found in flowering plants (angiosperms).
Xylem fibres — support.
Xylem parenchyma — only living cells; store food.

How water actually moves up (Transpiration pull)

Formula Water potential drives the flow

Water moves from high water potential to low water potential: $\Psi = \Psi_s + \Psi_p + \Psi_g$ Why this form? $\Psi$ (total water potential) is the tendency of water to move. $\Psi_s$ (solute potential) is negative because dissolved solutes "hold" water. $\Psi_p$ (pressure potential) is positive when squeezed, negative (tension) inside a transpiring xylem. $\Psi_g$ (gravitational potential) accounts for height — in a tall tree, lifting water upward makes $\Psi_g$ increasingly positive with height, so it opposes the rise and the transpiration tension must overcome it. (For short plants $\Psi_g$ is often neglected.)

Soil: $\Psi \approx 0$ (high) → Leaf air: $\Psi$ very negative (low). Water flows down this gradient, upward through the plant.

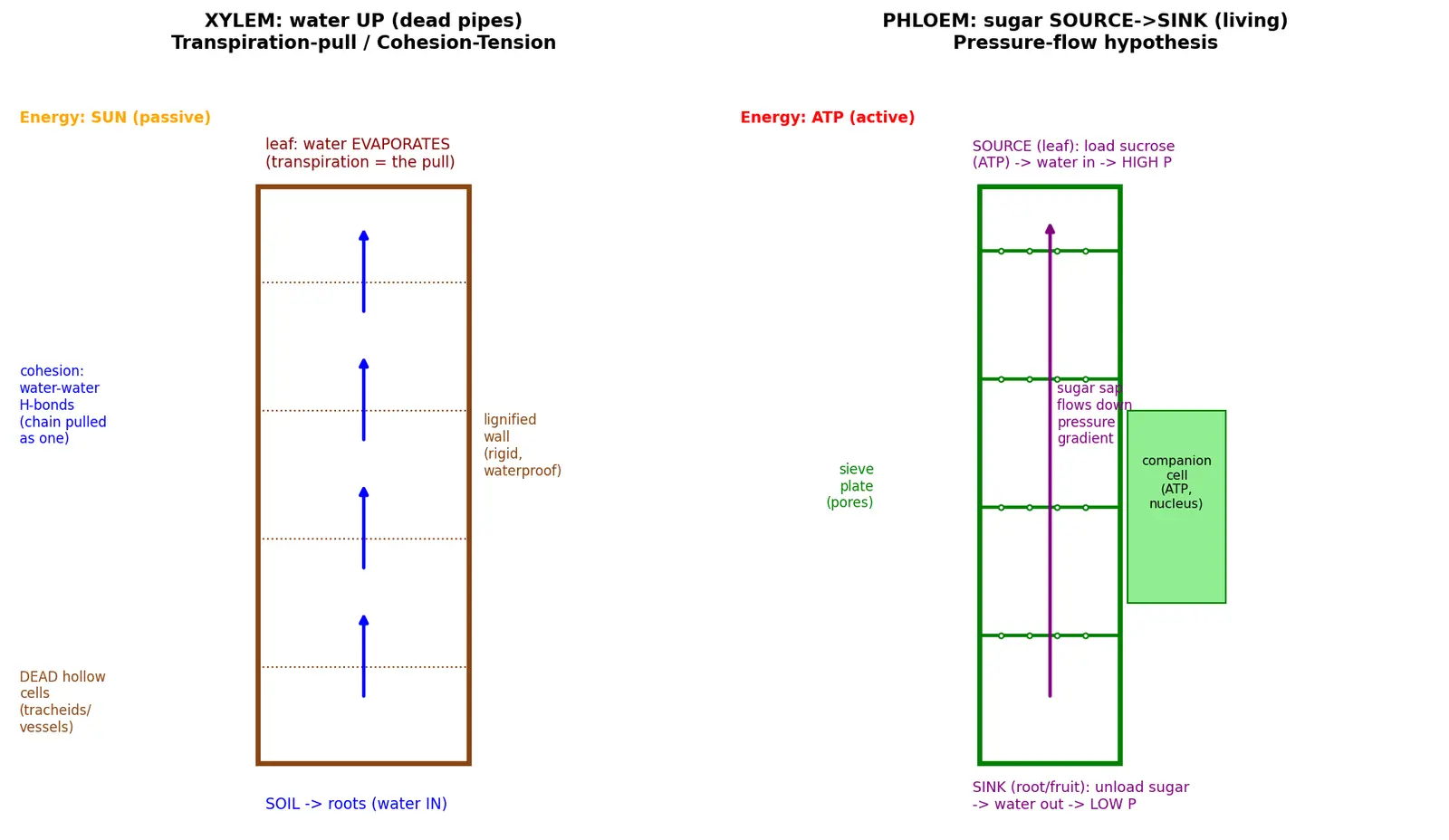

Figure — Explain xylem and phloem structure - function

2. Phloem — the food pipes

WHAT is it made of?

Sieve tube elements — living but have lost their nucleus; joined end-to-end by sieve plates (perforated walls, like a colander).
Companion cells — packed with nucleus + mitochondria. They do the thinking and ATP-making for the sieve tube next door.
Phloem parenchyma & fibres.

How sugar moves (Pressure-flow / Mass-flow)

3. Side-by-side (the 20% that gives 80%)

Feature	Xylem	Phloem
Carries	Water + minerals	Sugars/organics
Direction	Up only (root→leaf)	Both (source→sink)
Cells alive?	Dead	Living
Energy used?	No (passive, Sun-driven)	Yes (ATP to load)
Driving force	Transpiration pull (tension)	Pressure-flow (source pressure)
Key cells	Tracheids, vessels	Sieve tubes + companion cells
Wall	Lignified	Cellulose, sieve plates

Common mistake Steel-man the common errors

"Xylem transports water UP and phloem transports water DOWN." Why it feels right: symmetry is tempting, and sugars often go down to roots. The fix: Phloem moves sugar, not primarily water, and it can go up or down depending on the sink. A growing fruit at the top pulls sugar upward.

"The plant spends energy pumping water up the xylem." Why it feels right: climbing 30 m seems like it must need effort. The fix: Xylem transport is passive — the Sun's evaporation creates the tension. The plant spends energy on phloem loading, not xylem lifting.

"Sieve tubes have no nucleus so they're dead." Why it feels right: no nucleus = usually dead in our intuition. The fix: They're living (cytoplasm intact) but nucleus-less; the companion cell keeps them alive.

Recall Feynman: explain to a 12-year-old

Imagine a tree is like a house with two sets of pipes. One set (xylem) is like dead drinking straws that suck water up from the ground — the Sun dries out the leaves at the top, and that "thirst" pulls the whole rope of water up, like slurping juice. The other set (phloem) is like a living delivery service that takes the sugar made in the leaves and carries it to hungry parts — roots, fruits, wherever. The delivery pipes use energy (like a delivery truck uses fuel) to push sugar-water where it's needed. So: dead straws suck water up for free; living trucks push food anywhere using energy.

Flashcards

What tissue carries water & minerals upward?

Xylem

What tissue carries sugars from source to sink?

Phloem

Are xylem water-conducting cells living or dead?

Dead (lignified, hollow)

Are sieve tube elements living or dead?

Living, but without a nucleus

Name the two water-conducting xylem cell types.

Tracheids and vessel elements

What polymer makes xylem walls rigid & waterproof?

Lignin

What theory explains water rising in xylem?

Cohesion–Tension (transpiration pull)

What provides the energy for water to rise in xylem?

The Sun (evaporation/transpiration) — plant uses no ATP

Cohesion vs adhesion in xylem?

Cohesion = water–water H-bonds; adhesion = water–wall attraction

What cell supports the sieve tube element metabolically?

Companion cell

What connects a sieve tube to its companion cell?

Plasmodesmata

Name the perforated end-walls in phloem.

Sieve plates

What hypothesis explains sugar movement in phloem?

Pressure-flow (mass-flow) hypothesis

Does phloem use ATP? Where?

Yes — to load sucrose at the source

Which direction can phloem transport go?

Both up and down (source → sink)

Write the full water potential equation.

\Psi = \Psi_s + \Psi_p + \Psi_g

What does the gravitational term

\Psi_g

account for?

The height of the water column — opposes upward rise in tall plants

In which direction does water move between soil and roots?

Soil → roots (water enters roots from the soil)

Why is pressure potential negative in transpiring xylem?

Water is under tension (being pulled), not pushed

Connections

Transpiration and Stomata
Water Potential and Osmosis
Photosynthesis (source of sugars)
Root Structure and Mineral Uptake
Plant Tissues Overview
Cohesion-Tension Theory
Active Transport and ATP

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, plant ke andar do alag-alag "pipe systems" hote hain kyunki paani neeche (jadon me) hai aur khana upar (patton me) banta hai. Pehla system hai xylem — ye mare hue (dead), khokle pipes hote hain jinme lignin ki wajah se strong, waterproof deewar hoti hai. Xylem paani aur minerals ko sirf upar le jaata hai. Sabse mazedaar baat: plant is paani ko upar khinchne ke liye koi energy kharch nahi karta — Suraj patton se paani evaporate karta hai (transpiration), aur isse ek "tension/khinchav" banta hai jo poore paani ke column ko ek rope ki tarah upar khinch leta hai. Paani ke molecules aapas me chipke rehte hain (cohesion), isliye rope tootta nahi. Neeche se paani mitti se jadon me (soil → roots) enter karta hai, root ke andar nahi se bahar nahi. Ye hai Cohesion-Tension theory.

Doosra system hai phloem — ye zinda (living) cells hote hain jo sugar (sucrose) ko carry karte hain. Yahan cells hote hain sieve tube (jinka nucleus gayab hai) aur unka helper companion cell (jisme nucleus aur mitochondria bhare hote hain, jo ATP banata hai). Phloem sugar ko source (jahan banta hai, jaise patta) se sink (jahan use hota hai, jaise jad ya fruit) tak le jaata hai — aur ye direction upar bhi, neeche bhi ho sakti hai.

Phloem me flow kaise hota hai? Source par companion cell ATP lagakar sucrose ko sieve tube me load karta hai. Zyada sugar → osmosis se paani andar aata hai → high pressure ban jaata hai. Sink par sugar nikal jaata hai → pressure kam. Is pressure difference ki wajah se sap high se low pressure ki taraf push hota hai — isko Pressure-flow hypothesis kehte hain. Isliye phloem ko ATP chahiye, xylem ko nahi.

Ek important baat tall trees ke liye: total water potential me ek gravitational term ( $\Psi_g$ ) bhi hota hai — jitna upar paani lift karna ho, gravity utna oppose karti hai, isliye pura equation hai $\Psi = \Psi_s + \Psi_p + \Psi_g$ . Yaad rakhne ka short trick: Xylem = dead + water UP + free (Sun), Phloem = living + food any-direction + ATP se pump. Exam me sabse common galti: mat sochna ki xylem energy use karta hai ya phloem sirf neeche jaata hai — dono galat hain!
