4.2.8Circulatory System

Explain blood pressure and its regulation

2,100 words10 min readdifficulty · medium3 backlinks

WHAT is blood pressure?


HOW is BP generated? (Derive it from first principles)

We want to know what BP depends on. Think of the whole circulation as a fluid flow problem.

Step 1 — Analogy to an electric circuit (Ohm's law). For any flow driven by a pressure difference through a resistance:

Flow=Driving pressureResistance\text{Flow} = \frac{\text{Driving pressure}}{\text{Resistance}}

Why this step? Fluid, like current, moves from high to low pressure, and the "pipes" oppose it. This is Ohm's law I=V/RI = V/R rewritten for blood.

Step 2 — Name the biological terms.

  • Flow = Cardiac Output (CO) = volume of blood pumped per minute.
  • Driving pressure ≈ Mean Arterial Pressure (MAPMAP) (pressure at aorta ≫ pressure at veins, so the venous end ≈ 0).
  • Resistance = Total Peripheral Resistance (TPR) = friction from all the small vessels.

Rearranging Flow = Pressure/Resistance for pressure:

MAP=CO×TPR\boxed{MAP = CO \times TPR}

Why this step? This is the master equation. It tells us BP can change only if CO changes, or TPR changes, or both.

Step 3 — Break down CO. Cardiac output = how much blood per beat × how many beats per minute:

CO=SV×HRCO = SV \times HR

where SVSV = stroke volume (mL/beat) and HRHR = heart rate (beats/min).

Step 4 — Combine.

MAP=SV×HR×TPRMAP = SV \times HR \times TPR

Why this step? Now we see the three levers the body can pull to change BP: stroke volume, heart rate, and vessel diameter (which controls TPR). Every regulation mechanism works by adjusting one of these.

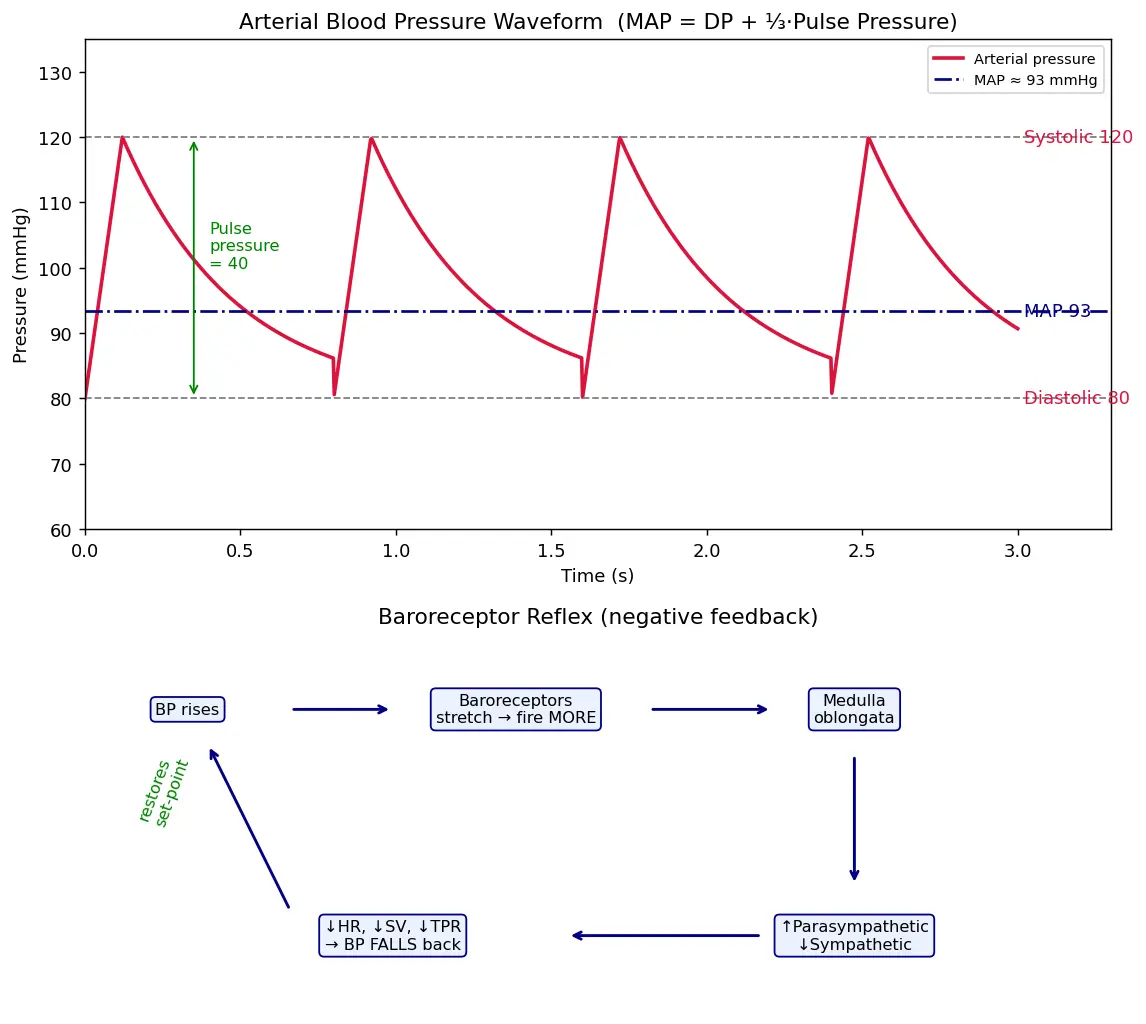

Figure — Explain blood pressure and its regulation

HOW is BP regulated? Three time-scales

The body defends the set-point over seconds, hours, and days.

1. Short-term (seconds): the Baroreceptor Reflex — a negative feedback loop

Trace the loop (WHY it self-corrects):

  1. BP rises → arterial wall stretches more → baroreceptors fire faster.
  2. Signals go to the medulla oblongata (cardiovascular centre).
  3. Medulla responds: ↑ parasympathetic (vagus) + ↓ sympathetic.
  4. Effects: ↓ HR, ↓ SV, ↓ TPR (vasodilation) → by MAP=SV×HR×TPRMAP=SV\times HR\times TPR, MAP falls back. ✅

If BP falls the whole loop runs in reverse (less firing → more sympathetic → ↑HR, vasoconstriction → BP rises). This is why it's negative feedback: the response opposes the change.

2. Medium-term (minutes–hours): Hormones

  • Adrenaline/Noradrenaline (adrenal medulla, sympathetic): ↑HR, ↑SV, vasoconstriction → ↑BP.
  • ADH (vasopressin): reabsorbs water at kidney + vasoconstriction → ↑ blood volume → ↑BP.

3. Long-term (hours–days): the Kidneys — the RAAS system


Worked examples


Common mistakes (Steel-man → Fix)


Flashcards

What is blood pressure?
The lateral force exerted by circulating blood on artery walls per unit area, measured in mmHg.
Normal BP value (systolic/diastolic)?
120/80 mmHg.
Systolic vs diastolic pressure?
Systolic = during ventricular contraction (~120); diastolic = during ventricular relaxation (~80).
The master equation for mean arterial pressure?
MAP = CO × TPR = SV × HR × TPR.
Formula for MAP from SP and DP?
MAP = DP + ⅓(SP − DP).
Why is diastole weighted ⅔ in MAP?
The heart spends about twice as long in diastole as in systole.
What is pulse pressure?
Systolic − diastolic pressure (SP − DP).
Where are baroreceptors located?
Carotid sinus and aortic arch.
Do baroreceptors fire more when BP rises or falls?
More when BP rises (walls stretch more).
Which brain region processes the baroreceptor reflex?
Medulla oblongata (cardiovascular centre).
Response to high BP via baroreflex?
↑ parasympathetic (vagus), ↓ sympathetic → ↓HR, ↓TPR → BP falls.
What triggers renin release?
A fall in blood pressure / renal perfusion.
Role of angiotensin II?
Potent vasoconstrictor (↑TPR) and stimulates aldosterone.
Role of aldosterone in BP?
Increases Na⁺ and water reabsorption → ↑ blood volume → ↑BP.
Which organ controls long-term BP?
The kidneys (via blood volume and RAAS).
Why is baroreflex negative feedback?
The response opposes the initial change, restoring BP toward set-point.

Recall Feynman: explain to a 12-year-old

Imagine your heart is a squirt-pump and your blood vessels are garden hoses. Every squeeze pushes water hard against the hose walls — that push is blood pressure. The big squeeze number is 120, the resting-between-squeezes number is 80. If the push gets too strong, tiny sensors in your neck feel the hose stretch and tell your brain "ease off!" — so your heart slows and the hoses widen. If the push is too weak (like when you stand up fast and feel dizzy), the sensors relax, the brain says "pump harder!" and squeezes the hoses narrower. And over days, your kidneys decide how much water to keep in the hoses — more water, more pressure.


Connections

  • Human Heart — Structure and Cardiac Cycle (SV & HR come from here)
  • Blood Vessels — Arteries, Veins, Capillaries (TPR lives in arterioles)
  • Nervous System — Autonomic Control (sympathetic/parasympathetic)
  • Endocrine System — Adrenal Hormones (adrenaline, aldosterone)
  • Excretory System — Kidney and RAAS (long-term volume control)
  • Homeostasis and Negative Feedback (the general principle behind the baroreflex)

Concept Map

measured as

systole

diastole

via

via

equals

master equation

derived from

CO breaks into

lever 1

lever 2

lever 3

Blood Pressure

Systolic over Diastolic

Ventricles contract 120

Ventricles relax 80

MAP = DP + one third pulse pressure

Mean Arterial Pressure

MAP = CO x TPR

Ohms law Flow = Pressure over Resistance

CO = SV x HR

Stroke Volume

Heart Rate

Total Peripheral Resistance

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, blood pressure ka matlab bas itna hai — jab tumhara heart blood ko pump karta hai, to woh blood arteries ki walls pe kitni zor se dhakka maar raha hai. Do numbers aate hain: upar wala (systolic, ~120) jab ventricle contract hota hai, aur neeche wala (diastolic, ~80) jab heart rest karta hai. Isliye BP likhte hain 120/80 mmHg. Ek master formula yaad rakho: MAP = CO × TPR, aur CO = SV × HR. Matlab pressure sirf teen cheezon se badalta hai — stroke volume, heart rate, aur vessels kitni tight hain (resistance).

Ab regulation — body ko BP ko ek safe range me rakhna hota hai, warna zyada high me artery phat sakti hai aur bahut low me dimaag ko khoon nahi milega aur chakkar aa jayenge. Sabse fast system hai baroreceptor reflex. Gale me (carotid sinus) aur aorta me stretch sensors hote hain. BP badha → wall zyada stretch → sensors zyada fire karte hain → medulla oblongata ko message → parasympathetic on, sympathetic off → HR aur TPR kam → BP wapas neeche. Yahi negative feedback hai: jo bhi change hua, uska ulta response.

Medium aur long term me hormones aur kidney kaam karte hain. Adrenaline turant BP badhata hai. Sabse important long-term controller hai kidney ka RAAS system — BP gira to renin release hota hai, angiotensin II banta hai (vessels tight karta hai), aur aldosterone Na⁺ aur paani reabsorb karwata hai, jisse blood volume badhta hai aur BP up ho jata hai.

Ek common galti: MAP ko 120 aur 80 ka simple average (100) mat samajhna. Heart diastole me zyada time rehta hai, isliye formula hai MAP = DP + ⅓(SP − DP) ≈ 93. Yeh chhoti si baat exam me marks dila deti hai!
