Describe the ribosome's A, P, E sites — Biology notes

Overview

The ribosome contains three tRNA binding sites that work together like an assembly line to translate mRNA into protein. Each site has a specific role in the translation cycle, and understanding their spatial arrangement and function is essential for grasping how cells build proteins with perfect accuracy.

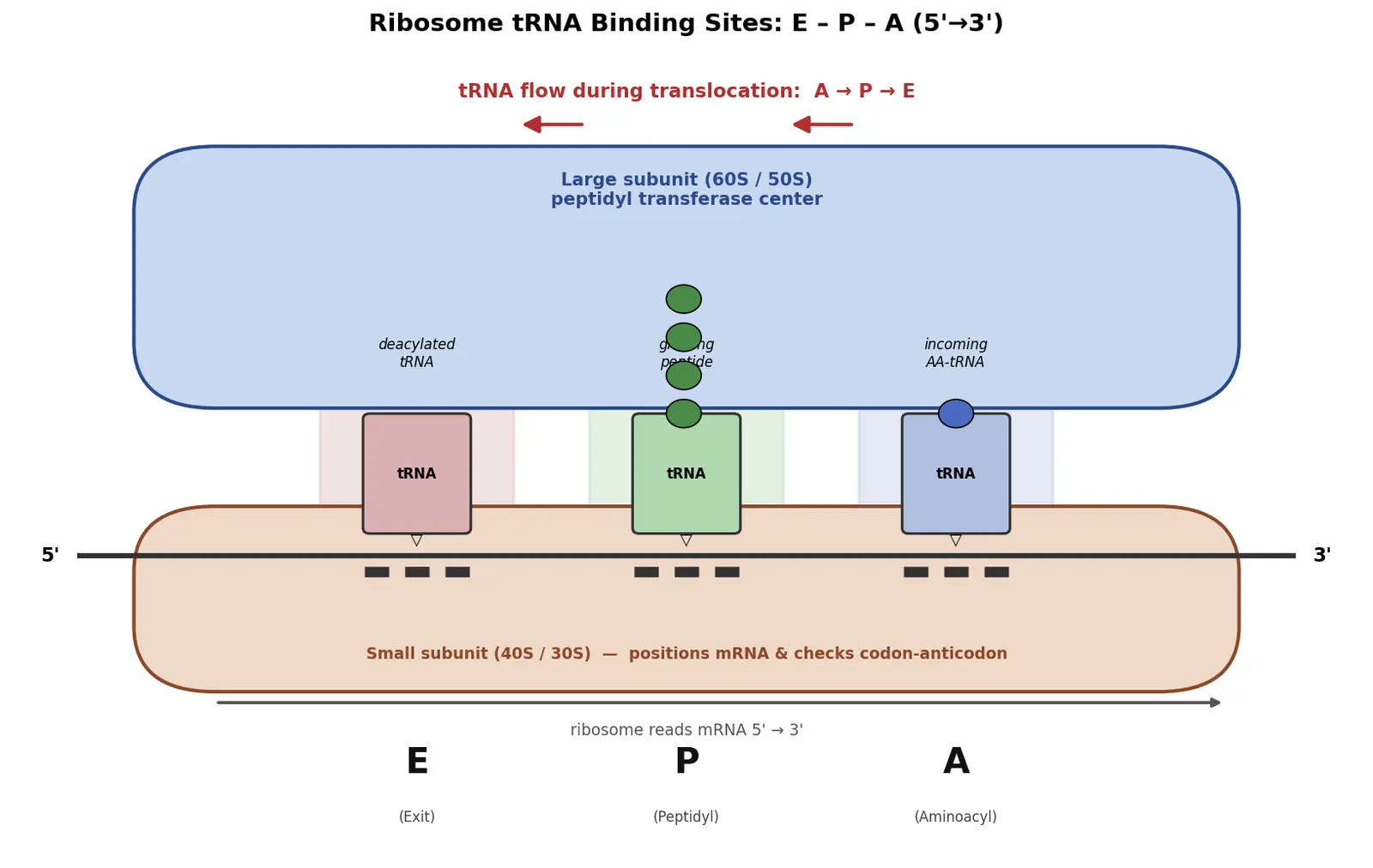

Figure — Describe the ribosome's A, P, E sites

The Three Sites: Purpose and Position

Spatial Arrangement: How They Work Together

Physical Location

All three sites span both ribosomal subunits (small 40S/30S and large 60S/50S)
The small subunit positions the mRNA and ensures correctdon-anticodon pairing
The large subunit catalyzes peptide bond formation (via its rRNA in the peptidyl transferase center)
Sites are arranged linearly along the mRNA path: E-P-A (from 5' to 3' direction)

Why This Arrangement?

WHY three sites? Two sites would force the ribosome to release the old tRNA before the new one arrives, risking translation errors. Three sites create an overlap period where both old and new tRNAs are temporarily bound, ensuring continuous peptide chain growth without gaps.

WHY this specific order (E-P-A)? The ribosome reads mRNA 5' → 3', so new codons enter from the 3' side. The A site must be "downstream" to receive the next codon, while the E site is "upstream" to release used tRNAs.

The Translation Cycle: Step-by-Step Movement

Formula The Elongation Cycle

Initial State: P site holds peptidyl-tRNA, A site is empty, E site may hold deacylated tRNA

Step 1 - Aminoacyl-tRNA Binding $\text{Aminoacyl-tRNA} + \text{EF-Tu-GTP} \rightarrow \text{A site occupancy}$

Elongation factor Tu (EF-Tu) delivers the correct aminoacyl-tRNA to the A site
Anticodon pairs with mRNA codon
GTP hydrolysis confirms correct match (proofreading step)
WHY GTP? Energy is needed to "test" codon-anticodon pairing and reject incorrect tRNAs before committing to bond formation

Step 2 - Peptide Bond Formation $\text{Peptide}_{(n)}\text{-tRNA}_{\text{P}} + \text{AA-tRNA}_{\text{A}} \rightarrow \text{Peptide}_{(n+1)}\text{-tRNA}_{\text{A}}$

The peptidyl transferase center (23S rRNA in prokaryotes, 28S in eukaryotes) catalyzes peptide bond
The growing chain is transferred from the P-site tRNA to the amino acid on the A-site tRNA
WHY transfer? The peptide must be on the tRNA that's about to move to the P site in next step
Now: A site has peptidyl-tRNA, P site has deacylated tRNA

Step 3 - Translocation $\text{EF-G-GTP} + \text{ribosome} \rightarrow \text{mRNA shifts 3 nucleotides (1 codon)}$

Elongation factor G (EF-G in prokaryotes, eEF2 in eukaryotes) uses GTP hydrolysis to power movement
tRNA movements: A→P, P→E, E→exit
mRNA movement: advances exactly 3 nucleotides
WHY GTP again? Translocation requires conformational changes in the ribosome; GTP hydrolysis provides the energy

Result: P site now has the growing peptide, A site is empty (ready for next aminoacyl-tRNA), E site holds the just-released deacylated tRNA

Deriving the Coordination

Let's understand WHY the sites must coordinate precisely:

Number of amino acids added per cycle: exactly 1
- One codon (3 nucleotides) = one amino acid
Energy requirement per amino acid:
- 1 GTP for aminoacyl-tRNA delivery (EF-Tu)
- 1 GTP for translocation (EF-G)
- Total: 2 GTP per amino acid (plus 2 ATP for aminoacyl-tRNA synthesis)
Spatial constraint: If sites weren't physically separate, tRNAs would collide or dissociate prematurely

Detailed Examples: Tracking One Amino Acid Addition

Worked example Example 1: Adding Leucine to a Growing Peptide

Initial state:

mRNA sequence: 5'...AUG-GCU-UA-CCG...3'
Currently translating GCU (Alanine in P site)
P site: tRNA with anticodon 3'-CGA-5' carrying peptide chain (Met-Ala)
A site: empty, positioned over UA codon
E site: empty tRNA from Met just exiting Step 1 (Binding):
Leu-tRNA (anticodon 3'-AAU-5') delivered by EF-Tu-GTP
Anticodon AAU pairs with codon UA (checking: A-U, A-U, U-A ✓)
GTP hydrolyzed → EF-Tu-GDP leaves
Why this step? Without codon-anticodon verification, wrong amino acids would be incorporated (~1 error per 10,000 normally, vs. 1 per 100 without proofreading) Step 2 (Peptide bond):
Peptidyl transferase catalyzes: (Met-Ala)-O-tRNA + Leu-NH₂-tRNA → (Met-Ala-Leu)-O-tRNA
Chemical mechanism: nucleophilic attack by Leu's amino group on the ester bond linking Ala to its tRNA
Why this chemistry? The ester bond (between peptide and tRNA) is higher energy than the amide bond (peptide bond), making the reaction favorable (ΔG ≈ -20 kJ/mol)
Now: A site has Met-Ala-Leu attached, P site has empty tRNA

Step 3 (Translocation):

EF-G-GTP binds, hydrolyzes GTP
Ribosome shifts: tRNA with Met-Ala-Leu moves A→P, empty tRNA moves P→E
mRNA advances: next codon CCG now in A site
Why GTP? Ribosome must undergo conformational change (hybrid state → post-translocation state), requiring ~50 kJ/mol energy Final state:
P site: tRNA carrying Met-Ala-Leu, positioned over UA
A site: empty, positioned over CCG (ready for Proline)
E site: empty tRNA from Alanine exiting

Worked example Example 2: What Happens at the E Site?

Setup: The E site is often overlooked, but it's crucial for efficiency.

Without E site (hypothetical two-site ribosome):

After translocation, deacylated tRNA in P site must dissociate
Dissociation takes ~0.1 seconds
Only then can new aminoacyl-tRNA bind to A site
Translation rate: ~10 amino acids/second maximum With E site (actual three-site ribosome):
Deacylated tRNA moves to E site during translocation
A site can immediately receive new aminoacyl-tRNA (while E site tRNA is still leaving)
Translation rate: ~20 amino acids/second in bacteria, ~5-10 in eukaryotes
Why the difference? Eukaryotic ribosomes are larger and proofreading is more stringent

Energy perspective:

Keeping tRNA in E site briefly costs ~5 kJ/mol binding energy
Benefit: 2× speed = 2× protein synthesis rate
For a cell making10⁶ proteins/hour, this saves ~30 minutes per cell cycle
Evolutionary advantage: The E site evolved because speed matters for cellular fitness

Common Misconceptions and Mistakes

Common mistake Mistake 1: "The ribosome has three different sites for three different tRNAs to bind simultaneously."

Why this feels right: We learn "three sites" and imagine three independent parking spots.

Why it's wrong: While threeRNAs CAN be bound simultaneously (during the brief period after translocation), the sites aren't independent. They form a functional unit that cycles together. A tRNA MUST pass through all three sites in order: A → P → E. The fix: Think of the sites as three stages in a conveyor belt, not three separate destinations. At any given moment, you might see0-3 tRNAs bound (depending on where you are in the cycle), but each tRNA follows the same path. Test yourself: Can a tRNA ever go directly from A to E, skipping P? NO - the peptide chain must be on the P-site tRNA, so every tRNA must pass through P to contribute its amino acid.

Common mistake Mistake 2: "The A site is called'Aminoacyl' because amino acids arrive there."

Why this feels right: The name sounds related to amino acids, and new amino acids do arrive at the A site.

Why it's incomplete: The A site is named for aminoacyl-tRNA, not just the amino acid. The tRNA must be "charged" (aminoacylated) to bind the A site. Deacylated (uncharged) tRNA cannot bind the A site effectively.

The deeper understanding:

Aminoacyl-tRNA synthetases charge tRNAs in the cytoplasm: tRNA + amino acid + ATP → aminoacyl-tRNA + AMP + PPᵢ
Only these charged tRNAs are recognized by EF-Tu for A site delivery
WHY this system? It prevents empty tRNAs from interrupting translation and ensures each codon gets its amino acid

Evidence: Mutant tRNAs that can't be aminoacylated don't bind the A site, even if they have the correct anticodon.

Common mistake Mistake 3: "Peptide bond formation requires GTP."

Why this feels right: Many translation steps use GTP, so it's easy to assume peptide bond formation does too.

Why it's wrong: Peptide bond formation is catalyzed by the ribosomal RNA (peptidyl transferase center) and requires NO external energy source. It's thermodynamically favorable because: $\Delta G = \text{(ester bond broken)} - \text{(amide bond formed)} \approx -20 \text{ kJ/mol}$

Thester bond linking the peptide to tRNA is higher energy than the amide (peptide) bond.

Where GTP IS used:

Aminoacyl-tRNA delivery (EF-Tu-GTP)
Translocation (EF-G-GTP)
Initiation and termination But NOT for the actual peptide bond.

Why the confusion? GTP hydrolysis is needed for the conformational changes that position the substrates correctly, but the chemical bond formation is RNA-catalyzed and energy-neutral (or even exergonic).

Active Recall Practice

Recall Explain to a 12-year-old (Feynman Technique)

Imagine you're building a LEGO spaceship, and you have special machine that reads instructions and snaps pieces together.

The ribosome is like this machine, and it has three slots: Slot A (Arrival): Where the next LEGO piece arrives. The machine checks: "Does this piece match the instruction?" If yes, it accepts it.

Slot P (Production): Where your spaceship is growing. The machine takes the new piece from Slot A and snaps it onto the spaceship here. Now your spaceship is one piece longer!

Slot E (Exit): After a piece is used, its packaging (the thing that carried it) goes to this slot and then gets thrown away. It leaves so there's room for the next piece.

The machine shifts everything over one slot: A→P, P→E, E→trash. Then it reads the next instruction and cycle repeats.

Why three slots? If you only had two, you'd have to throw away the old packaging BEFORE accepting the new piece, and your spaceship-building would be slower. Three slots let the old packaging leave WHILE the new piece arrives, so building is faster.

That's how your cells build proteins: one amino acid (LEGO piece) at a time, using the ribosome's three slots!

Connections and Context

Prerequisites:

mRNA structure and codons
tRNA structure and anticodons
Ribosome structure - small and large subunits
Aminoacyl-tRNA synthetases

Leads to:

Translation initiation in prokaryotes
Translation elongation cycle detailed
Translation termination and release factors
Polyribosomes and translation efficiency

Related concepts:

Proofreading mechanisms in translation
Woble base pairing
Antibiotics targeting the ribosome
Peptidyl transferase center

Clinical relevance:

Ribosomal antibiotics - how they work (e.g., tetracycline blocks A site, chloramphenicol blocks P site)
Genetic code mutations and frameshift errors

Key Formulas and Relationships

Formula Energy Budget for One Amino Acid Addition

Total ATP equivalents required: $E_{\text{total}} = 2 \text{ ATP (aminoacylation)} + 2 \text{ GTP (elongation)} = 4 \text{ ATP equivalents}$

Breakdown:

Charging tRNA: $\text{AA} + \text{tRNA} + \text{ATP} \rightarrow \text{aminoacyl-tRNA} + \text{AMP} + \text{PP}_i$ $AA + tRNA + ATP \to aminoacyl-tRNA + AMP + PP_{i}$
- Effective cost: 2 ATP (AMP → ATP requires2 high-energy bonds)
A-site binding: $\text{aminoacyl-tRNA} + \text{EF-Tu-GTP} \rightarrow \text{A site} + \text{EF-Tu-GDP}$ $aminoacyl-tRNA + EF-Tu-GTP \to A site + EF-Tu-GDP$
- Cost: 1 GTP
Translocation: $\text{EF-G-GTP} \rightarrow \text{ribosome advance} + \text{EF-GDP}$ $EF-G-GTP \to ribosome advance + EF-GDP$
- Cost: 1 GTP

Thermodynamic perspective:

Peptide bond formation: ΔG ≈ -20 kJ/mol (favorable, no external energy needed)
Total energy invested: 4 × 30.5 kJ/mol ≈ 122 kJ/mol
Why so much energy? Accuracy. Without GTP-driven proofreading, error rate would be ~1%, vs. actual ~0.01%

Formula Translation Speed Formula

$\text{Rate} = \frac{1}{t_{\text{binding}} + t_{\text{peptide}} + t_{\text{translocation}}}$

Prokaryotes (e.g., E. coli):

$t_{\text{binding}} \approx 0.02$ s (EF-Tu delivery + GTP hydrolysis)
$t_{\text{peptide}} \approx 0.01$ s (peptidyl transferase)
$t_{\text{translocation}} \approx 0.02$ s (EF-G + GTP hydrolysis)
Total: ~0.05 s/amino acid → ~20 amino acids/second

Eukaryotes:

Similar steps but slower (larger ribosome, more proofreading)
Rate: ~5-10 amino acids/second Role of E site: Without the E site, $t_{\text{binding}}$ increases by ~0.05 s (waiting for deacylated tRNA dissociation), halving the translation rate.

#flashcards/biology

What are the threeRNA binding sites on the ribosome? :: A site (Aminoacyl site - incoming charged tRNA), P site (Peptidyl site - holds growing polypeptide), E site (Exit site - deacylated tRNA exits from here)

What is the physical order of ribosomal sites along the mRNA (5' to 3')? :: E-P-A (from 5' to 3' direction)

What type of tRNA binds to the A site?

Aminoacyl-tRNA (charged tRNA carrying an amino acid), NOT deacylated tRNA

Where does peptide bond formation occur?

Between the amino acid on the A-site tRNA and the growing peptide chain on the P-site tRNA, catalyzed by the peptidyl transferase center

What powers translocation of tRNAs through the ribosome?

EF-G (prokaryotes) or eEF2 (eukaryotes) with GTP hydrolysis

How many GTP molecules are hydrolyzed per amino acid added?

2 GTP (one for aminoacyl-tRNA delivery by EF-Tu, one for translocation by EF-G)

Does peptide bond formation itself require GTP?

No, it is catalyzed by ribosomal RNA (peptidyl transferase center) and is thermodynamically favorable without external energy

What path does a single tRNA follow through the ribosome?

A → P → E (it must pass through all three sites in order)

Why does the ribosome need three sites instead of two?

To allow simultaneous occupancy during translocation, maintaining translation speed. The E site holds the old tRNA while the new one enters the A site, preventing gaps

What is the function of the E site?

Holds deacylated (empty) tRNA briefly before it exits, allowing the A site to accept new aminoacyl-tRNA simultaneously, doubling translation speed

What happens to the peptide chain during peptide bond formation?

It is transferred from the P-site tRNA to the amino acid on the A-site tRNA, making the A-site tRNA the new peptidyl-tRNA

What is the translation rate in prokaryotes vs eukaryotes?

Prokaryotes: ~20 amino acids/second; Eukaryotes: ~5-10 amino acids/second (larger ribosomes, more proofreading)

Which ribosomal subunit catalyzes peptide bond formation? :: The large subunit (60S in eukaryotes, 50S in prokaryotes), specifically the 23S/28S rRNA in the peptidyl transferase center

What is the total ATP equivalent cost per amino acid added?

4 ATP equivalents (2 for aminoacyl-tRNA synthesis, 2 GTP for delivery and translocation)

Afterocation, where is the growing peptide chain located?

On the tRNA in the P site

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Ribosome ke andar teen khas jagah hoti hain jahan tRNA molecules baithte hain - A site, P site, aur E site. Samjho
