Describe cilia and flagella structure (9+2 arrangement)
WHAT are cilia and flagella?

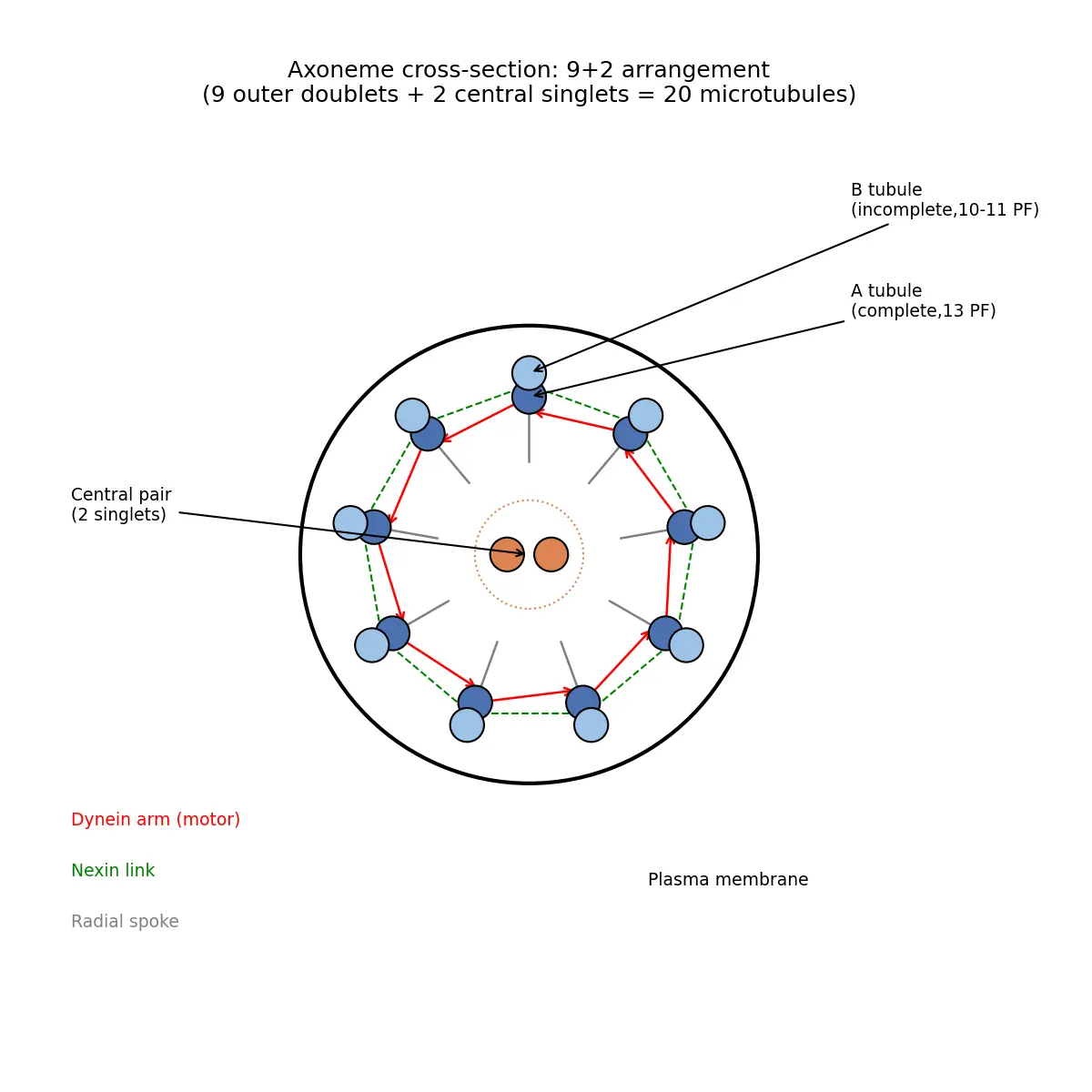

The 9+2 arrangement (the core idea)
Counting the actual tubules (a 12/80 high-yield detail):
- Each outer doublet = one complete A tubule (13 protofilaments) fused to an incomplete B tubule (10–11 protofilaments).
- Centre = 2 complete singlet microtubules.
The connecting parts (HOW it holds together & moves)
| Part | Connects | Job (WHY it exists) |
|---|---|---|
| Dynein arms | A-tubule of one doublet → B-tubule of next | The motor: walks/pulls to make doublets slide |
| Nexin links | Doublet → adjacent doublet | Elastic ties that resist sliding → convert slide into bend |
| Radial spokes | Outer doublet → central pair sheath | Regulate & coordinate the beat |
| Central sheath | Surrounds central pair | Anchor point for spokes |
The base: Basal body (9+0)
Deriving the function from the structure
Flashcards
What does "9+2" refer to?
How many total microtubules are in a 9+2 axoneme?
What is each outer doublet made of?
What protein forms the dynein arms and what do they do?
What converts microtubule sliding into bending?
What is the function of radial spokes & the central pair?
What is the arrangement of the basal body?
Structural difference between cilia and flagella in eukaryotes?
Are eukaryotic and bacterial flagella the same?
Which cells use flagella vs cilia (one example each)?
Recall Feynman: explain it to a 12-year-old
A cilium is like a tiny bendy hair sticking out of a cell. Inside it there are 9 ropes arranged in a circle and 2 ropes in the middle — that's the "9+2". Little molecular "hands" (dynein) grab the ropes and try to slide them past each other. But rubber-band ties (nexin) hold the ropes together, so instead of sliding apart, the whole hair bends and waves — like a rowing oar. Lots of short hairs (cilia) sweep dust and mucus out of your throat; one long hair (flagellum) pushes a sperm cell to swim.
Connections
- Microtubules — the building blocks (tubulin, protofilaments)
- Centriole — same structure as the basal body (9+0)
- Cytoskeleton — broader context of microtubule arrangements
- Dynein and Kinesin (Motor Proteins) — the ATP-driven motors
- Cell Movement and Motility — functional outcome
- Sperm Cell Structure — flagellum in action
Concept Map
Hinglish (regional understanding)
Intuition Hinglish mein samjho
Dekho, cilia aur flagella basically cell ke bahar nikle hue patle "baal" jaise structures hote hain jo cell ko move karne ya fluid ko push karne ke liye beat karte hain. Inke andar ka blueprint hota hai 9+2 arrangement — matlab bahar ek ring mein 9 doublets (har doublet do microtubule ka pair) aur center mein 2 single microtubules. Total count karoge to 9×2 + 2 = 20 microtubules. Yeh ratta maarne ki cheez nahi hai, simple counting hai.
Ab movement kaise hota hai? Dynein naam ka motor protein ATP use karke ek doublet ko doosre ke against slide karwana chahta hai. Par nexin links doublets ko aapas mein baandh ke rakhte hain, isliye slide hone ke bajaye poora structure bend ho jaata hai. Yahi bend hi beating banta hai. Radial spokes aur central pair beat ko coordinate karte hain — agar yeh kharab ho jaayein to cilia paralyse ho jaata hai (isi wajah se respiratory diseases hote hain).
Ek important point: eukaryotes mein cilia aur flagella internally same hote hain — sirf length, number aur beating style alag hai. Cilia chhote aur bahut saare (mucus saaf karte hain), flagella lambe aur kam (jaise sperm ko swim karwate hain). Base par jo basal body hota hai woh 9+0 hota hai (9 triplets, no center) — bilkul centriole jaisa. Trick yaad rakho: "Beat needs Two, Base needs none."
Exam ke liye 80/20: 9+2 ka matlab, total 20 microtubules, dynein = motor, nexin = sliding ko bending banata hai, basal body = 9+0. Yeh paanch points pakke kar lo, zyada marks idhar se aate hain.
