Explain polar vs nonpolar covalent bonds

Overview

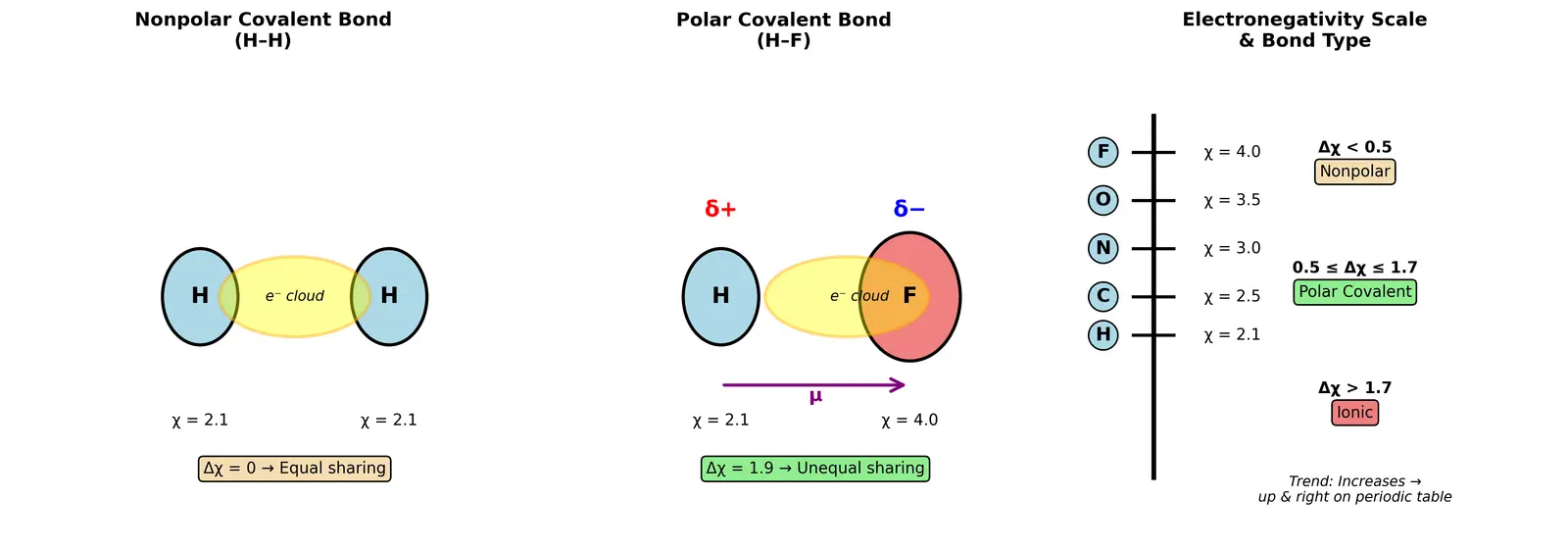

When atoms share electrons in a covalent bond, the electrons aren't always shared equally. Electronegativity differences create polar covalent bonds (unequal sharing) or nonpolar covalent bonds (equal sharing). This seemingly small difference determines whether molecules dissolve in water, how proteins fold, and why oil and water don't mix.

---

Core Concepts

---

Derivation: Why Electronegativity Differences Matter

Starting principle: In a covalent bond, electrons form a shared "cloud" between nuclei. But each nucleus exerts an attractive force on those electrons.

Step 1: Model the electron cloud For atom A with electronegativity χ_A and atom B with χ_B:

• Each atom's nucleus attracts the shared electrons
• Electron density shifts toward the atom with stronger attraction (higher χ)

Step 2: Calculate the dipole moment The dipole moment (μ) quantifies charge separation:

$\mu = \delta \cdot d$

where:

• δ = partial charge magnitude (in coulombs)
• d = bond length (distance between nuclei, in meters)

Step 3: Relate to electronegativity difference Empirically (Pauling scale):

$\delta \propto |\chi_A - \chi_B|$

Why this step? The greater the "tug-of-war" strength difference, the more the electron cloud shifts toward one atom, creating larger partial charges.

Step 4: Define polarity thresholds

\text{Nonpolar covalent} & \text{if } |\Delta\chi| < 0.5 \\ \text{Polar covalent} & \text{if } 0.5 \leq |\Delta\chi| \leq 1.7 \\ \text{Ionic} & \text{if } |\Delta\chi| > 1.7 \end{cases}$$ **Why these cutoffs?** They're empirical boundaries based on observed molecular behavior: - < 0.5: Charge separation too small to affect chemical properties significantly - 0.5–1.7: Partial charges create dipoles but electrons still shared - \> 1.7: Electron transfer is essentially complete (ionic bond) >[!formula] Dipole Moment Calculation >For a bond with partial charges ±δ separated by distance d: >$$\mu = \delta \cdot d$$ > >Units: Debye (D), where 1 D = 3.34 × 10⁻³⁰ C·m > >**Derivation from first principles:** >1. Electric dipole = two equal/opposite charges separated in space >2. Moment magnitude = charge × separation (definition from electrostatics) >3. Direction: from δ+ to δ− by convention --- ## Worked Examples >[!example] Example 1: H–H Bond (Nonpolar) >**Question:** Is the H–H bond in H₂ polar or nonpolar? >**Solution:** >- Electronegativity of H: 2.1 >- Δχ = |2.1 − 2.1| = 0 >- **Conclusion:** Nonpolar (identical atoms, perfectly equal sharing) > >**Why this step?** When atoms are identical, their nuclear charges and sizes are identical, so neither can "win" the electron-pulling contest. The electron cloud sits exactly midway. > >**Visual:** The electron density map would show a perfect oval centered between the two nuclei. >[!example] Example 2: C–H Bond (Nonpolar) >**Question:** Analyze the C–H bond in methane (CH₄). >**Solution:** >- χ(C) = 2.5, χ(H) = 2.1 >- Δχ = |2.5 − 2.1| = 0.4 >- **Conclusion:** Nonpolar (Δχ < 0.5) > >**Why this matters:** Even though carbon is slightly more electronegative, the difference is too small to create significant partial charges. This is why hydrocarbons (like methane, gasoline) are nonpolar and don't dissolve in water. > >**Biological implication:** The hydrocarbon tails of fatty acids are nonpolar, making cell membranes hydrophobic barriers. >[!example] Example 3: O–H Bond (Polar) >**Question:** Analyze the O–H bond in water (H₂O). >**Solution:** >- χ(O) = 3.5, χ(H) = 2.1 >- Δχ = |3.5 − 2.1| = 1.4 >- **Conclusion:** Polar covalent (0.5 < Δχ < 1.7) > >**Step-by-step reasoning:** >1. Oxygen pulls shared electrons more strongly than hydrogen >2. Electron cloud shifts toward oxygen >3. Oxygen becomes δ−, hydrogen becomes δ+ >4. Measured dipole moment: μ = 1.85 D >**Why this step?** The large electronegativity gap means oxygen's nucleus (8 protons) exerts much stronger pull than hydrogen's single proton. Electrons spend ~60% more time near oxygen. > >**Biological significance:** Water's O–H polarity enables: >- Hydrogen bonding (basis for water's high heat capacity) >- Dissolving ionic/polar substances (creating the aqueous environment for biochemistry) >- Protein structure stabilization through H-bonds >[!example] Example 4: C=O Bond (Polar) >**Question:** Is the C=O double bond in aldehydes/ketones polar? > >**Solution:** >- χ(O) = 3.5, χ(C) = 2.5 >- Δχ = |3.5 − 2.5| = 1.0 >- **Conclusion:** Polar (δ− on O, δ+ on C) > >**Why this matters in biology:** >- The carbonyl group (C=O) is found in amino acids, carbohydrates, and nucleotides >- Its polarity makes it a site for: > - Hydrogen bonding (secondary structure of proteins) > - Nucleophilic attack (enzyme catalysis) > - Hydration reactions (forming hemiacetals in sugars) > >**Measured dipole:** μ ≈ 2.3–2.8 D (stronger than O–H because double bond concentrates electrons) --- ## Common Mistakes >[!mistake] Mistake 1: "Polar = Contains Polar Bonds" >**Wrong reasoning:** "CO₂ has two polar C=O bonds, so CO₂ is polar." >**Why it feels right:** Each C=O bond IS polar (Δχ = 1.0). There ARE partial charges. > >**The fix:** ==Molecular polarity== depends on **geometry**, not just bond polarity. CO₂ is **linear** (O=C=O), so the two bond dipoles point in opposite directions and **cancel out**. Net dipole = 0, so CO₂ is nonpolar. > >**Contrast:** H₂O has two polar O–H bonds AND a **bent** shape (104.5° angle). The dipoles add as vectors, creating a net dipole. Water IS polar. > >**Rule:** A molecule is polar if it has polar bonds AND an asymmetric shape. >[!mistake] Mistake 2: "Δχ > 1.7 = Covalent Bond" >**Wrong reasoning:** "Na–Cl has Δχ = 2.1, which is > 1.7, so it's a very polar covalent bond." > >**Why it feels right:** We learned there's a spectrum from nonpolar → polar → ionic. > >**The fix:** When Δχ > 1.7, electron transfer is essentially **complete**—one atom strips the electron(s) from the other. This is an ==ionic bond==, not covalent. In NaCl: >- Na becomes Na⁺ (loses its3s¹ electron) >- Cl becomes Cl⁻ (gains that electron, completing its3p shell) >- The "bond" is electrostatic attraction between ions, not shared electrons > >**Biological note:** Ionic bonds (salt bridges) are common in protein structure but **break in water** because water molecules stabilize the separated ions. >[!mistake] Mistake 3: "Nonpolar Means No Charge" >**Wrong reasoning:** "Nonpolar molecules have no charge anywhere." > >**Why it feels right:** "Non-polar" literally sounds like "no poles/no charge." > >**The fix:** Nonpolar means no **permanent** charge separation. But nonpolar molecules can have: >1. **Temporary dipoles:** Electrons move randomly, creating fleting charge imbalances (basis for London dispersion forces) >2. **Induced dipoles:** A nearby charge can distort the electron cloud >**Example:** Noble gases (He, Ne, Ar) are perfectly nonpolar atoms, yet they can be liquified at low temperatures because of London dispersion forces from these temporary dipoles. --- ## Visual/Dual Coding Elements **Electronegativity trend on periodic table:** ``` Increases → ↑ F O N C | Decreases | Na Mg Al Si ``` **Electron cloud visualization:** - Nonpolar (H–H): `○–○` (symmetric) - Polar (H–O): `○–●` (shifted toward O) - δ+ on left, δ− on right **Dipole notation:** ``` H—O—H with arrows: H ← O → H δ+ δ− δ+ ``` The diagram (see above) shows: 1. Symmetric electron density for H₂ 2. Asymmetric electron density for H–F (shifted toward F) 3. Dipole moment vector μ pointing from δ+ to δ− --- ## Active Recall Practice >[!recall]- Feynman Technique: Explain to a 12-Year-Old >Imagine you and a friend are holding opposite ends of a rope, and there's a ball tied in the middle. If you both pull with the same strength, the ball stays in the middle—that's like a **nonpolar bond** where atoms share electrons equally. > >But what if your friend is stronger? They'll pull the ball closer to their side—that's a **polar bond**! The stronger friend is like an atom with high electronegativity (like oxygen). The ball (electrons) spends more time on their side, so their end becomes slightly negative and your end becomes slightly positive. >This is super important because water is polar (oxygen is the "strong friend"), which is why water can dissolve salt and why it sticks to itself to form drops. Without polar bonds, life couldn't exist because water wouldn't have its special properties! >[!mnemonic] Remembering Electronegativity Order >**"FON Cares Heavily"** >- **F**luorine (4.0) — highest >- **O**xygen (3.5) >- **N**itrogen (3.0) >- **C**arbon (2.5) >- **H**ydrogen (2.1) > >For polarity cutoffs: **"Five to Seventeen"** >- < 0.**5** → Nonpolar >- 0.5 to **1.7** → Polar covalent >- \> 1.7 → Ionic --- ## Connections - [[1.2.04-Covalent-Bonds-Electron-Sharing|Covalent Bonds]] — Foundation for understanding electron sharing - [[1.2.06-Hydrogen-Bonds|Hydrogen Bonds]] — Arise FROM polar covalent bonds (δ+ H attracts δ− O/N) - [[1.3.02-Water-Properties|Properties of Water]] — Water's polarity explains its high heat capacity, cohesion, and solvent properties - [[2.1.03-Lipid-Structure|Lipid Structure]] — Nonpolar hydrocarbon tails create hydrophobic core of membranes - [[3.2.04-Protein-Folding|Protein Folding]] — Polar/nonpolar interactions drive tertiary structure (hydrophobic core, hydrophilic surface) - [[1.2.07-Ionic-Bonds|Ionic Bonds]] — Extreme end of the electronegativity difference spectrum --- ## Why This Matters **In biochemistry:** 1. **Enzyme active sites** use polar residues (Ser, Thr, Tyr) to stabilize charged transition states 2. **Membrane selectivity** depends on the nonpolar lipid bilayer excluding polar molecules 3. **DNA base pairing** relies on polar N–H and C=O groups forming hydrogen bonds **In medicine:** - **Drug design:** Polarity determines whether a drug can cross the blood-brain barrier (needs nonpolar) or dissolve in blood (needs polar) - **Anesthetics:** Nonpolar molecules (like propofol) dissolve in the nonpolar lipid membranes of neurons **Fundamental insight:** ==Electronegativity differences → bond polarity → molecular polarity → macroscopic properties== (dissolving, boiling point, reactivity). This four-step cascade explains why life requires water and why cells have membranes. --- #flashcards/biology What is electronegativity? :: The measure of an atom's ability to attract shared electrons in a covalent bond; fluorine has the highest value (4.0) What defines a nonpolar covalent bond? ::: A bond where electrons are shared equally or nearly equally, with electronegativity difference < 0.5; no partial charges form What defines a polar covalent bond? :: A bond where electrons are shared unequally due to electronegativity difference between 0.5 and 1.7; creates partial charges δ+ and δ− What is the formula for dipole moment and what does it represent? ::: μ = δ × d (partial charge × bond length); represents the magnitude of charge separation in a polar bond Why is the C–H bond considered nonpolar despite carbon being more electronegative? ::: Δχ = 0.4 (less than 0.5 threshold), so charge separation is too small to significantly affect chemical properties Why is water polar even though CO₂ (which also has polar bonds) is nonpolar? ::: Water has a bent geometry so O–H bond dipoles add as vectors; CO₂ is linear so C=O dipoles cancel out (geometry matters) What electronegativity difference range indicates an ionic bond rather than polar covalent? ::: Δχ > 1.7; electron transfer is essentially complete rather than shared Rank these atoms by electronegativity from highest to lowest: H, C, N, O, F :: F (4.0) > O (3.5) > N (3.0) > C (2.5) > H (2.1) — mnemonic "FON Cares Heavily" Why does the polarity of O–H bonds make water a good solvent for salts? ::: The δ+ hydrogen attracts Cl⁻ and δ− oxygen attracts Na⁺, stabilizing separated ions and overcoming the ionic lattice energy What causes temporary dipoles in nonpolar molecules? ::: Random electron movement creates fleting charge imbalances; basis for London dispersion forces that allow even noble gases to liquefy ## 🖼️ Concept Map ```mermaid flowchart TD EN[Electronegativity] DIFF[EN difference] NP[Nonpolar covalent bond] P[Polar covalent bond] EQ[Equal electron sharing] UNEQ[Unequal electron sharing] PC[Partial charges d+ and d-] DIP[Molecular dipole] MU[Dipole moment mu = delta x d] PROP[Solubility and protein folding] EN -->|difference gives| DIFF DIFF -->|less than 0.5| NP DIFF -->|0.5 to 1.7| P NP -->|means| EQ P -->|means| UNEQ UNEQ -->|creates| PC PC -->|forms| DIP DIFF -->|proportional to delta| MU DIP -->|quantified by| MU DIP -->|determines| PROP ``` ## 🔊 Hinglish (regional understanding) > [!intuition]- Hinglish mein samjho > Jab do atomsek covalent bond banate hain, toh electrons share hote hain—lekin yeh sharing hamesha equal nahi hoti. Agar dono atoms ki "electron-pulling power" (electronegativity) same hai, toh **nonpolar bond** banta hai jaise H₂ mein. Par agar ek atom zyada strong hai (jaise oxygen), toh woh electrons ko apni taraf khench leta hai—yeh **polar bond** hai, aur isse partial charges ban jate hain: δ+ aur δ−. > > Yeh chhoti baat bohot important hai biology mein! Pani (H₂O) polar hai kyunki oxygen hydrogen sezyada electronegative hai—isliye pani salt dissolve kar sakta hai aur hydrogen bondsana sakta hai. Iske bina proteins fold nahi hote, DNA stable nahi rehta, aur cell membranes apna hydrophobic-hydrophilic balance nahi rakh pate. > > Simple rule yad rakho: **Δχ < 0.5 = nonpolar** (jaise C–H bonds in fats), **0.5 to 1.7 = polar** (jaise O–H in water, N–H in proteins), aur **> 1.7 = ionic** (jaise Na–Cl). Yeh electronegativity difference hi decide karta hai ki molecule pani mein dissolve hoga ya nahi, aur yeh biochemistry ki foundation hai. > > Ek aur important point: molecule ka overall polarity sirf bonds par nahi, **geometry** par bhi depend karta hai. CO₂ mein polar bonds hain lekin linear shape ke wajah se cancel ho jate hain—isliye CO₂ nonpolar hai. Contrast mein, H₂O bent shape hai toh dipoles add ho jaate hain aur pani polar molecule hai. Yeh concept drug design se lekar enzyme function tak sab jagah kaam ata hai! ![[audio/1.2.05-Explain-polar-vs-nonpolar-covalent-bonds.mp3]]
