WHY do we even care?

WHY C6NDC \approx 6ND? Each token requires roughly:

  • 2 FLOPs per parameter for the forward pass (one multiply + one add per weight = 2 FLOPs).
  • ~4 FLOPs per parameter for the backward pass (gradients w.r.t. weights and activations, ≈ twice the forward cost).

So total per token ≈ 6N6N FLOPs. Over DD tokens:


The optimization problem (Chinchilla)

The empirical scaling law (Hoffmann et al., "Chinchilla", 2022) fits:

HOW to find the optimum — derive it

We minimize L(N,D)L(N,D) subject to 6ND=C6ND = C (fixed budget).

Step 1 — substitute the constraint. Why? To turn a 2-variable constrained problem into 1 variable. From 6ND=C6ND=C: D=C6ND = \dfrac{C}{6N}.

L(N)=E+ANα+B(6NC)βL(N) = E + \frac{A}{N^\alpha} + B\left(\frac{6N}{C}\right)^{\beta}

Step 2 — differentiate and set to zero. Why? The minimum of a smooth curve has zero slope.

dLdN=αANα1+βB(6C)βNβ1=0\frac{dL}{dN} = -\alpha A N^{-\alpha-1} + \beta B\left(\frac{6}{C}\right)^\beta N^{\beta-1} = 0

Step 3 — solve for NN. Why? We want how NoptN_{\text{opt}} scales with CC. Move terms:

αANα1=βB(6C)βNβ1\alpha A N^{-\alpha-1} = \beta B\left(\tfrac{6}{C}\right)^\beta N^{\beta-1} Nα1β+1=βB(6/C)βαA    N(α+β)CβN^{-\alpha-1-\beta+1} = \frac{\beta B (6/C)^\beta}{\alpha A} \;\Rightarrow\; N^{-(\alpha+\beta)} \propto C^{-\beta} NoptCβα+β\boxed{N_{\text{opt}} \propto C^{\frac{\beta}{\alpha+\beta}}}

Step 4 — get DD. Since D=C/(6N)D = C/(6N), DoptC/Cβ/(α+β)=Cα/(α+β)D_{\text{opt}} \propto C / C^{\beta/(\alpha+\beta)} = C^{\alpha/(\alpha+\beta)}.

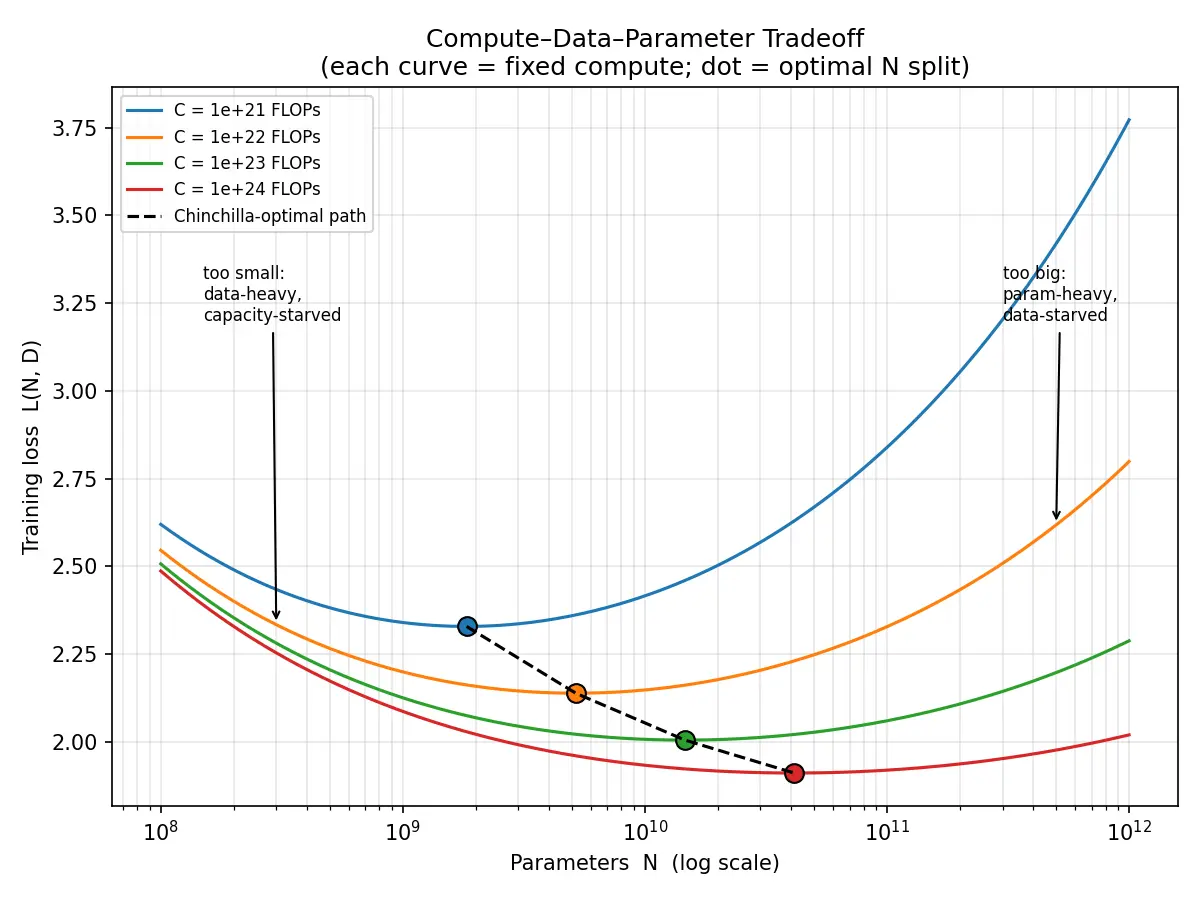

Figure — Compute-data-parameter tradeoffs

Worked examples


Common mistakes


Flashcards

What is the compute identity linking C, N, D?
C6NDC \approx 6ND (2 FLOPs/param forward + 4 FLOPs/param backward, per token, over D tokens).
Why the factor 6 in C=6NDC=6ND?
2 FLOPs/param forward + 4 FLOPs/param backward (grads w.r.t. weights and activations) = 6 FLOPs per parameter per token. (In FMAs it's 3, since 1 FMA = 2 FLOPs.)
Write the Chinchilla loss law.
L(N,D)=E+A/Nα+B/DβL(N,D)=E+A/N^\alpha+B/D^\beta: irreducible + parameter-limited + data-limited terms.
How does N_opt scale with compute C?
NoptCβ/(α+β)C0.46N_{opt}\propto C^{\beta/(\alpha+\beta)}\approx C^{0.46} (Hoffmann et al.'s reported a≈0.46).
How does D_opt scale with compute C?
DoptCα/(α+β)C0.54D_{opt}\propto C^{\alpha/(\alpha+\beta)}\approx C^{0.54} (b≈0.54).
Why must exponents a and b sum to 1?
Because CNDC\propto ND, so NoptDoptCa+b=C1N_{opt}D_{opt}\propto C^{a+b}=C^1 requires a+b=1.
Chinchilla rule of thumb for tokens per parameter?
~20 tokens per parameter.
Why was GPT-3 suboptimal?
Too large for its data: ~1.7 tokens/param vs optimal ~20; data-starved, over-parameterized.
When should you deviate from Chinchilla and over-train a small model?
When inference cost dominates — smaller model + more data is cheaper to serve.
Deriving N_opt: what constraint do you substitute?
D=C/(6N)D=C/(6N) from the compute identity, then minimize L(N).

Recall Feynman: explain to a 12-year-old

Imagine you have a fixed amount of money to build and teach a robot. You can spend money on making the robot's brain bigger (more parameters) or on giving it more books to read (more data). If you build a giant brain but give it only one book, it's smart but knows nothing. If you give a tiny brain a million books, it can't remember them all. The trick is to balance: a bit bigger brain, a bit more books — about 20 pages for every bit of brain. That balance gives the smartest robot for your money.

Connections

  • Neural Scaling Laws — the power-law backbone this note fits.
  • Chinchilla vs GPT-3 — the empirical head-to-head.
  • FLOP accounting in Transformers — where "6" comes from precisely.
  • Inference cost vs training cost — why deployment changes the tradeoff.
  • Overfitting and capacity — the intuition behind data-starving.
  • Learning rate schedules — must match the token budget DD.

Concept Map

6 FLOPs per param per token

links

fixed budget forces tradeoff

fixed budget forces tradeoff

reduces

reduces

contributes to

contributes to

contributes to

minimize under C

yields

Nopt propto C^0.46

Dopt propto C^0.54

Compute budget C

Parameters N

Tokens D

Identity C approx 6ND

Forward 2N + Backward 4N

Loss L of N and D

Irreducible loss E

Penalty A over N^alpha

Penalty B over D^beta

Compute-optimal split

Exponents a=0.46 b=0.54

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Socho tumhare paas ek fixed compute budget hai — matlab kitne GPU-hours tum kharch kar sakte ho. Ye compute do cheezon mein bat-ta hai: model kitna bada hoga (parameters NN) aur usko kitna data dikhaoge (tokens DD). Inko jodne wala rule hai C6NDC \approx 6ND. Yahaan "6" isliye aata hai kyunki har parameter par forward pass mein 2 FLOPs aur backward pass mein 4 FLOPs lagte hain, per token — total 6 FLOPs (dhyan rakho, ye FLOPs hain, FMA nahi; ek FMA = 2 FLOPs, toh FMA mein ye sirf 3 hote hain). Toh ye teeno — compute, data, parameters — ek triangle hai; do fix karo, teesra apne aap decide ho jaata hai.

Ab main sawal ye hai: fixed CC ke saath sabse kam loss kaise paayein? Loss ka formula hai L=E+A/Nα+B/DβL = E + A/N^\alpha + B/D^\beta. Agar model bahut bada bana diya par data kam diya, to B/DβB/D^\beta term badh jaayega — model data-starved ho jaata hai. Agar model chhota rakha par data zyada, to capacity saturate ho jaati hai. Isliye balance chahiye. Constraint D=C/6ND=C/6N ko substitute karke, derivative zero karke solve karo, to nikalta hai NoptC0.46N_{opt}\propto C^{0.46} aur DoptC0.54D_{opt}\propto C^{0.54} — dono lagbhag barabar rate se badhte hain (ye Hoffmann et al. ke reported values hain).

Practical rule yaad rakho: ~20 tokens per parameter — ye Chinchilla-optimal hai. GPT-3 ne sirf ~1.7 tokens/param use kiye the, isliye wo over-parameterized tha; Chinchilla ne chhota (70B) model zyada data (1.4T tokens) par train karke usse beat kiya, wahi compute mein. Lekin ek twist: agar tum model ko billions users ko serve karoge, to inference cost dominate karega — tab jaan-boojh kar chhota model zyada data par "over-train" karna sasta padta hai (jaise LLaMA). Isliye rule tab badal jaata hai. Yaad rakho: dono ko saath badhao, sirf ek ko nahi.
