6.1.1Scaling & Efficient Architectures

Neural scaling laws (Chinchilla, compute-optimal)

2,034 words9 min readdifficulty · medium2 backlinks

WHY do scaling laws exist at all?

The empirical finding: loss follows a power law plus an irreducible floor.

L(N,D)  =  Eirreducible  +  ANα  +  BDβL(N, D) \;=\; \underbrace{E}_{\text{irreducible}} \;+\; \frac{A}{N^{\alpha}} \;+\; \frac{B}{D^{\beta}}
  • EE = entropy of the data / Bayes error you can never beat.
  • A/NαA/N^\alpha = error from too few parameters (model can't represent the function).
  • B/DβB/D^\beta = error from too little data (model can't estimate what it could represent).
  • Chinchilla fit: α0.34\alpha \approx 0.34, β0.28\beta \approx 0.28 (close, but not equal → data role slightly stronger at the optimum).

HOW to derive the compute-optimal split (from scratch)

Goal: minimize L(N,D)L(N,D) subject to the budget C=6NDC = 6ND being fixed.

Step 1 — Drop the irreducible floor. EE is constant, so it doesn't affect where the minimum is. Minimize f(N,D)=ANα+BDβf(N,D) = A N^{-\alpha} + B D^{-\beta}. Why this step? Constants don't move optima; we only care about the trade-off terms.

Step 2 — Substitute the constraint. From C=6NDC=6ND, write D=C6ND = \frac{C}{6N}:

f(N)=ANα+B(C6N)β=ANα+B(6/C)βNβ.f(N) = A N^{-\alpha} + B\left(\tfrac{C}{6N}\right)^{-\beta} = A N^{-\alpha} + B\,(6/C)^{\beta} N^{\beta}.

Why? One free variable now — pure single-variable calculus.

Step 3 — Differentiate, set to zero.

dfdN=αANα1+βB(6/C)βNβ1=0.\frac{df}{dN} = -\alpha A N^{-\alpha-1} + \beta B (6/C)^{\beta} N^{\beta-1} = 0.

Why? f(N)f(N) is unimodal on N>0N>0 — the first term ANαA N^{-\alpha} strictly decreases and the second Nβ\propto N^{\beta} strictly increases, so their sum has exactly one interior minimum where the slope crosses zero. (It need not be globally convex, but unimodality is enough to guarantee the stationary point is the minimum.)

Step 4 — Solve for NN vs CC. Rearranging (see VERIFY):

Nα+β    CβNoptCβ/(α+β),DoptCα/(α+β).N^{\alpha+\beta} \;\propto\; C^{\beta} \quad\Rightarrow\quad \boxed{N_{\text{opt}} \propto C^{\,\beta/(\alpha+\beta)}}, \qquad \boxed{D_{\text{opt}} \propto C^{\,\alpha/(\alpha+\beta)}}.

Why? Because D=C/(6N)D = C/(6N), the exponents of NN and DD must sum to 1 (they multiply to give CC).

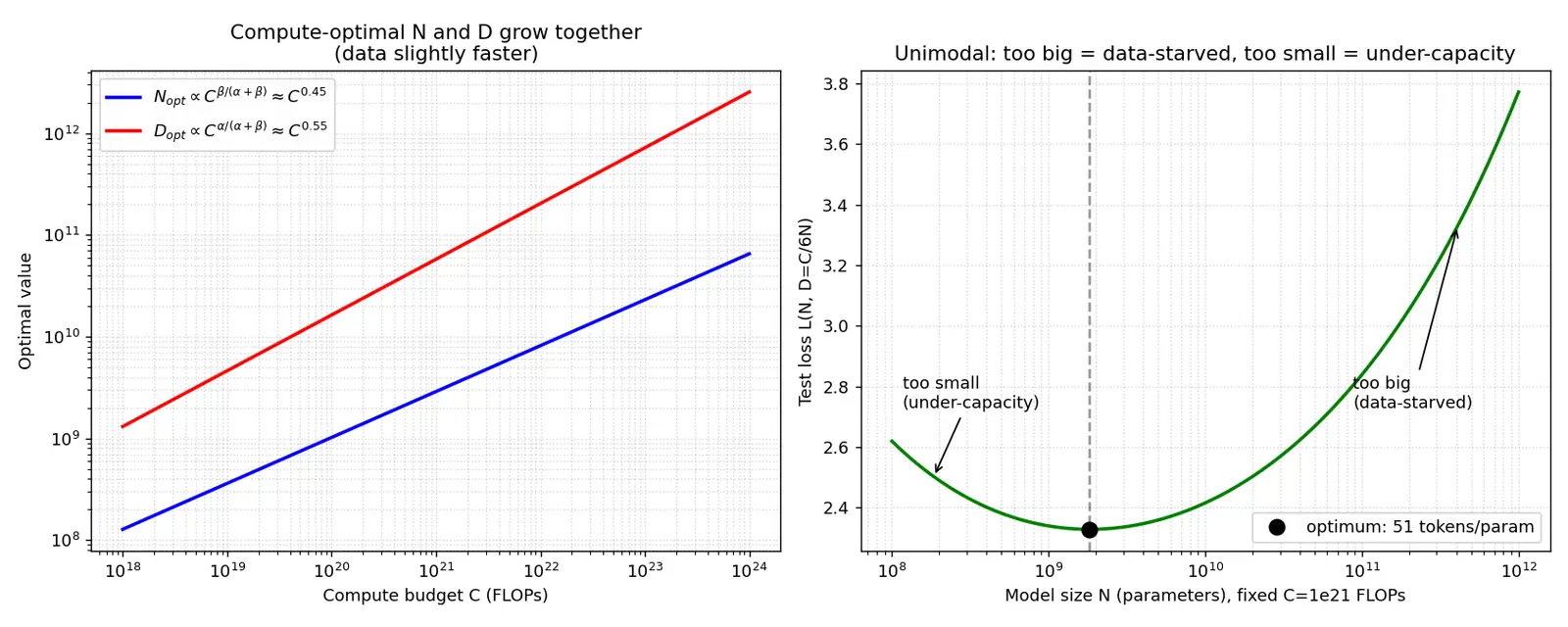

Figure — Neural scaling laws (Chinchilla, compute-optimal)

WORKED EXAMPLES


COMMON MISTAKES (Steel-manned)


Flashcards

What is the Chinchilla loss functional form?
L(N,D)=E+ANα+BDβL(N,D)=E+A N^{-\alpha}+B D^{-\beta}: irreducible floor plus two power-law terms for finite params and finite data.
Approx FLOPs to train a dense transformer?
C6NDC \approx 6ND (2 for multiply-add × 3 for fwd+bwd).
Compute-optimal scaling of NN with compute CC?
NoptCβ/(α+β)=C0.28/0.62C0.45N_{\text{opt}} \propto C^{\beta/(\alpha+\beta)} = C^{0.28/0.62}\approx C^{0.45}.
Compute-optimal scaling of DD with compute CC?
DoptCα/(α+β)=C0.34/0.62C0.55D_{\text{opt}} \propto C^{\alpha/(\alpha+\beta)} = C^{0.34/0.62}\approx C^{0.55} (data grows slightly faster).
Chinchilla rule of thumb for tokens per parameter?
About 20 tokens per parameter (D20ND\approx 20N).
If compute increases 4×, how do you split it?
Roughly double NN and double DD (40.451.94^{0.45}\approx1.9, 40.552.14^{0.55}\approx2.1).
Why was Gopher suboptimal vs Chinchilla?
Gopher was too large and data-starved (D/N1D/N\approx1); at comparable compute Chinchilla rebalanced to ~20 tokens/param with a 4× smaller model and won.
What does the term EE represent?
Irreducible loss — data entropy / Bayes error you can never beat by scaling.
Why does loss follow a power law (not exponential)?
Diminishing returns: each doubling of NN or DD helps less; that constant multiplicative decay is exactly a power law.
Why do the NN and DD exponents against CC sum to 1?
Because C=6NDC=6ND; NCaN\propto C^a and DCbD\propto C^b force a+b=1a+b=1.
Are the compute-optimal exponents exactly 0.5 each?
No — only if α=β\alpha=\beta. The fitted values give ≈0.45 for NN and ≈0.55 for DD; 0.5 is a rounded shortcut.

Recall Feynman: explain to a 12-year-old

Imagine studying for a test. You can either grow a bigger brain (more parameters) or read more books (more data). You only have so many hours (compute). If you get a huge brain but read only one book, you're a genius with nothing to think about — wasteful. If you read a library but have a tiny brain, you forget most of it. Chinchilla found the sweet spot: grow your brain and your reading at almost the same speed (reading just a touch faster), about 20 pages of reading per bit of brain. Every time you get 4× more hours, make the brain about twice as big and read about twice as much.

Connections

  • Transformer architecture — the 6ND6ND cost model assumes dense attention/MLP FLOPs.
  • Compute budgets & FLOPs — where C6NDC\approx6ND comes from.
  • Kaplan scaling laws — earlier laws that over-weighted NN; Chinchilla corrected the data term.
  • Overfitting vs underfitting — the A/NαA/N^\alpha vs B/DβB/D^\beta trade-off is capacity vs estimation error.
  • Mixture-of-Experts — breaks the simple 6ND6ND assumption (sparse activation).
  • Learning rate schedules — must match the token budget DD for the law to hold.

Concept Map

fixed as

splits into

splits into

reduces

reduces

bounded by

shows

implies

minimize under C

yields

yields

explained by

grow N and D together

grow N and D together

Compute budget C

C = 6 N D

N params

D tokens

Loss power law L N D

Irreducible floor E

Diminishing returns

Compute-optimal split

N proportional to C^beta over alpha+beta

D proportional to C^alpha over alpha+beta

Chinchilla finding

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, scaling laws ka core idea simple hai: aapke paas fixed compute hota hai (GPU × time), aur ye compute do cheezon mein bat-ta hai — model kitna bada hai (N parameters) aur kitna data padhaate ho (D tokens). Loss ka formula hai L=E+A/Nα+B/DβL = E + A/N^\alpha + B/D^\beta: ek irreducible floor EE (jo kabhi nahi hataa sakte), plus do power-law terms. Agar N kam hai to model chhota dimaag, agar D kam hai to kam experience. Dono ko balance karna padta hai.

Chinchilla ne dikhaya ki purane bade models (jaise Gopher, 280B params) actually data-starved the — unhone params to badha diye par tokens kam rakhe, isliye B/DβB/D^\beta term bada reh gaya. Comparable compute pe unhone chhota model (70B) liya par ~20 guna zyada data diya, aur wo jeet gaya. Note: Gopher aur Chinchilla ka compute bilkul same nahi tha (Chinchilla ~17% zyada), par point ye hai ki split smart tha, sirf zyada FLOPs nahi. Rule of thumb yaad rakho: ~20 tokens per parameter.

Derivation seedha hai: constraint C=6NDC = 6ND (ye 6 aata hai 2 multiply-add × 3 forward+backward se). Isko substitute karke minimize karo, to milta hai NC0.45N \propto C^{0.45} aur DC0.55D \propto C^{0.55} — dono ko saath mein grow karo, par data thoda tez (0.55>0.450.55 > 0.45). Log aksar "dono C0.5C^{0.5}" bolte hain — wo bas rounding hai, kyunki αβ\alpha\approx\beta hai par exactly equal nahi. Compute 4× ho gaya? To N aur D dono roughly double. Sirf model bada mat karo warna dobara data-starve ho jaoge.
