Before any numbers, one reminder of the two formulas everything below leans on:

Definition Conventions used on this page (read once)

$b$ = bit-width: bits per stored weight. It sets the number of integer codes to $2^{b}$ ; the number of gaps between the smallest and largest code is $2^{b} - 1$ (hence that appears in $s$ ).

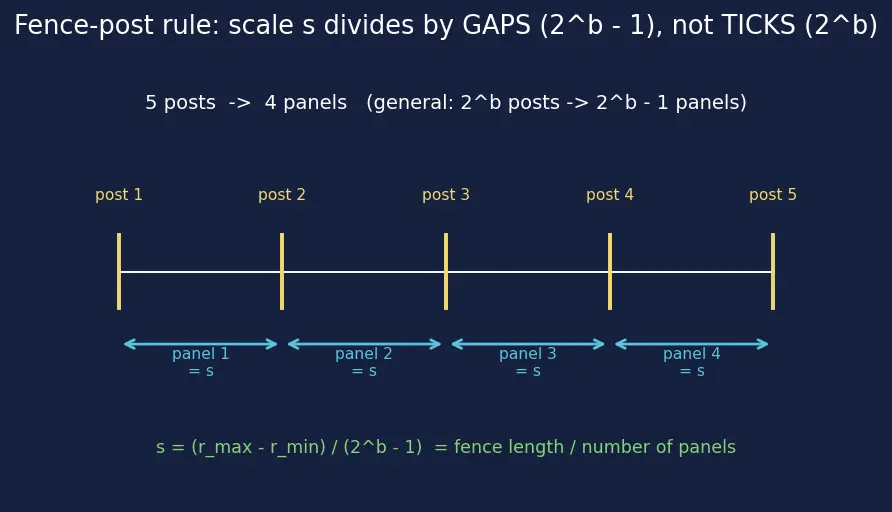

"Levels" on this page always means the number of gaps/intervals between representable ticks, $2^{b} - 1$ — the quantity in the denominator of $s$ . Why gaps, not ticks? Because $s$ is a distance (real units per step), and $n$ ticks along a ruler leave only $n - 1$ steps between them. See the fence-post figure below.
$round (\cdot)$ = round-half-up (ties go to the larger integer), the convention we use throughout; a different tie rule can shift a borderline $q$ by $1$ , so it must be fixed. The tie-breaking figure below shows exactly when this bites.
Memory units: 1 MB $= 102 4^{2}$ bytes (mebibyte), 1 GB $= 102 4^{3}$ bytes (gibibyte). Every "GB" and "MB" below means the binary (GiB/MiB) unit that GPUs report, unless a step explicitly divides by a power of $1000$ .

The scenario matrix

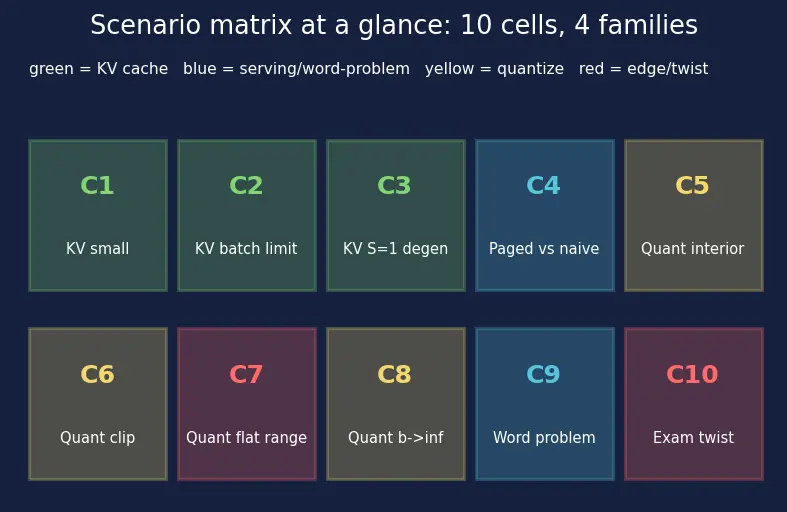

Every serving/quantization question is really one of these cells. The examples below are labelled [C1]…[C10] so you can see the whole space is covered. The figure gives the same map at a glance.

Figure — LLM serving (vLLM, quantized inference)

Cell	Case class	What breaks / what's tested
C1	KV cache — small/typical	plug-in sanity, unit tracking
C2	KV cache — batch scaling limit	when does it OOM? linear-in- $B$ growth
C3	KV cache — degenerate $S = 1$	prefill of a 1-token prompt, tail-block waste
C4	Paged vs naive waste	fragmentation arithmetic, block-size choice
C5	Quantize — interior value	normal rounding, bounded error
C6	Quantize — boundary / clip	value at/over $r_{ma x}$ saturates
C7	Quantize — degenerate range $r_{min} = r_{ma x}$	division by zero, the flat-tensor case
C8	Quantize — limit $b \to \infty$	error $\to 0$ , why more bits help nonlinearly
C9	Real-world word problem	"how many users fit?" full GPU budget
C10	Exam twist	INT4 vs INT8 error ratio — beat the linear trap

The worked examples

Worked example

[C1] KV cache for a small model — get the units right A 6-layer model, $d_{m o d e l} = 512$ , FP16. Serve 1 request of 128 tokens. How many megabytes of KV cache?

Forecast: guess — kilobytes, or megabytes? (It surprises people how small a small model is.)

Identify each symbol: $B = 1$ , $S = 128$ , $L = 6$ , $d_{m o d e l} = 512$ , $p = 2$ . Why this step? Every mistake here is a wrong symbol, not wrong math — name them first.
Multiply per the formula: $2 \cdot 1 \cdot 128 \cdot 6 \cdot 512 \cdot 2 = 1, 572, 864$ bytes. Why this step? Direct plug-in; the leading 2 is K+V, the trailing 2 is bytes/FP16-element — two different 2's, don't merge them.
Convert: $1, 572, 864/102 4^{2} = 1.5$ MiB. Why this step? MB here means mebibyte ( $102 4^{2}$ bytes) — the unit GPUs report; state it so "MB" is never ambiguous.

Verify: halve the precision to INT8 ( $p = 1$ ) → should halve to 0.75 MiB. It does. Units: $[—] \cdot [—] \cdot [tok] \cdot [layer] \cdot [val/tok/layer] \cdot [byte/val] =$ bytes. ✓

Worked example

[C2] KV cache — batch scaling until OOM Same as parent's Llama-2-13B ( $L = 40$ , $d_{m o d e l} = 5120$ , FP16), $S = 4096$ per request. A GPU has 40 GiB free for KV cache. What is the largest batch $B$ that fits?

Forecast: the parent said 1 request ≈ 3.1 GB. So… 12? 13?

Per-request KV: $2 \cdot 1 \cdot 4096 \cdot 40 \cdot 5120 \cdot 2 = 3, 355, 443, 200$ bytes. In gibibytes: $3, 355, 443, 200/102 4^{3} = 3.125$ GiB. Why this step? $B$ is a clean linear multiplier — solve for one request in the same unit as the budget (GiB), then divide. Note: in decimal GB ( $/100 0^{3}$ ) this is $3.355$ GB — different number, so we lock everything to GiB.
$B_{ma x} = ⌊ 40/3.125 ⌋ = ⌊ 12.8 ⌋ = 12$ . Why this step? You cannot fit a fractional request; floor, don't round.
Leftover: $40 - 12 \times 3.125 = 2.5$ GiB idle — not enough for a 13th. Why this step? Confirms the floor was necessary and shows the "wasted tail" of the budget.

Verify: $12 \times 3.125 = 37.5 \leq 40$ ✓ and $13 \times 3.125 = 40.625 > 40$ ✗. The boundary is respected exactly. This is precisely why quantizing the weights (freeing HBM) lets you push $B$ higher.

Worked example

[C3] Degenerate input — a 1-token sequence Same 13B model, but a request with $S = 1$ (just the BOS token, generation not yet started). KV bytes? And with a PagedAttention block_size=16, how much is allocated?

Forecast: basically zero cache… but a whole block gets reserved. How much of it is wasted?

KV for $S = 1$ : $2 \cdot 1 \cdot 1 \cdot 40 \cdot 5120 \cdot 2 = 819, 200$ bytes $\approx 0.78$ MiB. Why this step? Sanity floor — the smallest non-empty case, checks the formula doesn't blow up at $S = 1$ .
Paging allocates whole blocks. 1 token needs 1 block of 16 → 16 tokens' worth reserved: $2 \cdot 16 \cdot 40 \cdot 5120 \cdot 2 = 13, 107, 200$ bytes $\approx 12.5$ MiB. Why this step? Blocks are the unit of allocation — you can't half-fill hardware; this is the tail-block cost.
Wasted fraction of that block: $(16 - 1) /16 = 93.75%$ of one block. Why this step? Shows the worst-case tail waste is bounded by block_size-1 tokens — exactly the parent's claim, made concrete.

Verify: the wasted bytes $= (16 - 1) \times (2 \cdot 40 \cdot 5120 \cdot 2) = 12, 288, 000 \approx 11.7$ MiB, and $819, 200 + 12, 288, 000 = 13, 107, 200$ = the block size. ✓ The parts add to the whole.

Worked example

[C4] Paged vs naive fragmentation — the whole point of vLLM max_len = 2048, block_size = 16. A request actually uses 100 tokens. Compare naive waste vs paged waste (in tokens).

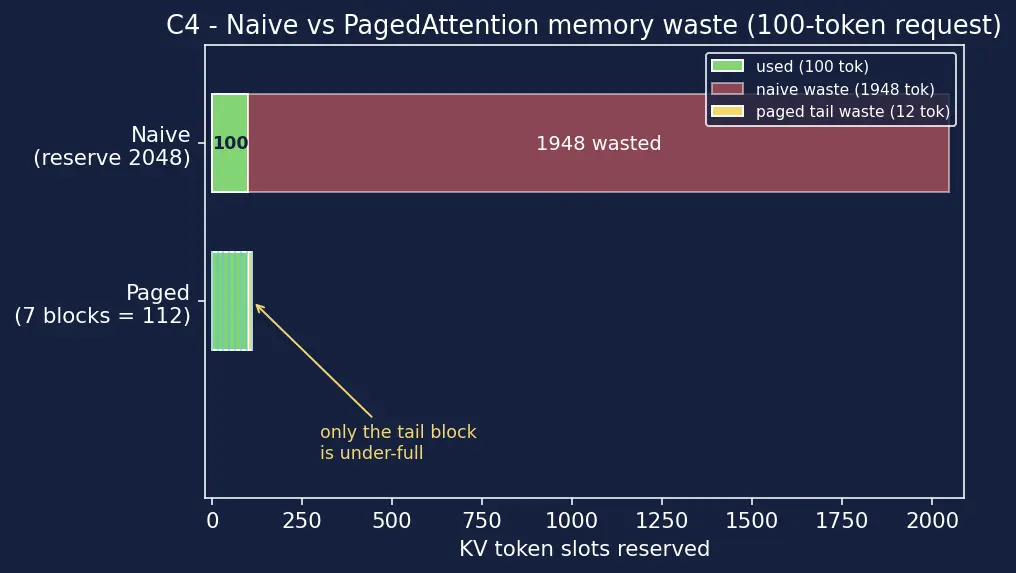

Figure C4 — Two horizontal bars. Top ("Naive"): a small green "used = 100" segment followed by a huge light-red "wasted = 1948" segment out to 2048. Bottom ("Paged"): the same green 100 plus a tiny yellow 12-token tail, with blue vertical lines marking the 16-token block boundaries. The visual point: the red naive-waste bar dwarfs the yellow paged tail.

Forecast: naive reserves 2048, uses 100. Paged only reserves blocks. Guess the ratio.

Naive waste $= max_len - actual = 2048 - 100 = 1948$ tokens. Why this step? Naive reserves the contiguous max up front — the light-red bar in the figure.
Paged: blocks needed $= ⌈ 100/16 ⌉ = 7$ blocks $= 112$ token-slots. Why this step? Ceiling because the 100th token still needs a 7th block (holds tokens 97–112).
Paged waste $= 112 - 100 = 12$ tokens (the yellow tail in the figure). Why this step? Only the final partial block is under-full — this is the $\leq block_size - 1$ bound.

Verify: $12 \leq 16 - 1 = 15$ ✓. Waste reduction factor $= 1948/12 \approx 162 \times$ less wasted memory for this request. Look at the figure: the red naive bar dwarfs the tiny yellow paged tail.

Worked example

[C5] Quantize an interior weight to INT4 — normal case Weight tensor range $[- 0.6, 0.9]$ , bit-width $b = 4$ . Quantize and dequantize $r = 0.35$ .

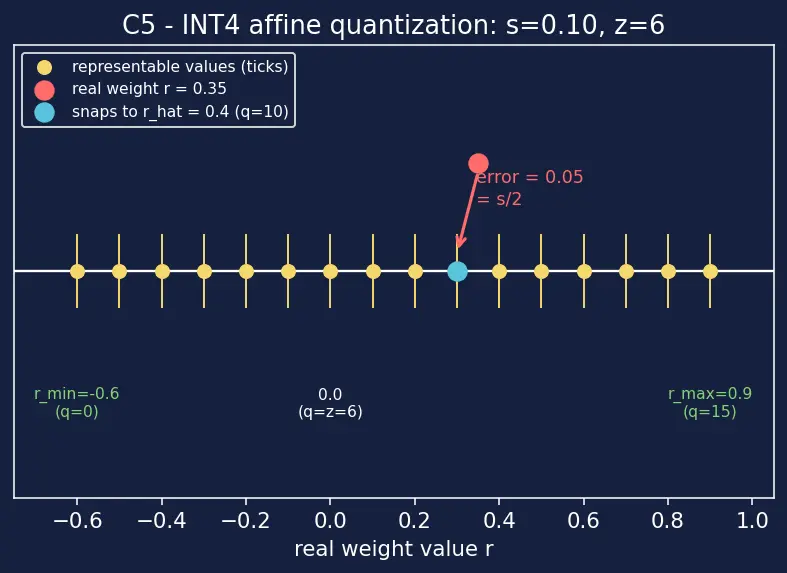

Figure C5 — A real-number line from −0.6 to 0.9 dotted with yellow ticks (the 16 representable values, one every s=0.1). The red dot marks the true weight 0.35; a red arrow snaps it down to the nearest yellow tick, the blue dot at 0.4 (code q=10). The gap between them, labelled "error = 0.05 = s/2", is the whole story of information loss.

Forecast: we lose precision. Guess the error magnitude before computing (hint: half a step).

Ticks (representable codes) $= 2^{b} = 16$ ; gaps between them $= 2^{4} - 1 = 15$ . Scale $s = (0.9 - (- 0.6)) /15 = 1.5/15 = 0.1$ . Why this step? $s$ = "real units per gap". We divide by the number of gaps (15), not the number of ticks (16) — 16 fence-posts have 15 spaces between them (recall the fence-post figure). $s$ sets how coarse the grid in the figure is.

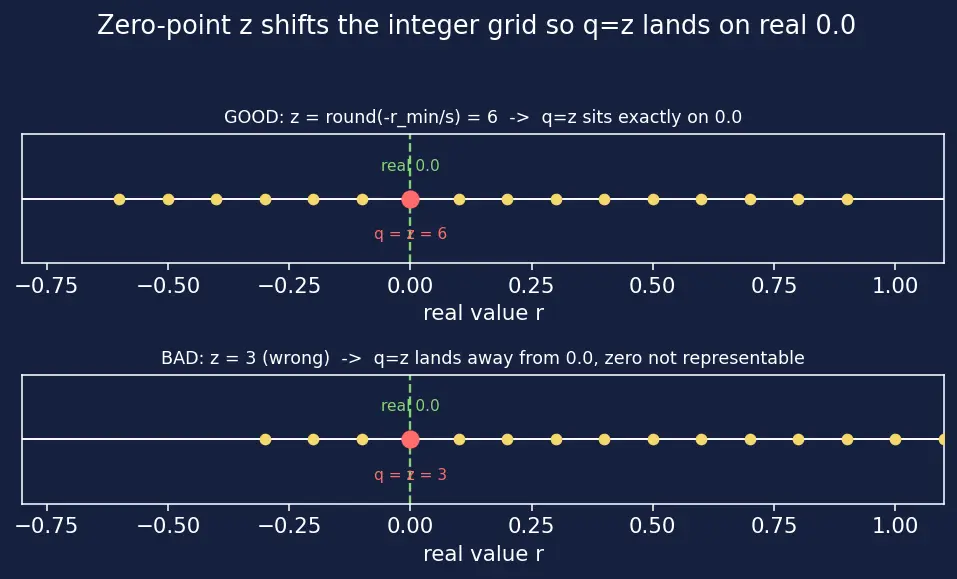

Zero-point $z = round (- (- 0.6) /0.1) = round (6) = 6$ . Why this step? $z$ is the integer that maps back to real $0.0$ ; it aligns the grid so 0 lands on an exact tick (the alignment figure).
$q = clip (round (0.35/0.1) + 6, 0, 15) = clip (round (3.5) + 6, 0, 15)$ . With round-half-up, $round (3.5) = 4$ , so $q = 4 + 6 = 10$ . Why this step? Round to nearest tick (minimum error); the tie rule (half-up) matters at exactly $3.5$ — it is what sends us to $4$ not $3$ . Then shift by $z$ ; 10 is inside $[0, 15]$ so no clip.
Dequantize $\overset{r}{^} = 0.1 (10 - 6) = 0.4$ . Error $= ∣0.4 - 0.35∣ = 0.05$ . Why this step? $\overset{r}{^}$ is where the red dot snaps to on the grid; error is the gap.

Verify: error $0.05 = s /2 = 0.1/2$ ✓ — exactly the half-step bound, so rounding behaved. In the figure the red dot at 0.35 snaps to the nearest yellow tick at 0.4.

Worked example

[C6] Boundary & clip case — an outlier weight Same setup ( $s = 0.1$ , $z = 6$ , range $[- 0.6, 0.9]$ ). Quantize (a) $r = 0.9$ exactly, and (b) an outlier $r = 1.4$ .

Forecast: 0.9 is the top of range — which integer? And 1.4 is outside — what stops overflow?

(a) $q = round (0.9/0.1) + 6 = 9 + 6 = 15$ ; in $[0, 15]$ , no clip. $\overset{r}{^} = 0.1 (15 - 6) = 0.9$ , error 0. Why this step? Range endpoints land exactly on the top/bottom tick — the design intent; zero error there.
(b) $round (1.4/0.1) + 6 = 14 + 6 = 20$ , which exceeds 15. Why this step? This is the overflow the parent warned about — an outlier wants a tick that doesn't exist.
clip forces $q = 15$ . $\overset{r}{^} = 0.1 (15 - 6) = 0.9$ . Error $= ∣0.9 - 1.4∣ = 0.5$ . Why this step? Saturation, not wrap-around: the outlier caps at the max representable value.

Verify: the clipped error $0.5 ≫ s /2 = 0.05$ ✓ — this is why AWQ/GPTQ protect outlier channels: a single un-clipped-badly weight can carry $10 \times$ the normal error. Endpoint 0.9 giving error 0 confirms the grid is anchored correctly. See GPTQ and AWQ and Quantization Fundamentals.

Worked example

[C7] Degenerate range — a constant (flat) tensor A tensor where every weight equals $0.3$ , so $r_{min} = r_{ma x} = 0.3$ . Quantize to INT4. What happens to $s$ ?

Forecast: $s = (0.3 - 0.3) /15 = 0/15 = 0$ … and then we divide by $s$ . Uh oh.

Naïve scale: $s = (r_{ma x} - r_{min}) /15 = 0$ . Why this step? Expose the trap — a constant tensor has zero dynamic range, so the formula divides by zero next.
$q = round (r / s)$ divides by zero → undefined. The real implementation guards this. Why this step? Every quantizer has this edge case; you must handle it, not crash.
Standard fix: when the range is $0$ , clamp the scale to a small positive floor $s \leftarrow max (s, ε)$ with a fixed $ε$ , and set $z = clip (round (- r_{min} / s), 0, 2^{b} - 1)$ . Real frameworks use a tiny default (PyTorch/ONNX use $ε \approx 2^{- 12} \approx 2.4 \times 1 0^{- 4}$ ); the exact value does not matter because a constant tensor carries no information — one code suffices to reconstruct it exactly. For readability of the arithmetic only (not a realistic default) take the illustrative value $ε = 0.1$ : then $z = clip (round (- 0.3/0.1), 0, 15) = clip (- 3, 0, 15) = 0$ , $q = clip (round (0.3/0.1) + 0, 0, 15) = 3$ , $\overset{r}{^} = 0.1 (3 - 0) = 0.3$ — exact. Why this step? The $ε$ -floor is the documented convention precisely so a flat/dead channel never divides by zero and reconstructs its constant value exactly. The chosen $ε = 0.1$ is a round number for hand-calculation; any positive floor gives the same exact reconstruction of a constant.

Verify: with the $ε$ -floor $s = 0.1$ : $q = 3 \in [0, 15]$ is valid, no division by zero, and $\overset{r}{^} = 0.3 = r$ exactly ✓. Re-run with the realistic $ε = 2^{- 12}$ : $z = clip (round (- 0.3 \cdot 4096), 0, 15) = 0$ , $q = clip (round (0.3 \cdot 4096), 0, 15) = 15$ (clipped), $\overset{r}{^} = 2^{- 12} (15 - 0) \approx 0.00366 \neq = 0.3$ — so a tiny $ε$ does not reconstruct a large constant! The honest lesson: production quantizers special-case a constant channel by storing the value directly, not by trusting $s \to 0$ . Always test $r_{min} = r_{ma x}$ — pruned/dead channels really do go flat.

Worked example

[C8] Limiting behaviour — what happens as bits $\to \infty$ Fixed range $[- 1, 1]$ . Compute the step $s$ and the worst-case error bound $s /2$ for $b = 4, 8, 16$ . What does the limit tell you?

Forecast: more bits = less error. But how fast does error shrink per bit?

$s (b) = \frac{1 - ( - 1 )}{2 ^{b} - 1} = \frac{2}{2 ^{b} - 1}$ . Worst error $= s /2 = \frac{1}{2 ^{b} - 1}$ . Why this step? The error bound is purely a function of the number of gaps ( $2^{b} - 1$ ); more gaps, finer grid.
$b = 4 : 1/15 \approx 0.0667$ ; $b = 8 : 1/255 \approx 0.00392$ ; $b = 16 : 1/65535 \approx 1.5 \times 1 0^{- 5}$ . Why this step? Concrete numbers show error doesn't halve per bit — it drops by roughly $\times 2^{Δ b}$ .
Limit: as $b \to \infty$ , $2^{b} - 1 \to \infty$ so error $\to 0$ — FP16 is just quantization with a huge level count. Why this step? Frames FP16 vs INT4 as the same idea at different resolutions; the trade is memory (bytes/element) vs error.

Verify: ratio $b = 4$ to $b = 8$ error: $(1/15) / (1/255) = 255/15 = 17$ ✓ — INT4 error is ~17× INT8's, not 2× (foreshadows [C10]). Error is monotonically decreasing in $b$ ✓.

Worked example

[C9] Real-world word problem — "how many users can this box serve?" An A100-80GB (treat as 80 GiB usable). The FP16 Llama-2-13B weights take 26 GiB. You quantize to INT4 (W4A16), shrinking weights to ~6.5 GiB. Reserve 4 GiB for activations/overhead. Each user's KV cache (from [C2]) is 3.125 GiB at $S = 4096$ , FP16. How many more concurrent users does quantizing the weights unlock?

Forecast: freeing ~19.5 GiB of weight memory — how many 3.125 GiB users is that?

KV budget, FP16 weights: $80 - 26 - 4 = 50$ GiB. Users $= ⌊ 50/3.125 ⌋ = ⌊ 16.0 ⌋ = 16$ . Why this step? Subtract the fixed costs (weights + overhead) first; what's left is the KV pool. All terms in GiB so they add cleanly.
KV budget, INT4 weights: $80 - 6.5 - 4 = 69.5$ GiB. Users $= ⌊ 69.5/3.125 ⌋ = ⌊ 22.24 ⌋ = 22$ . Why this step? Same subtraction with the smaller weight footprint — the freed HBM becomes KV room.
Extra users unlocked $= 22 - 16 = 6$ . Why this step? The deliverable — quantization's payoff here is batch size, hence throughput (Throughput vs Latency Tradeoffs).

Verify: $16 \times 3.125 = 50.0 \leq 50$ ✓ (exactly full) and $17 \times 3.125 = 53.125 > 50$ ✗; $22 \times 3.125 = 68.75 \leq 69.5$ ✓ and $23 \times 3.125 = 71.875 > 69.5$ ✗. Note the win is memory-driven, not arithmetic-driven — see the parent's mistake box on W4A16 dequant. Related: GPU Memory & HBM Bandwidth, Batching Strategies.

Worked example

[C10] Exam twist — beat the linear trap "INT8 uses twice the bits of INT4, so INT4 should be about twice as lossy." True or false, with numbers. (Range $[- 1, 1]$ .)

Forecast: it feels like 2×. Is it?

The denominator of $s$ is the number of gaps $2^{b} - 1$ , not the bit-width $b$ : INT8 has $255$ gaps, INT4 has $15$ . Why this step? The whole trap is confusing "bits" (linear, $8$ vs $4$ ) with "gaps between ticks" (exponential, $2^{b} - 1$ ).
Error $\propto s \propto 1/ (2^{b} - 1)$ . Ratio $= (2^{8} - 1) / (2^{4} - 1) = 255/15 = 17$ . Why this step? Error is set by step size, which shrinks exponentially in bit-width — so the true factor is 17×, not 2×.
Conclusion: False. INT4 is ~ $17 \times$ lossier per step than INT8, which is exactly why 4-bit needs group-wise scales + outlier protection (GPTQ and AWQ) to stay usable. Why this step? Connects the number to real engineering: the nonlinearity is why AWQ/GPTQ exist.

Verify: $255/15 = 17$ ✓ (an integer, satisfyingly). Sanity: doubling bits squares-ish the level count ( $2^{8} = (2^{4})^{2} = 256$ ), so error dropping ~17× not 2× is consistent. ✓

Recall

Recall Every cell, one line each

Per-request KV for 13B at $S = 4096$ , FP16 ::: $\approx 3.125$ GiB. Largest batch in a 40 GiB KV pool at that size ::: 12 (floor of 12.8). Paged vs naive waste for 100 tokens, max_len 2048, block 16 ::: 12 tokens vs 1948 tokens (~162× less). Quantizing $r = 0.35$ in $[- 0.6, 0.9]$ INT4 gives $\overset{r}{^}$ and error ::: $\overset{r}{^} = 0.4$ , error $0.05 = s /2$ . What guards the $r_{min} = r_{ma x}$ case ::: floor the scale to a small positive $ε$ (or store the constant directly) so you never divide by zero. True INT4-vs-INT8 error ratio for the same range ::: ~17× (not 2×), because gaps are $2^{b} - 1$ . Why $s$ divides by $2^{b} - 1$ not $2^{b}$ ::: $s$ is a step length; $2^{b}$ ticks leave $2^{b} - 1$ gaps (fence-post rule). What the zero-point $z$ does geometrically ::: shifts the integer grid so tick $q = z$ lands exactly on real value $0.0$ .
