Model retraining pipelines: Question bank — AI-ML deep dive

Before the traps, this page teaches the vocabulary they use — every symbol below is earned here, not assumed.

Symbols and formulas you need first

Definition The two worlds a model lives in —

$P_{train}$ and $P_{serve}$ Write $X$ for the inputs a model sees (the features of one example) and $Y$ for the label we want it to predict. A joint distribution $P (X, Y)$ is just "how often each input–label pair occurs in some world".

$P_{train} (X, Y)$ = the world captured by the training data — the frozen snapshot the model actually learned from.
$P_{serve} (X, Y)$ = the world the model actually meets in production when serving live traffic.

We can also split any joint into two pieces: $P (X)$ = how often each input appears (ignoring the label), and $P (Y ∣ X)$ = given that input, how often each label appears — i.e. the rule mapping inputs to answers. A model is trained assuming $P_{train}$ ; it degrades whenever $P_{serve}$ drifts away from it. See Data drift and concept drift.

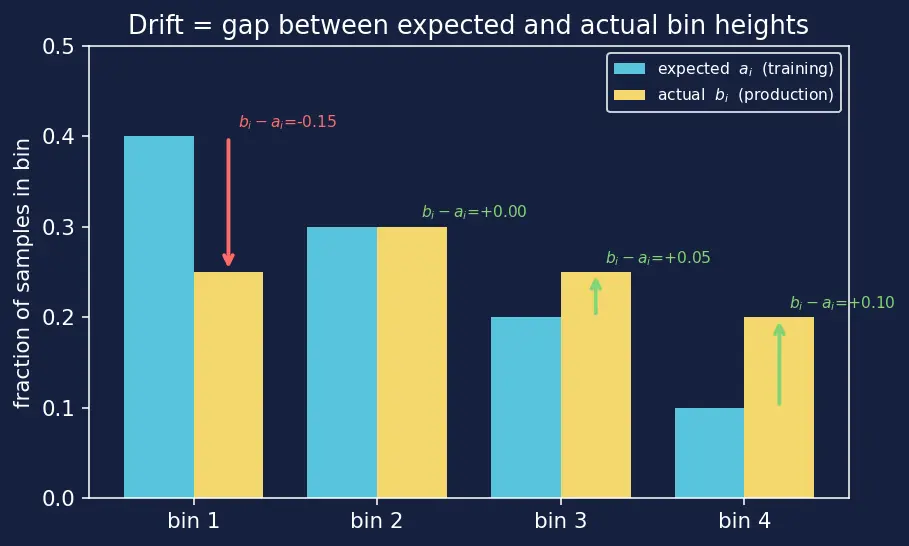

Definition The drift picture — bins, expected, actual

To ask "did the incoming data change?", take one feature (say user age) and chop its range into $k$ bins (buckets), like age 0–20, 20–40, 40–60, … . For each bin $i$ measure two fractions:

$a_{i}$ = fraction of the expected samples that land in bin $i$ . "Expected" = the training data (a slice of $P_{train} (X)$ ), the world the model learned on.
$b_{i}$ = fraction of the actual samples in bin $i$ . "Actual" = recent production data (a slice of $P_{serve} (X)$ ), the world the model now sees.

Both are fractions of a whole, so $\sum_{i} a_{i} = 1$ and $\sum_{i} b_{i} = 1$ . If the world is unchanged, every $b_{i} \approx a_{i}$ ; if it drifted, some bars are taller and others shorter. Look at the two bar heights per bin in the figure below — that gap $b_{i} - a_{i}$ is the raw signal.

Intuition WHY this exact form — building it from scratch

We want a score that is (1) zero when the distributions match, (2) positive and growing as they differ, and (3) symmetric (swapping "which is which" shouldn't change the answer). Watch how $(b_{i} - a_{i}) ln (b_{i} / a_{i})$ satisfies all three.

The size of the gap — $(b_{i} - a_{i})$ says how many more/fewer samples fell in this bin than expected. Alone, it can be negative (bin shrank), and negatives could cancel positives, hiding drift.
The relative surprise — $ln (b_{i} / a_{i})$ is the log of the ratio. A ratio of $1$ (no change) gives $ln 1 = 0$ ; doubling gives $ln 2 > 0$ ; halving gives $ln (0.5) < 0$ . Using a ratio (not a difference) means going from $0.01 \to 0.02$ counts as "doubled" just like $0.4 \to 0.8$ — proportional surprise, which is what "different distribution" really means.
The multiplication is the trick. Notice in the figure: whenever $b_{i} > a_{i}$ , both factors are positive; whenever $b_{i} < a_{i}$ , both are negative. A negative times a negative is positive. So every bin contributes $\geq 0$ — nothing cancels — and the total is $0$ only when every bin matches.

That is why we multiply gap $\times$ log-ratio: the gap gives magnitude, the log gives proportional weighting, and the sign-matching guarantees a clean distance-like score.

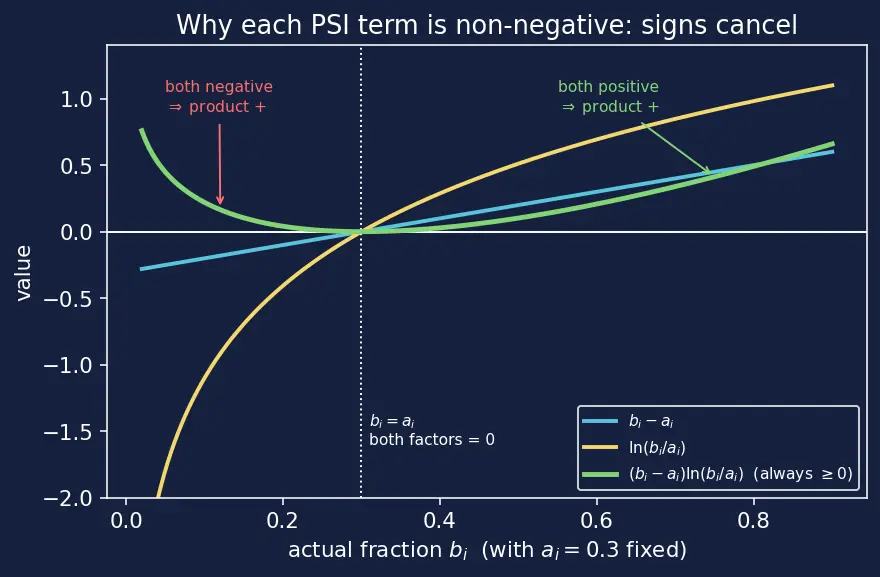

The figure below makes the sign-matching visible. Fix the expected fraction at $a_{i} = 0.3$ and slide the actual fraction $b_{i}$ from small to large. The blue curve is the gap $b_{i} - a_{i}$ ; the yellow curve is the log-ratio $ln (b_{i} / a_{i})$ . Watch that both are below zero on the left of the dotted line and both above zero on the right — they always match sign. Their product, the green curve (one PSI term), therefore never dips below zero and touches $0$ exactly where $b_{i} = a_{i}$ .

Formula PSI interpretation thresholds (practical guidance)

PSI value	Meaning	Action
$< 0.1$	stable — minor or no drift	do nothing
$0.1 - 0.25$	moderate shift	watch, investigate
$> 0.25$	significant shift	trigger investigation → possible retrain

These are rules of thumb, not laws. PSI flags input drift only — always confirm with real performance metrics via Model monitoring and observability before shipping a new model.

Definition Cost symbols for the "should I retrain?" decision

$C_{r}$ = cost of one retrain, in dollars (compute time, engineering, deployment risk). A fixed, one-off amount you pay each time you retrain.
$r$ = accuracy recovered, a pure fraction (e.g. $0.008$ for $0.8%$ ): how much of the accuracy lost to drift a fresh model wins back when you retrain now.
$C_{s}$ = staleness rate, in dollars per percentage-point of accuracy per unit time — the money you lose per week for each $1%$ of accuracy the model is down. This is a rate, not a total.
Because accuracy keeps decaying, the accumulated loss grows with the time $t$ (in weeks) since the last retrain. If the model loses accuracy at rate $d$ (fraction per week), the total staleness loss already suffered by time $t$ is $L (t) = C_{s} \cdot d \cdot t$ dollars (rate $\times$ decay-per-week $\times$ weeks) — that is the pot of money a retrain can recover.
You retrain when the recovered benefit beats the cost: $benefit, dollars L (t) \cdot r > cost, dollars C_{r}$ Units check: $L (t)$ is in dollars and $r$ is a pure fraction, so the left side is dollars — matching $C_{r}$ on the right.

True or false — justify

The world stays still after you deploy, so a well-trained model stays accurate.

False. A model is a snapshot of

P_{train} (X, Y)

; the serving world

P_{serve} (X, Y)

keeps moving, so accuracy decays even if the code is perfect. See Data drift and concept drift.

Data drift (covariate shift) by itself always forces a retrain.

False. If only

P (X)

moved but

P (Y ∣ X)

is unchanged, the input→output rule still holds; sometimes reweighting or more data suffices. Only

P (Y ∣ X)

changing (concept drift) truly forces relearning the rule.

A high PSI (Population Stability Index) value means the model's accuracy has dropped.

False. PSI measures input distribution shift, not performance. A robust model with stable

P (Y ∣ X)

can keep performing fine despite large PSI — confirm with actual metrics first.

PSI is symmetric in the two distributions, so swapping expected (

a_{i}

) and actual (

b_{i}

) gives the same score.

True. Each term is

(b_{i} - a_{i}) ln (b_{i} / a_{i})

; the difference and the log both flip sign when you swap

a

and

b

, so their product — and the sum — is unchanged.

Every PSI term is guaranteed non-negative.

True.

(b_{i} - a_{i})

and

ln (b_{i} / a_{i})

always share the same sign (both positive if

b_{i} > a_{i}

, both negative if

b_{i} < a_{i}

), so their product is

\geq 0

and the whole sum is

\geq 0

Retraining more frequently is always safer because the model stays fresher.

False. Each retrain pays a fixed cost

C_{r}

; if drift is slow, you spend heavily to recover negligible accuracy, producing a net loss. Frequency must match drift rate.

"New data is more recent, therefore a model trained on it is better."

False. New data can be corrupted, mislabeled, or seasonal noise; recency alone guarantees nothing. This is why a promotion gate exists.

A challenger that beats the champion by any positive margin should be promoted.

False. You promote only if the margin exceeds the noise band

δ

; smaller gains may be random wiggle, and flip-flopping on noise destabilises production. See Champion-Challenger and A-B testing.

Manually re-running a training notebook counts as a retraining pipeline.

False. A pipeline is automated, versioned, testable, and triggerable with stage-level checkpoints; a hand-cranked notebook is none of these.

If drift is zero (PSI = 0), you never need to retrain.

False. PSI = 0 means inputs are unchanged, but concept drift (

P (Y ∣ X)

shifting) leaves

P (X)

identical while the labels' meaning changes — invisible to PSI entirely.

Spot the error

"We validated the challenger on the same slice the model trained on — its F1 was 0.97, so promote."

Error: train–serve leakage. Evaluating on seen data inflates the metric and hides real-world rot; use a temporally held-out, unseen slice.

"Our pipeline is: fresh data → train → deploy. Simple and safe."

Error: no promotion gate. A corrupted or seasonal batch produces a worse model that ships straight to users — the #1 MLOps disaster. Insert champion–challenger.

"PSI hit 0.30, so we immediately shipped the retrained model to 100% of traffic."

Two errors: PSI (

> 0.25

) is only an early-warning trigger to investigate, not proof of a broken model; and going straight to 100% skips canary/shadow safety.

"We saved the model file, so we can always reproduce this result."

Error: no lineage. Without the data snapshot hash + code commit + hyperparameters, you cannot reproduce or debug the model. See Data versioning and lineage.

"We used KL divergence as our drift score because it's symmetric."

Error: KL is asymmetric (

\sum b_{i} ln (b_{i} / a_{i}) \neq = \sum a_{i} ln (a_{i} / b_{i})

). PSI is the symmetrised variant. See KL divergence.

"Accuracy hasn't dropped yet, so there's no drift and nothing to watch."

Error: input drift can precede accuracy loss, especially when labels are delayed. Drift-based triggers exist precisely to catch this before the metric moves.

"We always retrain on only the last 24 hours of data to stay maximally fresh."

Error: discarding historical signal overfits to short-term noise/seasonality. Use a rolling window or a weighted blend of old and new data.

Why questions

Why call it a "pipeline" instead of "a script"?

Because each stage (ingest, validate, train, evaluate, promote) can fail independently and must be observable; the pipeline gives stage-level checkpoints, retries, and lineage so garbage data never reaches training.

Why must data validation come before training, not after?

If you train first, you've already burned compute on garbage and may promote a corrupted model. Validation is a gate that stops the run before harm.

Why does the promotion gate use a margin

δ

instead of ">"?

δ

absorbs measurement noise so you don't flip-flop between models on random

\pm 0.1%

wiggles, which would destabilise production.

Why is concept drift more dangerous than pure covariate shift?

Under concept drift the labels themselves no longer describe reality, so old training data is actively misleading — no reweighting can save you; you must relabel and retrain.

Why compare benefit

L (t) \cdot r

against cost

C_{r}

before retraining?

Retraining carries real compute and deployment risk; you only gain if the recovered money (recovered accuracy

r

times accumulated staleness loss

L (t)

) is worth more than that cost. Blind hourly retraining pays

C_{r}

repeatedly for near-zero benefit.

Why use a ratio

ln (b_{i} / a_{i})

inside PSI instead of just the raw gap

b_{i} - a_{i}

The ratio makes surprise proportional: a bin going

0.01 \to 0.02

(doubled) matters as much as

0.4 \to 0.8

, which raw differences would understate. It also gives the sign-matching that keeps every term

\geq 0

Why prefer drift-based triggers when ground-truth labels are delayed?

You can't measure accuracy without labels, so input-distribution shift is your only early signal that the model may be going stale before you can confirm it.

Why version data and code together rather than just the model file?

A model is a function of both; without the exact data snapshot and code commit you cannot reproduce, audit, or debug why a model went bad.

Edge cases

An actual bin is empty (

b_{i} = 0

). What happens to PSI, and what do you do?

ln (b_{i} / a_{i}) = ln 0 \to - \infty

, so PSI blows up. In practice you floor each bin at a tiny

ϵ

(e.g.

0.0001

) so the log stays finite.

An expected bin is empty (

a_{i} = 0

). Does PSI also break?

Yes —

ln (b_{i} / a_{i})

divides by zero, so the term

\to + \infty

. Both

a_{i} = 0

and

b_{i} = 0

are degenerate; floor both fractions at a small

ϵ

(and prefer bins wide enough to avoid empties) before computing.

P (X)

is perfectly stable but the world's labeling rule changed. Will drift monitoring catch it?

No — PSI/KS on inputs sees nothing because

P (X)

is unchanged. Only performance monitoring on fresh labels (or delayed ground truth) reveals this concept drift.

The challenger exactly ties the champion (margin = 0). Promote?

No. Zero improvement never exceeds a positive

δ

; keep the incumbent champion, since switching adds risk with no measured gain.

Both distributions are identical (

a_{i} = b_{i}

for all bins). What is PSI, and is that expected?

Exactly

0

, because every term

(b_{i} - a_{i}) ln (b_{i} / a_{i})

vanishes when

b_{i} = a_{i}

. That is the required "zero when identical" property of a distance-like score.

A one-time holiday spike triggers your drift alarm. Should you retrain?

Not blindly — investigate first. Seasonal spikes are transient; retraining on them bakes short-term noise into the model. Treat the alarm as a signal to check, not an auto-deploy.

Labels arrive weeks late, so performance-based triggers are useless in real time. What trigger fills the gap?

Drift-based triggers — PSI or the KS test on the inputs — act as a leading indicator, warning you of input shift before the delayed accuracy numbers can confirm degradation.

Your challenger wins on average F1 but does much worse on a critical minority segment. Promote on the average?

No. Aggregate F1 can hide a regression on a slice that matters; gate on segment-level metrics too, or you ship a model that quietly fails the group that counts most.
