Containerization with Docker: Worked examples

Formula The one tool we lean on (restated, so you never flip back)

A build is an ordered stack of layers $L_{1}, L_{2}, \dots, L_{n}$ . Layer $L_{1}$ is the bottom (the base OS); $L_{n}$ is the top (usually your source code). Each layer $L_{i}$ has a build cost $c_{i}$ — how many seconds it takes to produce that layer from scratch.

When you rebuild, Docker walks the stack bottom to top. It keeps reusing cached layers until it meets the first changed layer. Call that layer's index $k$ . From $k$ upward, everything must be rebuilt, because each layer's identity depends on its parent's hash — change a parent and every child's hash changes too, like knocking the first domino. $C_{rebuild} = \sum_{i = k}^{n} c_{i}$ Read it in words: "the cost of a rebuild is the sum of the build costs of the first changed layer and everything stacked above it." Layers below $k$ cost $0$ (cache hits). If nothing changed, there is no $k$ at all and $C_{rebuild} = 0$ .

Throughout we use one concrete layer stack — the canonical ML Dockerfile from the parent — with made-up but realistic per-layer times so we can compute real numbers:

Definition Our reference stack (memorise this table, every example uses it)

$i$	Layer	Instruction	$c_{i}$ (seconds)
1	base	`FROM python:3.11-slim`	10
2	workdir	`WORKDIR /app`	0
3	copy-reqs	`COPY requirements.txt .`	1
4	pip-install	`RUN pip install -r requirements.txt`	120
5	copy-code	`COPY . .`	2
6	expose	`EXPOSE 8000`	0
7	cmd	`CMD [...]`	0

A cold build (nothing cached) costs $\sum_{i = 1}^{7} c_{i} = 10 + 0 + 1 + 120 + 2 + 0 + 0 = 133$ s.

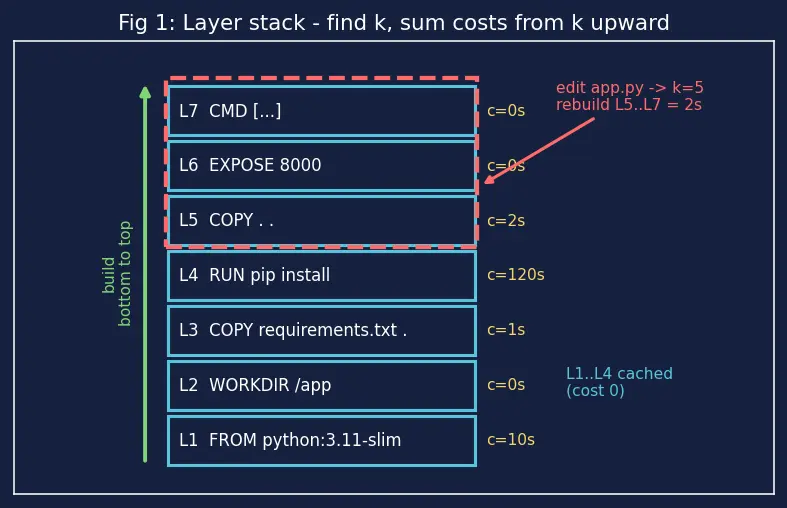

Now look at Figure 1 (its title reads "Fig 1: Layer stack - find k, sum costs from k upward"). It draws this exact stack bottom-to-top, marks each layer's cost in yellow, and — with the red dashed bracket — shows the rebuild region for a code edit: only the top three layers (from $k = 5$ up) get rebuilt, while the blue-outlined layers below stay cached at cost $0$ . Every example below is just this picture with a different bracket position.

The scenario matrix

Every build/run situation this topic can throw falls into one of these cells. The examples below hit each cell exactly.

Cell	Trigger	What changes	Expected $k$	Covered by
A. Zero-change	rebuild, edited nothing	nothing	none ( $C = 0$ )	Ex 1
B. Code-only edit	edit `app.py`	copy-code layer $L_{5}$ up	$k = 5$	Ex 2
C. Dependency change	edit `requirements.txt`	mid-stack	$k = 3$	Ex 3
D. Base-image bump	change `FROM` tag	everything	$k = 1$ (degenerate)	Ex 4
E. Wrong ordering	`COPY . .` too early	code edit busts pip	$k = 3$	Ex 5
F. Port mapping	`-p` host:container arithmetic	runtime, not build	—	Ex 6
G. Ephemeral vs volume	file written at runtime	data survival	—	Ex 7
H. Image-size / slim	full vs slim base	disk + pull cost	—	Ex 8
I. Word problem	CI fleet, pull savings	shared layers	—	Ex 9
J. Exam twist	`CMD` override + `ENTRYPOINT`	which args win	—	Ex 10

The worked examples

Worked example Ex 1 — Cell A: the zero-change rebuild

Statement. You run docker build -t myapp:1.0 .. It finishes in 133 s. You immediately run the exact same command again, touching no file. How long does the second build take, and what does Docker print for each layer?

Forecast: guess the seconds before reading on. (Zero? A few? All 133 again?)

Find the first changed layer $k$ . Why this step? $k$ is the only thing the cost formula needs. Nothing on disk changed, so no instruction's inputs differ. There is no first changed layer — $k$ is undefined.
Apply the formula. Why this step? To convert "no $k$ " into a number. With no $k$ , the sum $\sum_{i = k}^{n}$ has no terms: $C_{rebuild} = 0$ s.
Predict the log. Why this step? So you recognise a fully-cached build when you see one. Every line reads ---> Using cache.

Verify: Sanity check — a build that reuses all 7 layers must be free of work, and $\sum_{i = 1}^{7} c_{i} \cdot 0 = 0$ . Units: seconds. ✓ Answer 0 s.

Worked example Ex 2 — Cell B: edit one line of

app.py Statement. You change a print in app.py and rebuild. Which layers rebuild, and what's the cost?

Forecast: which layer index does the code first differ at?

Locate the change in the stack. Why this step? $k$ is defined by where in the stack the first altered input lives. app.py enters at layer 5 (COPY . .). Layers 1–4 have identical instructions and inputs → cache hits. This is exactly the red dashed bracket in Figure 1 ("Fig 1: Layer stack - find k, sum costs from k upward").
Set $k = 5$ . Why this step? It's the first layer whose input (the source tree) changed.
Sum from $k$ to top. Why this step? Formula. $C_{rebuild} = c_{5} + c_{6} + c_{7} = 2 + 0 + 0 = 2$ s.

Verify: The expensive pip install ( $c_{4} = 120$ ) sits below $k = 5$ , so it is skipped — that's the whole point of putting code last. $2 ≪ 133$ . ✓ Answer 2 s.

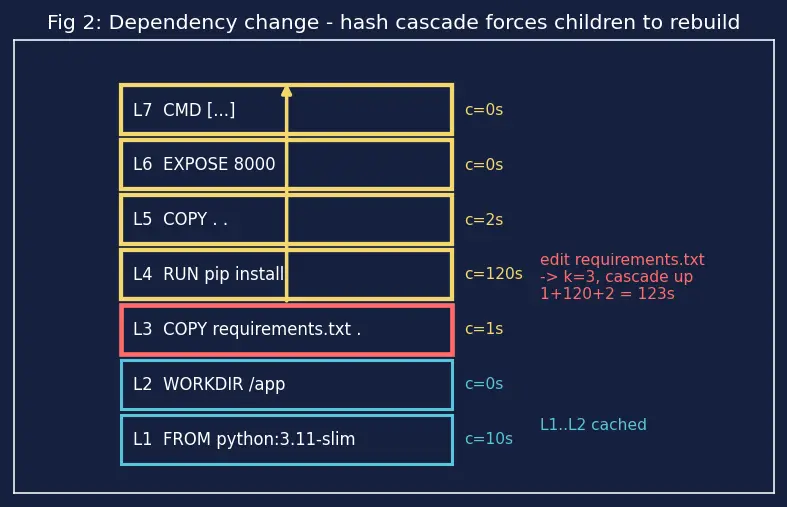

Worked example Ex 3 — Cell C: add a dependency to

requirements.txt Statement. You append pandas==2.2 to requirements.txt and rebuild. Cost?

Forecast: does this cost more or less than Ex 2? By how much?

Find where requirements.txt enters. Why this step? To pin $k$ . It's copied at layer 3. So layers 1–2 are cache hits, and $k = 3$ .
Cascade upward. Why this step? Everything above a changed layer rebuilds because its parent hash changed. Layer 4 (pip install) is a child of the now-changed layer 3, so it re-runs in full. Figure 2 ("Fig 2: Dependency change - hash cascade forces children to rebuild") draws this cascade — the changed layer in red, the forced-rebuild children in yellow flowing upward.
Sum. Why this step? Formula. $C_{rebuild} = c_{3} + c_{4} + c_{5} + c_{6} + c_{7} = 1 + 120 + 2 + 0 + 0 = 123$ s.

Verify: Changing deps should be near-cold (you genuinely must reinstall). $123$ s is close to the $133$ s cold build, missing only the base-layer $10$ s. Makes sense — the base was still cached. ✓ Answer 123 s.

Worked example Ex 5 — Cell E: the wrong-ordering trap (steel-manned)

Statement. A teammate "simplifies" the Dockerfile so the source copy happens before the install. The new reordered stack is defined below (all 7 layers, with their new indices and costs):

$i$	Layer	Instruction	$c_{i}$ (seconds)
1	base	`FROM python:3.11-slim`	10
2	workdir	`WORKDIR /app`	0
3	copy-code	`COPY . .`	2
4	pip-install	`RUN pip install -r requirements.txt`	120
5	expose	`EXPOSE 8000`	0
6	cmd	`CMD [...]`	0
7	(none)	—	0

Note the only structural change from the reference stack: COPY . . moved down to index 3 and pip install sits above it at index 4; copy-reqs is gone because everything is copied at once. They then edit one line of app.py. Cost?

Forecast: compare against Ex 2's clean $2$ s.

Use the reordered indices. Why this step? Ordering changed, so the layer indices changed; we must read $c_{i}$ off the new table above, not the reference one. Now COPY . . is index 3 (cost 2) and pip install is index 4 (cost 120).
Find $k$ . Why this step? The app.py edit lands in the copy-all layer, index 3 → $k = 3$ .
Sum upward. Why this step? pip install is now a child of the changed copy layer, so it rebuilds too: $C = c_{3} + c_{4} + c_{5} + c_{6} + c_{7} = 2 + 120 + 0 + 0 + 0 = 122$ s.

Verify: Same one-character edit costs $122$ s here vs $2$ s in Ex 2 — a $61 \times$ penalty purely from ordering. This is exactly why "deps before code" exists. ✓ Answer 122 s.

Worked example Ex 6 — Cell F: port mapping arithmetic (all cases)

Statement. The app inside the container listens on 8000 (that's the EXPOSEd port). Answer four sub-cases: (a) docker run -p 8080:8000 myapp — which URL reaches the app? (b) docker run -p 9000:8000 myapp — which URL now? (c) docker run myapp (no -p) — can you reach it from your browser? (d) docker run -p 8000:8080 myapp — does it work?

Forecast: which side of host:container is "your machine"?

State the rule. Why this step? Everything follows from it. -p HOST:CONTAINER — left is the port on your machine, right is the port inside the container the app truly listens on.
(a) Why this step? Map left→right. Browser hits localhost:8080; forwarded to container 8000 where the app lives. ✅ http://localhost:8080.
(b) Why this step? Only the host side changed. http://localhost:9000 reaches it; 8000 inside is unchanged.
(c) degenerate — no mapping. Why this step? EXPOSE is metadata only; with no -p there is no host port forwarded. Browser cannot reach it. Not reachable. ❌
(d) mismatch. Why this step? Right side says the app is on container port 8080, but the app actually listens on 8000. Docker forwards localhost:8000 → container 8080, where nothing listens → connection refused. ❌

Verify: Rule check — the app is reachable iff the right-hand (container) number equals the port the process binds (8000). Cases (a),(b) have :8000 ✓; (d) has :8080 ✗; (c) has no mapping ✗. Consistent. ✓

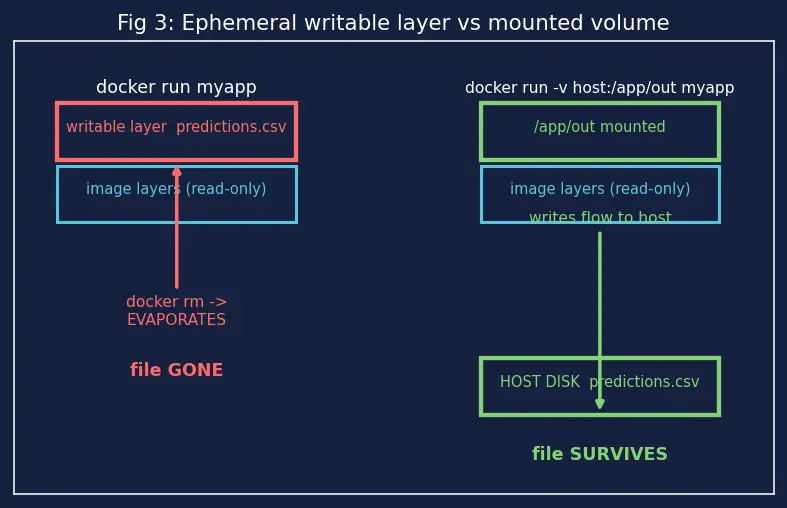

Worked example Ex 7 — Cell G: does my runtime file survive?

Statement. Inside a running container your code writes predictions.csv to /app/out/. You then docker rm the container. Answer for two setups: (a) plain docker run myapp (b) docker run -v $(pwd)/out:/app/out myapp Does predictions.csv still exist after removal?

Forecast: where physically does the write land in each case?

Recall the writable layer is ephemeral. Why this step? A container's top read-write layer is created at run and destroyed at rm. Anything written only there dies with the container. Figure 3 ("Fig 3: Ephemeral writable layer vs mounted volume") shows this: the ephemeral layer (red) evaporates on rm, while the mounted volume (green) points to host disk that survives.
(a) Why this step? No volume, so /app/out lives in that ephemeral layer. After rm: gone. ❌
(b) Why this step? -v host:container mounts a real host folder over /app/out. Writes go to your machine's disk, outside the container's lifecycle. After rm: still there on the host. ✅

Verify: Sanity — the parent's mistake callout says "mount a volume for data that must survive." (b) mounts, survives; (a) doesn't, dies. Consistent. ✓

Worked example Ex 8 — Cell H: slim vs full image size

Statement. The full python:3.11 base is ~ $1000$ MB; python:3.11-slim is ~ $130$ MB. Your app layers add $50$ MB on top of either. Your CI pulls the base fresh every run, at $40$ MB/s network. Compute total image size and cold-pull time for each, and the time saved per CI run.

Forecast: guess the pull-time gap before computing.

Total sizes. Why this step? Image size = base + app layers. Full: $1000 + 50 = 1050$ MB. Slim: $130 + 50 = 180$ MB.
Pull times. Why this step? time = size / bandwidth. Full: $1050/40 = 26.25$ s. Slim: $180/40 = 4.5$ s.
Saving. Why this step? Difference per run: $26.25 - 4.5 = 21.75$ s.

Verify: Units: MB ÷ (MB/s) = s ✓. Slim is $1050/180 = 5.833 \dots \times$ smaller, so pull is proportionally faster ( $26.25/4.5 = 5.833 \dots$ ). The two ratios match — good. ✓ Answers: 1050 MB / 26.25 s and 180 MB / 4.5 s, saving 21.75 s each run.

Worked example Ex 9 — Cell I: word problem, a CI fleet sharing a base

Statement. A team ships $8$ microservice images, all built on the same $130$ MB slim base. Each also has $20$ MB of unique app layers. A registry stores content-addressed layers, so shared layers are stored once. (a) How much disk does the registry use for all 8? (b) A Kubernetes node that already cached the base then pulls all 8 fresh app layers — how many MB does it transfer, and at $40$ MB/s how long?

Forecast: naïvely you'd think $8 \times (130 + 20)$ . Why is that wrong?

Store the base once. Why this step? Content-addressing means identical layers dedupe. Base counted a single time: $130$ MB. Unique layers counted per service: $8 \times 20 = 160$ MB.
Registry total. Why this step? Sum deduped store: $130 + 160 = 290$ MB. (Naïve would be $8 \times 150 = 1200$ MB — a $910$ MB overcount.)
Node transfer. Why this step? Node already has the base cached, so it pulls only the 8 app layers: $160$ MB. Time $= 160/40 = 4$ s.

Verify: Why this step? We must confirm the dedup arithmetic is self-consistent and that we didn't double-count the base. Dedup check — the base appears exactly once ( $130$ MB) and the unique layers total $8 \times 20 = 160$ MB, so the store is $130 + 160 = 290$ MB, which is $\leq 1200$ MB (the naïve overcount) as it must be. Transfer check — the node skips the cached base and pulls only $160$ MB, giving $160/40 = 4$ s (units: MB ÷ MB/s = s ✓). Both consistent — this is why shared bases make CI fleets cheap. ✓ Answers 290 MB, 160 MB / 4 s.

Worked example Ex 10 — Cell J: the exam twist —

CMD vs ENTRYPOINT override Statement. A Dockerfile ends with:

ENTRYPOINT ["python", "predict.py"]
CMD ["--model", "v1"]

Predict the exact command executed for each run: (a) docker run img (b) docker run img --model v2 (c) docker run img --model v2 --gpu

Forecast: which of the two lines is fixed and which is a replaceable default?

State the roles. Why this step? ENTRYPOINT is the fixed executable — always prepended. CMD supplies default arguments that anything you type after the image name replaces wholesale.
(a) — no run-args. Why this step? With nothing typed after the image name, CMD's defaults stand and get appended to the entrypoint. Executed command = python predict.py --model v1.
(b) — one flag pair supplied. Why this step? You provided args, so they replace the entire CMD (they do not merge per-flag). Result = python predict.py --model v2. Note v1 is gone entirely, not overridden — the whole default list was discarded.
(c) — extra tokens supplied. Why this step? Same replacement rule; your full token list --model v2 --gpu replaces CMD and is appended to the fixed entrypoint. Result = python predict.py --model v2 --gpu.

Verify: Invariant — ENTRYPOINT (python predict.py) prefixes all three; CMD (--model v1) appears only in (a) where no run-args were given. (b) and (c) drop v1 completely. This is precisely "container behaves like a CLI tool" from the parent — docker run img <args> swaps the arguments without editing the image. ✓ Answers: (a) python predict.py --model v1, (b) python predict.py --model v2, (c) python predict.py --model v2 --gpu.

Active recall

Recall Cover the matrix from memory

Q: Editing only app.py — which layer index is $k$ , and why isn't pip install rebuilt? ::: $k = 5$ (the COPY . . layer); pip install is layer 4, below $k$ , so it's a cache hit. Q: Changing requirements.txt costs almost as much as a cold build — why "almost" and not exactly? ::: $k = 3$ , so layers 1–2 (base + workdir, cost $10 + 0$ ) are still cached; only the base's $10$ s is saved. Q: Which single Dockerfile mistake turns a $2$ s rebuild into $122$ s? ::: Putting COPY . . before pip install, dropping $k$ below the pip layer so code edits bust it. Q: -p 8000:8080 when the app listens on 8000 — reachable? ::: No; the container side must be 8000. This forwards to 8080 where nothing listens → refused. Q: A file written at runtime with no volume — survives docker rm? ::: No; the writable layer is ephemeral. Mount -v host:container to persist. Q: docker run img --model v2 with CMD ["--model","v1"] — final command? ::: python predict.py --model v2; run-args replace the whole CMD, so v1 vanishes.

Connections

Parent: Containerization with Docker — the rules these examples exercise.
CI-CD Pipelines — Ex 9's fleet pulls are what your pipeline pays every commit.
Container Registries — content-addressed dedup (Ex 9) lives here.
Kubernetes Orchestration — the node that caches shared bases (Ex 9).
Model Serving with FastAPI — the predict.py/app:app process in Ex 10 & the port examples.
Reproducibility in ML — why base bumps (Ex 4) and pinned tags matter.
Virtual Environments (venv, conda) — the Python-level layer Docker wraps at OS level.

Editing only source code sets the first-changed layer k to which position in the canonical stack?

k = 5, the COPY . . layer; pip install (layer 4) stays cached.

Why does changing requirements.txt cost ~123 s but a base bump costs the full 133 s?

requirements enters at k=3 (base still cached, saving 10 s); FROM change makes k=1, nothing cached.

In -p HOST:CONTAINER, which number must equal the port the app actually binds?

The right-hand CONTAINER number.

With ENTRYPOINT fixed and CMD as defaults, what happens to CMD when you pass run-time args?

The run-time args replace the entire CMD wholesale, not per-flag.
