Perplexity as a metric: Visual walkthrough — AI-ML deep dive

Step 1 — A model is a bag of guesses

WHAT. Imagine reading a story one word at a time. Before each word appears, our model spreads out its belief: it puts a fraction of confidence on every possible next token (a token = one chunk of text; see Tokenization). Those fractions are all positive and sum to 1 — that's what a probability distribution is (produced in practice by a softmax).

WHY. Everything downstream is just "how good were these guesses?" So we must first see a guess as a set of bars whose heights add to 1.

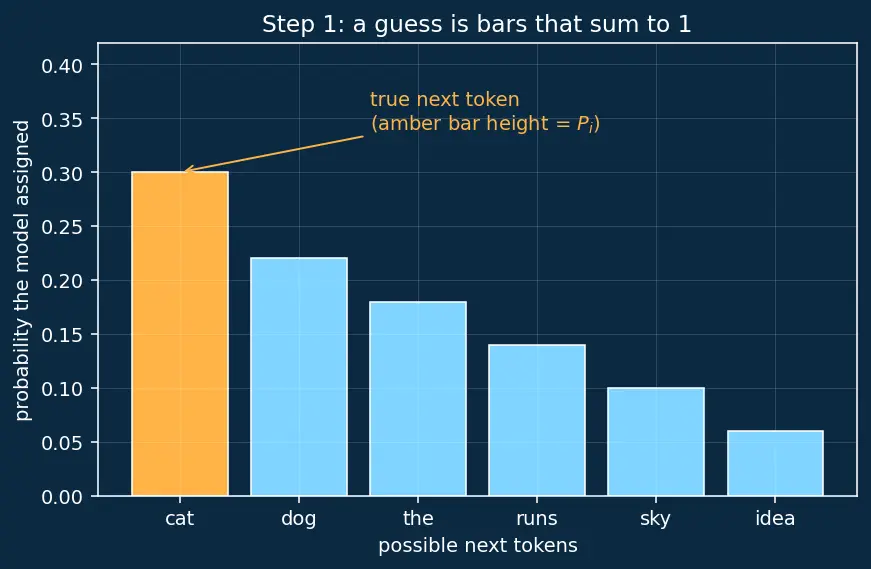

PICTURE. In the figure, the amber bar is the token that actually came next. A good model makes the amber bar tall; a bad model makes it short.

Step 2 — Surprise = how disappointed a tall/short bar makes you

WHAT. We want a surprise score for each guess. If the true token got probability $P_{i} = 1$ , surprise should be $0$ (you called it perfectly). If $P_{i}$ is tiny, surprise should be huge. If $P_{i} = 0$ (you swore it was impossible), surprise should be infinite.

WHY a logarithm — and which base? We need a function $S (P)$ that is $0$ at $P = 1$ , grows as $P \to 0$ , hits $+ \infty$ at $P = 0$ — and that adds up nicely when independent guesses combine. There is essentially one function that does all of this: the surprisal $S (P) = - lo g P$ . The minus sign flips "small probability" into "big number"; the log is chosen because it turns multiplying probabilities into adding surprises (we'll cash that in at Step 4). A logarithm always needs a base — the number we count doublings/growth against. We call that base $b$ : choose $b = 2$ and surprise is measured in bits (yes/no forks); choose $b = e$ (the number code uses) and it is measured in nats. The base is a unit choice; we keep it as the letter $b$ so the picture works for either. This is the foundation of Entropy and Information Content.

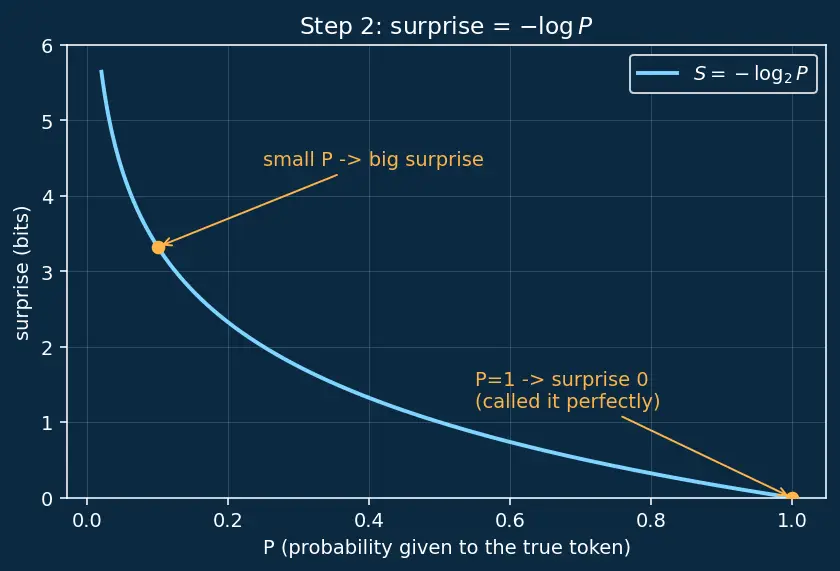

PICTURE. Watch the curve dive from $+ \infty$ on the left down to $0$ at $P = 1$ . The amber dots mark $P = 1$ (no surprise) and a small $P$ (big surprise).

Step 3 — Add up all the surprises along the sentence

WHAT. Say the sentence has $N$ tokens — so $N$ is simply the number of tokens (positions) in the passage we are scoring. That gives $N$ guesses, so $N$ surprises. Stack them: total surprise $= S_{1} + S_{2} + \dots + S_{N} = \sum_{i = 1}^{N} (- lo g_{b} P_{i})$ .

WHY sum and not multiply? Because Step 2 already converted "multiply probabilities" into "add surprises." Total surprise for the whole passage is honestly just the running total of per-step surprises.

PICTURE. Each cyan block is one token's surprise. Wider/taller block = the model was more shocked there. The total is the whole tower's height.

Step 4 — Average the surprise → cross-entropy $H$

WHAT. Divide the tower by $N$ (the token count from Step 3) to get the typical surprise per token: $H = \frac{1}{N} \sum_{i = 1}^{N} (- lo g_{b} P_{i}) = - \frac{1}{N} \sum_{i = 1}^{N} lo g_{b} P_{i}$

WHY. Dividing by $N$ makes the number length-independent — now a tweet and an article are on the same footing. This per-token average is the cross-entropy $H$ , and minimizing it is the Language Modeling Objective.

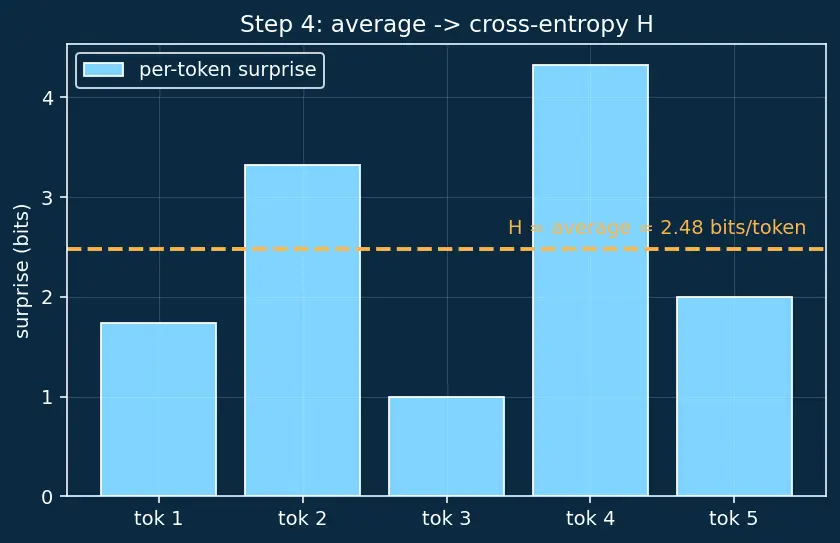

PICTURE. The tall tower of Step 3 is flattened into one bar of the average height $H$ — the dashed amber line is where each block would sit if all surprises were equal.

Step 5 — Undo the log: from surprise back to "number of choices"

WHAT. $H$ is measured in log-units (bits/nats), which is abstract. Let's translate it back into a count by raising the base $b$ to the power $H$ : $PPL = b^{H}$

WHY undo the log now? Because a count of choices is far more intuitive than "3.2 bits of surprise." Raising $b$ to a surprise inverts the $lo g$ we introduced in Step 2 — it answers: "surprise $H$ is what you'd feel if you were guessing uniformly among how many equally-likely options?" That count is the answer.

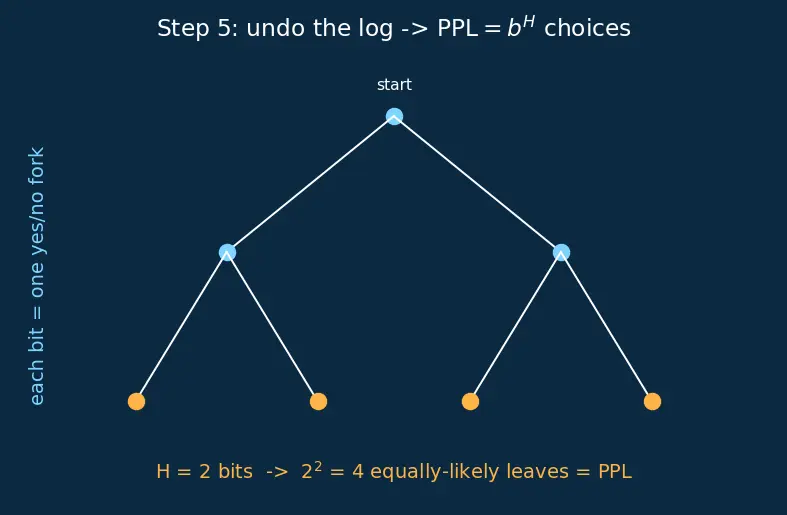

PICTURE. Imagine $H$ bits of surprise. Each bit is one yes/no fork in a decision tree. $H$ bits means $2^{H}$ leaves — that many equally-likely endings. The tree's leaf-count is the perplexity.

Step 6 — Assemble the compact formula $P^{- 1/ N}$

WHAT. Two more names, then the punchline. Write $P = P (w_{1}, \dots, w_{N})$ for the joint probability of the whole sequence — the single number you get by multiplying all the per-token bars together (chain rule): $P = \prod_{i = 1}^{N} P_{i}$ . With $N$ the token count from Step 3, we now show that $b^{H}$ equals the compact expression $P^{- 1/ N}$ .

WHY. One truth deserves the cleaner face. Seeing the algebra makes the strange $- 1/ N$ exponent earned rather than memorized.

PICTURE. The chain: multiply the bars (sequence probability $P$ ) → take the $N$ -th root (per-token typical bar) → flip it (reciprocal). Each arrow is one algebra move.

PPL = b^{H} = b^{- \frac{1}{N} \sum_{i} l o g_{b} P_{i}} = b^{l o g_{b} (\prod_{i} P_{i})^{- 1/ N}} = (i \prod P_{i})^{- 1/ N} = P (w_{1}, \dots, w_{N})^{- \frac{1}{N}}

$\sum_{i} lo g_{b} P_{i} = lo g_{b} \prod_{i} P_{i}$ ::: logs turn a sum into a log-of-product (Step 2's whole point).
$b^{l o g_{b} (x)} = x$ ::: raising the base undoes its log — the $b$ and $lo g_{b}$ annihilate.
exponent $- \frac{1}{N}$ ::: the $N$ -th root (geometric mean) and the reciprocal, glued together.
$\prod_{i} P_{i} = P (w_{1}, \dots, w_{N}) = P$ ::: the chain rule — the whole sentence's joint probability.

Step 7 — Every edge case, on one number line

WHAT. We now walk the full range of possible perplexities so no scenario surprises you. One new name we need here: $V$ = the vocabulary size, i.e. the total number of distinct tokens the model could ever emit (fixed by the tokenizer). A uniform "know-nothing" model spreads its bet equally over all $V$ of them.

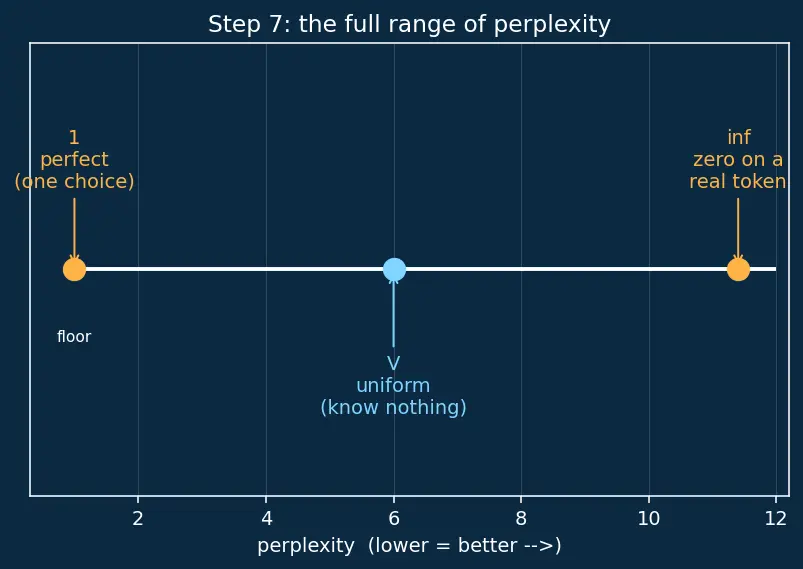

PICTURE. A number line of PPL. Read left (best) to right (worst):

Perfect model — every true token got $P_{i} = 1$ . Then $H = 0$ and $PPL = b^{0} = 1$ . One choice: no confusion at all. This is the floor; PPL can never go below $1$ .
Uniform model over vocab size $V$ — each $P_{i} = 1/ V$ , so $H = lo g_{b} V$ and $PPL = b^{l o g_{b} V} = V$ . The model recovers the raw vocabulary size — the honest "I know nothing" baseline.
Zero on a real token — some $P_{i} = 0 \Rightarrow - lo g_{b} 0 = + \infty \Rightarrow PPL = \infty$ . A single "impossible-but-real" token detonates the whole score. This is why we smooth and never allow a hard zero.

The one-picture summary

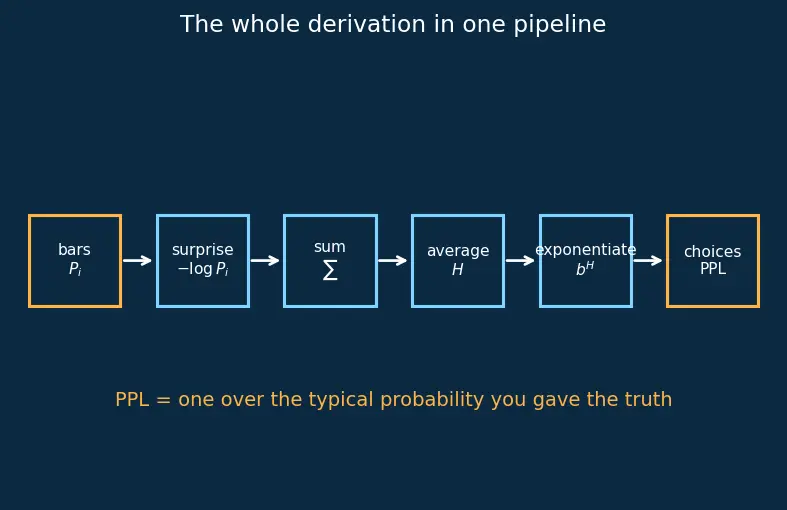

Everything above, compressed into a single pipeline: bars → surprise → sum → average → exponentiate → count of choices.

Recall Feynman: the whole walkthrough in plain words

A model reads a story and, before each word, spreads its confidence over all possible next words (Step 1). We score each guess by surprise: guessed the truth confidently → small surprise; swore it was impossible → infinite surprise (Step 2). We add up the surprises across the whole story (Step 3), then divide by the number of words so short and long stories compete fairly — that average is the cross-entropy (Step 4). But "3 bits of surprise" is abstract, so we translate it back into a count: "you were this surprised — as if you'd been guessing blindly among how many equally-likely words?" That count is the perplexity (Step 5). A little algebra shows this count equals one over the typical probability you gave the truth, i.e. $P^{- 1/ N}$ (Step 6). The best possible score is 1 (never confused); a know-nothing model scores the vocabulary size $V$ ; and a single word you called impossible sends the score to infinity (Step 7). Lower = smarter guesser.

Connections

Perplexity as a metric — the parent note this walkthrough visualizes.
Cross-Entropy Loss — the average surprise $H$ built in Step 4.
Entropy and Information Content — the surprisal $- lo g P$ of Step 2.
Language Modeling Objective — minimizing $H$ = minimizing PPL.
Softmax and Probability Distributions — where the bars of Step 1 come from.
Tokenization — sets $N$ and the vocabulary $V$ .
Bits-Per-Character (BPC) — a tokenizer-independent cousin.
