Before you can read the parent architecture note, you need to own every symbol it throws at you. This page builds each one from nothing. Read top to bottom — each idea is a brick the next one stands on.

1. The image as a grid of numbers

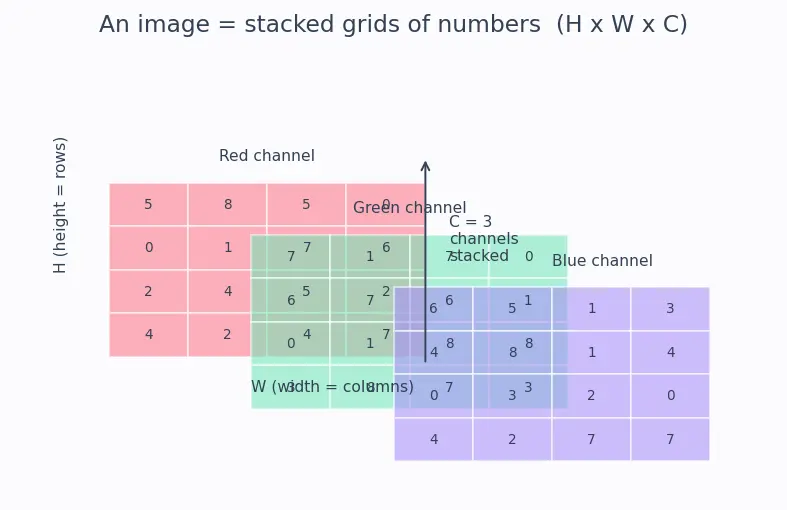

Look at the figure. The height $H$ counts rows, the width $W$ counts columns, and the channel count $C$ counts how many grids are stacked. We write the whole thing as a shape:

$H \times W \times C$

$H$ (height) ::: number of rows of pixels — the picture is $H$ tall.
$W$ (width) ::: number of columns of pixels — the picture is $W$ wide.
$C$ (channels) ::: how many grids are stacked; 1 for gray, 3 for colour, and many more inside the network (each learned filter makes a new grid).

2. The filter (kernel) and the number $k$

The little grid's side length is called $k$ (the kernel size). A $3 \times 3$ filter has $k = 3$ ; a $5 \times 5$ filter has $k = 5$ .

$k$ (kernel size) ::: the side length of the sliding filter grid; a $k \times k$ filter has $k^{2}$ numbers inside it.

3. Stride $s$ , padding $P$ , and pooling — changing the grid size

In the figure, follow the coral filter box: with $s = 2$ it lands on positions $0, 2, 4, \dots$ — every other spot — so half as many outputs come out along each direction.

Look at the pale border in the figure — those are the $P$ zero-pixels. With them, a filter centred on a corner still has neighbours to multiply, instead of hanging off the edge.

The figure shows a $2 \times 2$ max-pool: each coloured $2 \times 2$ block of the input collapses to a single output cell holding its largest value.

$s$ (stride) ::: the jump size of the sliding filter; larger $s$ makes a smaller output but throws away detail.
$P$ (padding) ::: extra pixels added on each side; keeps the grid from shrinking and lets corners be processed.

4. The receptive field — how much a neuron "sees"

Case A — $n$ stacked $3 \times 3$ convs, stride 1, no shrinking. The parent uses:

$R F = 1 + n \cdot (3 - 1) = 2 n + 1$

What it says: start at $1$ (a single pixel sees itself), and each $3 \times 3$ layer adds $2$ to the reach.
Why $(3 - 1) = 2$ : a $3 \times 3$ filter reaches one pixel left and one pixel right of centre, i.e. $2$ extra pixels of span.
What it looks like: in the figure, one output neuron (top) fans out through two layers until it touches a $5 \times 5$ patch of the input ( $n = 2 \Rightarrow 2 \cdot 2 + 1 = 5$ ). ✓

5. Parameters and FLOPs — the two costs

The parent counts weights as $k_{l}^{2} \cdot C_{l - 1} \cdot C_{l}$ . Adding the biases (one per output channel) gives the true total:

$Params_{l} = weights k_{l}^{2} \cdot C_{l - 1} \cdot C_{l} + biases C_{l}$

Read the weight term left to right: each of the $C_{l}$ output channels needs one filter; each filter is $k_{l} \times k_{l}$ ( $= k_{l}^{2}$ numbers) per input channel, and there are $C_{l - 1}$ input channels — multiply them. Then add one bias for each of the $C_{l}$ outputs.

Formula Deriving the FLOPs of a conv layer

First recall the output grid is $H_{o u t} \times W_{o u t}$ (both from the Section 3 formula). Now build the cost up one step at a time:

One output number comes from lining the filter over the input and doing $k^{2} \cdot C_{in}$ multiplies (one per filter weight, across all input channels), then $k^{2} \cdot C_{in} - 1$ adds to total them, plus one more add for the bias. That's $\approx 2 k^{2} C_{in}$ FLOPs (multiplies + adds), or just $k^{2} C_{in}$ multiply-adds if we count a fused multiply-add as one.
One whole output channel repeats that at every of the $H_{o u t} \times W_{o u t}$ positions: $\times H_{o u t} W_{o u t}$ .
All output channels: there are $C_{o u t}$ of them: $\times C_{o u t}$ .

Multiplying the three steps: $FLOPs \approx multiply-adds H_{o u t} \cdot W_{o u t} \cdot C_{in} \cdot C_{o u t} \cdot k^{2} + bias adds H_{o u t} \cdot W_{o u t} \cdot C_{o u t}$ The first term dominates; the bias adds (and any ReLU applied afterward, one comparison per output number) contribute only the small $H_{o u t} W_{o u t} C_{o u t}$ tail, which is why the parent's " $\propto$ " keeps only the leading product.

$H_{o u t}, W_{o u t}$ ::: the height and width of the output grid, from $⌊(H + 2 P - k) / s ⌋ + 1$ (and the same for $W$ ).
$C_{in}, C_{o u t}$ ::: channels going into and coming out of a layer — same as $C_{l - 1}$ and $C_{l}$ .

6. The gradient and the "+1" trick

To reach an early weight, backprop multiplies many small rates together (the parent's long chain of $\frac{\partial a _{i}}{\partial a _{i - 1}}$ ). Multiply many numbers below 1 and the product shrinks toward zero — that is the vanishing gradient problem.

7. Supporting cast (one line each)

Activation (ReLU) ::: a function applied after each layer; ReLU keeps positives, zeros negatives — adds the "nonlinearity" that lets stacked layers learn curved shapes.
Batch normalization ::: rescales each channel to a stable mean/variance during training so gradients behave.
Softmax ::: turns the final list of scores into probabilities that sum to 1.
FC (fully-connected) layer ::: every input connects to every output — used at the very end to make the class decision.
Concatenate (depth) ::: stack feature-grids from parallel branches into one taller stack (Inception uses this).

Prerequisite map

Equipment checklist

I can state what $H \times W \times C$ means for a picture ::: height rows, width columns, $C$ stacked grids (channels).
I know why channels grow inside a network ::: each learned filter produces one new feature-grid, so $C$ counts grids at that layer.
I can say what $k$ is and how many numbers a filter holds ::: $k$ is the filter's side; it holds $k^{2}$ numbers per input channel.
I know why CNN "convolution" is really cross-correlation ::: it slides the kernel without flipping it; learned weights absorb any flip.
I know two ways to shrink the grid and one way to keep it the same ::: stride $s > 1$ or pooling shrink; padding $P$ (e.g. $P = 1$ for $3 \times 3$ ) keeps the size.
I can compute an output size from $H, k, P, s$ and name valid vs same padding ::: $H_{o u t} = ⌊(H + 2 P - k) / s ⌋ + 1$ ; valid $= P = 0$ , same $= P = ⌊ k /2 ⌋$ .
I know when pixels get dropped ::: when $(H + 2 P - k) mod s \neq = 0$ the floor discards leftover edge pixels.
I can define $n$ and compute $R F$ for $n$ stacked stride-1 $3 \times 3$ convs ::: $n$ = number of stacked conv layers; $R F = 2 n + 1$ .
I can adjust RF for a stride or pool using the jump $j$ ::: $R F_{n e w} = R F_{o l d} + (k - 1) j$ , and $j$ multiplies by each stride.
I can state the parameter count of a conv layer with bias, defining $k_{l}$ and $C_{l}$ ::: $k_{l}^{2} \cdot C_{l - 1} \cdot C_{l} + C_{l}$ , where $k_{l}, C_{l}$ are kernel/channels at layer $l$ .
I can derive the FLOPs formula (defining $H_{o u t}, W_{o u t}$ ) and why doubling channels balances pooling ::: cost per output number $k^{2} C_{in}$ , times $H_{o u t} W_{o u t}$ positions, times $C_{o u t}$ channels, plus $H_{o u t} W_{o u t} C_{o u t}$ bias adds.
I know what $C_{0}$ is ::: the channel count of the first stage (typically 64), doubled per stage as $C_{0} \cdot 2^{l}$ .
I know what $\partial L / \partial w$ means and why "+1" stops it vanishing ::: rate of change of error w.r.t. a weight; the skip path guarantees a nonzero gradient route.
