Data augmentation strategies: Visual walkthrough

Step 1 — What "learning from examples" even means

WHAT: We picture every training photo as a coloured dot on a flat "space of all images." Cats are one colour, dogs another.

WHY: Before we can talk about transforming a photo, we need a picture where a photo is a single point — because a transformation will move that point. If you can't see the point, you can't see it move.

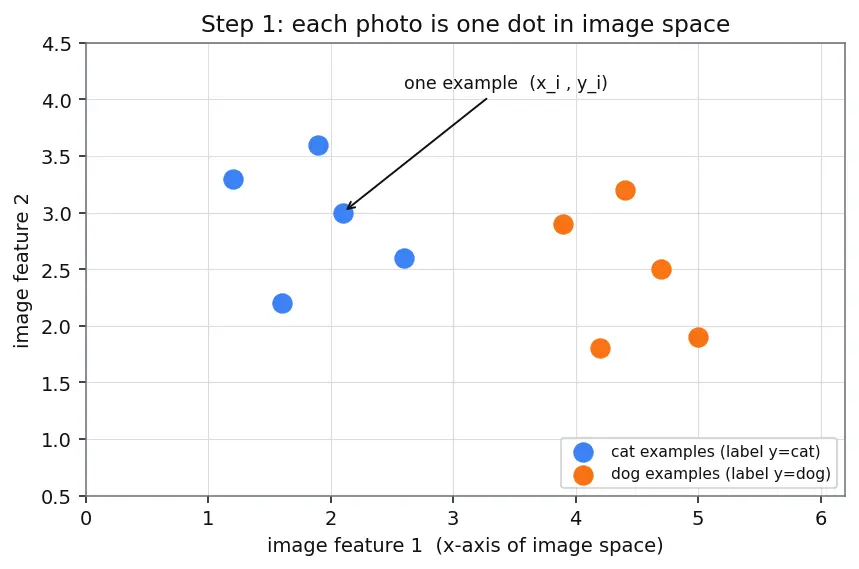

PICTURE: Each dot is one example $(x_{i}, y_{i})$ . The subscript $i$ just means "example number $i$ ", running $1, 2, \dots, N$ where $N$ is how many photos we have.

Step 2 — Ordinary training: fit the dots you happen to have

WHAT: We measure the average wrongness over exactly the dots we own, and we turn the knobs until that average is tiny.

WHY this and not something fancier? Because it's the only honest thing to do with a finite pile of examples — the word "Empirical" means "based on the samples we actually have." This is the baseline of Empirical Risk Minimization; everything else on this page is a repair of a flaw in this line.

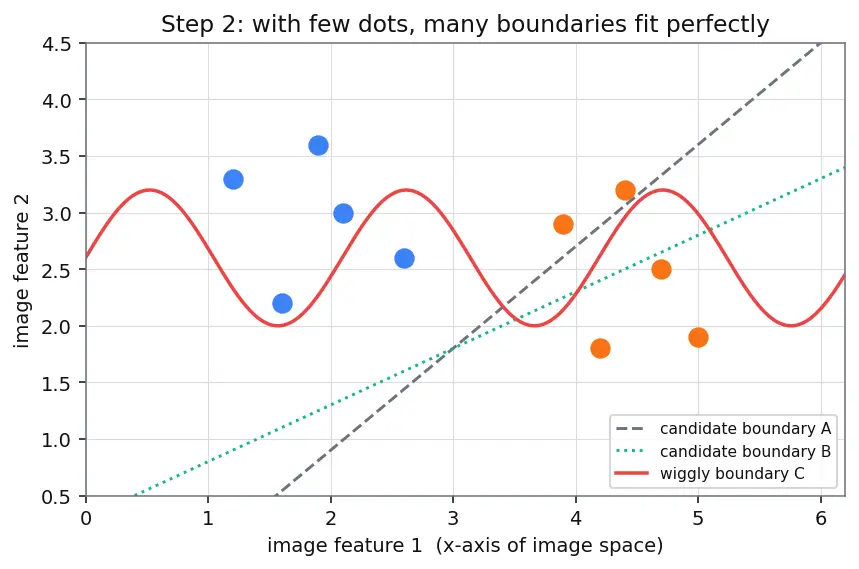

PICTURE: The model carves a boundary that separates cat-dots from dog-dots. With only a handful of dots, many different boundaries fit them perfectly — including wild, wiggly ones.

Step 3 — The flaw: a boundary that hugs the dots memorizes them

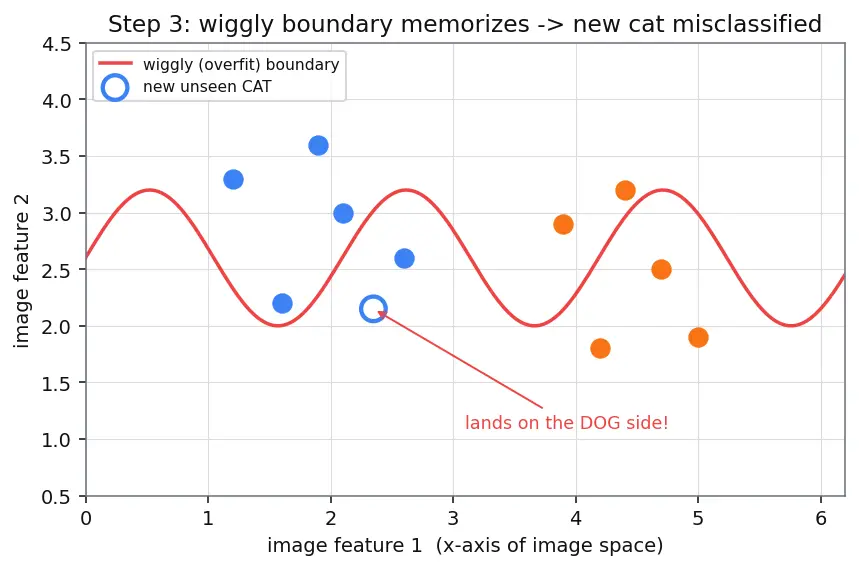

WHAT: We add one new, unseen cat (hollow dot) near a training cat. The wiggly boundary misclassifies it; a smooth boundary would not.

WHY: This exposes the exact problem augmentation solves. The model was never told that "a point near a known cat is probably also a cat." Nothing in Step 2's formula says so — it only ever mentions the exact points $x_{i}$ .

PICTURE: Same dots as Step 2, but now with the wiggly boundary drawn and a fresh hollow test-cat landing on the wrong side.

Step 4 — The key idea: replace each dot with a cloud

WHAT: Around each original dot we scatter a little cloud of transformed copies — same colour, slightly moved positions.

WHY this move? Because we secretly know something the raw dots didn't say: the region right around a cat is still cat-land. Filling in that region with real (label-preserving) dots forces any surviving boundary to go around the whole cloud, which kills the wiggles. This is the geometric meaning of "injecting invariance = Regularization".

WHY a transformation and not just random noise? Random noise might make a picture that means nothing (or means a different class). A transformation is chosen so it provably keeps the label — that's the entire safety condition $label (t (x)) = label (x)$ .

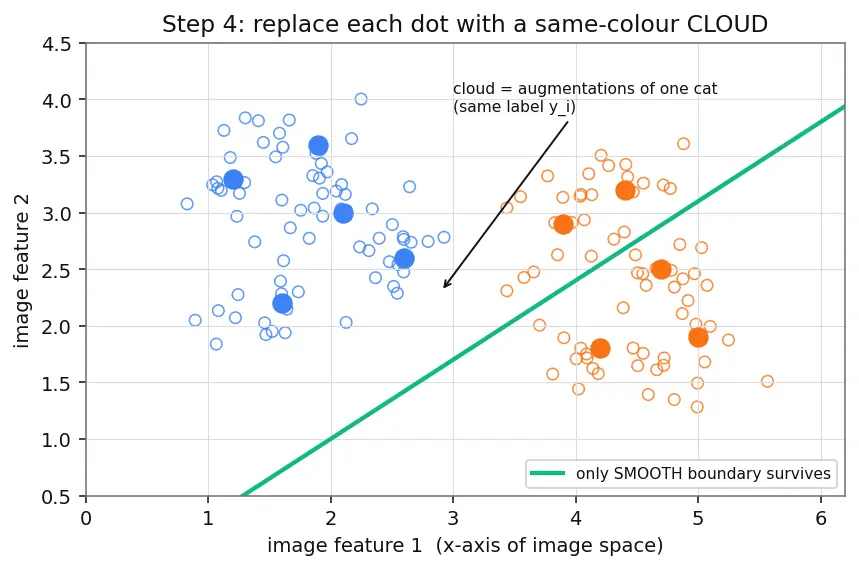

PICTURE: Each solid dot now sits inside a fuzzy cloud of same-colour open dots (its augmentations). The only boundaries that still separate the colours are smooth ones.

Step 5 — Writing the cloud down: expectation over transforms

WHAT: We replaced $ℓ (f_{θ} (x_{i}), y_{i})$ from Step 2 with its average over the cloud.

WHY the expectation symbol $E$ and not a plain sum? A cloud can contain infinitely many transformations (every shift by a fraction of a pixel, every brightness level). You cannot list them with $\sum$ . The expectation $E$ is precisely the tool for "average over a continuous, infinite bag of possibilities" — that's the question it answers.

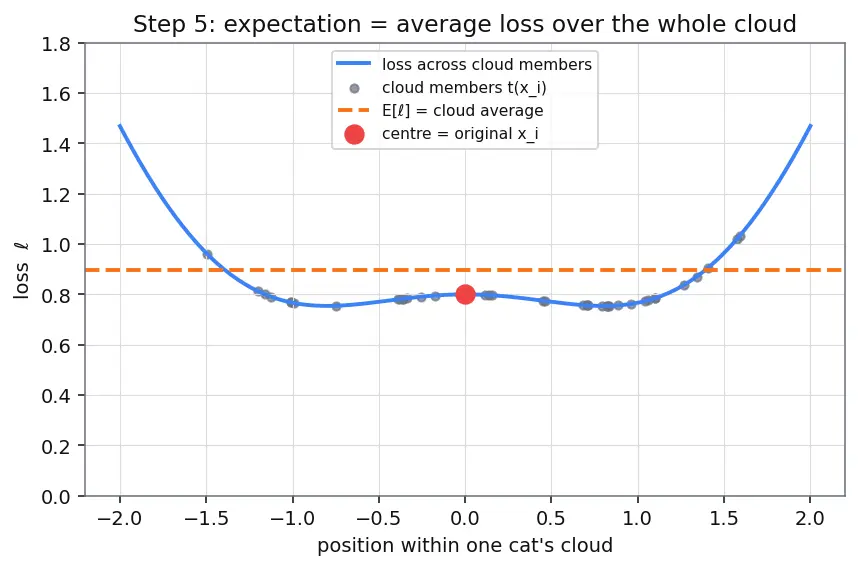

PICTURE: Zoom into one dot. The bracket is the average height of the loss-surface measured all across that dot's cloud, instead of at its single centre.

Step 6 — We can't average infinitely many things, so we sample one

WHAT: Each minibatch grabs one random augmentation per image instead of the whole cloud.

WHY is this legal? Because a single random pick is an unbiased estimate of the average: if you did it over and over (epoch after epoch), the picks would average out to the true cloud-average $L_{aug}$ . This is the Monte-Carlo principle — one honest sample in expectation equals the whole integral. So plain SGD, which already averages over minibatches and epochs, silently does the cloud-averaging for free.

WHY on-the-fly and not precomputed? The magic is that $t_{i}$ is re-rolled every epoch. Precompute-once would freeze one dot from each cloud forever, shrinking the cloud back to a single (albeit shifted) point — you'd lose the coverage from Step 4.

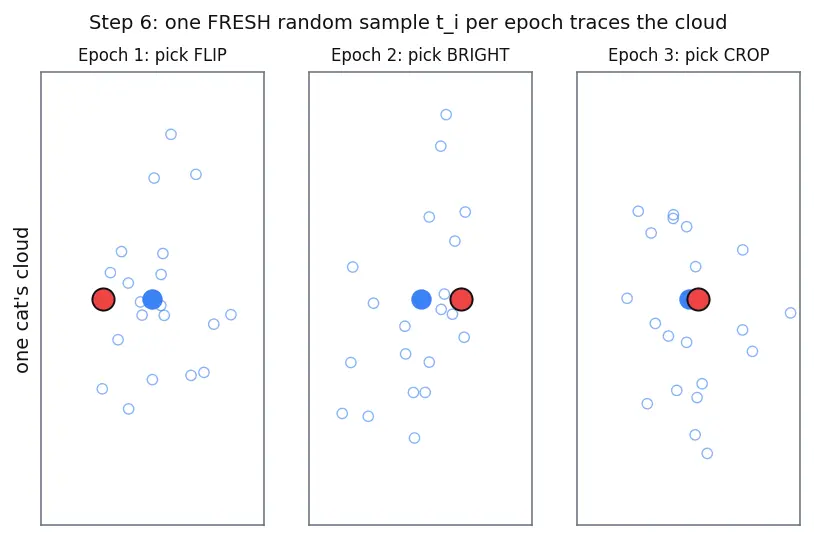

PICTURE: Three epochs of the same cat: epoch 1 picks the flipped copy, epoch 2 the brightened copy, epoch 3 the cropped copy — over time the picks trace out the whole cloud.

Step 7 — Edge case: a transform that leaves the cloud (breaks the label)

WHAT: We vertically flip a handwritten 6. It becomes a 9 — a red dot lands squarely in blue territory.

WHY show this? Because the derivation is only valid inside the label-preserving assumption. A degenerate transform (vertical flip of digits/text, mirrored road signs, left/right medical laterality) violates Step 4's premise, so Steps 5–6 no longer estimate anything meaningful. The math is fine; the choice of $P (T)$ is what was wrong.

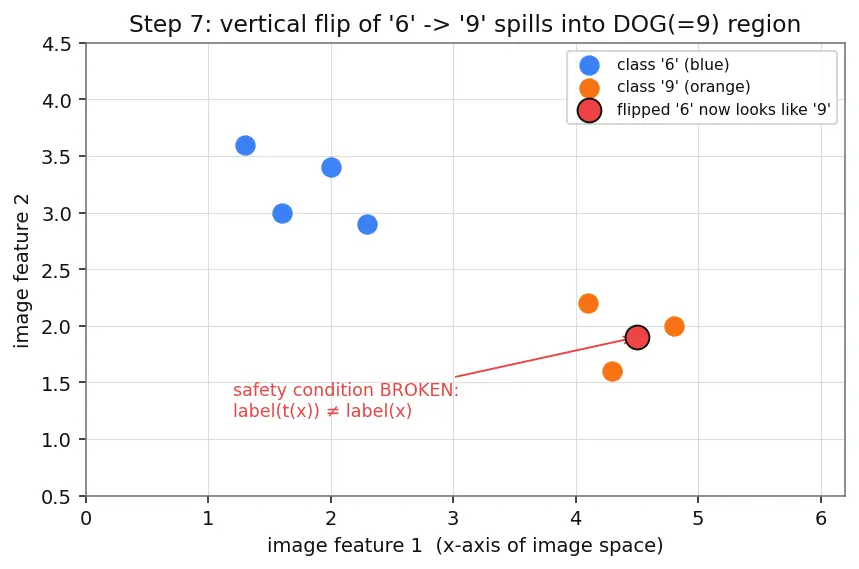

PICTURE: A "6" cloud that stays blue vs. a vertical-flip that ejects a red "9" dot into the wrong class — the boundary bends to accommodate a lie.

Step 8 — Degenerate case: too much augmentation smears the clouds together

WHAT: We crank up the augmentation strength until the two coloured clouds bleed into one another.

WHY this matters: It shows augmentation has a sweet spot. Zero augmentation → overfitting (Step 3). Infinite augmentation → clouds overlap, information destroyed, underfitting. The validation curve, not vibes, tells you where the peak is.

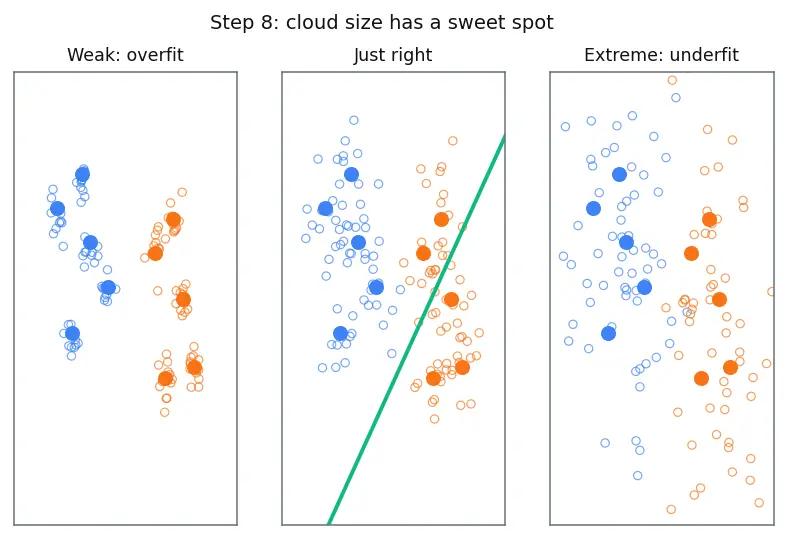

PICTURE: Three panels — weak (tight clouds, clean boundary), just-right (clouds fill gaps, smooth boundary), extreme (clouds merged, boundary impossible).

The one-picture summary

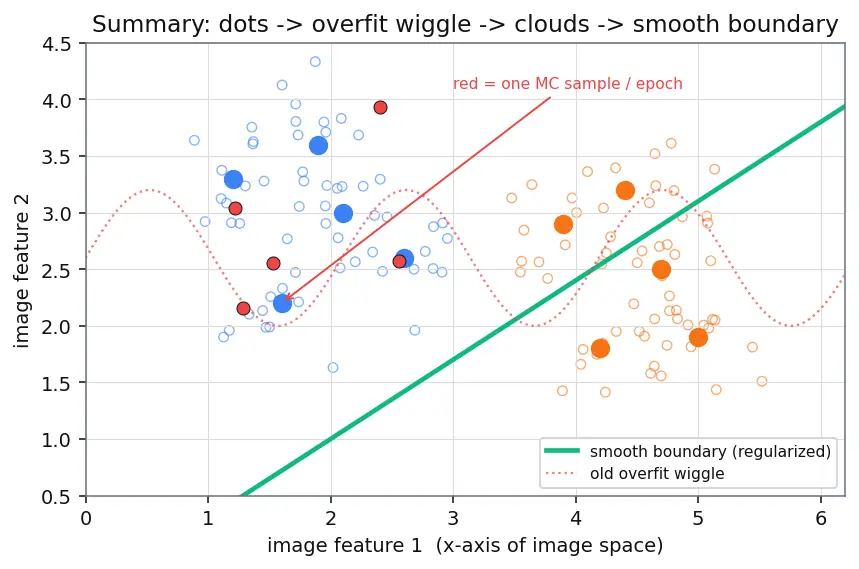

Everything on this page in a single frame: raw dots → the wiggly overfit boundary → the same dots surrounded by label-preserving clouds → the smooth boundary those clouds force, with one random cloud-sample highlighted per dot (the Monte-Carlo pick of Step 6).

Recall Feynman retelling — the whole walkthrough in plain words

Imagine dots on a table: blue dots are cats, red dots are dogs. A learner draws a line to keep them apart. With only a few dots, the learner can draw a crazy squiggly line that threads perfectly between them — but a new cat placed just beside an old one lands on the wrong side. That's memorizing.

The fix: around every dot, sprinkle a little puff of extra dots of the same colour — a cat that's been flipped, nudged, and brightened is still a cat. Now the puffs fill the gaps, and any squiggly line gets caught crossing into a puff. The only lines that survive are smooth, sensible ones. Smooth line = the learner recognizes cats it never saw.

A puff can hold endless variations, so instead of drawing all of them, each round we just pick one random variation of each photo — and pick a fresh one next round. Over many rounds those picks trace out the whole puff, so we get the benefit without the cost. Two warnings: (1) never use a change that turns a "6" into a "9" — that sprays the wrong colour into the wrong spot; and (2) don't puff so hard that cat-puffs and dog-puffs merge — then no line can separate them. Just right, and the learner sees your friend in any light, at any angle, even half-hidden.

Active recall

Recall Check your understanding of the pictures

In Step 4, what does a single "cloud" represent, and why are all its dots the same colour? ::: One original example plus its label-preserving transformations; same colour because every transform keeps the label $y_{i}$ unchanged.
Why did we need $E$ in Step 5 instead of a sum? ::: A cloud can hold infinitely (continuously) many transforms; $E$ averages over an infinite bag, a sum cannot.
What makes the one-transform-per-batch pick in Step 6 valid? ::: It is an unbiased Monte-Carlo estimate — over epochs the fresh picks average to the true cloud-expectation $L_{aug}$ .
In Step 7, what assumption is violated, and give the picture. ::: Label preservation $label (t (x)) = label (x)$ ; a vertically flipped "6" becomes a "9", a red dot in blue territory.
Draw the sweet-spot argument from Step 8. ::: Weak augment → tight clouds, overfit; strong → clouds overlap, underfit; middle → clouds fill gaps, smooth boundary.
