Dropout regularization: Visual walkthrough — AI-ML deep dive

We are re-deriving the parent result from Dropout regularization:

$\tilde{a}_{i} = \frac{r _{i}}{q} a_{i} (train), \tilde{a}_{i} = a_{i} (test)$

Read one step at a time. Each step tells you WHAT we do, WHY we do it, and shows you a PICTURE.

Step 1 — What a single activation even is

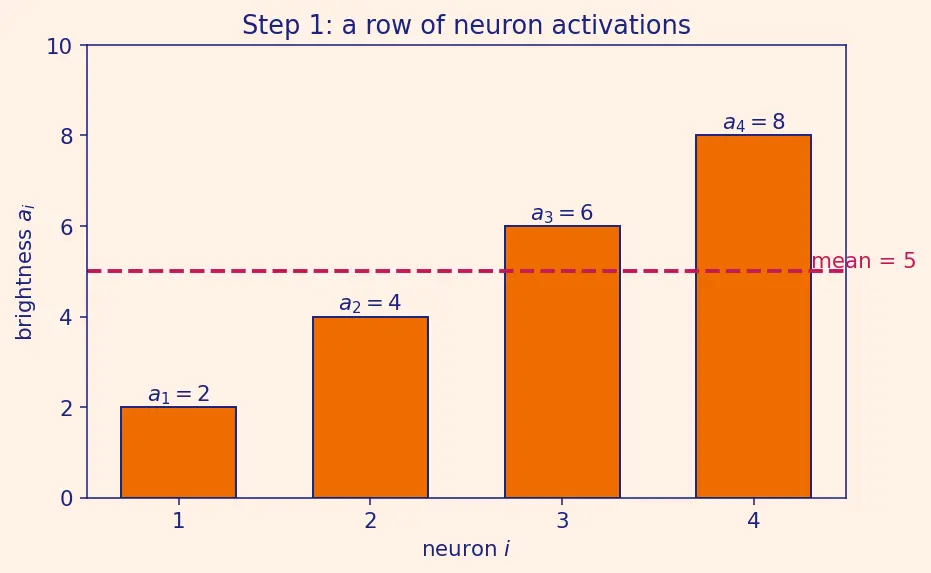

WHAT: we start with a row of four bulbs with brightnesses $a = [2, 4, 6, 8]$ . WHY: before we can drop or scale anything, we need a concrete object. A number line of brightnesses is the simplest thing that carries all the ideas. PICTURE: look at the four orange bars — each bar's height is one $a_{i}$ . The dashed line is their average height, which is the quantity we will fight to protect for the rest of the page.

$a_{i}$ ::: the raw brightness of neuron $i$ (no dropout yet).
The dashed line ::: the mean brightness $\frac{1}{4} (2 + 4 + 6 + 8) = 5$ — remember this number.

Step 2 — The coin flip that drops a neuron

We need a rule for "sometimes on, sometimes off." The simplest random switch is a coin.

$r_{i} \sim Bernoulli (q), keep prob q = 1 - drop prob p$

WHY a Bernoulli and not something fancier? A neuron is either present or absent — there is no "half a neuron." A yes/no event with a tunable probability is exactly a coin flip, so Bernoulli is the minimal, correct tool. Any continuous distribution would be answering a question we never asked.

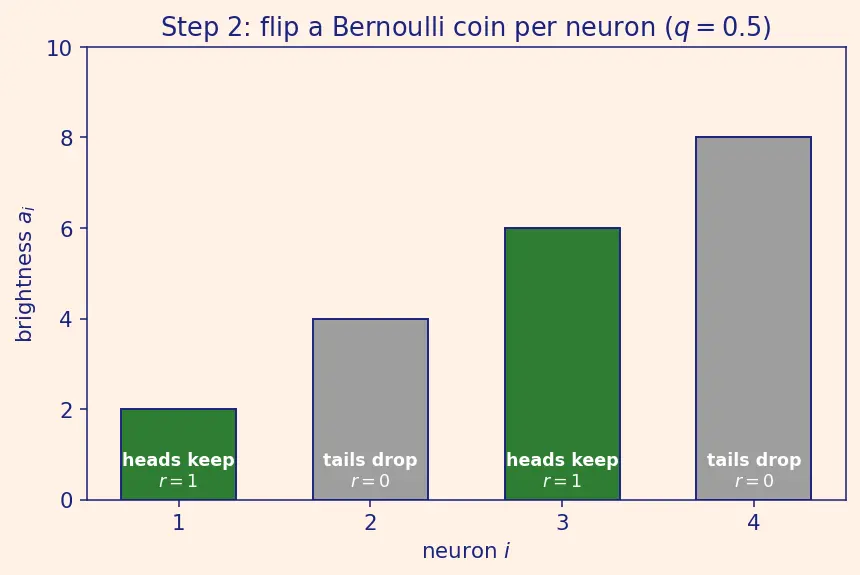

WHAT: we flip one coin per bulb. This step we happened to get $r = [1, 0, 1, 0]$ . PICTURE: green glowing bulbs kept their coin's heads; grey dark bulbs got tails and switch off.

$r_{i} = 1$ ::: heads, neuron survives.
$r_{i} = 0$ ::: tails, neuron is silenced.
$q$ ::: how loaded the coin is toward keeping.

Step 3 — Apply the mask (multiply, don't delete)

WHAT: multiply each brightness by its coin: $r_{i} a_{i}$ . With $r = [1, 0, 1, 0]$ and $a = [2, 4, 6, 8]$ :

$r ⊙ a = [1 \cdot 2, 0 \cdot 4, 1 \cdot 6, 0 \cdot 8] = [2, 0, 6, 0]$

Here $⊙$ means "multiply matching entries." Term by term:

$\tilde{a}_{i} = coin: 0 or 1 r_{i} \times brightness a_{i}$

WHY multiply by 0 instead of removing the bulb? Because the next layer expects a fixed number of inputs in fixed positions. Zeroing keeps the shape identical while removing the signal — the dropped bulb contributes nothing, but nothing downstream breaks.

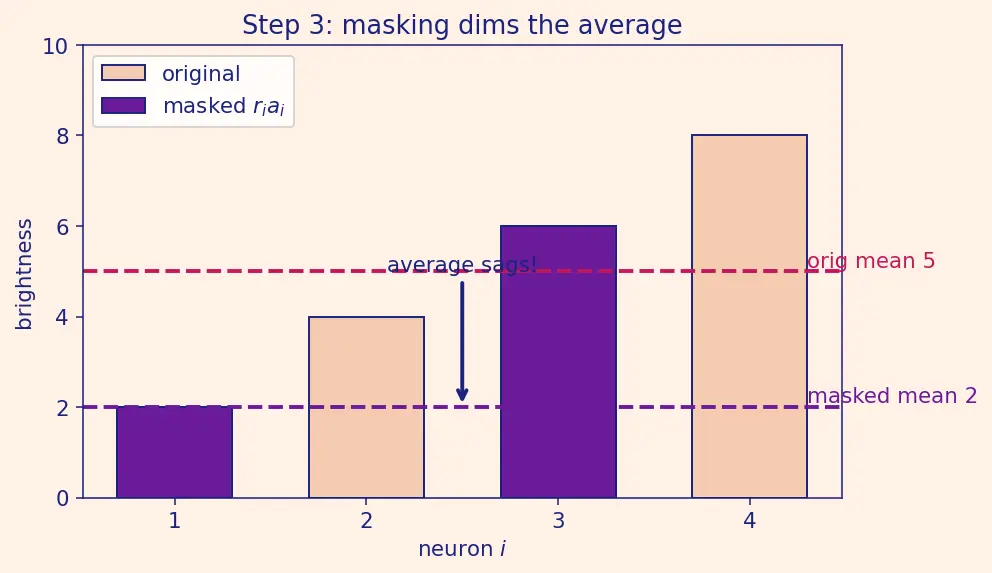

PICTURE: the two tails-bulbs collapse to height $0$ ; watch the dashed average line drop below its Step-1 position. That sag is the whole problem.

New average of $[2, 0, 6, 0]$ is $2$ , far below the original $5$ .
The signal got dimmer on average, purely because of the coin — not because the input changed.

Step 4 — Measure exactly how much dimmer (expectation)

We need one honest number for "how much does dropping shrink the signal, on average across all possible coin outcomes?" The tool for "average over randomness" is the expectation.

WHY expectation and not, say, the value on this one step? One step is luck — sometimes 3 survive, sometimes 1. The network trains over millions of steps, so what matters is the average behaviour, and expectation is the exact language for that average.

Now the key line. Because $a_{i}$ is a fixed number and only $r_{i}$ is random:

$E [\tilde{a}_{i}] = E [r_{i} a_{i}] = = q E [r_{i}] \cdot a_{i} = q a_{i}$

Term by term:

$E [\tilde{a}_{i}] = fraction that survive q \times original brightness a_{i}$

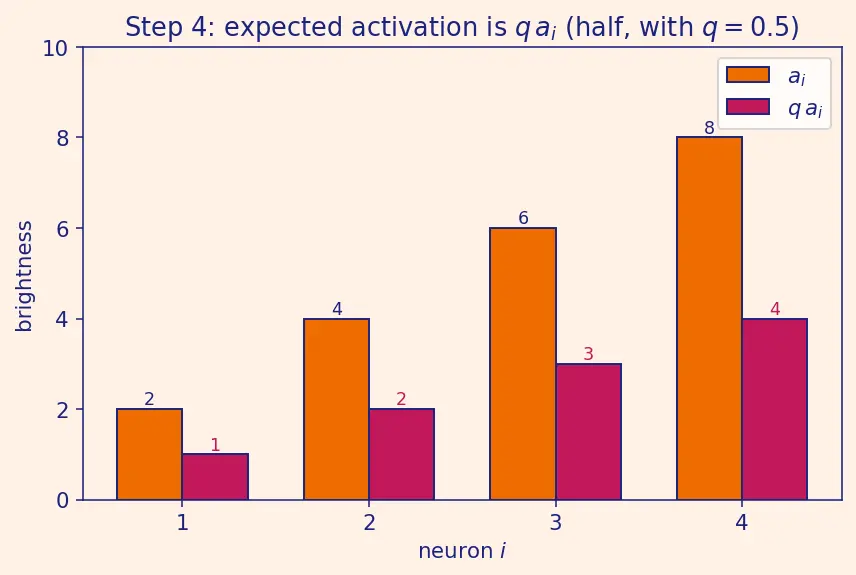

PICTURE: the orange bar is the original $a_{i}$ ; the shorter magenta bar is its expected value $q a_{i}$ . With $q = 0.5$ the magenta bar is exactly half as tall. That factor $q$ is the culprit we must undo.

$E [\tilde{a}_{i}] = q a_{i}$ ::: the average surviving brightness.
With $q = 0.5$ : on average each bulb shines at half strength.

Step 5 — The train/test mismatch made visible

WHAT: compare two worlds side by side.

Training world: every step some bulbs are off; the next layer sees, on average, $q a_{i}$ .
Test world: we want a stable, deterministic answer, so we keep all bulbs on → the next layer sees the full $a_{i}$ .

WHY is this a crisis? The next layer's weights were tuned during training to expect inputs of size $q a_{i}$ . At test time you hand it $a_{i}$ , which is

$\frac{a _{i}}{q a _{i}} = \frac{1}{q}$

times larger. With $q = 0.5$ that's $2 \times$ too loud — every downstream number gets inflated, and the network gives worse answers than if you'd never used dropout. This is the generalization machinery backfiring purely from a bookkeeping error.

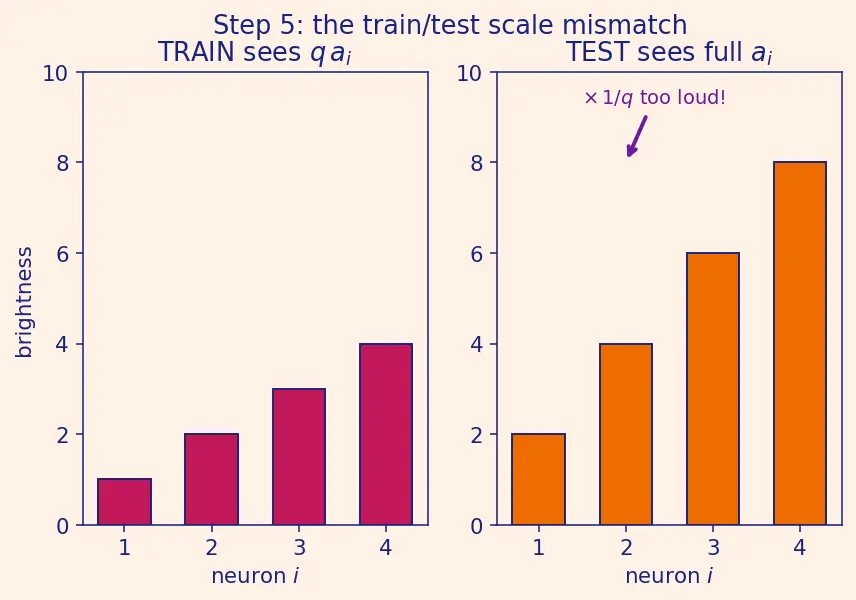

PICTURE: left panel (train) shows short magenta expected bars; right panel (test) shows tall orange bars. The violet arrow marks the $1/ q$ gap the next layer never saw during practice.

Step 6 — Fix it by pre-shrinking: the $1/ q$ rescale

We have a choice of which world to adjust. Inverted dropout adjusts the training world so the test world can stay a plain, clean forward pass.

WHAT: during training, after masking, multiply the survivors by $1/ q$ :

$\tilde{a}_{i} = \frac{r _{i}}{q} a_{i}$

Term by term:

$\tilde{a}_{i} = boost survivors \frac{1}{q} \times coin r_{i} \times brightness a_{i}$

WHY $1/ q$ and not some other factor? Because it is the unique number that cancels the $q$ from Step 4. Let's check the expectation with the boost in place:

$E [\frac{r _{i}}{q} a_{i}] = \frac{1}{q} E [r_{i}] a_{i} = \frac{1}{q} \cdot q \cdot a_{i} = a_{i}$

The $q$ from surviving and the $1/ q$ we injected annihilate → the expected activation is back to the original $a_{i}$ . Now train-average and test-value agree; no mismatch.

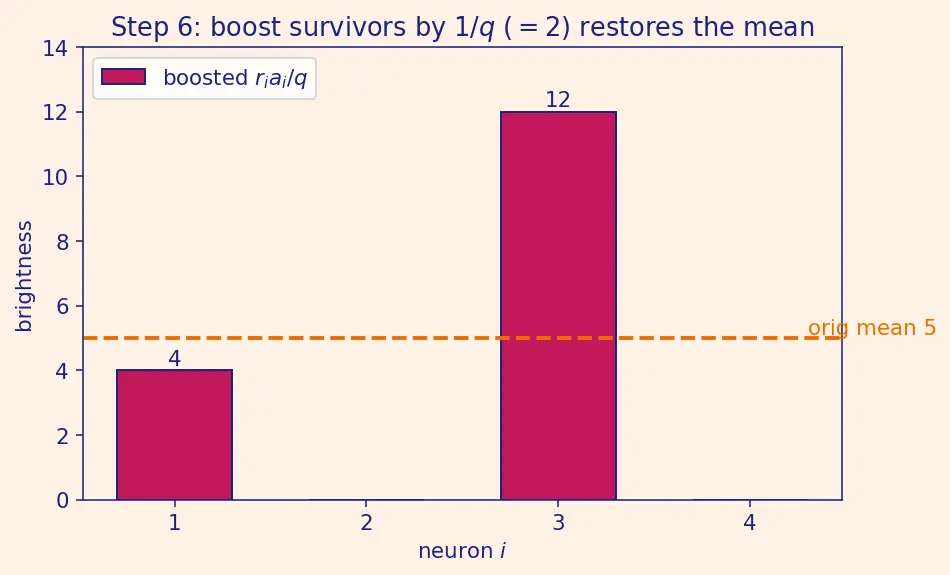

PICTURE: the survivors from Step 3, $[2, 0, 6, 0]$ , get stretched to $[4, 0, 12, 0]$ . The two tall boosted survivors now stand tall enough that their average over many masks lands right back on the Step-1 dashed line.

Step 7 — The other convention, and the degenerate cases

WHAT (alternative): original dropout leaves training as plain masking and instead shrinks at test time:

$\tilde{a}_{i} = q a_{i} (test)$

Both conventions produce the same expected value $a_{i}$ where it matters — they just choose which world pays the price. Inverted wins because inference stays clean.

WHY cover edge cases? A rule you can't push to its limits is a rule you don't understand. Watch the factor $1/ q$ as $q$ moves:

$q \to 1 (p \to 0) : \frac{1}{q} \to 1 \Rightarrow \tilde{a}_{i} = a_{i} (dropout off — nothing changes) ✓$

$q \to 0 (p \to 1) : \frac{1}{q} \to \infty \Rightarrow survivors boosted enormously — signal explodes$

$p = 0$ (keep everything): $q = 1$ , boost is $\times 1$ , and the whole layer is untouched. Sanity-preserving.
$p \to 1$ (drop everything): $q \to 0$ , and $1/ q$ blows up — the rare survivor is amplified toward infinity while the layer's actual output is almost always all-zeros. This is why nobody uses $p$ near $1$ : high variance, unstable training.
$q = 0$ exactly: $1/ q$ is division by zero — undefined. No neuron ever survives, so there is nothing to scale. Frameworks forbid it.

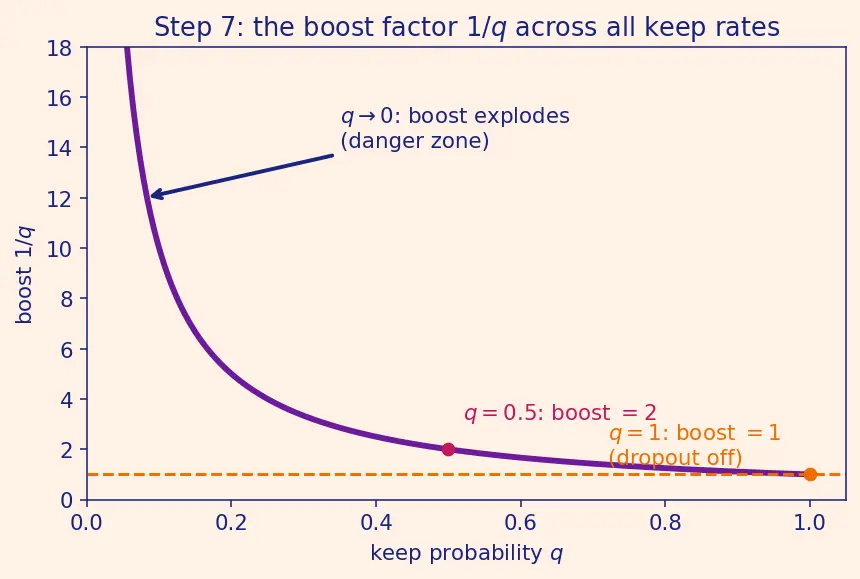

PICTURE: the curve of $1/ q$ against $q \in (0, 1]$ . It sits at $1$ on the safe right edge and rockets upward at the left — a visual warning about aggressive drop rates.

Safe zone: $q$ around $0.5$ – $0.9$ (hidden $p \approx 0.5$ , input $p \approx 0.1$ – $0.2$ ).
Danger zone: $q$ near $0$ , where the boost is violent.

The one-picture summary

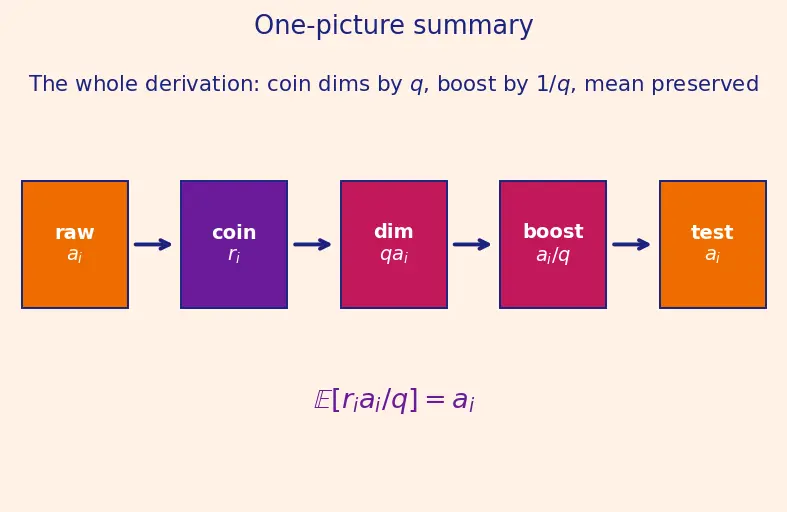

Everything above, compressed: raw bars → coin mask → dimmed average → the $1/ q$ boost that restores the mean → test uses the full network unchanged.

Recall Feynman: the whole walkthrough in plain words

You've got a row of lightbulbs, each with some brightness. Every training step you flip a coin per bulb and switch off the losers. That obviously makes the row dimmer on average — cut it exactly in half if the coin is fair. The problem: on test day you turn all the bulbs back on, so suddenly the room is twice as bright as anything the next room ever practised with, and it panics. The fix is dead simple: during practice, whenever a bulb survives the coin, crank it up by one-over-the-keep-chance. A fair coin keeps half the bulbs, so double the survivors. Now the average brightness during practice matches the full brightness on test day, and everyone's happy. Turn the boost knob to the extremes to check: keep-everything means multiply by one (no change, good), keep-almost-nothing means multiply by a huge number (unstable, which is why we never drop nearly everything).

Active Recall

Which world does inverted dropout adjust, train or test?

Train — it boosts survivors by

1/ q

so test-time is a plain forward pass.

E [r_{i} / q \cdot a_{i}]

where

r_{i} \sim Bernoulli (q)

a_{i}

— the

q

from surviving cancels the injected

1/ q

Boosted value of activation

6

under inverted dropout with

q = 0.5

, given it survived?

12

, since

6/0.5 = 12

What is

1/ q

when

p = 0

1

— dropout off, activations unchanged.
