Bias terms and their role: Visual walkthrough

This page goes deeper than the parent topic note. Everything here is drawn.

Step 1 — What is a neuron actually computing?

WHAT. A neuron takes some numbers (the inputs), multiplies each by its own weight, adds them all up, and adds one extra number called the bias. Let us name each piece before we touch any formula.

$x$ — an input number. Think of it as "how much of something we measured" (temperature, brightness, a pixel value). We start with a single input so we can draw everything on flat paper.
$w$ — the weight on that input. It says how much this input counts.
$b$ — the bias, a lone number added on at the end, attached to no input.
$z$ — the pre-activation, the running total before any squashing:

$z = how much x counts w \cdot the input x + the constant nudge b$

WHY start here. Before asking "why do we need $b$ ?" we must be able to see what $z$ looks like as $x$ changes. That picture is a straight line, and the whole story is about how that line is allowed to move.

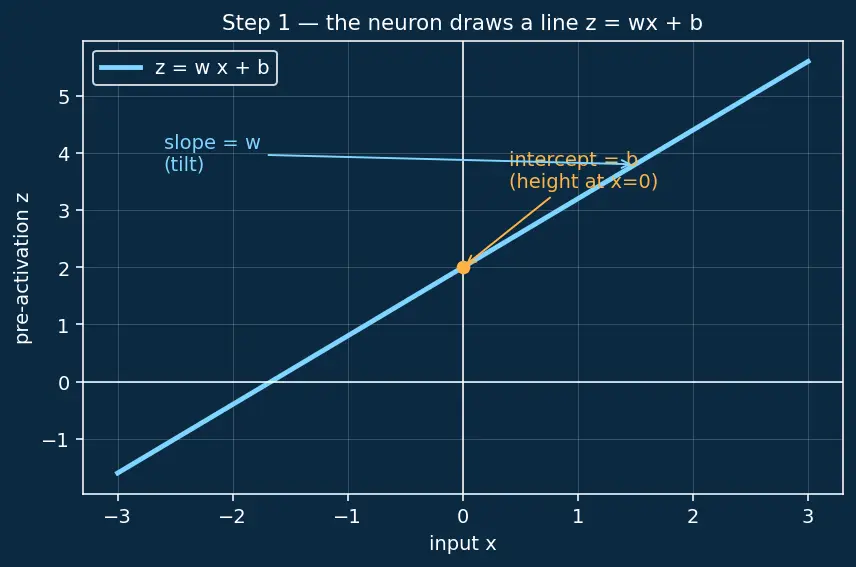

PICTURE. In the figure, the horizontal axis is the input $x$ ; the vertical axis is the output $z$ . The cyan line is $z = w x + b$ . The slope of the line is $w$ (steepness), and the height where the line crosses $x = 0$ is exactly $b$ .

Step 2 — Kill the bias: the line is chained to the origin

WHAT. Set $b = 0$ . The formula collapses to $z = w x .$ At $x = 0$ this forces $z = w \cdot 0 = 0$ . Always. No matter what we choose for $w$ .

WHY. This is the failure we are hunting. We want to see that changing the weight only spins the line — it can never lift it off the point $(0, 0)$ .

PICTURE. Three lines, all bias-free, with different weights $w = 0.5, 1.5, 3$ . They fan out at different tilts, but every single one is pinned to the amber dot at the origin. Spinning is allowed; lifting is forbidden.

Step 3 — The impossible target: fitting $y = 2 x + 5$

WHAT. Suppose the real pattern in the data is $y = 2 x + 5$ . Our bias-free model is $z = w x$ . Can any $w$ match it? We need the line to be at height $5$ when $x = 0$ . But bias-free means height $0$ at $x = 0$ . So we are off by $5$ at that point, forever.

WHY. This turns the abstract "line through origin" into a concrete number you can't reach. The gap is not a rounding error — it is structural.

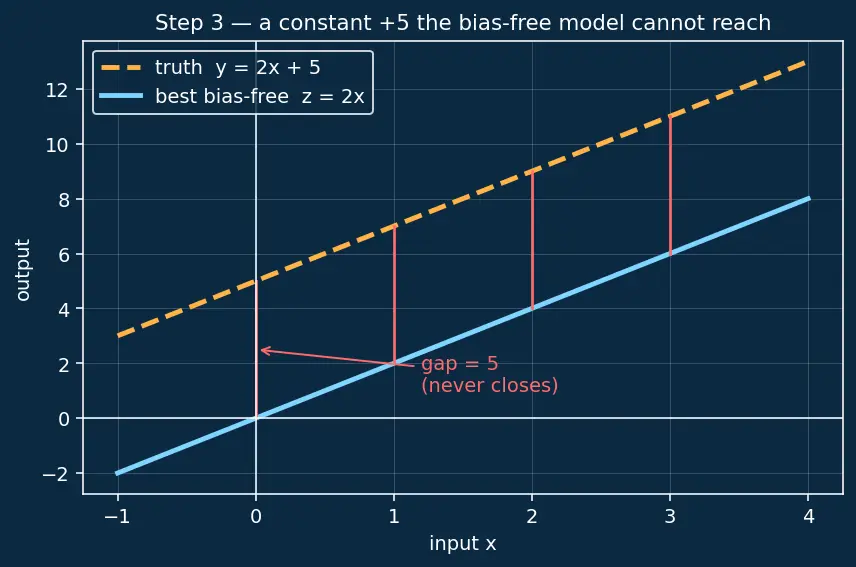

PICTURE. The amber dashed line is the truth $y = 2 x + 5$ . The cyan line is the best bias-free line $z = 2 x$ (same slope, but glued to the origin). Look at the constant vertical gap of $5$ — a red bracket — that never closes no matter how we tilt.

Step 4 — Add the bias and watch the line lift

WHAT. Restore $b$ : $z = w x + b$ . Now set $w = 2$ and $b = 5$ . The line becomes $z = 2 x + 5$ — identical to the truth. The gap is zero.

WHY. To see that $b$ is precisely the vertical slider we were missing. Weight aims the tilt; bias slides the whole line up (positive $b$ ) or down (negative $b$ ) without changing tilt.

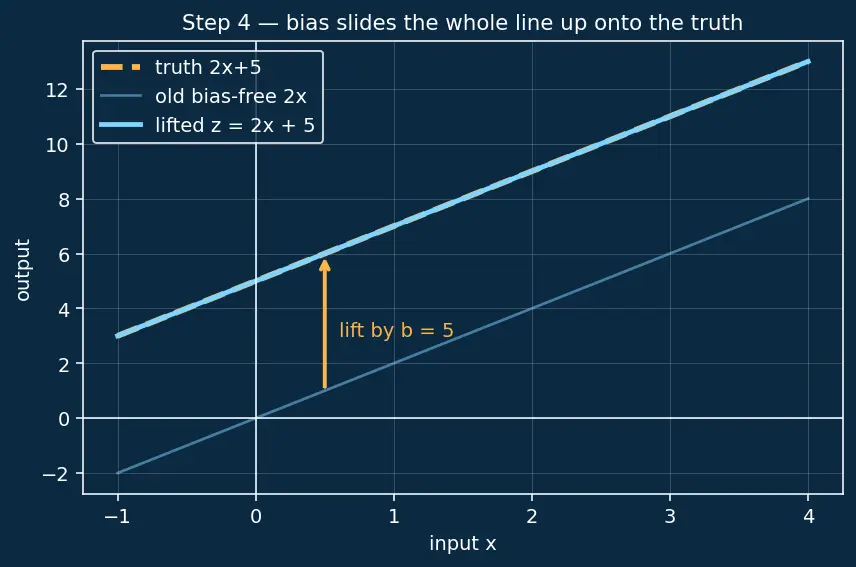

PICTURE. Same cyan line as Step 3, now lifted by an amber arrow of length $b = 5$ . It lands exactly on the dashed truth line. The bracket has vanished.

Step 5 — The bias is secretly the weight on a constant "1"

WHAT. Glue an extra input that is always $1$ onto the input list. Call the enlarged input $\tilde{x} = [x, 1]$ and the enlarged weights $\tilde{w} = [w, b]$ . Multiply and add: $\tilde{w}^{⊤} \tilde{x} = real input w \cdot x + dummy input b \cdot 1 = w x + b = z .$

$\tilde{w}^{⊤} \tilde{x}$ means "multiply matching entries and sum them" — the dot product. We use it because it is exactly multiply-each-input-by-its-weight-and-add, which is what a neuron does.

WHY. This is the punchline that makes the learning rule fall out for free: the bias is not a special kind of parameter. It is an ordinary weight whose input happens to be frozen at $1$ . Same machinery trains it. See Weighted sum and linear combinations and Affine transformations for the general form.

PICTURE. The neuron drawn twice: on the left, inputs $x$ and a separate box $b$ added on. On the right, the same neuron with a permanent input node labelled " $1$ " feeding through a weight labelled " $b$ ". Both produce the same $z$ .

Step 6 — The bias as a threshold (sigmoid view, all cases)

WHAT. Feed $z$ into a squashing function, the sigmoid $σ (z) = \frac{1}{1 + e ^{- z}}$ , which turns any number into a value between $0$ and $1$ (see Activation functions (sigmoid, ReLU, tanh)). With $w = 1$ : $a = σ (x + b) .$ The neuron is "half on" ( $a = 0.5$ ) exactly when the inside is $0$ , i.e. when $x + b = 0$ , i.e. $x = - b$ . More generally the half-on input is $x = - b / w$ .

WHY. We must cover every sign of $b$ , not just one, or the reader hits an unshown case.

$b = 0$ : half-on at $x = 0$ . S-curve centred on the origin.
$b < 0$ (say $b = - 4$ ): half-on at $x = 4$ . Curve slides right — the neuron is reluctant, needs a big input to fire.
$b > 0$ (say $b = + 4$ ): half-on at $x = - 4$ . Curve slides left — the neuron is eager, fires even for small/negative input.

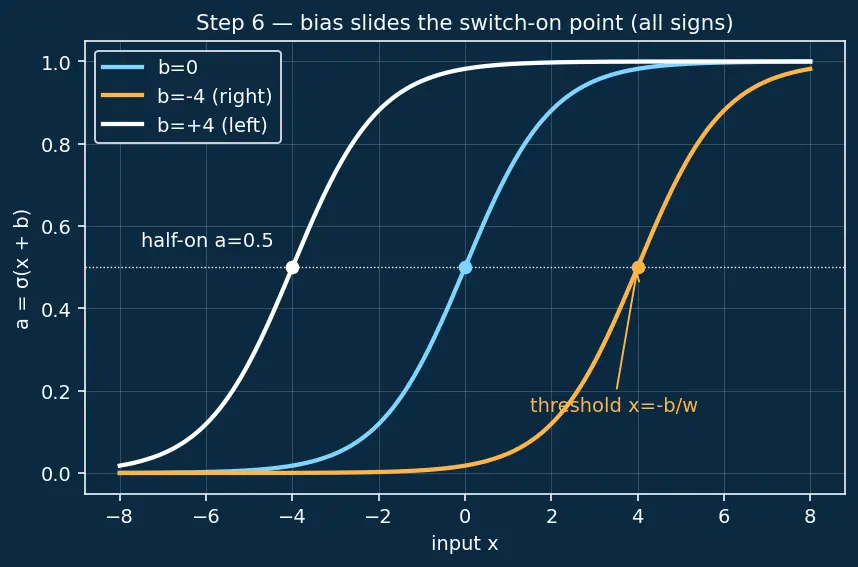

PICTURE. Three S-curves sharing an axis. The middle (cyan, $b = 0$ ) is centred; the amber ( $b = - 4$ ) is shifted right; the white ( $b = + 4$ ) is shifted left. Each has its half-on point ( $a = 0.5$ ) marked and labelled with $x = - b / w$ .

Step 7 — Why the bias's gradient is the simplest of all

WHAT. During learning we ask: if I nudge $b$ a little, how much does the loss $L$ change? That is the derivative $\partial L / \partial b$ . The chain rule (see Backpropagation and the chain rule) links it through the layers: $\frac{\partial L}{\partial b} = loss vs. output \frac{\partial L}{\partial a} \cdot activation slope \frac{\partial a}{\partial z} \cdot = 1 \frac{\partial z}{\partial b} .$ The last factor is the magic. Since $z = w x + b$ , nudging $b$ by a tiny amount nudges $z$ by exactly the same amount: $\frac{\partial z}{\partial b} = \frac{\partial}{\partial b} (w x + b) = 1.$ So the first two factors are just the neuron's error signal $δ = \partial L / \partial z$ , and $\frac{\partial L}{\partial b} = δ$

WHY. Compare with a weight: $\partial L / \partial w = δ \cdot x$ — that one scales with the input. The bias gradient does not scale with anything; it is the pure, undiluted error. Because $b$ 's input is frozen at $1$ (Step 5), its "input factor" is $1$ .

PICTURE. Two little slope triangles. Left: nudging $z$ by $Δ$ moves $b$ by the same $Δ$ — slope $1$ . Right: for the weight, the same nudge in $z$ needs a change in $w$ of size $Δ/ x$ — slope $x$ . The bias line is a perfect 45° diagonal; the weight line's steepness depends on $x$ .

The one-picture summary

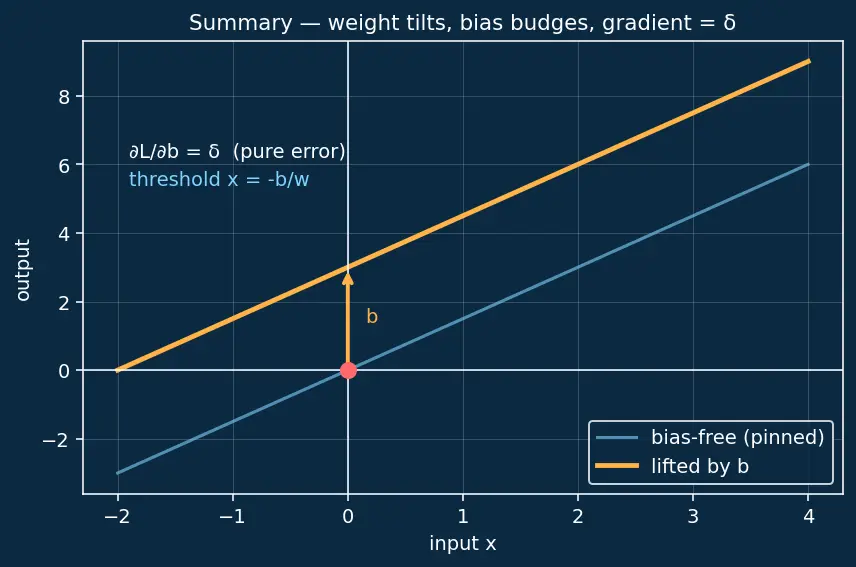

Everything in one frame: a bias-free line pinned to the origin (it can only spin), an amber vertical arrow of height $b$ lifting it onto the true line, the same lift shown as a slid sigmoid threshold, and the gradient tag $\partial L / \partial b = δ$ reminding us the lift is learned for free.

Recall Feynman: tell the whole walkthrough to a friend

A neuron draws a line: tilt it with the weight, but with no bias the line is nailed to one spot — the origin — so it can only pivot, never rise. That means it can never hit a target that sits above zero when the input is zero, like the constant $+ 5$ in $y = 2 x + 5$ ; there's a stubborn gap. Bolt on a bias and the line finally lifts straight up until the gap closes. The clean trick: a bias is just an ordinary weight on a fake input that's always $1$ — so the same learning machine handles it. Because that fake input is $1$ , nudging the bias nudges the total by exactly the same amount, so its gradient is simply the neuron's raw error, no input scaling. And in a squashing neuron, sliding the bias just slides the "switch-on" point left (eager) or right (reluctant). Weights tilt; the bias budges.

Recall One-line takeaway

Why the bias? ::: It lifts the neuron's line off the origin (fits a nonzero intercept / slides the threshold to $x = - b / w$ ), and being the weight on a constant $1$ , its gradient is the pure error $δ$ .

Connections

Perceptron and the step function
Weighted sum and linear combinations
Activation functions (sigmoid, ReLU, tanh)
Backpropagation and the chain rule
Weight initialization strategies
Affine transformations

Why is a bias-free line stuck at the origin?

x = 0

z = w \cdot 0 = 0

for every

w

; the weight can spin the line but never lift it.

What constant can

z = 2 x

never reproduce that

y = 2 x + 5

needs?

The

+ 5

intercept — a persistent vertical gap of

5

at every

x

Bias as a weight, in one sentence?

It is the weight on a dummy input frozen at

1

, so

b \cdot 1 = b

enters the sum.

Why is

\partial z / \partial b = 1

Because

b

is added (its input is the constant

1

), a nudge in

b

is an equal nudge in

z

Sigmoid half-on input?

x = - b / w

; sliding

b

slides the threshold left (eager) or right (reluctant).
