Visual walkthrough — Cross-validation pitfalls and nested CV

Before we begin, three plain-word anchors so no symbol appears un-earned.

Everything below is about one trap: choosing the knob $\lambda$ by looking at scores, then reporting one of those same scores as your final grade.

Step 1 — What cross-validation actually measures

WHAT. We have a pile of data. We cannot test a model on the same cards it trained on (it could just memorise them). So we chop the pile into $K$ equal groups called folds. We train on $K-1$ of them and test on the one left out — then rotate, so every card gets a turn as the test card.

WHY. Rotating means every card is used for testing exactly once, so we squeeze an honest test out of a small pile. The average of the $K$ test errors is our estimate.

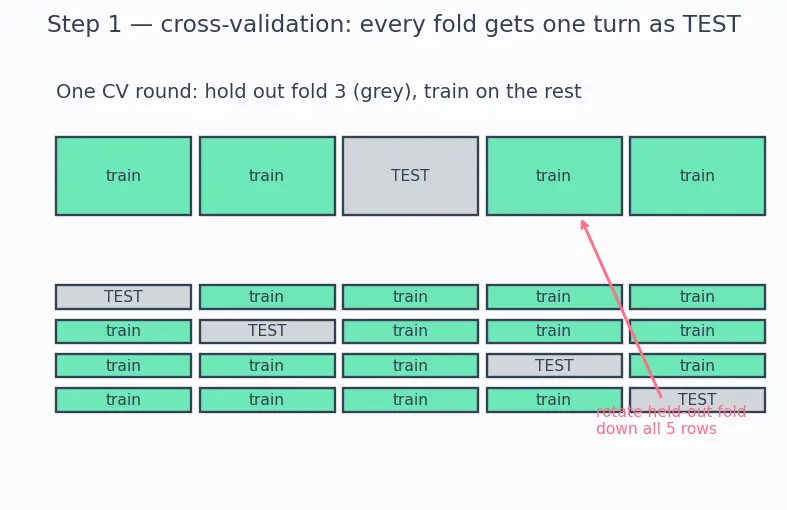

PICTURE. In the figure, the pile is split into 5 folds. The grey fold is held out; the coloured folds train the box. We slide the held-out fold along and average the 5 heights.

$\text{CV}(\lambda )=\frac{1}{K}{\sum }_{k=1}^K\text{Loss}(f_{\lambda ,{\mathcal{D}}_{-k}},{\mathcal{D}}_k)$

• $K$ ::: the number of folds (here 5).
• ${\mathcal{D}}_{-k}$ ::: "all data except fold $k$" — the training cards.
• ${\mathcal{D}}_k$ ::: fold $k$ alone — the held-out test cards.
• $f_{\lambda ,{\mathcal{D}}_{-k}}$ ::: the box trained with knob setting $\lambda$ on those training cards.
• $\text{Loss}(\cdot ,\cdot )$ ::: how wrong that box is on the held-out fold.
• $\frac{1}{K}\sum$ ::: average the 5 heights into one number.

This single number, for one fixed knob setting, is honest. The trouble starts when we have many knob settings. See 2.6.2-K-fold-cross-validation for the mechanics of this split.

Step 2 — Trying many knob settings

WHAT. We don't know the best knob, so we try a whole list of them: $\lambda \in \{{\lambda }_1,{\lambda }_2,\dots ,{\lambda }_m\}$. For each one we run the Step-1 procedure and get a score $\text{CV}(\lambda )$.

WHY. Tuning is unavoidable — Ridge with the wrong $\lambda$ is either useless or overfit (see 2.6.12-Hyperparameter-tuning-strategies). So we compute $m$ different heights, one per setting.

PICTURE. The figure shows one bar per knob setting. Each bar's height is that setting's CV error. They wiggle up and down because the folds are finite and a bit noisy.

$\{\text{CV}({\lambda }_1),\text{CV}({\lambda }_2),\dots ,\text{CV}({\lambda }_m)\}$

• $m$ ::: how many settings we tried (the number of bars).
• Each bar ::: an average-of-5 error, itself a slightly noisy measurement.

Key idea to hold: each bar is a random variable. Its height = true error + a little luck (which cards landed in which fold). Some bars are lucky-low; some unlucky-high.

Step 3 — Picking the winner, and the bias that sneaks in

WHAT. We pick the setting with the smallest bar: ${\lambda }^{\ast }=\arg {\min }_{\lambda }\text{CV}(\lambda )$

• $\arg \min$ ::: "give me the $\lambda$ that produces the minimum," not the minimum value itself.
• ${\lambda }^{\ast }$ ::: the winning knob setting (star = chosen).

WHY the score is now dishonest. Here is the whole trap in one sentence: the minimum of noisy bars sits below the true average, because we specifically hunted for the bar that got lucky. If we then report that minimum height as our performance, we are reporting luck as skill.

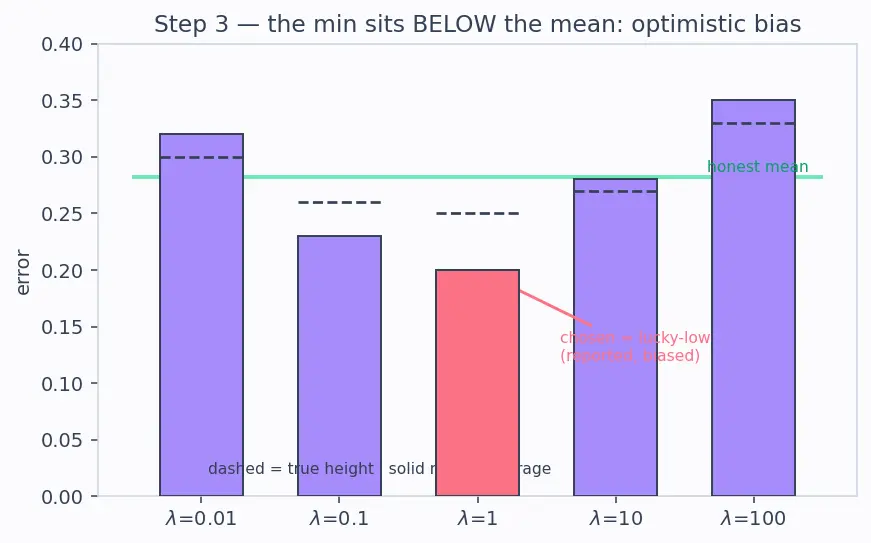

PICTURE. The figure separates each bar into its true height (dashed line) and its luck (the wiggle). The chosen bar (coral) is the one whose luck pushed it down. Its reported height is below the honest dashed line — that gap is the optimistic bias.

$\underset{\text{what we report}}{\underbrace{\underset{\lambda }{\min }\text{CV}(\lambda )}}\le \underset{\text{average bar}}{\underbrace{\frac{1}{m}\sum _{\lambda }\text{CV}(\lambda )}}\approx \underset{\text{honest}}{\underbrace{\mathbb{E}[\text{true error}]}}$

• ${\min }_{\lambda }$ ::: the lucky-low winner.
• $\mathbb{E}[\cdot ]$ ::: "expected value" — the long-run average if we repeated the whole experiment forever.
• The "$\le$" ::: the minimum is always at or below the mean. That inequality is the bias.

The bias gets worse when: more settings tried ($m\uparrow$, more chances to get lucky), smaller data (fatter wiggles), or more flexible models (easier to fit the folds' noise — connects to 2.7.3-Bias-variance-tradeoff and 2.6.16-Data-leakage).

Step 4 — The fix: put a second loop around the search

WHAT. We wrap the whole "try knobs and pick a winner" routine (Steps 2–3) inside an outer cross-validation whose folds are locked away and never consulted during tuning.

WHY. In real life you tune on the data you have, then deploy on new data. So we should measure the entire tuning-plus-training pipeline on data it never influenced. The outer fold plays the role of "brand-new data."

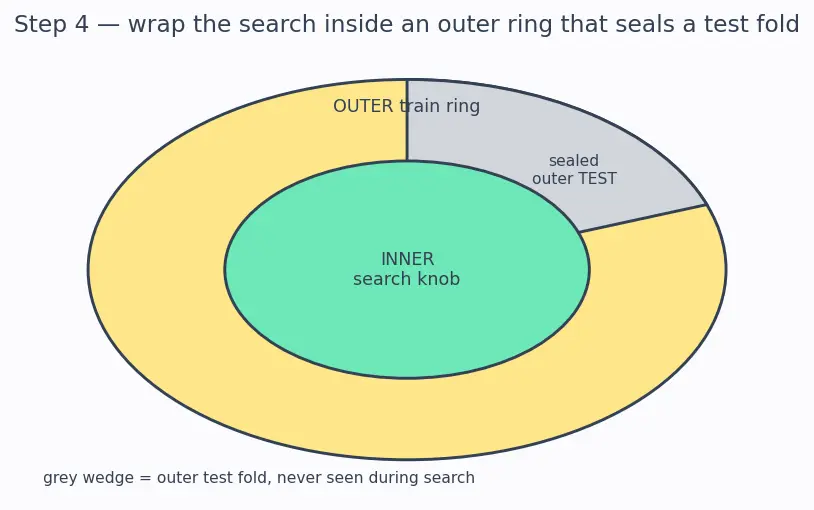

PICTURE. Two nested rings. The outer ring peels off a test fold (grey, sealed). The inner ring lives entirely inside the remaining data and does the Step 2–3 search there. The sealed grey fold watches nothing.

For each outer fold $i=1,\dots ,K_{\text{outer}}$: ${\mathcal{D}}_{\text{train}}^{(i)}(\text{used for tuning}),{\mathcal{D}}_{\text{test}}^{(i)}(\text{sealed})$

• $K_{\text{outer}}$ ::: number of outer folds (the sealed-test rotation).
• ${\mathcal{D}}_{\text{train}}^{(i)}$ ::: everything except outer fold $i$ — the search happens only here.
• ${\mathcal{D}}_{\text{test}}^{(i)}$ ::: the sealed fold, opened once at the very end.

Step 5 — Inner loop: search the knob, but only inside the outer-train pile

WHAT. Inside ${\mathcal{D}}_{\text{train}}^{(i)}$ we run an ordinary $K_{\text{inner}}$-fold CV over the knob list and pick a per-fold winner.

WHY. This is Step 1–3 again, but confined. It picks the best $\lambda$ for this outer fold's training data only. Different outer folds may crown different winners — that is fine and expected.

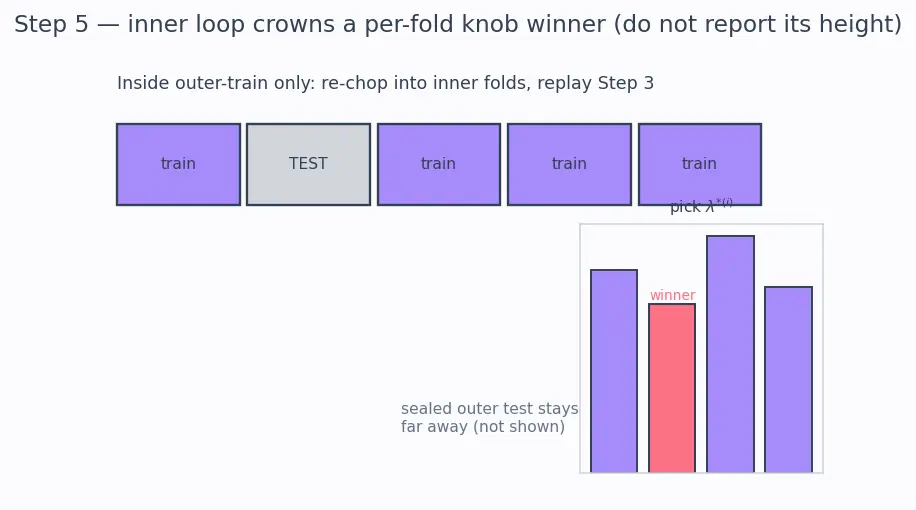

PICTURE. Zoom into one outer-train pile. It is re-chopped into inner folds; the bars-and-winner picture from Step 3 replays here, sealed away from the grey outer test.

${\lambda }^{\ast (i)}=\arg {\min }_{\lambda }\frac{1}{K_{\text{inner}}}{\sum }_{j=1}^{K_{\text{inner}}}\text{Loss}(f_{\lambda ,{\mathcal{D}}_{\text{train}}^{(i)}\setminus {\text{fold}}_j},{\text{fold}}_j)$

• $K_{\text{inner}}$ ::: inner-fold count.
• ${\text{fold}}_j$ ::: the $j$-th inner held-out slice (inside outer-train).
• ${\mathcal{D}}_{\text{train}}^{(i)}\setminus {\text{fold}}_j$ ::: outer-train minus that inner slice — the inner training cards.
• ${\lambda }^{\ast (i)}$ ::: the knob winner for outer fold $i$. The superscript $(i)$ says it can differ per outer fold.

Step 6 — Open the sealed fold and score once

WHAT. Take the winner ${\lambda }^{\ast (i)}$, train a fresh box on the whole outer-train pile, and finally test it on the sealed outer fold ${\mathcal{D}}_{\text{test}}^{(i)}$.

WHY. This is the first and only time ${\mathcal{D}}_{\text{test}}^{(i)}$ is touched. Because it never entered the knob search, its error is an honest sample of true generalisation for the whole pipeline (tune-then-train), not just for one lucky knob.

PICTURE. The grey seal breaks. One clean height is recorded — no minimum, no cherry-picking, just one measurement.

${\text{Error}}^{(i)}=\text{Loss}(f_{{\lambda }^{\ast (i)},{\mathcal{D}}_{\text{train}}^{(i)}},{\mathcal{D}}_{\text{test}}^{(i)})$

• $f_{{\lambda }^{\ast (i)},{\mathcal{D}}_{\text{train}}^{(i)}}$ ::: box retrained with the inner-chosen knob on all outer-train cards.
• ${\mathcal{D}}_{\text{test}}^{(i)}$ ::: the sealed fold — never a witness to the search.
• ${\text{Error}}^{(i)}$ ::: one honest height for outer fold $i$. No $\min$ anywhere in sight.

Step 7 — Average the sealed scores = the honest number

WHAT. Rotate the sealed fold through all $K_{\text{outer}}$ positions, collect the $K_{\text{outer}}$ clean heights, average them.

WHY. Each height was a Step-6 measurement on data blind to its own tuning. Their average estimates the expected error of the entire procedure. No hidden minimum survived into this number, so the Step-3 inequality no longer bites.

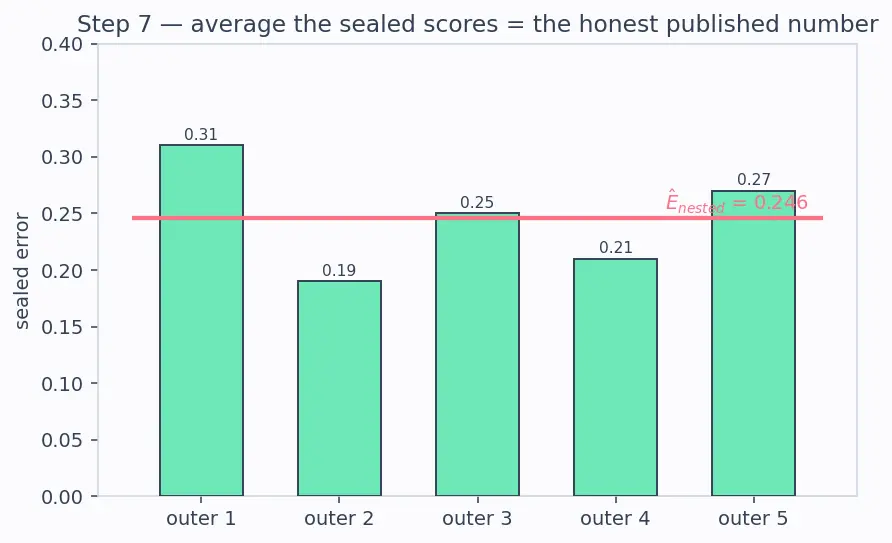

PICTURE. The outer heights from each sealed fold stacked side by side; a single flat line marks their average — the reported result.

${\hat{E}}_{\text{nested}}=\frac{1}{K_{\text{outer}}}{\sum }_{i=1}^{K_{\text{outer}}}{\text{Error}}^{(i)}$

• ${\hat{E}}_{\text{nested}}$ ::: the number you actually publish.
• The sum ::: the sealed heights from Step 6.
• $\frac{1}{K_{\text{outer}}}$ ::: average over outer folds.

Step 8 — The degenerate & edge cases (so nothing surprises you)

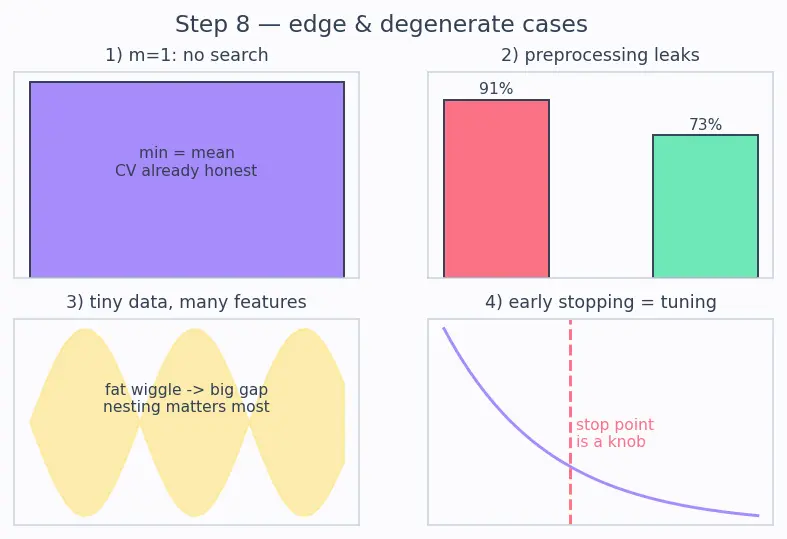

WHAT / WHY / PICTURE, one panel each in the figure below:

1. One knob only ($m=1$). No search, no hunting for luck. Step 3's inequality collapses ($\min$ of one number is the mean). Standard CV is already honest — nesting adds cost for no gain.
2. Preprocessing (scaling, feature-picking) counts as tuning. If you scale using the whole pile, the sealed fold leaked its statistics into training → biased again. Every learned transform must live inside the inner loop. This is the Cawley–Talbot 91%→73% collapse; see 2.6.16-Data-leakage.
3. Tiny data / many features. Fat wiggles (Step 3) → huge gap between $\min$ and truth → nested CV matters most here, precisely when you can least afford to be fooled.
4. Early stopping is tuning too. Choosing when to stop by watching a validation curve is a knob; it belongs inside the inner loop or on its own held-out slice — see 3.4.5-Early-stopping.

The one-picture summary

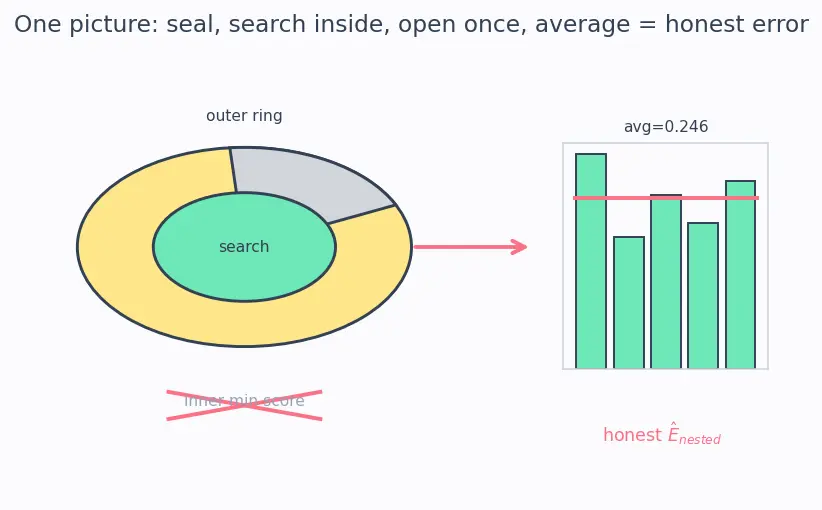

The whole argument in one frame: an outer ring that seals a test fold, an inner ring that hunts the best knob inside the rest, the sealed fold opened once for a clean score, and those clean scores averaged into ${\hat{E}}_{\text{nested}}$. The biased shortcut (report the inner $\min$) is drawn crossed out.
