Foundations — K-Means++ initialization

This page assumes you have seen nothing. We build every symbol the parent note throws at you, one brick at a time, so that when you meet $P(x_i)=D(x_i{)}^2/\Phi$ you already own every letter in it.

1. A data point — the dot on the page

The picture: each point is a single dot. If we measured two numbers per thing (say height and weight), the dot lives on a flat sheet of paper — two axes, one dot.

Why the topic needs it: K-Means++ chooses points to become centers, so first we must be able to name each candidate. $x_1,x_2,\dots$ are the dots we choose from.

2. The dimension $d$ and the space ${\mathbb{R}}^d$

• $d=1$: dots on a line.
• $d=2$: dots on paper (what our figures show).
• $d=3$: dots floating in a room.
• $d=100$: can't draw it, but the maths is identical — a list of 100 numbers per dot.

Why the topic needs it: the parent writes $X=\{x_1,\dots ,x_n\}$ in ${\mathbb{R}}^d$. That just means "$n$ dots, each a list of $d$ numbers." Nothing scary — it's the paper the dots live on.

3. The dataset $X$ and its size $n$

The picture: a scatter of $n$ dots, some clumped into groups. Those visible clumps are what we hope to discover.

Why the topic needs it: every sum in the parent runs "over all of $X$" — over every one of the $n$ dots. Know that $n$ = count of dots and the sums stop being mysterious.

4. Distance $\Vert x-c{\Vert }_2$ — how far apart two dots are

This is the heart. Before probabilities, we need a ruler.

Why this tool and not another? We could measure distance many ways (city-block, angles, ...). We pick straight-line distance because K-Means measures how "tight" a cluster is by straight-line spread, and the initializer must speak the same language as the algorithm it feeds.

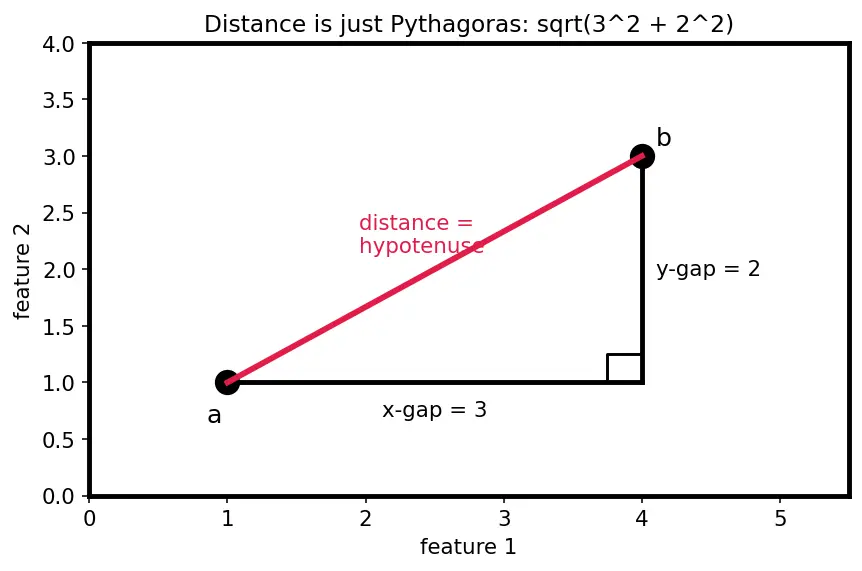

The picture — it is just Pythagoras. Put two dots on paper. The horizontal gap and the vertical gap form the two short sides of a right triangle; the distance is the long side (hypotenuse).

All cases covered:

• If the two dots are the same point, both gaps are $0$, so distance $=\sqrt{0}=0$. A dot is distance zero from itself.
• Distance is never negative — squaring kills any minus sign, and $\sqrt{\cdot }$ returns the non-negative root.
• In ${\mathbb{R}}^d$ the same idea extends: add up the squared gap in every one of the $d$ coordinates, then square-root.

5. Squared distance $D^2$ — and why we square

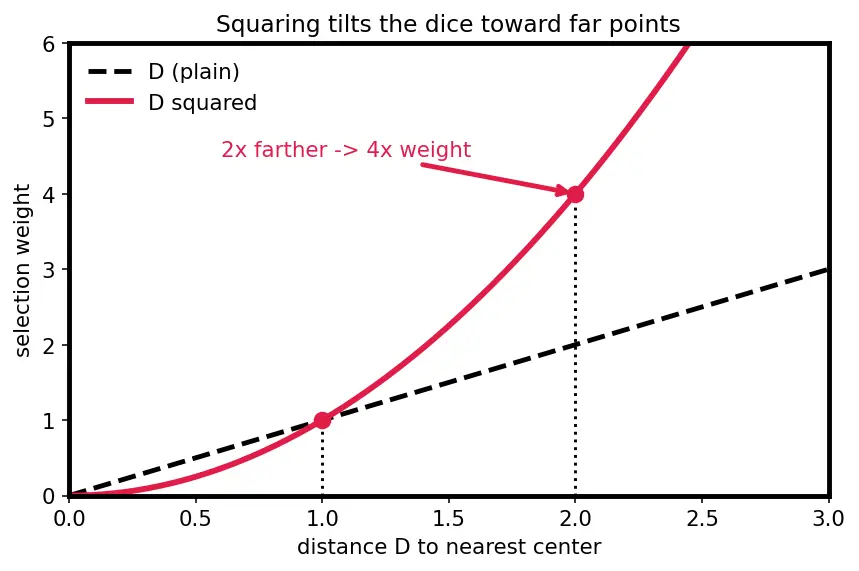

Why square instead of using plain distance? Three honest reasons:

1. Same currency as K-Means. K-Means scores a clustering by adding up squared distances (its "cost"). The initializer measures in the same coin, so its choices directly attack the final cost.
2. It exaggerates far points. A point twice as far has $2^2=4$ times the score. This aggressive tilt is exactly the spreading behaviour we want.
3. No wasted square-root. Dropping $\sqrt{\cdot }$ is faster and, since we only compare and weight, never changes which point wins.

6. The centroid $c$ and the "min over $C$"

So the parent's key quantity $D(x_i)={\min }_{c\in C}\Vert x_i-c{\Vert }_2$ in plain words is: "the distance from dot $x_i$ to its nearest already-chosen center."

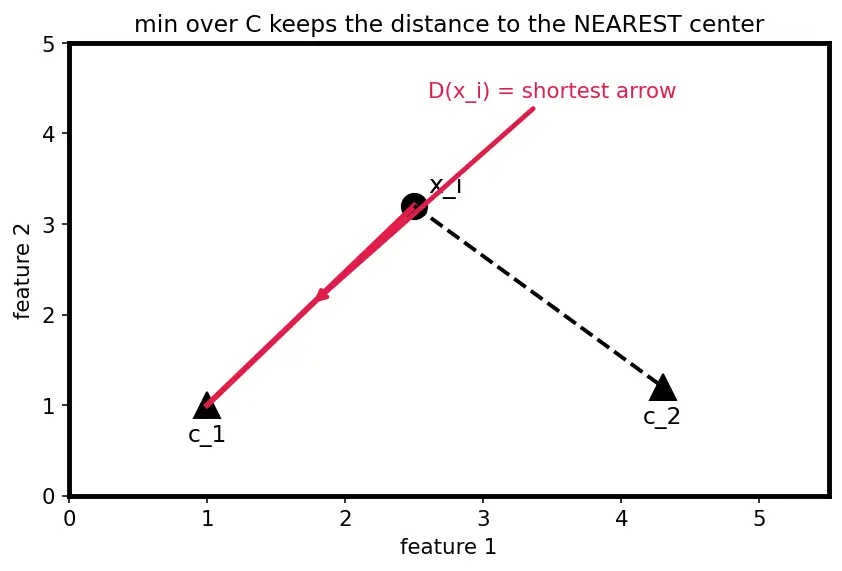

The picture: draw arrows from one point to all current centers; $D$ keeps the shortest arrow.

Why the topic needs "nearest": a point is "already covered" if any center is close. We only want to reward points that are far from everything, so we measure the gap to the closest center — if even the closest is far, the point is genuinely uncovered.

7. The sum $\sum$ and the total potential $\Phi$

Why the topic needs it: $\Phi$ is the number we divide by so the weights turn into probabilities that add to $1$ (next section).

8. Probability $P$, proportional-to $\propto$, and the weighted dice

Putting the pieces together, the parent's headline formula $P(x_i)=\frac{D(x_i{)}^2}{\Phi }=\frac{D(x_i{)}^2}{{\sum }_{x\in X}D(x{)}^2}$ now reads entirely in plain words:

the chance of picking dot $x_i$ next = (its squared distance to the nearest center) divided by (that same total for everybody).

Why divide by $\Phi$? Dividing each weight by the grand total forces the chances to add up to exactly $1$ — the law every set of probabilities must obey — while keeping each one proportional to $D^2$. That's the "weighted dice": far points get a bigger slice of the $[0,1]$ line.

Prerequisite map

Every arrow means "you must own the box on the left before the box on the right makes sense." The whole chain ends at the parent topic, K-Means++ initialization.

Where these lead next

• Once seeds are placed, the full clustering loop and its cost live under Expectation-Maximization (EM) (K-Means is a special case).
• Choosing $k$ itself: Elbow Method and Silhouette Score.
• Cousins that pick real points as centers or avoid centroids entirely: K-Medoids (PAM), Hierarchical Clustering, DBSCAN.
• The squared-distance weighting interacts delicately with Outlier Detection, and reproducibility needs Random Seed Setting. Runtime cost sits in Computational Complexity.
• Prefer Hinglish? See 2.5.03 K-Means++ initialization (Hinglish).

Equipment checklist

Test yourself — say the answer aloud, then reveal.
