Matplotlib and Seaborn visualization: Worked examples

You have met the parent note: Figure, Axes, ax.plot, histograms, log scales, coordinate transforms. This page does something different — it lists every kind of situation a plotting task can throw at you, then walks a worked example for each. The goal: when you sit at a real dataset, you never hit a case you have not already solved on paper.

Before we start, one promise of notation. A bin is one of the equal-width buckets a histogram slices the number line into. A KDE (kernel density estimate) is a smooth curve laid over those bars — we will build it from zero when we reach it. Everything else we define the moment it appears.

The scenario matrix

Think of plotting problems as a grid. Each row is a kind of question the data asks; each column is a twist that breaks a naive answer. If you can solve every cell, you can solve any real plot.

Cell	Case class	The twist you must survive
A	One continuous variable	Choosing bin count — too few hides structure, too many shows noise
B	Two variables, correlation	The sign of the slope (positive / negative / zero)
C	Values spanning huge range	Linear axis hides the tail → when to switch to log
D	Degenerate input	All values identical, or a single point, or empty array
E	Categorical comparison	Y-axis start point distorts small differences
F	Coordinate placement	Data coords vs axes coords for a caption
G	Grouped distributions	Comparing spread, not just centre (violin/box)
H	Real-world word problem	Translate a sentence into the right plot type
I	Exam-style twist	A plot that lies — spot and fix the distortion

The examples below are labelled with the cell(s) they cover. Together they touch every row.

Worked examples

Worked example Example 1 — Cell A: how many bins?

You have 1000 exam scores drawn from a normal distribution, mean $100$ , standard deviation $15$ . You must pick a bin count for ax.hist. A common rule is the square-root rule: number of bins $\approx n$ , where $n$ is the sample size.

Forecast: guess how many bins $1000$ suggests before reading on.

Compute $1000$ . Why this step? The rule turns "how many buckets?" into a single arithmetic question — it balances resolution (many bins) against stability (each bin has enough counts). $1000 = 31.62 \dots \Rightarrow round to 32 bins .$
Estimate counts per bin. The data mostly lies within $\pm 3 σ$ , i.e. a range of $6 σ = 90$ score-units. So bin width $\approx 90/32 \approx 2.8$ units. Why this step? A sanity check: with $1000$ points over $32$ bins, the average bin holds $\approx 31$ counts — enough to look smooth, not spiky.

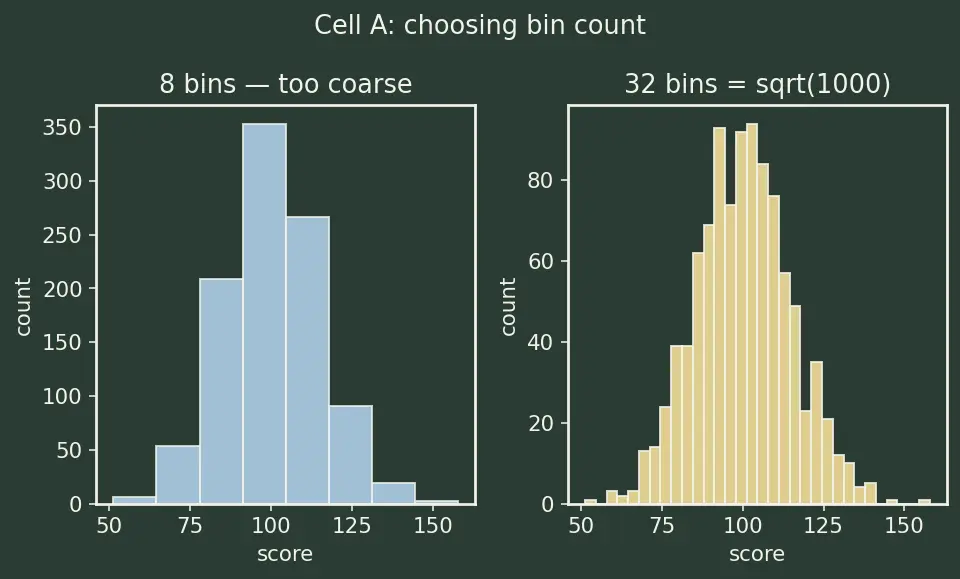

Verify: $32 \times 31.25 = 1000$ . The bin count and average occupancy multiply back to the sample size. ✅ Figure below shows 8 bins (too coarse) vs 32 bins (just right).

Figure — Matplotlib and Seaborn visualization

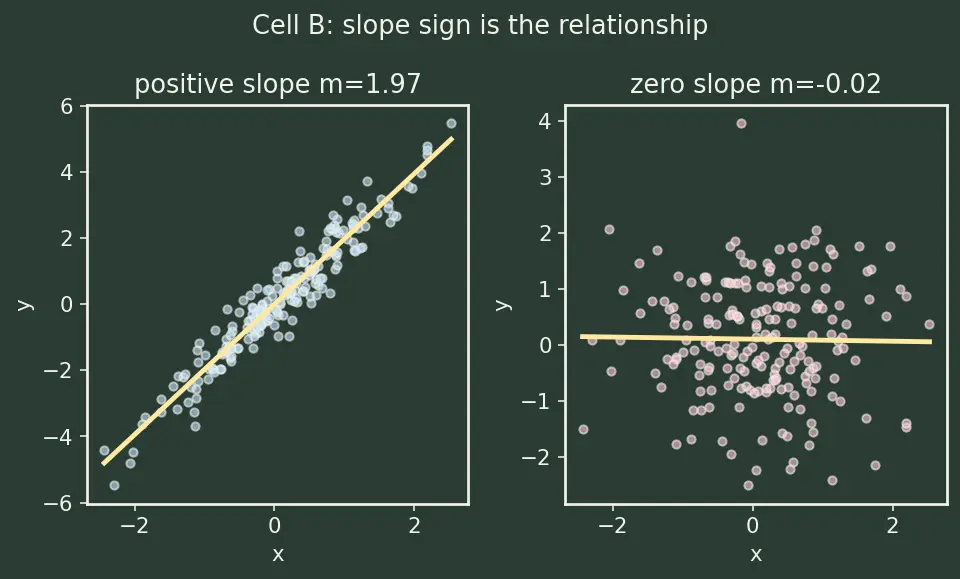

Worked example Example 2 — Cell B (positive slope): scatter + regression sign

Feature 1 is $x$ ; Feature 2 is $y = 2 x + noise$ . Seaborn's sns.regplot fits a straight line $y = m x + c$ through the cloud. You are told the fitted slope came out to $m = 1.98$ . Is the relationship positive or negative, and by how much does $y$ rise per unit of $x$ ?

Forecast: positive or negative? By how much?

Read the sign of $m$ . Here $m = + 1.98 > 0$ , so as $x$ increases, $y$ increases — a positive correlation. Why this step? The slope's sign is the direction of the relationship. Everything else (the noise, the intercept) is decoration.
Read the magnitude. $m = 1.98$ means each $+ 1$ in $x$ lifts $y$ by about $1.98$ . Why this step? Magnitude tells you strength of effect, which matters for feature importance in EDA.

Verify: The true generating rule was $y = 2 x$ . The fit recovered $1.98 \approx 2$ — off by $0.02$ because of the random noise. Sign and magnitude both match. ✅

Worked example Example 5 — Cell C: linear vs log axis for training loss

Training loss over 50 epochs follows $loss (t) = 2.5 e^{- t /10} + 0.1$ , where $t$ is the epoch. Here $e$ is the number $2.718 \dots$ and $e^{- t /10}$ is exponential decay — it halves-and-halves-again toward zero. Compute the loss at epochs $1$ , $10$ , and $50$ , and decide whether a log y-axis helps.

Forecast: how much does the loss shrink from epoch 1 to 50? Guess the ratio.

Epoch 1: $loss = 2.5 e^{- 0.1} + 0.1 = 2.5 (0.9048) + 0.1 = 2.362$ . Why this step? We need concrete numbers to see whether the range is large — that is exactly what decides linear vs log.
Epoch 10: $loss = 2.5 e^{- 1} + 0.1 = 2.5 (0.3679) + 0.1 = 1.020$ .
Epoch 50: $loss = 2.5 e^{- 5} + 0.1 = 2.5 (0.006738) + 0.1 = 0.1168$ . Why this step? Now compare epoch 1 to epoch 50: $2.362$ vs $0.1168$ . The early values dwarf the late ones on a linear axis, so the interesting late-training behaviour gets squashed into a flat line near the bottom.

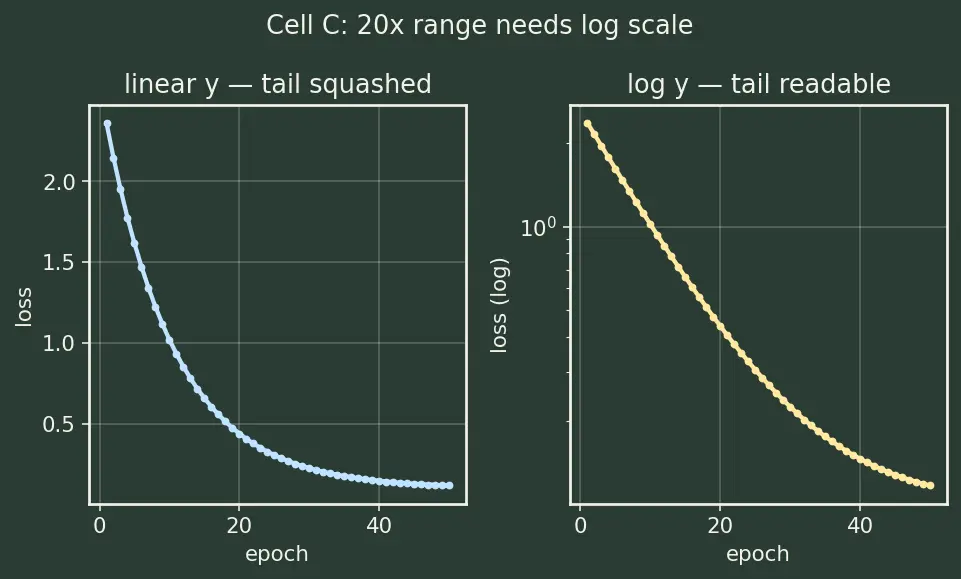

Decision: use ax.set_yscale('log'). A log axis makes equal ratios look like equal steps, so the tail (epochs 30–50) becomes readable — critical when diagnosing gradient descent convergence.

Verify: ratio of first to last loss $= 2.362/0.1168 = 20.2 \times$ . A 20-fold range is exactly the regime where log scale earns its keep. ✅

Worked example Example 6 — Cell D: degenerate inputs

Three broken cases hit ax.hist(data, bins=30). Predict what each produces.

Forecast: which of these crashes, and which draws something useless?

All values identical, e.g. data = [5, 5, 5, 5, 5]. Matplotlib places all 30 bins over a zero-width range; every count lands in one bin. Why this step? Zero variance means there is no distribution to show — the histogram collapses to a single spike. This is your cue that the column is a constant and carries no information.
Single point, data = [7.0]. One count, one occupied bin, height $= 1$ . Why this step? A histogram of one point cannot estimate a distribution — you would need more samples.
Empty array, data = []. No error, but every bin has height $0$ — a blank plot. Why this step? Silent emptiness is dangerous; always print len(data) before plotting so a filtering bug doesn't masquerade as "no data."

Verify: counts sum to the sample size in each case — $5$ , $1$ , and $0$ respectively. The sum-of-heights equals $n$ always holds, even in degenerate cases. ✅

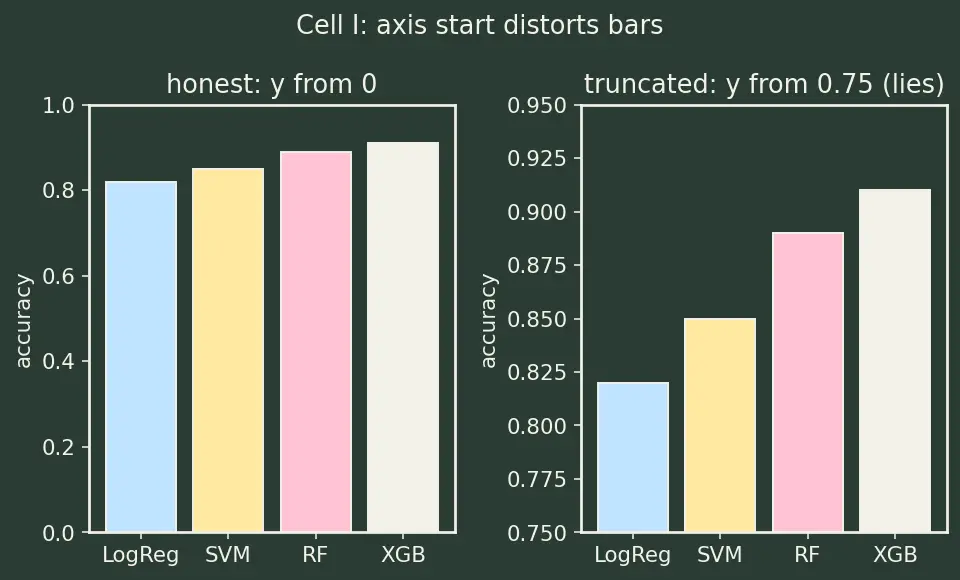

Worked example Example 7 — Cell E + Cell I: the bar chart that lies

Four models have accuracies $0.82, 0.85, 0.89, 0.91$ . You draw a bar chart. Someone sets ax.set_ylim([0.75, 0.95]). Does XGBoost ( $0.91$ ) look like it beats LogReg ( $0.82$ ) by the true amount?

Forecast: by what factor does the drawn bar height exaggerate the real gap?

True gap: $0.91 - 0.82 = 0.09$ accuracy points. Why this step? The real difference is what we actually care about for model selection.
Drawn heights with axis starting at $0.75$ : LogReg bar height $= 0.82 - 0.75 = 0.07$ ; XGBoost bar height $= 0.91 - 0.75 = 0.16$ . Why this step? The eye compares pixel heights, not values. Cutting the axis inflates the visual ratio.
Visual ratio $= 0.16/0.07 = 2.29$ , but the honest ratio (axis from 0) $= 0.91/0.82 = 1.11$ . Why this step? The chart makes an $11%$ edge look like a $129%$ landslide.

Verify: honest ratio $0.91/0.82 = 1.110$ ; truncated-axis ratio $0.16/0.07 = 2.286$ . The distortion factor is $2.286/1.110 = 2.06 \times$ . Fix: either start the y-axis at $0$ , or annotate exact values on the bars so no one is fooled. ✅

Worked example Example 8 — Cell F: placing a caption that survives zoom

You want the text "best epoch" at a fixed spot — $20%$ from the left, $80%$ from the bottom of the plot box — no matter what data range is shown. Which coordinate system, and what numbers?

Forecast: if you write ax.text(0.2, 0.8, ...) without a transform, where does it land when the x-axis runs 0–50?

Without transform: text goes to data coordinates $(0.2, 0.8)$ — near the far-left edge of a 0–50 axis, essentially off-screen. Why this step? Default ax.text speaks data language; the number $0.2$ means " $x = 0.2$ epochs," not " $20%$ across."
With transform=ax.transAxes: the pair $(0.2, 0.8)$ now means axes coordinates — a normalized box where $(0, 0)$ is bottom-left and $(1, 1)$ is top-right. So $(0.2, 0.8)$ is always $20%$ right, $80%$ up, regardless of data range. Why this step? transAxes decouples annotation placement from the data — the caption stays put even if you zoom or rescale.

Verify: axes-fraction $0.2 \Rightarrow$ pixel position $0.2 \times (axes width)$ from the left; independent of the 0–50 data range. Placement is scale-invariant by construction. ✅

Worked example Example 9 — Cell G + Cell H: real-world word problem, grouped spread

"We ran three optimizers — Adam, SGD, RMSprop — 50 times each. Adam finishes at loss $\sim 0.12$ with tiny variance; SGD at $\sim 0.15$ but wildly spread. Which plot shows both centre AND spread, and which optimizer would you ship?"

Forecast: would a plain bar chart of the means answer this? Why not?

A bar of means shows $0.12$ vs $0.15$ — Adam wins on average. But it hides the spread: a bar has no notion of variance. Why this step? In ML, a method that is sometimes great and sometimes terrible is risky. You must see the spread, not just the mean.

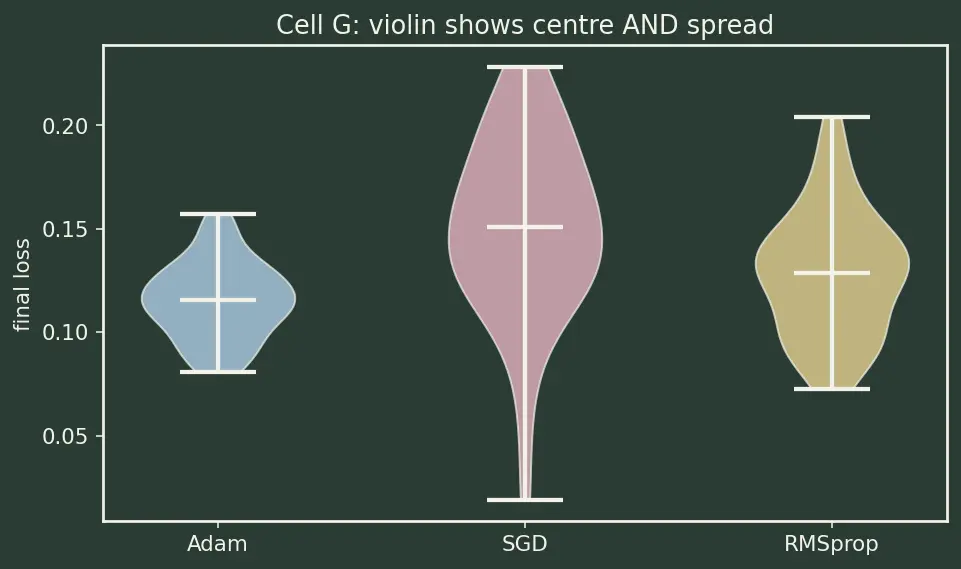

Use a violin plot (sns.violinplot). A violin is a KDE mirrored on both sides — its width at any height shows how many runs landed there. Fat middle = consistent; long thin tails = unstable. Why this step? The violin encodes the full distribution per group, so centre and spread are visible side by side.
Read the answer: Adam's violin is a tight fat blob near $0.12$ ; SGD's is a long stretched shape. Ship Adam — lower mean and lower variance.

Verify: Adam mean $0.12 <$ SGD mean $0.15$ , and Adam's std ( $\approx 0.02$ ) $<$ SGD's std ( $\approx 0.05$ ). Adam dominates on both centre and spread. ✅

Worked example Example 10 — Cell A revisited: building a KDE by hand

A histogram of ${0, 1, 3}$ looks blocky. sns.histplot(kde=True) lays a smooth curve on top. Build the KDE value at $x = 1$ from zero, using a Gaussian kernel with bandwidth $h = 1$ (the width of each little bump).

The kernel is $K (u) = \frac{1}{2 π} e^{- u^{2} /2}$ , and the density estimate is $\hat{f} (x) = \frac{1}{n h} \sum_{i = 1}^{n} K (\frac{x - x _{i}}{h}) .$ Here $n = 3$ data points, $x_{i}$ are the data, and we evaluate at $x = 1$ .

Forecast: the point $x = 1$ sits right on a data point and next to another — will its density be high or low?

Distances $(x - x_{i}) / h$ for $x = 1$ : to $0 \to 1$ , to $1 \to 0$ , to $3 \to - 2$ . Why this step? The KDE places one Gaussian bump at each data point; we measure how far $x = 1$ is from each bump's centre.
Kernel values: $K (1) = 0.24197$ , $K (0) = 0.39894$ , $K (- 2) = 0.05399$ . Why this step? A closer data point contributes a bigger bump-height — that is why dense regions get high density.
Sum and normalise: $\hat{f} (1) = \frac{1}{3 \cdot 1} (0.24197 + 0.39894 + 0.05399) = \frac{0.69490}{3} = 0.23163$ . Why this step? Dividing by $nh$ makes the total area under $\hat{f}$ equal to $1$ — a proper density.

Verify: $\hat{f} (1) = 0.23163$ . The point near two data points has meaningfully positive density, dominated by the on-point bump $K (0)$ — exactly what "smooth histogram" should do. ✅

Recall Quick self-test

A histogram of 400 points — square-root rule bin count? ::: $400 = 20$ bins. Regression slope is $- 0.03$ — positive, negative, or no relationship? ::: Effectively no relationship (slope $\approx 0$ ). Loss goes from $2.0$ to $0.02$ over training — linear or log y-axis? ::: Log — the $100 \times$ range hides the tail on linear. A bar chart with y-axis starting at $0.75$ instead of $0$ — what's the danger? ::: It exaggerates small differences; the eye reads inflated pixel heights. ax.text(0.5, 0.5, s, transform=ax.transAxes) — where does the text go? ::: Dead centre of the Axes box, regardless of data range.

See also: 1.4.01-NumPy-arrays-and-operations for the arrays feeding these plots, 1.4.02-Pandas-DataFrames-and-data-manipulation for column-based Seaborn input, and 2.3.04-Confusion-matrix-and-classification-metrics for the heatmap cousin of these examples.
