NumPy arrays and vectorized operations: Visual walkthrough

Before line one, three plain words you must own:

We write a shape as a tuple like $(3, 4)$ : read it "3 rows, 4 columns". Keep that picture — a rectangle — in your head for every step below.

Step 1 — The easy case: same shape, add cell-by-cell

WHAT. Take two grids that are exactly the same size and add them. Each output cell is the sum of the two cells sitting in the same spot.

WHY start here. This is the only case that needs no magic at all. Everything harder is a trick to fake this situation. If we understand "same shape → add matching cells", broadcasting becomes "how do we make shapes match".

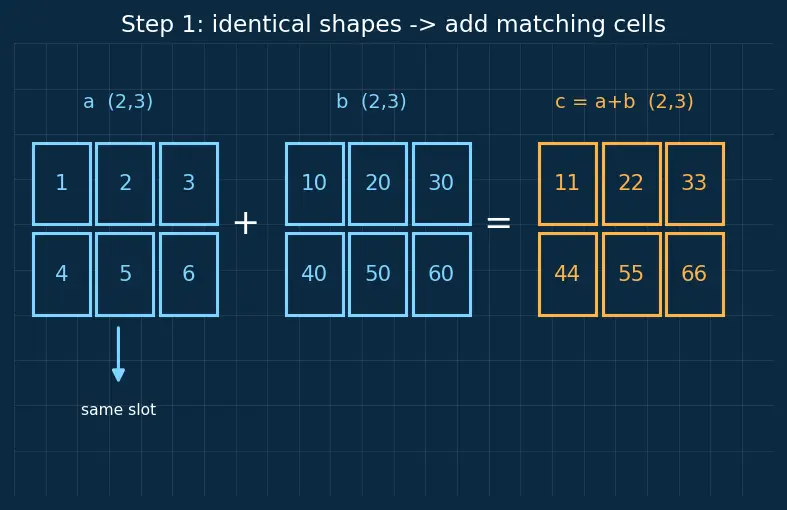

PICTURE. Two $(2, 3)$ grids stacked, arrows joining matching cells to the result.

Figure — NumPy arrays and vectorized operations

If the two shapes are identical, we are done. The interesting question is: what if they are not?

Step 2 — A mismatch that should work: row + grid

WHAT. Add a flat row of 3 numbers, shape $(3,)$ , to a grid of shape $(2, 3)$ . The naive reaction is "different shapes → error". But intuitively we want to add that one row to every row of the grid.

WHY this is the whole point. In ML you constantly do "add a bias vector to every row of a batch". Writing a loop over rows is exactly the slowness the parent note warns against. Broadcasting is the rule that makes this legal without copying.

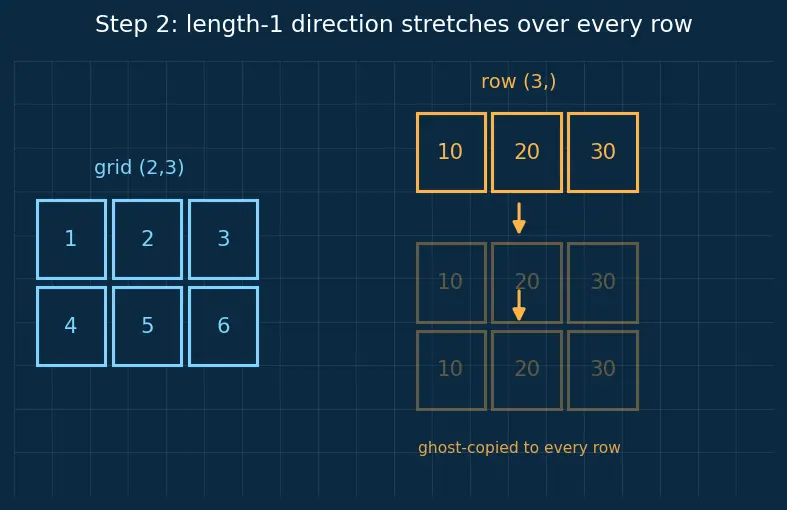

PICTURE. The short row $(3,)$ shown once, then ghost-copied down to line up with each row of the grid.

But " $(3,)$ vs $(2, 3)$ " have a different number of sides. How does NumPy even line them up? That's Step 3.

Step 3 — The alignment rule: line shapes up from the RIGHT

WHAT. To compare two shapes, write them one above the other and align their last entries (the innermost side). If one shape is shorter, pad it on the left with 1's.

WHY from the right, not the left? The rightmost axis is the innermost, fastest-changing one — the columns sitting next to each other in memory. Two grids "fit together" when their innermost structure matches, so we start comparison there and work outward.

PICTURE. $(2, 3)$ over $(3,)$ ; the $(3,)$ gets a phantom 1 prepended to become $(1, 3)$ , columns aligned.

Apply it to Step 2: aligned columns are $(2, 3)$ vs $(1, 3)$ . Column of 3's: equal ✓. Column of $2$ vs $1$ : one is 1, stretch ✓. Result: $(max (2, 1), max (3, 3)) = (2, 3)$ . Exactly the ghost-copy picture.

Step 4 — Stretch on BOTH sides at once: column ⊕ row → grid

WHAT. Take a column of shape $(3, 1)$ and a row of shape $(1, 4)$ and add them. Neither is a full grid, yet the result is a full $(3, 4)$ grid.

WHY show this. It proves stretching is not "small copied onto big" — it can be both operands stretching in different directions. This is the outer-sum pattern behind distance matrices, coordinate grids (meshgrid), and attention score tables.

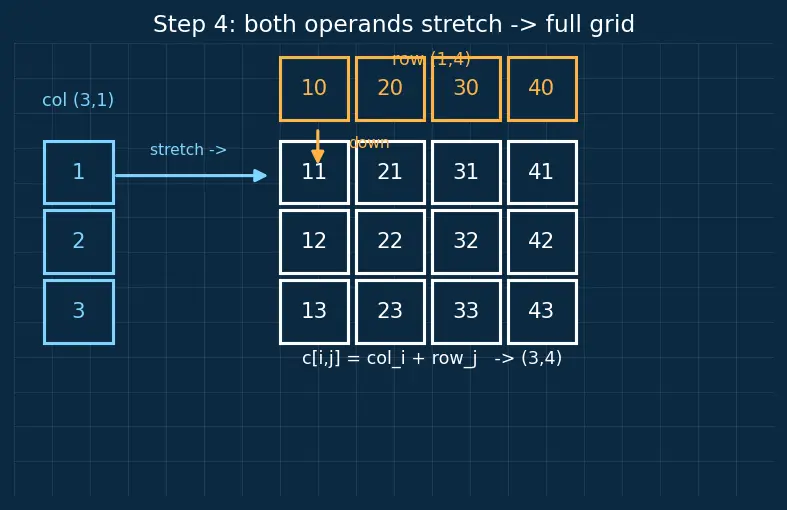

PICTURE. The column stretched rightward across 4 columns, the row stretched downward across 3 rows; where they overlap, cell $(i, j) = col_{i} + row_{j}$ .

Step 5 — The degenerate & failure cases (never get surprised)

WHAT. Cover the corners: a lone scalar, two mismatched non-1 sides, and a length-1 axis meeting length-1.

WHY. The contract: the reader must never hit a case we didn't show. These are exactly the cases that throw ValueError — or that silently do the right thing — in real code.

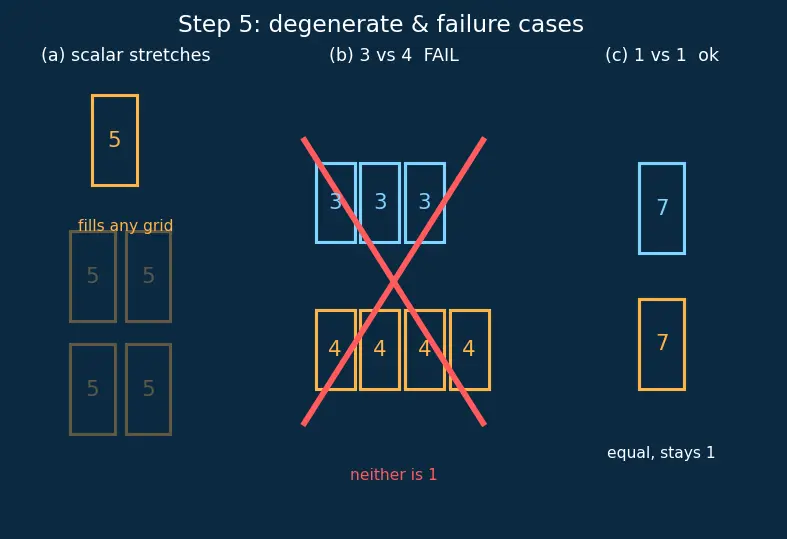

PICTURE. Three mini-panels: (a) scalar $5$ stretched to fill any grid; (b) $(3,)$ vs $(4,)$ — red X, no rule applies; (c) $(1,)$ vs $(1,)$ → stays $(1,)$ .

Step 6 — The empty-axis case: a side of length ZERO

WHAT. What happens when a grid has an axis of length 0 — an "empty" array with no rows at all, shape $(0, 3)$ ? Broadcast it with a row $(3,)$ .

WHY show this. Zero is a real, legal side-length in NumPy (you get one whenever a filter removes every row, or you preallocate an empty buffer). The rule must not surprise us here. The trap is to confuse 0 with 1: a length-1 side stretches, but a length-0 side does not.

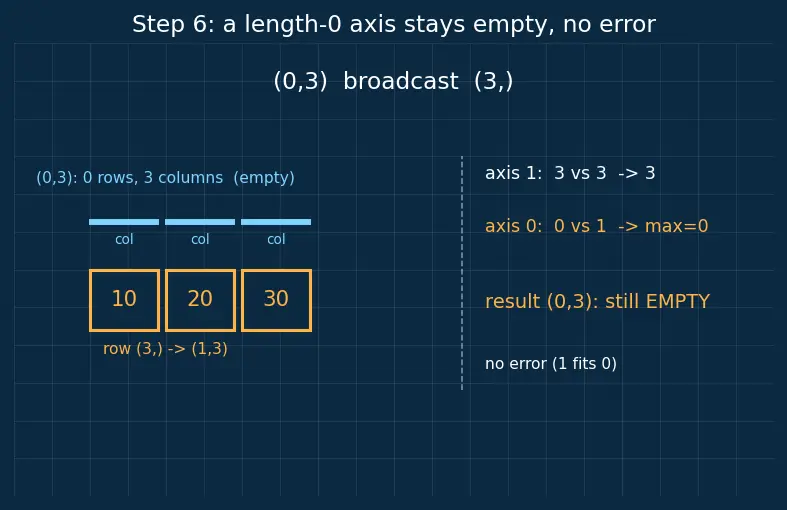

PICTURE. A $(0, 3)$ grid drawn as a flat dashed sliver (zero rows, still 3 columns), aligned under the row $(3,) \to (1, 3)$ ; the axis-0 result is $max (0, 1) = 0$ , so the output is still empty.

Step 7 — Worked prediction you can now do by hand

WHAT. Predict the output shape of $(4, 1, 3)$ broadcast with $(5, 3)$ — the exact question from the parent's flashcards.

WHY. If Steps 3–6 landed, this is now mechanical, not mysterious.

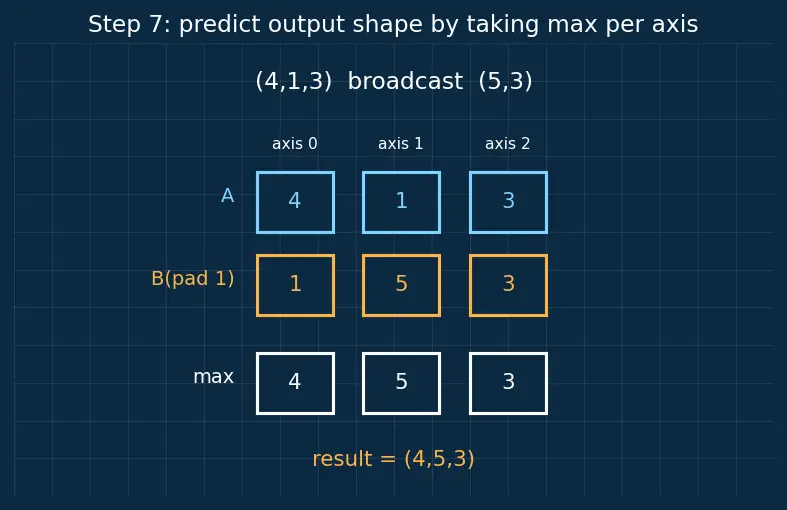

PICTURE. The two shapes stacked, $(5, 3)$ padded to $(1, 5, 3)$ , each axis resolved to its $max$ .

Answer: $== (4, 5, 3) ==$ .

The one-picture summary

Everything above is one flow: align right → pad with 1 → per-axis take max (or die). The figure below is the rendered version; the Mermaid block after it says the same thing in text so the overview survives even if the diagram fails to render.

Recall Feynman retelling — say it like a story

You have two grids of numbers and you want to add them, but they are different sizes. NumPy stands them shoulder-to-shoulder, lined up on their right edges, because the right side is the part sitting next to each other in memory. If one grid is shorter, it gets invisible 1's glued to its left so both have the same number of sides. Now it checks each pair of sides. If they are the same length, great. If one of them is exactly 1, that thin side gets pretended-copied out to match the fat side — no real copying, just repeating the same value as it reads. If the two sides are different numbers and neither is 1, it gives up and shouts an error, because it refuses to invent numbers out of nowhere. One subtlety: a side of length zero is not a length-1 side — it only fits a 1 (staying zero) or another zero, so an empty grid stays empty instead of erroring. That single rule — pad with 1, stretch the 1's, error on any other mismatch — is all of broadcasting.

Recall Self-test

Broadcast $(2, 1, 4)$ with $(3, 4)$ — output shape? ::: Pad to $(1, 3, 4)$ ; per axis $max (2, 1) = 2$ , $max (1, 3) = 3$ , $max (4, 4) = 4$ → $(2, 3, 4)$ . Why align from the right? ::: The rightmost axis is the innermost, memory-adjacent one; grids fit together starting from that innermost structure. Can a length-3 side stretch to length-4? ::: No — only a side of length exactly 1 may stretch; anything else is a ValueError. Broadcast $(0, 3)$ with $(3,)$ — output shape, and does it error? ::: $(0, 3)$ , no error — axis 0 is $max (0, 1) = 0$ , axis 1 is $3$ ; the result is a legal empty array.
