Every symbol below is earned before it is used. If you have never seen $\partial$ or a matrix, start at line one — nothing is assumed.

Step 1 — A function that eats a vector and makes a vector

WHAT. Picture a little machine. On the left are input dials — numbers we can turn. On the right are output bulbs — numbers that light up. We call the whole list of dials $x$ (bold means "a whole list of numbers, stacked"), and the whole list of bulbs $f (x)$ .

WHY. In ordinary school calculus a function takes one number in and gives one number out. But an image has thousands of pixels in; a neural layer has many numbers out. So we need a function

f : n dials (inputs) R^{n} ⟶ m bulbs (outputs) R^{m} .

Here $R^{n}$ just means "a list of $n$ real numbers", and $n$ , $m$ count the dials and bulbs. The arrow $⟶$ reads "maps to".

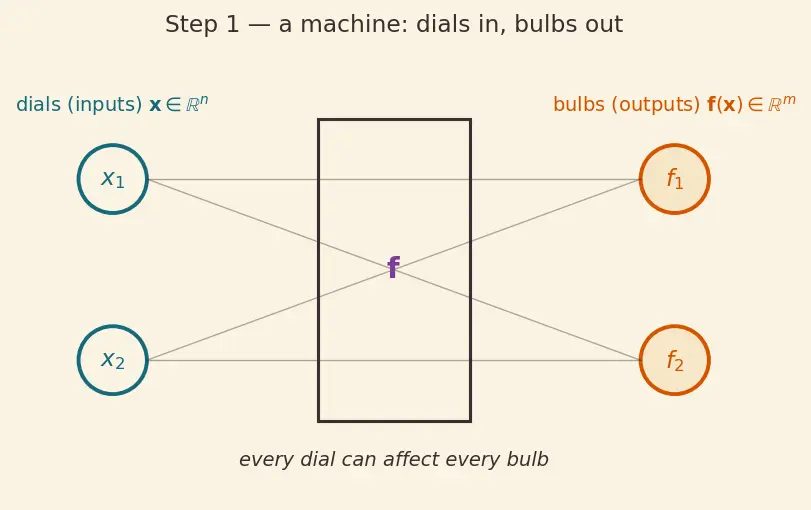

PICTURE. Two dials on the left, two bulbs on the right, wires connecting each dial to each bulb — because turning any dial can affect any bulb.

Step 2 — Nudge ONE dial, watch ONE bulb

WHAT. Freeze every dial except dial $j$ . Turn dial $j$ by a tiny amount we call $h_{j}$ (the letter $h$ will always mean "a small nudge"; the subscript $j$ says which dial). Watch how much bulb $i$ changes.

WHY. A big twist is confusing — many things move at once. A tiny twist lets us measure a single clean number: the rate at which bulb $i$ brightens per unit of dial- $j$ turn. That rate is the partial derivative:

\frac{\partial f _{i}}{\partial x _{j}} = shrink the nudge h_{j} \to 0 lim \frac{f _{i} ( \dots , x _{j} + h _{j} , \dots ) - f _{i} ( \dots , x _{j} , \dots ) change in bulb i}{size of nudge h _{j}} .

Why the limit $lim$ and not just a small number? Because for any finite nudge the ratio still bends a little (the curve is not perfectly straight). Shrinking $h_{j}$ to zero squeezes out that bend and leaves the exact slope — the tool that answers "instantaneous rate". The curly $\partial$ (not the straight $d$ ) is a flag saying "other dials are held constant."

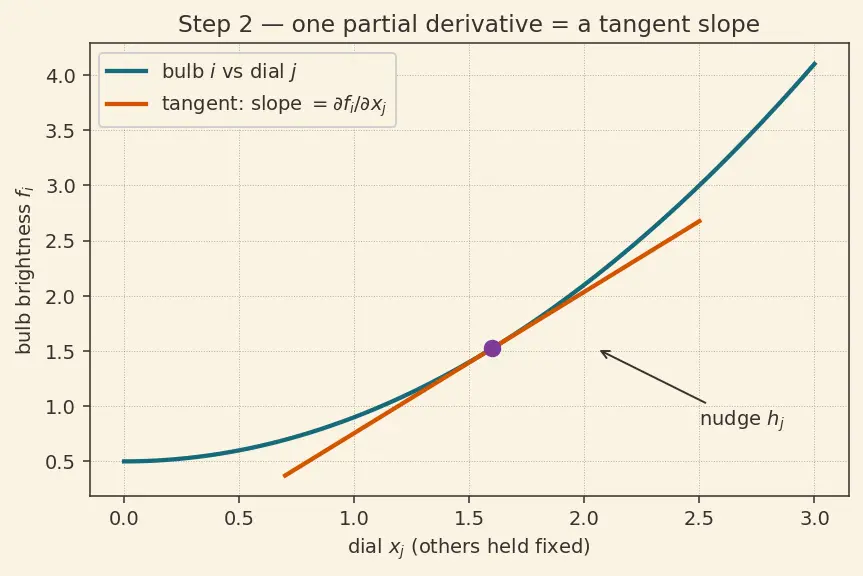

PICTURE. A curved response of bulb $i$ against dial $j$ ; a short straight tangent line whose steepness is $\partial f_{i} / \partial x_{j}$ .

Step 3 — Small effects simply ADD

WHAT. Now turn all the dials a little at once: nudge $x$ by $h = (h_{1}, \dots, h_{n})$ . Claim: bulb $i$ 's total change is the sum of what each dial did on its own.

f_{i} (x + h) \approx start brightness f_{i} (x) + sum of tiny contributions \frac{\partial f _{i}}{\partial x _{1}} h_{1} + \frac{\partial f _{i}}{\partial x _{2}} h_{2} + \dots + \frac{\partial f _{i}}{\partial x _{n}} h_{n} .

WHY. For tiny nudges the machine behaves like a flat ramp, and on a flat ramp effects don't interfere — dial 1's push and dial 2's push just stack. The wavy $\approx$ ("approximately equals") is honest: this is only exact in the shrinking-nudge limit, but for small $h$ the error is negligible. Each term $(\partial f_{i} / \partial x_{j}) h_{j}$ is "rate $\times$ how far I turned" — a slope times a distance gives a rise. This is linear approximation, first order.

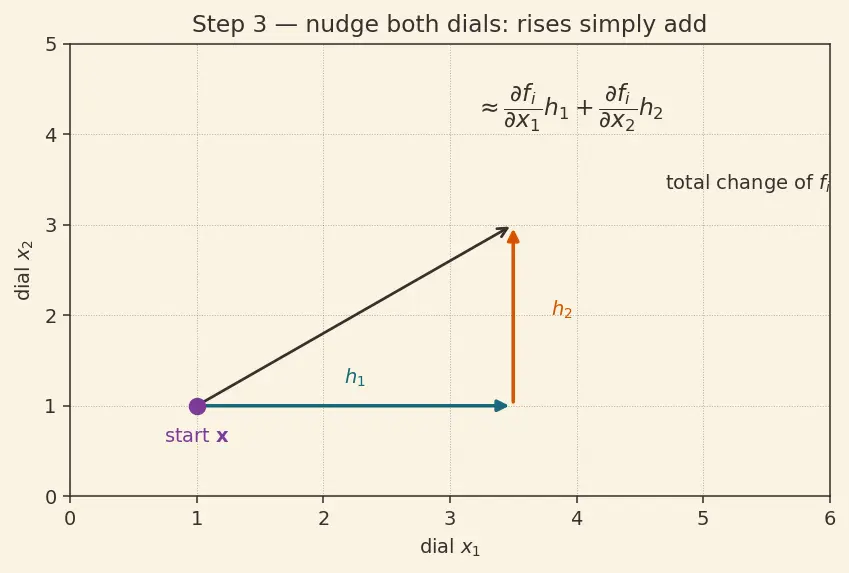

PICTURE. Two ramps in a "brightness landscape"; walking $h_{1}$ east then $h_{2}$ north raises brightness by the two separate rises added together.

Step 4 — A sum of products IS a row times a column

WHAT. That long sum is exactly what a row of numbers times a column of numbers produces:

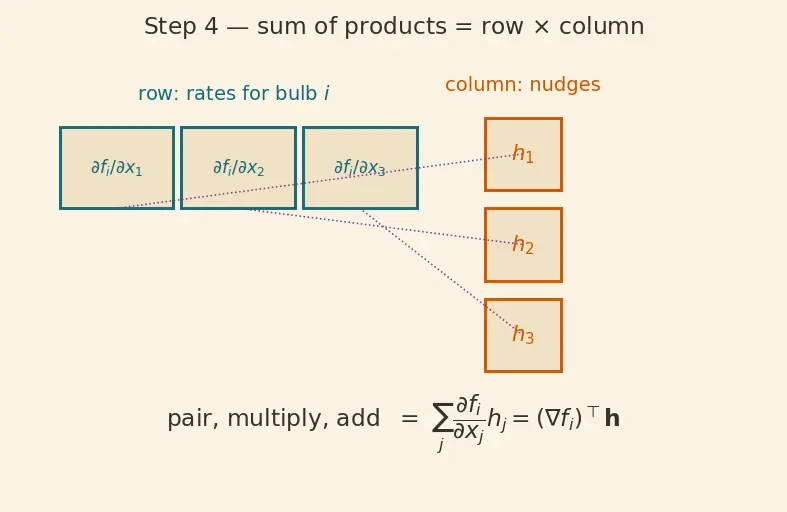

j = 1 \sum n \frac{\partial f _{i}}{\partial x _{j}} h_{j} = row: the rates for bulb i [\frac{\partial f _{i}}{\partial x _{1}} \frac{\partial f _{i}}{\partial x _{2}} \dots \frac{\partial f _{i}}{\partial x _{n}}] column: the nudges h_{1} h_{2} ⋮ h_{n} = (\nabla f_{i})^{⊤} h .

WHY. The rule for multiplying a row by a column is "pair them up, multiply, add." That is word-for-word our sum. So the messy notation collapses into one tidy product. The row of rates has a name — the gradient of bulb $i$ , written $\nabla f_{i}$ ; here it lies flat (that flat form is written $(\nabla f_{i})^{⊤}$ , "gradient turned on its side").

PICTURE. The row and column sliding together entry-by-entry, each pair multiplied, all products dropped into one running total.

Step 5 — Stack every bulb's row → the Jacobian appears

WHAT. Do Step 4 for all $m$ bulbs at once. Stack the rows on top of each other:

f (x + h) \approx f (x) + J (the Jacobian) (\nabla f_{1})^{⊤} (\nabla f_{2})^{⊤} ⋮ (\nabla f_{m})^{⊤} h .

WHY. One matrix equation now carries all the (bulb, dial) rates. The stacked block is the Jacobian $J$ : row $i$ is bulb $i$ 's gradient, and entry $J_{ij} = \partial f_{i} / \partial x_{j}$ . It has == $m$ rows (bulbs/outputs) and $n$ columns (dials/inputs)==, so $J \in R^{m \times n}$ — exactly the shape that can multiply an $n$ -long nudge column and return an $m$ -long brightness column.

PICTURE. Individual gradient-rows lifting into place to form the full rectangle, then the rectangle times the nudge-column producing the output-change column.

Step 6 — Edge cases: does the picture still hold?

WHAT & WHY. A rule you trust must survive its corners. Check three.

(a) One bulb ( $m = 1$ ). Only one row exists, so $J$ is a single row $= (\nabla f)^{⊤}$ . This is why people confuse Jacobian and gradient: for one output they carry the same numbers, but the Jacobian lies down (row) and the gradient stands up (column).

(b) A "sleeping" dial. If bulb $i$ ignores dial $j$ (e.g. no wire between them), then $\partial f_{i} / \partial x_{j} = 0$ — a genuine zero in the matrix. If every bulb ignores every dial (a constant machine), $J$ is the all-zeros matrix: nudging changes nothing, exactly as the picture predicts.

(c) Square machine, $m = n$ . Now $J$ is a square block and we may ask for its determinant $det J$ . Geometrically $∣ det J ∣$ is the local area/volume stretch — how much a tiny square of dial-space swells into bulb-space. When $m \neq = n$ (most ML layers), $J$ is a rectangle and has no determinant — you cannot ask "how much does area scale" between spaces of different dimension. This stretch factor is the star of Change of variables in integration.

PICTURE. Left: a lone row for $m = 1$ next to its stood-up gradient. Middle: a matrix with a zero entry where a wire is missing. Right: a unit square in $(x, y)$ mapped to a tilted parallelogram whose area is $∣ det J ∣$ .

The one-picture summary

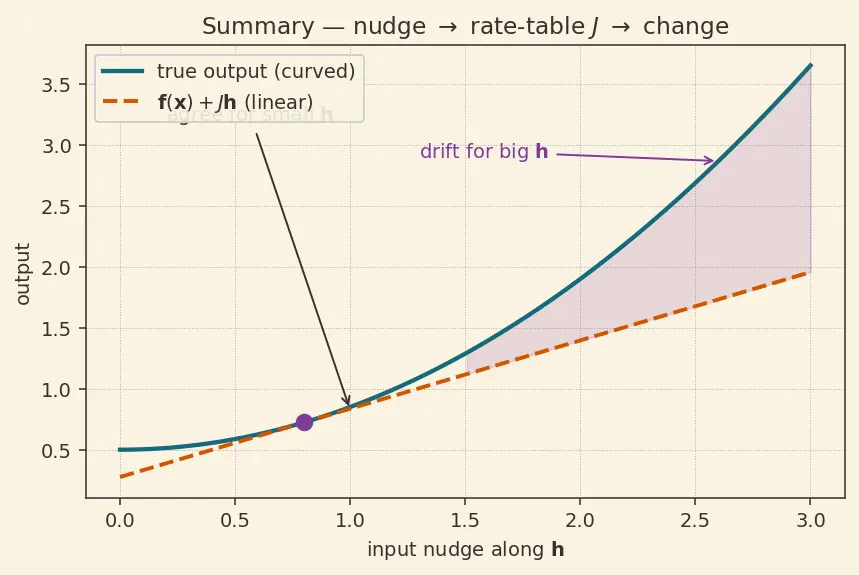

WHAT. The whole journey on one canvas: nudge the dials $h$ , feed it through the rate-table $J$ (stacked gradients), read off the bulb change $J h$ , add it to the starting brightness. The curvy true output and the straight $J h$ prediction agree for small nudges and drift apart for big ones — which is why the Jacobian is a local linear model.

This same product-of-Jacobians, applied layer after layer, is Backpropagation and forward-mode autodiff; its symmetric cousin (second derivatives) is the Hessian matrix.
