Understand supply-demand zone trading — Stock-Market notes

What is a Supply/Demand Zone?

WHAT distinguishes a zone from a plain line? A zone is a range (two prices: proximal + distal edge), not a single line. This range accounts for the fact that orders sit across a band of prices.

Formula Anatomy of a valid zone

A tradable zone has three ingredients we can score. Let:

$L$ = length of the departure leg (how far price ran, in ATR units),
$B$ = number of candles in the base (fewer = tighter = stronger),
$F$ = "freshness" = number of times price has already returned and tapped the zone.

A rough zone quality heuristic (derived below): $Q = \frac{L}{(B+1)\,(F+1)}$

HOW this is derived (from first principles):

A strong departure ( $L$ large) means orders were absorbed violently ⇒ lots of leftover imbalance ⇒ quality rises with $L$ ⇒ $L$ in numerator.
A narrow base ( $B$ small) means the imbalance was concentrated at one price, not smeared out ⇒ quality falls as $B$ rises ⇒ $B$ in denominator. We use $B+1$ so a 0-extra-candle base doesn't divide by zero and stays finite.
Every retest consumes orders. After $F$ taps, fewer orders remain, so the zone weakens ⇒ $F$ in denominator, $F+1$ so a fresh zone ( $F=0$ ) gives the full value.

This is a scoring intuition, not a law of physics — but the ranking it produces matches how discretionary traders grade zones.

The Two Edges of a Zone

WHY put the stop beyond distal? If price fully passes the distal edge, the leftover orders were exhausted — the zone failed. There's no reason to stay in a broken thesis.

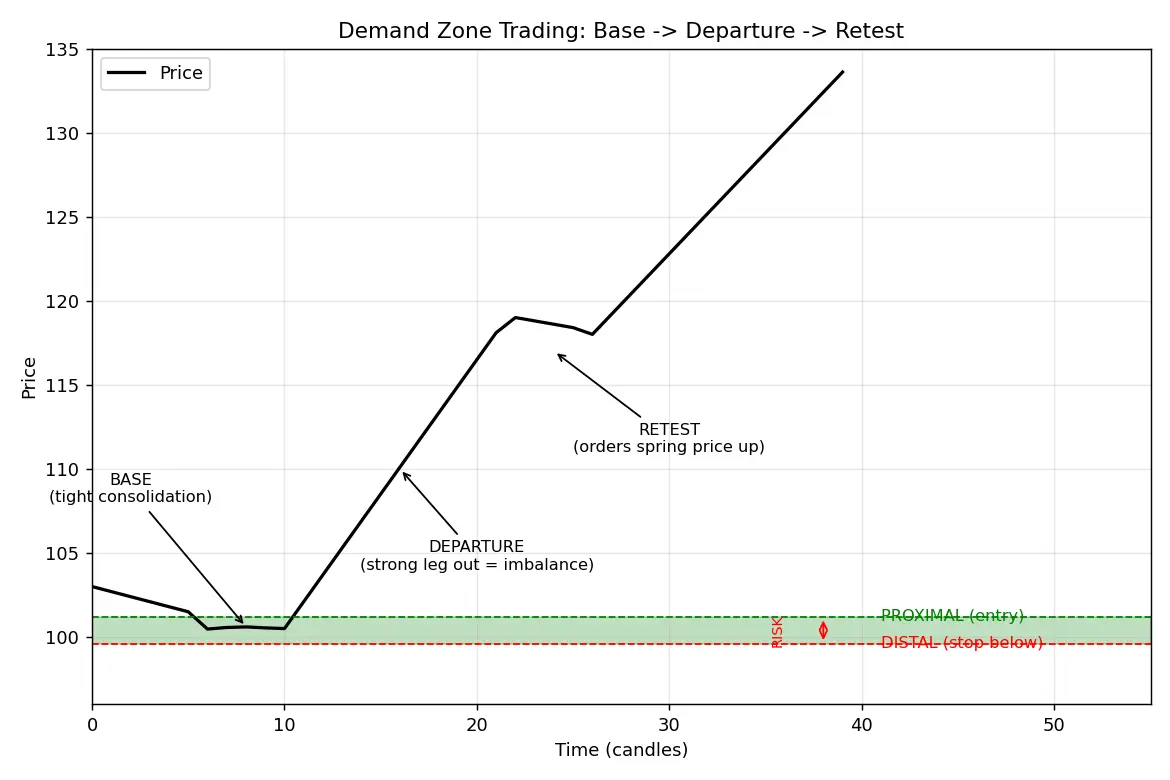

Figure — Understand supply-demand zone trading

Risk-Reward: the number that makes it profitable

Formula Reward-to-risk from the zone

Define for a demand-zone long:

Entry $E$ = proximal price
Stop $S$ = distal price − small buffer, so risk $R = E - S$
Target $T$ = next opposing supply zone, so reward $W = T - E$

$\text{RR} = \frac{W}{R} = \frac{T - E}{E - S}$

Break-even win rate needed for profit (derive it): expected value per trade with win prob $p$ : $\mathbb{E} = p\cdot W - (1-p)\cdot R$ Set $\mathbb{E} = 0$ and solve for $p$ : $p\,W = (1-p)R \;\Rightarrow\; p(W+R) = R \;\Rightarrow\; p^* = \frac{R}{W+R} = \frac{1}{1+\text{RR}}$ WHY this matters: With RR = 3, you only need $p^* = \tfrac{1}{4} = 25\%$ wins to break even. Zones give high RR precisely because the stop (distal) is so close to entry (proximal).

Worked Examples

Common Mistakes

Active Recall

Recall What is the physical reason price rockets away from a demand zone?

Big buy orders were absorbed faster than sellers could fill them, leaving a pool of unfilled buy orders. Price jumps to escape the imbalance; leftover orders spring price back on the retest.

Recall Where do entry, stop, and target go for a demand-zone long?

Entry at proximal, stop just beyond distal, target at next supply zone.

Recall Why is a fresh zone stronger than a retested one?

Each retest consumes resting orders; a fresh zone ( $F=0$ ) still holds its full order pool.

Recall Derive the break-even win rate for RR = R:W.

$\mathbb{E}=pW-(1-p)R=0 \Rightarrow p^*=\frac{R}{W+R}=\frac{1}{1+\text{RR}}$ .

Recall Feynman: explain to a 12-year-old

Imagine a candy shop where a huge crowd wants candy but the shop can only hand it out slowly. The crowd pushes forward so hard that prices jump up. Some kids who wanted candy didn't get it, so they stand and wait at that spot. Next time candy comes back to that price, those waiting kids grab it fast — pushing the price up again. That waiting spot is a demand zone. A supply zone is the opposite: too many kids trying to sell their candy at one spot.

Connections

Support and Resistance — zones are the order-flow upgrade of plain S/R lines.
Risk-Reward Ratio — the RR formula that makes low win-rate profitable.
Order Flow and Liquidity — why institutions leave resting orders.
ATR (Average True Range) — measuring departure strength $L$ .
Trend Following — trade zones with the higher-timeframe trend.
Position Sizing — tight distal stop lets you size risk precisely.

Demand zone represents which unfilled orders?

Unfilled BUY orders (buying overwhelmed selling, price rallied up).

Supply zone represents which unfilled orders?

Unfilled SELL orders (selling overwhelmed buying, price dropped).

Proximal line is...

The zone edge closest to current price — the entry edge.

Distal line is...

The far edge of the zone — where the stop-loss goes.

Why is a fresh (untested) zone stronger?

Retests consume resting orders, so an untested zone still holds its full order pool.

Break-even win rate for reward-to-risk RR?

p* = 1/(1+RR); e.g. RR=3 needs only 25% wins.

Zone quality heuristic Q equals?

Q = L / ((B+1)(F+1)) — strong departure L up, wide base B and taps F down.

Where is the target for a demand-zone long?

The next opposing SUPPLY zone above.

What makes zone trading profitable at low win rates?

Tight distal stop → high reward-to-risk, so few wins cover many small losses.

RR formula for a demand long?

RR = (T − E)/(E − S) with E=proximal, S=distal, T=next supply.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Supply-demand zone trading ka core idea simple hai: price kisi ek price pe magic se nahi rukta, balki wahan buyers aur sellers ka imbalance hota hai. Jab bade institutions ko lakhs shares kharidne hote hain, to ek hi price pe order nahi bhar sakte — warna market unke against move kar jayega. Isliye wo ek chhoti range (base) mein resting orders chhod dete hain. Jab demand strong hoti hai, price wahan se tezi se upar bhaag jaata hai (departure). Jo orders bache reh gaye, wahi hai demand zone. Jab price wapas aata hai (retest), wo bache hue orders spring ki tarah price ko phir upar dhakel dete hain.

Zone ek line nahi, range hoti hai — do edges: proximal (current price ke paas, entry yahin) aur distal (door wala extreme, stop-loss yahin ke thoda neeche). Supply zone bilkul ulta — jahan selling ne buying ko dabaya aur price neeche giraa. Yaad rakho: fresh zone strong hota hai, kyunki har baar retest hone pe orders consume ho jaate hain. Purani soch "jitni baar touch, utna strong" yahan galat hai.

Isse paisa kaise banta hai? Kyunki distal stop entry ke bahut paas hota hai, tumhara reward-to-risk (RR) bada milta hai. Formula: break-even win rate $= 1/(1+RR)$ . RR = 4 ho to sirf 20% trades jeet kar bhi profit — kyunki chhoti-chhoti losses ko badi wins cover kar leti hain. Isliye direction perfectly predict karna zaroori nahi; achhe zones select karna aur discipline se stop-target lagana kaafi hai. Hamesha higher-timeframe trend ke saath, strong departure aur tight base wale fresh zones prefer karo.
