Understand Ichimoku cloud basics

Overview

The Ichimoku Kinko Hyo (一目均衡表, "one glance equilibrium chart") is a comprehensive technical indicator that shows support/resistance, trend direction, momentum, and trading signals—all in one visual system. Created by Japanese journalist Goichi Hosoda in the 1960s, it's built on five lines and cloud (Kumo) that together reveal market equilibrium at a glance.

Why it matters: Unlike single-dimension indicators (RSI, MACD), Ichimoku gives you a complete picture of price action relative to historical equilibrium zones. It's particularly powerful in trending markets and helps you stay on the right side of momentum.

The Five Components

1. Tenkan-sen (Conversion Line): $(H_9 + L_9)/2$ — 9-period midpoint
2. Kijun-sen (Base Line): $(H_{26} + L_{26})/2$ — 26-period midpoint
3. Senkou Span A (Leading Span A): $(Tenkan + Kijun)/2$, plotted 26 periods ahead
4. Senkou Span B (Leading Span B): $(H_{52} + L_{52})/2$, plotted 26 periods ahead
5. Chikou Span (Lagging Span): Current close, plotted 26 periods back

The Kumo (cloud) is the area between Senkou Span A and Senkou Span B.

Derivation From First Principles

Caveat (do not oversimplify): These are not exactly "1.5 weeks / 1 month / 2 months" in today's 5-day, ~21-trading-day-month market. Modern markets don't map cleanly onto 26/52; the values are legacy constants from Hosoda's era that traders keep by convention because they still perform well. Treat them as tuned parameters, not literal calendar equivalents. Some traders adjust to 7/22/44 for 5-day weeks, but the classic 9/26/52 remains standard.

Why Midpoints (Not Averages)?

Traditional moving averages $MA_n = \frac{1}{n}\sum_{i=0}^{n-1} P_i$ weight every closing price equally.

Ichimoku uses midpoints $(High + Low)/2$ because:

1. Range represents the battle zone: The high/low captures where bulls/bears fought most intensely over the window.
2. Midpoint = equilibrium price: The center of the range is where neither side dominated — a natural "fair value" for that window.
3. Different information, not fewer prices: Note that the high $H$ and low $L$ are themselves determined by all the intra-period prices (they are the extremes of the whole distribution). So the midpoint is not "just two data points" — its inputs summarize the entire range. Its responsiveness comes from tracking extremes/turning points rather than from having fewer inputs; do not assume it has less lag simply because the formula shows two terms.

Mathematical justification: If we model price as fluctuating around an equilibrium $P_{eq}$, and assume:

• Bulls push to high $H$
• Bears push to low $L$
• $P_{eq}$ is where supply = demand

Then by symmetry, $P_{eq} \approx \frac{H + L}{2}$ (the midpoint of the battle).

How Each Line Works

1. Tenkan-sen (Conversion Line)

$Tenkan = \frac{H_9 + L_9}{2}$

What: 9-period equilibrium (fast-reacting).
Why: Shows immediate sentiment shift. When price crosses Tenkan, short-term momentum changes.
How to use: Acts as a trigger line—like MACD's signal line but based on range equilibrium.

2. Kijun-sen (Base Line)

$Kijun = \frac{H_{26} + L_{26}}{2}$

What: 26-period equilibrium (standard timeframe).
Why: Represents medium-term fair value. The "base" around which price oscillates.
How to use: When price is above Kijun → bullish context. Below → bearish. Kijun acts as dynamic support/resistance.

3. Senkou Span A (Leading Span A)

$Senkou\_A = \frac{Tenkan + Kijun}{2}, \quad \text{plotted 26 periods forward}$

What: Average of fast and standard equilibrium, projected ahead.
Why: Projects current momentum's future impact. It's saying "if current dynamics persist, here's where equilibrium will be."
How it's derived:

• $Tenkan$ captures short-term balance
• $Kijun$ captures medium-term balance
• Their average = blended equilibrium
• Shifting it forward by 26 periods creates a forecast zone

4. Senkou Span B (Leading Span B)

$Senkou\_B = \frac{H_{52} + L_{52}}{2}, \quad \text{plotted 26 periods forward}$

What: 52-period equilibrium projected ahead (slower, structural).
Why: Represents long-term support/resistance levels in the future. Less reactive, more stable.

5. Chikou Span (Lagging Span)

$Chikou = \text{Current Close}, \quad \text{plotted 26 periods back}$

What: Today's price overlaid on the price action from 26 days ago.
Why: Instant comparison: Is today's price higher/lower than a month ago? If Chikou is above past price action → bullish. Below → bearish.

Psychological insight: It forces you to compare current price to relevant history (not arbitrary levels), revealing true momentum.

The Kumo (Cloud)

$\text{Kumo} = \text{area between } Senkou\_A \text{ and } Senkou\_B$

Color convention:

• Green/bullish cloud: $Senkou\_A > Senkou\_B$ (fast equilibrium above slow → uptrend)
• Red/bearish cloud: $Senkou\_A < Senkou\_B$ (fast below slow → downtrend)

Why the Cloud is Powerful

The cloud represents future equilibrium zones. Because it's plotted 26 periods ahead, it shows where support/resistance will likely be based on current dynamics.

Thickness = separation between the two equilibria (NOT a volatility statistic): Cloud thickness is simply the absolute difference between the two spans: $\text{Thickness} = |Senkou\_A - Senkou\_B|$ That is, the gap between the short/medium-range midpoint (Span A) and the long-range midpoint (Span B). It is not a statistical volatility measure like standard deviation or ATR.

• Thick cloud: Large gap between short- and long-range equilibrium → the two timeframes disagree strongly → historically acts as a firmer support/resistance barrier.
• Thin cloud: Short- and long-range equilibrium nearly agree → a weaker barrier, easier to break through.

When price enters the cloud: Equilibrium battle—no clear trend. Wait for breakout.

Trading Signals

Bullish: Tenkan crosses above Kijun (fast equilibrium overtakes standard → momentum shift up).
Bearish: Tenkan crosses below Kijun.

Why this step?
When the 9-period midpoint exceeds the 26-period midpoint, it means recent price action has established new, higher equilibrium. This is early momentum confirmation.

Example:

• Day 50: Tenkan = $48, Kijun =$50 (price below both → downtrend)
• Day 55: Tenkan crosses above Kijun → TK cross buy signal
• Confirmation: Price is above Kijun, Chikou above past price, price above cloud

Bullish: Price above cloud → strong uptrend. Cloud acts as support.
Bearish: Price below cloud → downtrend. Cloud acts as resistance.
Inside cloud: Consolidation—no trade.

Why this works:
The cloud represents the overlap of projected future equilibrium zones. When price is above, current demand exceeds both short and long-term equilibrium projections → sustained bullish pressure.

Example:

• Stock at $55, cloud at$50-52 → price above cloud → bullish
• Price drops to $51 (enters cloud) → wait
• Price drops to $48 (below cloud) → bearish, cloud now resistance

Bullish confirmation: Chikou span is above price action from 26 days ago (and above the cloud in the past).
Bearish confirmation: Chikou below past price/cloud.

Why this step?
This ensures current price is definitively stronger than a full cycle ago. It's a momentum persistence check.

Example:

• Today: $60
• 26 days ago: Price was $55
• Chikou plots at $60 on the chart 26 days ago → above past price → confirms bullish momentum

When Senkou A crosses Senkou B, the cloud changes color → trend reversal warning.

Why:
$Senkou\_A = (Tenkan + Kijun)/2$ is faster-moving.
$Senkou\_B$ is 52-period, slower.
When fast equilibrium crosses slow equilibrium in the future projection, it signals a structural momentum shift.

Example:

• Cloud is red (bearish), then Senkou A crosses above Senkou B 26 days ahead
• Cloud turns green → future support established → early bullish signal

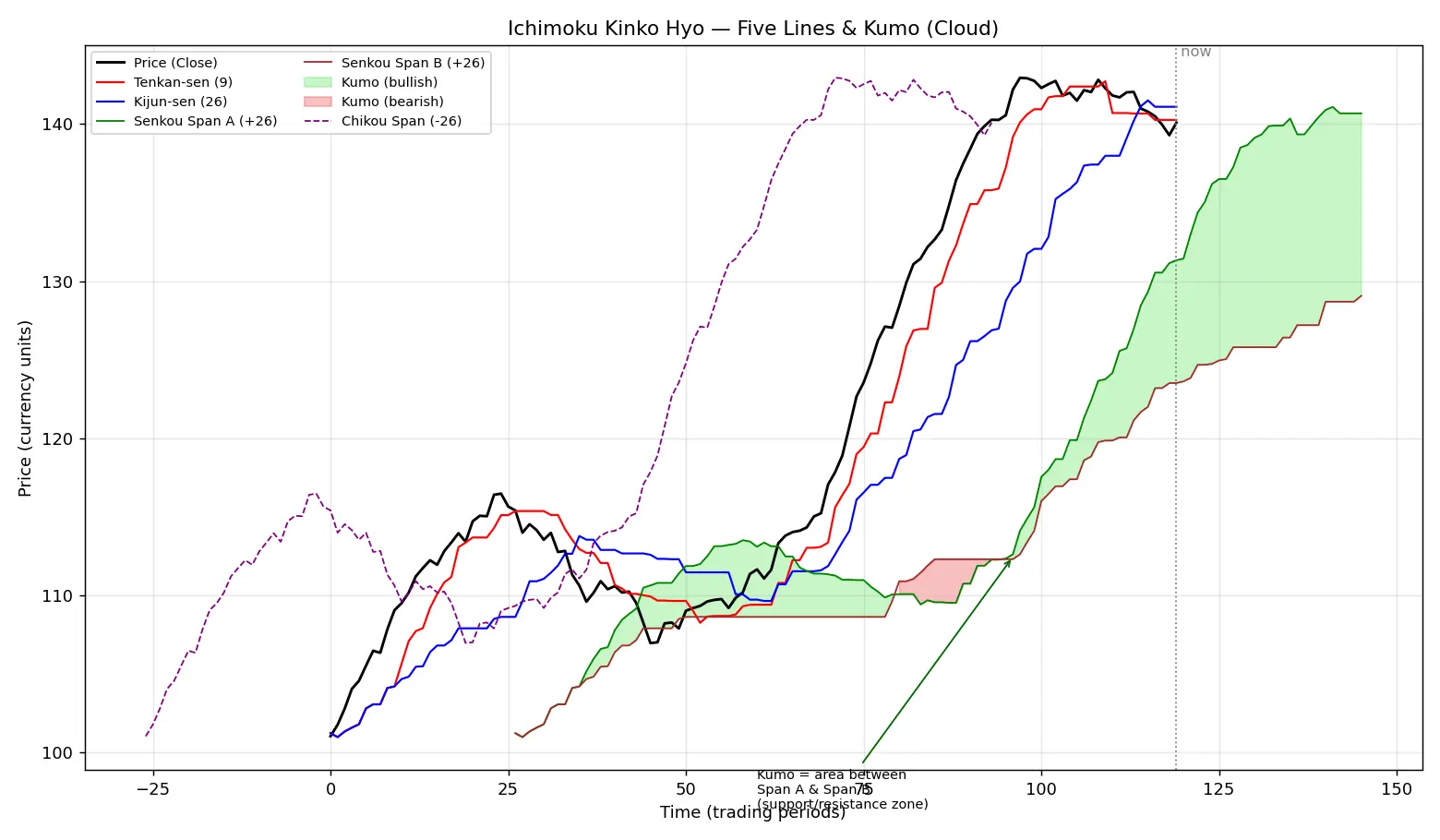

Visual Interpretation

How to read this chart:

1. Price above cloud → bullish trend
2. Tenkan above Kijun → short-term bullish momentum
3. Chikou above past price → momentum confirmed
4. Cloud is green ahead → future support projected
5. Thick cloud → strong resistance/support zone

Common Mistakes

Wrong idea: "Price is in the cloud, so it's a support level—buy!"

Why it feels right: The cloud looks like support on the chart.

Why it's wrong: Inside the cloud means equilibrium battle—no clear trend. You're trading noise. The cloud is a no-trade zone, not a signal.

The fix: Wait for price to fully break out of the cloud (above or below) with volume confirmation. Only trade clear trends.

Wrong idea: "Ichimoku works on all timeframes and conditions."

Why it feels right: It's a comprehensive system with multiple confirmations.

Why it's wrong: Ichimoku is trend-following. In sideways markets, you get constant false TK crosses, price whipsaws through the cloud, and conflicting signals.

The fix: Use Ichimoku in trending markets (ADX > 25). In ranges, switch to oscillators (RSI, Stochastic).

Wrong idea: "The five lines are complicated; I'll just use TK cross and cloud."

Why it feels right: Fewer signals = simpler system.

Why it's wrong: Chikou is your momentum confirmation. Without it, you take TK crosses that don't have follow-through. It's the final filter that catches weak signals.

The fix: All five components must align for high-probability trades:

1. Price above/below cloud (trend)
2. TK cross (entry timing)
3. Chikou above/below past price (momentum confirmed)
4. Cloud color matches direction (future projection aligned)

Wrong idea: "A thick cloud means the market is volatile."

Why it feels right: Big, dramatic clouds look like turbulent price action.

Why it's wrong: Thickness $= |Senkou\_A - Senkou\_B|$ is only the gap between short/medium and long-range midpoints, not a variance/ATR-style volatility measure. A market can be volatile with a thin cloud, or calm with a thick one.

The fix: Read thickness as barrier strength (how strongly the two equilibria disagree), and measure actual volatility separately with ATR or standard deviation.

Active Recall Practice

Imagine you're tracking your video game score over time. Ichimoku is like having five different "average scores" that help you see if you're getting better or worse:

1. Tenkan (9-day): Your score average over a short recent window—shows your recent performance.
2. Kijun (26-day): Your score average over a longer window—your normal level.
3. The Cloud (Senkou A & B): This is a prediction of where your "normal level" will be in the future, based on how you're playing now. If your current score is above the cloud, you're on a hot streak!
4. Chikou (Lagging): Compares today's score to your score from ~26 days ago—tells you if you're actually improving over time.

When all five say "you're improving" → that's when you know you're truly leveling up, not just having a lucky day. The cloud is like a force field—when you're above it, you're protected (support), but if you fall below, it holds you down (resistance). And a thick force field isn't about how wild your scores are—it just means your short-term and long-term averages disagree a lot, so it's harder to punch through.
