Understand ATR for volatility measurement — Stock-Market notes

The Problem ATR Solves

Traditional volatility measures like simple range (High - Low) fail catastrophically when:

Stocks gap overnight (open far from yesterday's close)
Limit-up/down days occur
You compare stocks at different price levels

True Range fixes this by capturing the largest magnitude of movement, including gaps.

WHY use max? Because we want the largest real movement traders experienced. If a stock closed at100, gapped down to open at 95, and traded 94-96, the "range" is only 2—but traders saw a 6-point swing from yesterday's close.

Derivation from First Principles

Step 1: Why not just (High - Low)?

If yesterday's close = 100, today opens at 110(gap up), trades110-112
High - Low = 2, but the real volatility traders saw was 12points (gap from100 to 112)

Step 2: Capture all gap scenarios

Upside gap: High might exceed yesterday's close by more than the intraday range → |H - C_prev|
Downside gap: Low might below yesterday's close more than intraday range → |L - C_prev|
Use max because we want the single largest measure of movement

Step 3: Average over time

Single-day TR is noisy (one wild day doesn't define volatility)
Simple moving average over14 days smooths this into a typical daily movement
WHY 14? Wilder found it balanced responsiveness vs. noise; it's ~3 trading weeks

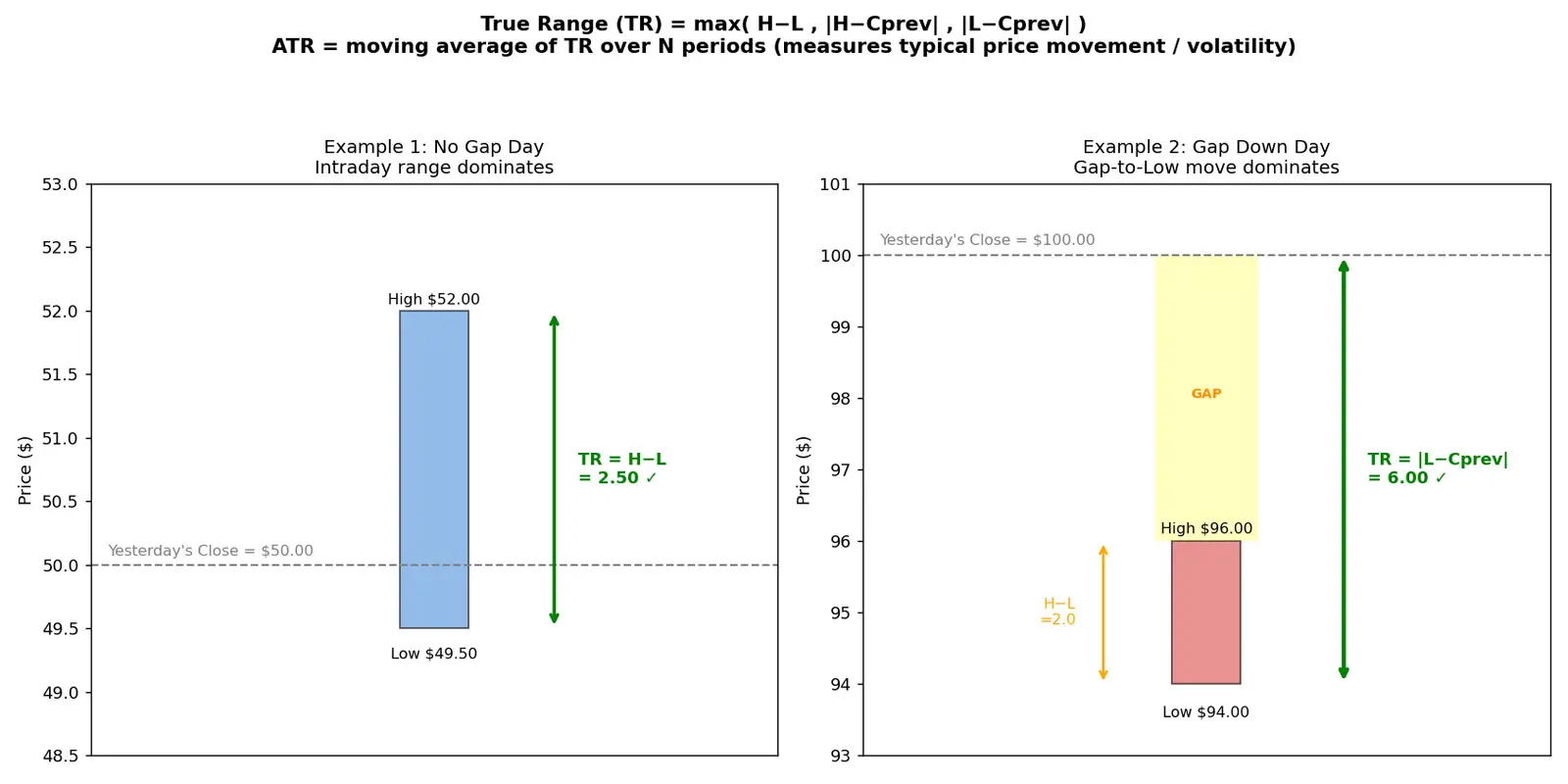

Figure — Understand ATR for volatility measurement

Worked example Worked Example 3: Computing ATR(3)

Given three days: | Day | High | Low | Close | Prev Close | TR | |---|-----|-------|----------|---| | 1 | 105 | 102 | 104 | 100 | 5.00 | | 2 | 106 | 103 | 105 | 104 | 3.00 | | 3 | 108 | 104 | 107 | 105 | 4.00 |

Day 1 TR: $\max(105-102=3, |105-100|=5, |102-100|=2) = 5.00$ Day 2 TR: $\max(106-103=3, |106-104|=2, |103-104|=1) = 3.00$

Day 3 TR: $\max(108-104=4, |108-105|=3, |104-105|=1) = 4.00$

$\text{ATR}(3) = \frac{5.00 + 3.00 + 4.00}{3} = 4.00$

Interpretation: This stock typically moves $4 per day. If it suddenly has a$ 10 day, that's 2.5× ATR—abnormally volatile.

How to Use ATR in Trading

1. Position Sizing (Risk Management)

If you risk $1000 per trade and want to exit when the stock moves 1ATR against you: $\text{Position Size} = \frac{\text{Risk Amount}}{\text{ATR}}$

Example: ATR = $2, Risk =$ 1000 → Buy 500 shares. If it drops $2 (1 ATR), you lose$ 1000.

WHY this works: You're normalizing risk across stocks. A high-volatility stock gets fewer shares; a calm stock gets more. Your dollar risk stays constant.

2. Stop-Loss Placement

Common rule: Place stop at 1.5× to 2× ATR below entry for longs.

Why not 1× ATR? Normal noise can trigger it. 2× ATR gives room for typical fluctuation while still protecting capital.

3. Profit Targets

If a stock's ATR = $3, expecting a$ 15 move (5× ATR) in one day is statistically rare. Set realistic targets: 2-3× ATR for swing trades.

4. Breakout Confirmation

Low ATR → stock is "coiled" (compressed volatility). When ATR suddenly expands with a breakout, it confirms real momentum, not noise.

Connections

3.4.1-Introduction-to-TechnicalIndicators – ATR is a non-directional indicator (volatility, not trend)
3.4.10-Understand-Bollinger-Bands – Bollinger Bands use Standard Deviation; ATR uses absolute range (different volatility measures)
3.3.5-PositionSizing-and-Risk-Management – ATR directly drives position size calculations
3.4.12-RSI-Relative-Strength-Index – RSI measures momentum; combine with ATR to confirm if moves are "normal" sized
4.2.3-Breakout-Trading-Strategies – ATR expansion confirms genuine breakouts vs. false moves

Recall Explain Like I'm 12

Imagine you have a rubber ball. Some balls bounce1 foot, some bounce 10 feet. ATR is like measuring "how bouncy is this ball?" over the last two weeks. It doesn't tell you if the ball will go up or down next—it just says "this ball typically bounces 3 feet."

For stocks, we measure the "bounce" by looking at the biggest move each day: sometimes the stock jumps up overnight (a gap), so we measure from yesterday's closing bell to wherever it got today. Then we average those jumps over 14 days. Now you know: "This stock usually moves $5 a day." If it suddenly moves$ 15 in one day, that's like the ball bouncing 3× higher than normal—something weird is happening!

Traders use this to decide how many shares to buy (if the ball bounces a lot, hold fewer so you don't get knocked over), and where to put their safety net (stop-loss) so normal bounces don't accidentally kick them out of the game.

#flashcards/stock-market

What does ATR measure? :: ATR (Average True Range) measures the average magnitude of price movement over a period, regardless of direction—it quantifies volatility, not trend.

What are the three components of True Range?

1) Current High - Current Low, 2) |Current High - Previous Close|, 3) |Current Low - Previous Close|. We take the maximum of these three.

Why do we use the maximum of three values for True Range instead of just High - Low?

Because High - Low ignores gaps. If a stock gaps down overnight, the true volatility traders experienced includes the gap. The max captures the largest real movement, including overnight jumps.

What is the most common period for ATR and why?

14 periods (days on daily charts). Wilder found it balanced responsiveness to volatility changes vs. reducing noise from single outlier days.

How would you use ATR for position sizing?

Position Size = Risk Amount / ATR. This normalizes risk: high-volatility (high ATR) stocks get fewer shares, low-volatility stocks get more, keeping dollar risk constant.

True or False: A rising ATR means the stock price will rise.

False. ATR measures the size of price moves, not direction. A crashing stock can have high ATR (large downward moves), and a sideways stock has low ATR.

Where should you typically place a stop-loss using ATR?

1.5× to 2× ATR below entry for long positions. This allows for normal volatility (noise) without getting stopped out prematurely, while still protecting capital.

If a stock has ATR =

4and you want to risk

800, how many shares should you buy?

200 shares. (

800 risk /

4 ATR = 200 shares). If the stock moves

4 against you (1 ATR), you lose

800.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

ATR matlab Average True Range ek bahut powerful tool hai jo stock ki volatility ko measure karta hai—yani stock din mein kitna "jump" marta hai. Samjho agar ek stock ek din mein average $5 move karta hai aur dosra stock$ 50 move karta hai, toh second wala zyada "wild" hai. ATR yahi bata hai—direction nahi (upar ya neeche), sirf movement ka size.

Trading mein yeh isliye zaroori hai kyunki agar ap stop-loss lagaoge ya position size decide karoge, toh apko pata hona chahiye ki "normal" movement kitna hai. Agar stock ka ATR $2 hai aur aapne$ 5 stop lagaya, toh ek normal din mein aapka stop trigger nahi hoga. Lekin agar ATR $10 hai aur$ 5 stop lagaya, toh noise mein hi nikal jaoge. Smart traders ATR ko risk management ke liye use karte hain: high volatility wale stock mein kam shares lete hain (taki loss control mein rahe), low volatility mein zyada shares le sakte hain.

Ek important baat: ATR direction nahi bata. Agar ATR badh raha hai, iska matlab sirf itna hai ki stock ab zyada "hil" raha hai—upar bhi ja sakta hai, neeche bhi. Crash mein bhi ATR high hota hai kyunki price jor se move kar raha hai. Toh hamesha ATR ko trend indicators (jaise moving average) ke saath combine karo. ATR sirf "kitna" bata hai, "kidhar" nahi.
