Learn trendlines and channels — Stock-Market notes

1. What is a trendline?

WHAT counts as a valid line? You need at least two pivots to draw it, but a third touch confirms it. The more touches, the more significant.

WHY connect lows in an uptrend (not highs)? In an uptrend the buyers are the ones repeatedly stepping in. Their footprints are the lows where they buy the dip. Connect those footprints and you see the price floor where demand appears.

2. Deriving a trendline from first principles

We treat a trendline as a simple linear equation. A line through two pivot points $(t_1, p_1)$ and $(t_2, p_2)$ , where $t$ = time (bar number) and $p$ = price:

$m>0$ → uptrend line (rising).
$m<0$ → downtrend line (falling).
$m\approx 0$ → sideways / range.

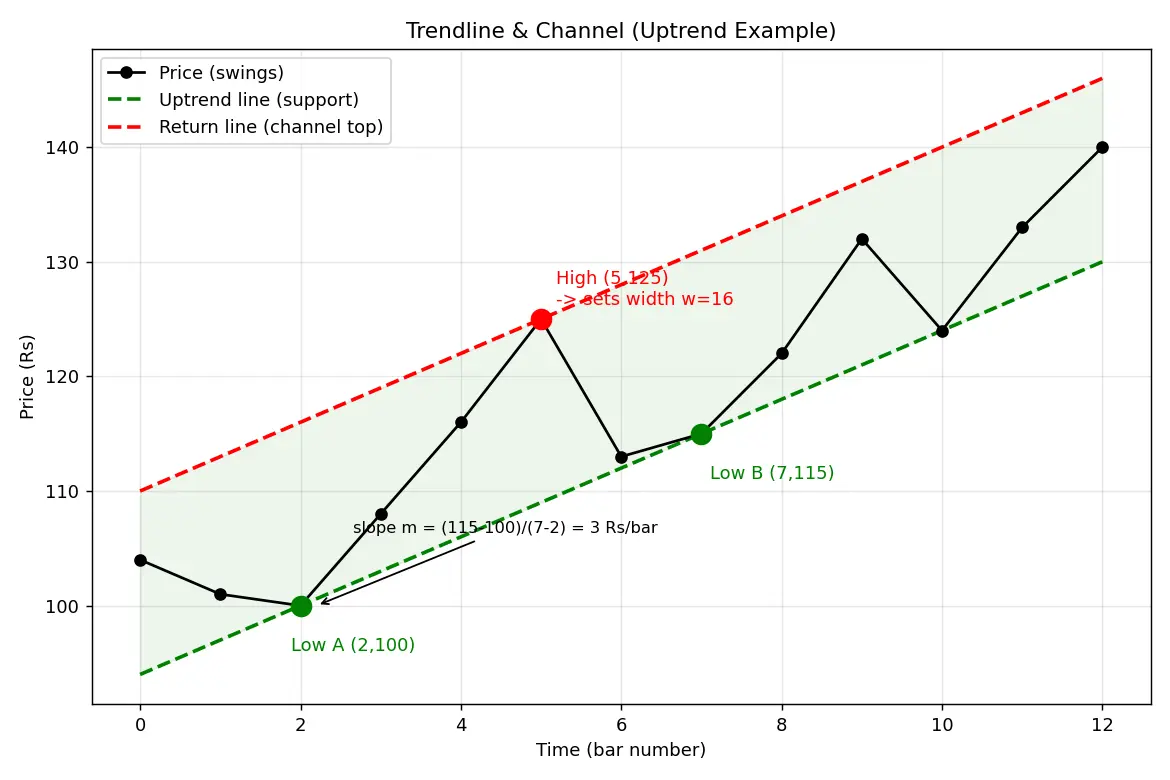

3. From line to channel

HOW to build it: Draw the main trendline first. Then draw a line with the same slope $m$ touching the extreme pivot on the other side.

4. Worked examples

5. Common mistakes

6. Active recall

What do you connect to draw an uptrend line?

The higher lows (buyer footprints acting as support).

Minimum points to draw a trendline vs to confirm it?

2 to draw, 3rd touch to confirm.

Formula for trendline slope?

m=\dfrac{p_2-p_1}{t_2-t_1}

(rise over run in price per bar).

What makes a channel's two lines a channel?

They share the same slope (parallel), boxing price with a constant width

w

How do you get channel width

w

w = p_o - [p_1 + m(t_o - t_1)]

— gap from opposite pivot to the main line.

What does a close below an uptrend support line signal?

Trend assumption violated → possible reversal / exit longs.

Wicks or bodies for drawing lines?

Prefer bodies/clustered touches; wicks are noise/stop-hunts.

Why connect lows (not highs) in an uptrend?

Because buyers repeatedly enter at the lows; those lows mark the demand floor.

Recall Feynman: explain to a 12-year-old

Imagine a bouncing ball rolling up a ramp. Every time it bounces off the ground, it hits a little higher because the ramp is going up. If you draw a line along all those bounce-points on the ground, that's the trendline — it shows how steep the ramp is. Now draw another line along the tops of the bounces, parallel to the first. The ball is trapped between these two lines like a hallway — that's the channel. As long as the ball keeps bouncing inside the hallway, the game is normal. The moment it crashes through the floor line, something changed — the ramp broke!

Connections

Dow Theory — trends persist; trendlines are its practical drawing tool.
Support and Resistance — a trendline is diagonal support/resistance.
Higher Highs and Higher Lows — the swing pivots you connect.
Breakouts and Breakdowns — what a line-break triggers.
Slope and Linear Equations — the math foundation ( $p=mt+c$ ).
Volume Confirmation — a break on high volume is more trustworthy.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, market kabhi seedhi line me nahi chalta — hamesha zig-zag karta hai, upar-neeche. Trendline ek scale jaisa hai jo tum in zig-zags ke kinare pe rakhte ho. Agar uptrend hai to tum higher lows (neeche wale points) ko join karte ho — kyunki wahan buyers baar-baar dip pe khareedte hain, wahi support ban jaata hai. Downtrend me ulta — lower highs ko join karo, wo resistance dikhata hai. Rule simple: 2 points se line ban jaati hai, par teesra touch aane pe hi line pe "trust" karo.

Slope nikaalna easy hai — bas rise/run: $m=\frac{p_2-p_1}{t_2-t_1}$ . Yani price kitna change hua, bhaag do kitne bars me. Iss slope se tum future me predict kar sakte ho ki support kahan aayega, aur wahi tumhara low-risk entry zone hota hai, stop bilkul line ke neeche.

Channel matlab do parallel lines — pehli trendline, aur doosri exactly same slope wali line opposite side ke pivot pe. Ab price ek hallway (galiyaare) me trap ho jaata hai. Neeche wali line pe buy socho, upar wali (return line) pe profit book karo. Jab price closing basis pe support line ke neeche nikal jaaye, samajh jao ki assumption toot gaya — trend badal sakta hai, longs se bahar niklo.

Do galtiyan mat karna: (1) line ko candle ke wick (spikes) pe mat khecho, body/cluster pe khecho — wick to sirf shor hai. (2) bahut steep line mat banao, wo baar-baar todti hai; thodi flat, sustainable line hi asli trend dikhati hai. Yeh tool Dow Theory ka practical roop hai: trend chalta rehta hai jab tak line hold karti hai.
