Understand line, bar, and candlestick charts

Overview

Price charts are the fundamental visual language of technical analysis. They compress thousands of trades into patterns that reveal market psychology, momentum, and key decision points. The three primary chart types—line, bar, and candlestick—each emphasize different aspects of price action, and choosing the right one depends on your analysis timeframe and goals.

Why Charts Matter

The core insight: Charts don't predict the future—they reveal the balance of fear and greed at each moment. When you learn to read them, you're reading crowd psychology.

Line Charts

Construction

1. Plot time on the x-axis (minutes, hours, days)
2. Plot price on the y-axis
3. Mark the close price for each period
4. Connect the dots

When to Use

• Long-term trend analysis: Smooths out noise, shows the forest not the trees
• Comparing multiple assets: Clean overlays without bar clutter
• Index tracking: News sites default to this (S&P 500 line charts)

What You Lose

• No intraday volatility: A day that opened at 100, spiked to 120, crashed to 90, and closed at 100 looks identical to a flat day at 100
• No gap information: Can't see opening jumps
• No volume context: Was that close on heavy or light participation?

The line chart shows a gentle uptrend from 150 → 159. Clean, simple. But you have no idea if day 4 (closed 155) involved a wild 10-point intraday swing or a calm grind higher.

Why this matters: If you're a swing trader, that hidden volatility could have stopped you out—but the line chart never warned you.

Bar Charts (OHLC)

Anatomy of a Bar

        High (top of vertical line)
          |
    ——    |    (left tick = Open)
          |
          — (right tick = Close)
          |
        Low (bottom of vertical line)

Construction Formula

For each time period $t$:

• Draw vertical line from $L_t$ (low) to $H_t$ (high)
• Left tick at $O_t$ (open)
• Right tick at $C_t$ (close)

Bullish bar: Close > Open (right tick above left)
Bearish bar: Close < Open (right tick below left)

Why Four Prices?

Each tells a story:

• Open: Where did the first trade consensus land after the previous close?
• High: Maximum optimism—buyers pushed this far
• Low: Maximum pessimism—sellers drove it here
• Close: The final verdict—who won the session?

A bar that opens at 100, spikes to 110 (bulls winning), crashes to 95 (bears counter-attack), and closes at 108 tells you: bulls ultimately won, but bears put up a serious fight.

Visual:

     105 —— (High)
      |
 100——|      (Open, left tick)
      |
      |——— 103 (Close, right tick)
      |
     98 ——— (Low)

Interpretation:

• Range: 105 - 98 = 7 points (volatility indicator)
• Body: Close (103) > Open (100) → +3 points, bullish session
• Upper shadow: 105 - 103 = 2 points (bulls tested higher but couldn't hold)
• Lower shadow: 100 - 98 = 2 points (bears tested lower at open but failed)

Why this step? The shadows reveal failed moves. Sellers tried to break below the open but buyers defended. That's a bullish sign—support held.

Candlestick Charts

Anatomy of a Candlestick

      High
       |
       |  ← Upper shadow (wick)
   ┌───┐
   │   │  ← Body (Open to Close)
   │   │    Filled/Red = Bearish (Close < Open)
   └───┘    Hollow/Green = Bullish (Close > Open)
       |
       |  ← Lower shadow (wick)
      Low

Construction Rules

1. Draw rectangle from Open to Close
2. If Close > Open: Hollow (or green) body → bullish candle
3. If Close < Open: Filled (or red) body → bearish candle
4. Extend thin lines to High (upper shadow) and Low (lower shadow)

Why Candlesticks Dominate Modern Trading

• Instant visual polarity: Green = up, Red = down (no mental arithmetic)
• Body size = conviction: Fat body = strong move, tiny body = indecision
• Shadow length = rejection: Long upper shadow = sellers overpowered a rally
• Pattern recognition: 100+ named patterns (doji, hammer, engulfing) compress complex psychology into single glyphs

Derivation: Why absolute value for body? Because we care about magnitude of conviction, not direction (color already shows that). The shadows measure how far price traveled beyond the open-close range—these are the "failed" moves that got rejected.

Day 1 Visual:

     108 ——— High
       |
   ┌───┐ 102 Close
   │   │     (Hollow/Green body)
   └───┘ 100 Open
       |
     97 ——— Low

• Body: 102 - 100 = 2 points, bullish
• Upper shadow: 108 - 102 = 6 points (key insight)
• Lower shadow: 100 - 97 = 3 points

Why this step? That 6-point upper shadow is a red flag. Bulls pushed to 108 but couldn't sustain it—sellers drove price back down. This is a potential reversal signal despite the green body.

Day 2 Visual:

     104 ——— High
       |
   ┌───┐ 102 Open
   │▓│     (Filled/Red body)
   └───┘ 96 Close
       |
     95 ——— Low

• Body: 102 - 96 = 6 points, bearish
• Upper shadow: 104 - 102 = 2 points
• Lower shadow: 96 - 95 = 1 point

Combined interpretation: Day 1's long upper shadow forecasted Day 2's decline. The rejection at 108 showed sellers were strong. Day 2 confirmed it with a fat red body. This is Forecast-then-Verify in action.

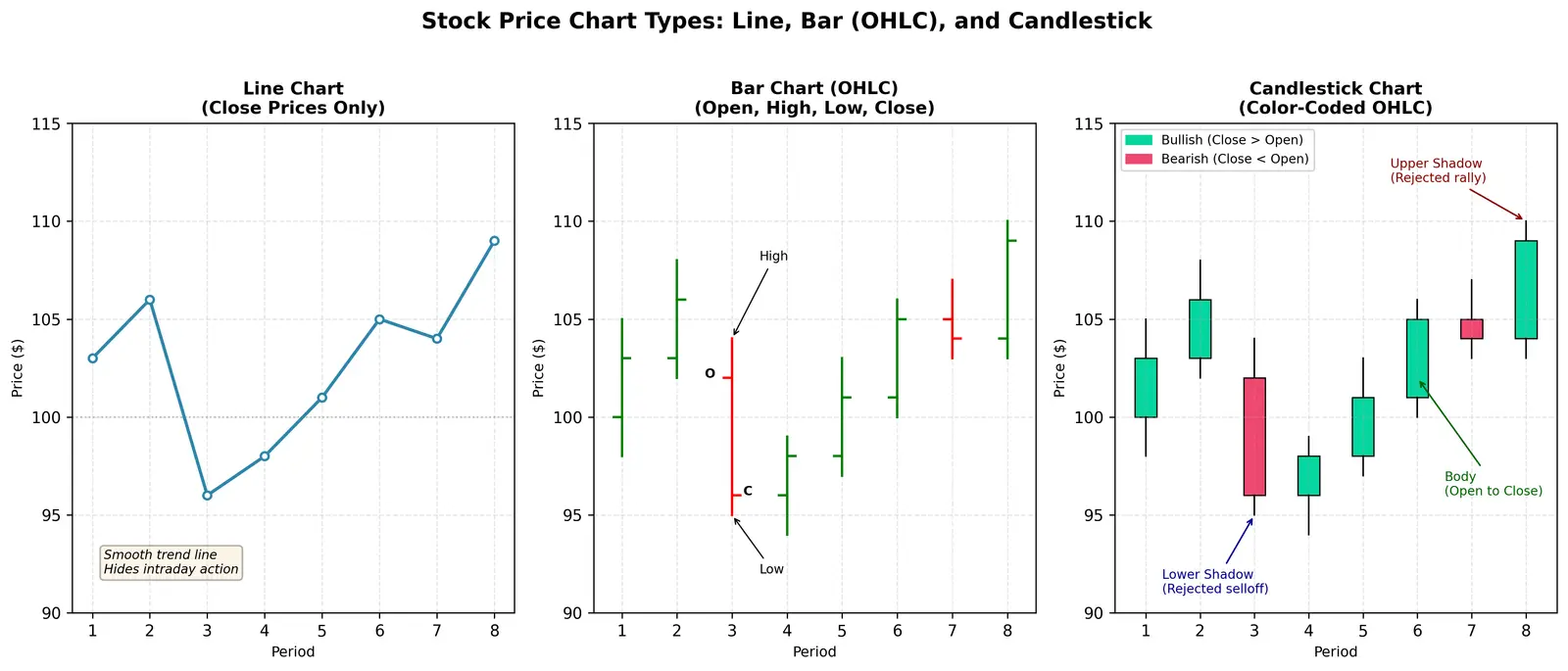

Comparing the Three

Line and bar charts still have their place, but candlesticks became the lingua franca because they're optimized for fast decision-making under uncertainty—exactly what trading demands.

Common Mistakes

Steel-man: This instinct comes from momentum bias. A rising candle does show current strength.

The fix: A green candle in a downtrend might just be a dead cat bounce. Context is everything. Check:

• Where is the candle in the bigger trend?
• Is the body strong or weak (conviction)?
• What's the volume (participation)?

A tiny green candle with a long upper shadow after a 5-day crash is not a buy signal—it's a failed rally attempt.

Steel-man: The body does show the final verdict (who closed in control).

The fix: Shadows are where the battle happened. A green candle with a huge lower shadow means sellers pushed hard but bulls defended—that's bullish confirmation. A green candle with a huge upper shadow means bulls tried to break out but got rejected—that's a warning despite the green color.

Example: A "shooting star" pattern (small body at the bottom, long upper shadow) is a bearish reversal signal even if the body is green. The shadow tells the story: bulls lost the high ground.

Steel-man: Single patterns can be powerful (a hammer at key support is significant).

The fix: Patterns need confirmation:

• Volume (was it on heavy participation?)
• Trend context (reversal or continuation?)
• Support/resistance (is it at a key level?)

A hammer in the middle of nowhere on low volume is just noise. Wait for the next candle to confirm.

Active Recall Practice

A line chart is like only seeing the final score of each match—"Team A: 100, Team B: 150." You know who won each game, but you don't know if it was a blowout from the start or a nail-biting comeback.

A bar chart is like getting the full stats: starting score, highest lead, biggest deficit, and final score. Now you can see "Whoa, Team A was down by 50 points but clawed back!"

A candlestick chart is the same stats, but the "comeback rectangle" is colored green (they finished ahead) or red (they fell behind), and you can instantly see how hard they fought. The lines sticking out (shadows) show "They almost won by 200 at one point, but the other team pushed back."

Traders like candlesticks because in a split second, the color and shape tell you: Is the team strong? Are they faking it? Are they about to collapse?

Connections

• Support and Resistance: Shadows reveal where these levels are tested
• Volume Analysis: Combine with candle size for conviction
• Trend Identification: Sequence of candles defines trend structure
• Candlestick Patterns: 100+ patterns built on these basics
• Chart Timeframes: Same data, different periodicity (1m, 1h, 1d candles)
• Gap Analysis: Visible only in bar/candlestick (open ≠ previous close)
