Understand circuit limits and price bands

HOW the limits are computed — from first principles

We are just building a percentage window around a base number. Nothing more.

Formula Deriving the band boundaries

Let the reference (previous close) price be $P_0$ and the band percentage be $b$ (as a fraction).

A move of $b$ up means adding $b\cdot P_0$ : $UC = P_0 + b\,P_0 = P_0(1+b)$ A move of $b$ down means subtracting $b\cdot P_0$ : $LC = P_0 - b\,P_0 = P_0(1-b)$

Why this form? "10% up" literally means "add 10% of the base to the base," which factors to $P_0(1+b)$ . Same logic mirrored for down.

The full width of the tradable band is: $UC - LC = P_0(1+b) - P_0(1-b) = 2bP_0$ So the total daily swing allowed equals twice the percentage of the base price.

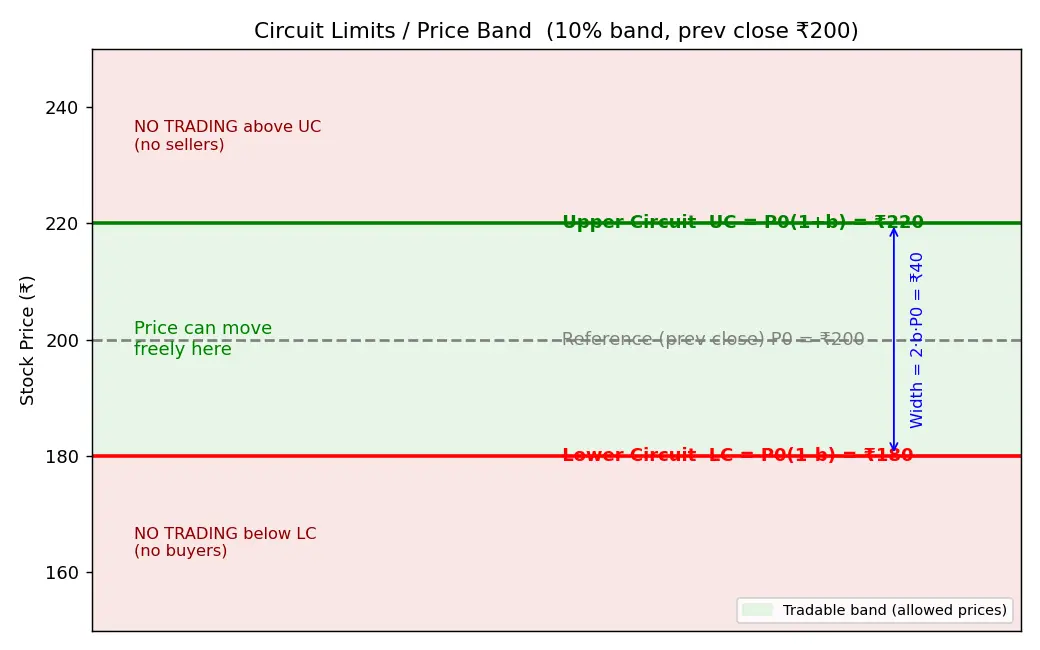

Figure — Understand circuit limits and price bands

Two DIFFERENT things (don't confuse them!)

Trigger	Timing	Effect
Index moves 10%	before 1:00 pm	45-min halt
Index moves 10%	1:00 pm–2:30 pm	15-min halt
Index moves 10%	after 2:30 pm	no halt
Index moves 15%	before 1:00 pm	1 hr 45 min halt
Index moves 15%	1:00 pm–2:00 pm	45-min halt
Index moves 15%	after 2:00 pm	trading halted for the rest of the day
Index moves 20%	any time	trading closed for the day

Common Mistakes (Steel-manned)

Active Recall

Recall Test yourself (hide answers)

What price is the band measured from? → previous day's closing price
Formula for upper circuit? → $UC = P_0(1+b)$
At upper circuit, who is missing from the order book? → sellers
Do F&O / index stocks have individual price bands? → Yes, exchange-set (usually wider, e.g. 20%, sometimes flexed intraday).
What happens if the index moves 15% after 2:00 pm? → trading is halted for the rest of the day.
Difference between price band and market-wide circuit breaker? → band = one stock cap; breaker = whole-market halt on index move.
After 3 days of +5% circuit from ₹100? → ₹115.76

Recall Feynman: explain to a 12-year-old

A stock's price is like a bouncy ball in a room. Normally it bounces around freely. But if it starts smashing into the ceiling (too many buyers) or floor (too many sellers), the referee says: "STOP — you've hit the wall for today, no bouncing past it." That wall is the circuit limit. It gives everyone a chance to calm down so nobody gets crushed by a crazy price swing in one day. Tomorrow the walls move to new spots based on where the ball ended today.

Connections

Order Types & Mechanics
Market vs Limit Orders — a limit order at the band edge waits in queue when locked.
Liquidity & Bid-Ask Spread — circuits are extreme illiquidity events.
Volatility & Risk Management
Market-wide Circuit Breakers
Previous Close & Reference Price

What is a circuit limit / price band?

A regulator-set % boundary (e.g. 2/5/10/20%) around the previous close, beyond which a stock cannot trade that day.

The band is measured from which price?

The previous day's closing price (reference/base price).

Formula for the upper circuit price?

UC = P0 × (1 + b), where b is the band fraction.

Formula for the lower circuit price?

LC = P0 × (1 − b).

Total tradable band width?

2·b·P0 (twice the percentage of the base price).

At the upper circuit, who is absent from the order book?

Sellers — only buyers remain, so price rarely trades higher.

At the lower circuit, who is absent?

Buyers — you may be unable to sell (illiquidity trap).

Do F&O and index-component stocks have individual price bands?

Yes — exchange-set, usually wider (e.g. 20%) and sometimes flexed intraday; they are NOT exempt.

Difference: individual price band vs market-wide circuit breaker?

Price band caps one stock's daily move; market-wide breaker halts the ENTIRE market when the index moves 10/15/20%.

What happens if the index breaches 15% after 2:00 pm?

Trading is halted for the remainder of the day.

Why do circuit limits exist?

To curb panic selling/irrational buying, prevent fat-finger errors and manipulation, and protect investors from single-day wipeouts.

Stock at ₹100 hits +5% circuit 3 days straight, final price?

100×(1.05)^3 = ₹115.76 (gains compound on the new close each day).

If close is ₹500 and price locks at ₹525, what's the band?

b = (525−500)/500 = 5%.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Socho stock ke price ko ek gaadi ki tarah highway par. Circuit limit ya price band ek speed governor hai — exchange decide karta hai ki ek din mein price kitna upar (Upper Circuit) ya neeche (Lower Circuit) ja sakta hai. Yeh band hamesha pichhle din ke closing price se naapa jaata hai. Formula simple hai: $UC = P_0(1+b)$ aur $LC = P_0(1-b)$ , jahan $b$ band percentage hai (jaise 5% = 0.05). Yeh isliye banaya gaya taaki panic selling ya greedy buying ke waqt price ekdum se crazy na ho jaaye aur retail investor ek hi din mein saaf na ho jaaye.

Ab dhyaan do — jab stock upper circuit par lock ho jaata hai, tab koi seller nahi hota, sirf buyers khade rehte hain, isliye price aur upar nahi ja sakta aur aap kharid bhi nahi paate. Ulta, lower circuit par koi buyer nahi hota, isliye aap apna stock bech hi nahi paate — yeh sabse bada trap hai. Naya beginner sochta hai "upper circuit matlab pakka profit, ghus jao" — galat! Aur "lower circuit matlab sirf itna hi loss" — bhi galat, kyunki agle din phir LC lag sakta hai aur loss compound hota hai.

Ek important galatfehmi door kar lo: log sochte hain ki F&O ya index (Nifty/Sensex) ke bade stocks ke paas koi band nahi hota — yeh galat hai. In stocks ke paas bhi exchange ka apna individual band hota hai, bas woh zyada wide (aksar 20%) hota hai aur intraday flex bhi ho sakta hai, isliye woh kam hi hit hota hai. Iske alawa, jab pura index 10/15/20% gir jaaye to market-wide circuit breaker poore market ko rok deta hai — aur agar 15% ka move 2:00 pm ke baad ho, to poore din ke liye trading band ho jaati hai.

Yaad rakhne ka trick: "UP = plUs, LOW = minus" aur "top par seller nahi, bottom par buyer nahi." Exam aur real trading dono mein yeh concept baar-baar kaam aayega, especially small-cap stocks mein jahan roz circuit lagta hai.
