Intuition The big pictureA PDE (like the heat or Laplace equation) describes what happens inside a region Ω \Omega Ω not pin down a unique solution — infinitely many functions can satisfy the same PDE. The boundary conditions tell you what is happening on the edge ∂ Ω \partial\Omega ∂ Ω that is what selects the one physical solution.
Two natural kinds of edge information:
Dirichlet : you fix the value of the unknown on the boundary (e.g. "the rod's ends are held at 0 ∘ 0^\circ 0 ∘ Neumann : you fix the derivative (the flux) across the boundary (e.g. "the ends are insulated, no heat flows out").
Definition Dirichlet boundary conditionSpecify the value of the solution u u u u ( x ) = g ( x ) , x ∈ ∂ Ω . u(\mathbf{x}) = g(\mathbf{x}), \qquad \mathbf{x}\in\partial\Omega. u ( x ) = g ( x ) , x ∈ ∂ Ω. Dirichlet condition prescribes the unknown itself on the edge.
If g ≡ 0 g\equiv 0 g ≡ 0 homogeneous Dirichlet.
Definition Neumann boundary conditionSpecify the normal derivative of u u u ∂ u ∂ n ( x ) = ∇ u ⋅ n ^ = h ( x ) , x ∈ ∂ Ω , \frac{\partial u}{\partial n}(\mathbf{x}) \;=\; \nabla u\cdot \hat{\mathbf n} \;=\; h(\mathbf{x}), \qquad \mathbf{x}\in\partial\Omega, ∂ n ∂ u ( x ) = ∇ u ⋅ n ^ = h ( x ) , x ∈ ∂ Ω , n ^ \hat{\mathbf n} n ^ outward unit normal . A Neumann condition prescribes the flux through the edge.
If h ≡ 0 h\equiv 0 h ≡ 0 insulated / no-flux .
normal derivative and not just any derivative?
Physically, what leaves or enters the region is the flow across the boundary. The component of ∇ u \nabla u ∇ u along the boundary just slides heat sideways; only the component perpendicular to the boundary (∇ u ⋅ n ^ \nabla u\cdot\hat{\mathbf n} ∇ u ⋅ n ^
Worked example Why the PDE alone is not enough — a tiny derivationTake the simplest steady-state 1D Laplace equation on [ 0 , L ] [0,L] [ 0 , L ] u ′ ′ ( x ) = 0. u''(x)=0. u ′′ ( x ) = 0. Step 1 — integrate once. u ′ ( x ) = A u'(x)=A u ′ ( x ) = A Why? The derivative of a constant is zero, so u ′ ′ = 0 u''=0 u ′′ = 0 u ′ u' u ′ Step 2 — integrate again. u ( x ) = A x + B u(x)=Ax+B u ( x ) = A x + B Why? Antiderivative of constant A A A A x Ax A x B B B Step 3 — count freedom. Two unknown constants A , B A,B A , B not a single answer. We need exactly two extra facts — the boundary conditions — to fix A A A B B B
Dirichlet u ( 0 ) = α , u ( L ) = β u(0)=\alpha,\ u(L)=\beta u ( 0 ) = α , u ( L ) = β B = α B=\alpha B = α A = ( β − α ) / L A=(\beta-\alpha)/L A = ( β − α ) / L u = α + β − α L x u=\alpha+\frac{\beta-\alpha}{L}x u = α + L β − α x Neumann u ′ ( 0 ) = p , u ′ ( L ) = q u'(0)=p,\ u'(L)=q u ′ ( 0 ) = p , u ′ ( L ) = q u ′ = A u'=A u ′ = A p = q p=q p = q B B B free — solution is unique only up to an additive constant.
Intuition The Neumann "loose constant" is not a bugIf only fluxes are fixed, the absolute level of u u u differences matter. You can shift u u u
When you solve the heat equation u t = k u x x u_t=k u_{xx} u t = k u xx [ 0 , L ] [0,L] [ 0 , L ] X ′ ′ + λ X = 0 X''+\lambda X=0 X ′′ + λ X = 0 boundary condition decides the allowed modes .

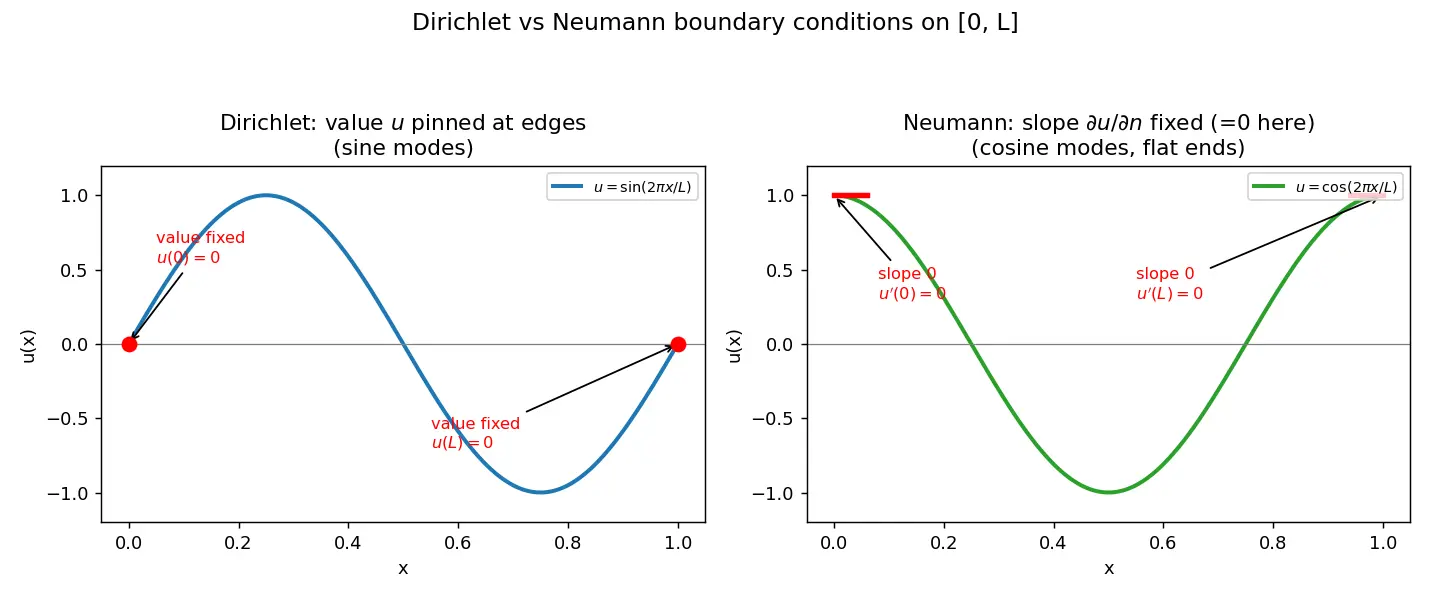

Intuition Memorise the patternDirichlet → \to → sines (vanish at ends). Neumann → \to → cosines (flat slope at ends, include constant). It mirrors how each function naturally satisfies its condition.
Worked example Insulated rod reaches a uniform temperatureHeat equation, both ends insulated (Neumann), initial temp f ( x ) f(x) f ( x ) u ( x , t ) = a 0 2 + ∑ n ≥ 1 a n cos n π x L e − k ( n π / L ) 2 t u(x,t)=\frac{a_0}{2}+\sum_{n\ge1} a_n\cos\frac{n\pi x}{L}e^{-k(n\pi/L)^2 t} u ( x , t ) = 2 a 0 + ∑ n ≥ 1 a n cos L nπ x e − k ( nπ / L ) 2 t t → ∞ t\to\infty t → ∞ n ≥ 1 n\ge1 n ≥ 1 a 0 2 \frac{a_0}{2} 2 a 0 Why this step? The constant mode has λ 0 = 0 \lambda_0=0 λ 0 = 0 e − k ⋅ 0 ⋅ t = 1 e^{-k\cdot0\cdot t}=1 e − k ⋅ 0 ⋅ t = 1 average initial temperature a 0 2 = 1 L ∫ 0 L f d x \frac{a_0}{2}=\frac1L\int_0^L f\,dx 2 a 0 = L 1 ∫ 0 L f d x
Worked example Mixed (Robin-ish) and physical readingEnds held at 0 ∘ 0^\circ 0 ∘ ⇒ \Rightarrow ⇒ can leave ⇒ \Rightarrow ⇒ 0 0 0 t → ∞ t\to\infty t → ∞ Why this step? No constant mode survives (n ≥ 1 n\ge1 n ≥ 1 u → 0 u\to0 u → 0 0 0 0
Common mistake Steel-manned common errorsMistake 1: "Neumann means u = 0 u=0 u = 0
Why it feels right: both are "boundary = 0" type statements.
The fix: Neumann fixes the slope ∂ u / ∂ n \partial u/\partial n ∂ u / ∂ n ∂ u / ∂ n = 0 \partial u/\partial n=0 ∂ u / ∂ n = 0 flux vanishes, not the temperature.
Mistake 2: Forgetting the n = 0 n=0 n = 0
Why it feels right: for Dirichlet you correctly drop n = 0 n=0 n = 0 The fix: X 0 = cos 0 = 1 X_0=\cos0=1 X 0 = cos 0 = 1 X ′ ( 0 ) = X ′ ( L ) = 0 X'(0)=X'(L)=0 X ′ ( 0 ) = X ′ ( L ) = 0 valid nontrivial mode. Dropping it loses the average-temperature physics.
Mistake 3: Using ∂ u / ∂ x \partial u/\partial x ∂ u / ∂ x ∂ u / ∂ n \partial u/\partial n ∂ u / ∂ n
Why it feels right: in 1D the outward normal is just ± x ^ \pm\hat x ± x ^ The fix: In higher dimensions you must dot with the outward unit normal ; at x = 0 x=0 x = 0 − x ^ -\hat x − x ^ ∂ u / ∂ n = − u x ( 0 ) \partial u/\partial n=-u_x(0) ∂ u / ∂ n = − u x ( 0 )
Mistake 4: Expecting a unique solution for pure Neumann.
Why it feels right: Dirichlet problems are unique, so you assume all are.
The fix: Pure-Neumann solutions are unique only up to an additive constant , and need the compatibility condition ∮ ∂ Ω h d S = 0 \oint_{\partial\Omega} h\,dS=0 ∮ ∂ Ω h d S = 0
Recall Feynman: explain it to a 12-year-oldImagine a metal rod. A Dirichlet rule is like saying "I am gripping the two ends and forcing them to be exactly this hot." A Neumann rule is like saying "I'm wrapping the ends in a thick blanket so no heat sneaks out the ends (slope = 0), or letting exactly this much heat leak out." The equation tells the heat how to move inside ; the boundary rule tells it what's allowed to happen at the edges . Without an edge rule there are zillions of possible answers — the edge rule picks the real one.
Mnemonic Remember which is whichD irichlet = D ata/D isplacement → you give the value → think D for "the Door is held open at this height."
N eumann = N ormal derivative → you give the flow → think N for "No-flow / Nudge of the slope."
Pattern: Di richlet → Si ne, N eumann → N ...con stant cosine (Neumann keeps the constant).
What quantity does a Dirichlet condition fix? A Neumann condition?
Why is the normal derivative used in Neumann, not a tangential one?
Which condition gives a sine series and which a cosine series, and why?
Why is a pure-Neumann solution unique only up to a constant?
Dirichlet condition fixes which quantity on the boundary? The
value of
u u u itself:
u = g u=g u = g on
∂ Ω \partial\Omega ∂ Ω .
Neumann condition fixes which quantity on the boundary? The
normal derivative / flux :
∂ u / ∂ n = h \partial u/\partial n=h ∂ u / ∂ n = h on
∂ Ω \partial\Omega ∂ Ω .
Why does Neumann use the normal (not tangential) derivative? Only the component of
∇ u \nabla u ∇ u perpendicular to the boundary represents flow
across it; tangential flow stays inside.
What is the physical meaning of homogeneous Neumann (∂ u / ∂ n = 0 \partial u/\partial n=0 ∂ u / ∂ n = 0 Insulated / no-flux boundary — nothing crosses the edge.
Dirichlet on [ 0 , L ] [0,L] [ 0 , L ] X n = sin ( n π x / L ) X_n=\sin(n\pi x/L) X n = sin ( nπ x / L ) ,
n = 1 , 2 , … n=1,2,\dots n = 1 , 2 , … (sine series), with
λ n = ( n π / L ) 2 \lambda_n=(n\pi/L)^2 λ n = ( nπ / L ) 2 .
Neumann on [ 0 , L ] [0,L] [ 0 , L ] X n = cos ( n π x / L ) X_n=\cos(n\pi x/L) X n = cos ( nπ x / L ) ,
n = 0 , 1 , 2 , … n=0,1,2,\dots n = 0 , 1 , 2 , … (cosine series, includes constant
n = 0 n=0 n = 0 ).
Why is the n = 0 n=0 n = 0 cos 0 = 1 \cos0=1 cos 0 = 1 satisfies
X ′ = 0 X'=0 X ′ = 0 at both ends (valid), but
sin 0 = 0 \sin0=0 sin 0 = 0 gives the trivial zero solution.
Long-run temperature of an insulated rod with initial f ( x ) f(x) f ( x ) The average
1 L ∫ 0 L f d x \frac1L\int_0^L f\,dx L 1 ∫ 0 L f d x — only the non-decaying
λ 0 = 0 \lambda_0=0 λ 0 = 0 constant mode survives.
Why is a pure-Neumann solution non-unique? Only derivatives are constrained; adding any constant leaves all normal derivatives unchanged.
Compatibility condition for a steady pure-Neumann problem? Net flux must vanish:
∮ ∂ Ω h d S = 0 \oint_{\partial\Omega} h\,dS=0 ∮ ∂ Ω h d S = 0 (and for Laplace's eqn
∫ Ω f = ∮ h \int_\Omega f=\oint h ∫ Ω f = ∮ h ).
Separation of Variables — boundary conditions select the eigenfunctions.Heat Equation — Dirichlet → cooling to 0, Neumann → settling to average.Laplace Equation — Neumann needs the compatibility (zero-net-flux) condition.Sturm-Liouville Theory — both conditions make the operator self-adjoint, giving real λ n \lambda_n λ n Fourier Series — Dirichlet ↔ sine series, Neumann ↔ cosine series.Robin Boundary Conditions — the mixed α u + β ∂ u / ∂ n = g \alpha u+\beta\,\partial u/\partial n=g α u + β ∂ u / ∂ n = g
Boundary conditions on edge
Neumann: fix normal derivative
Homogeneous case g=0 or h=0
Intuition Hinglish mein samjhoDekho, ek PDE (jaise heat equation ya Laplace equation) sirf region ke andar ka behaviour batati hai. Lekin akeli equation se unique answer nahi milta — bahut saari functions same equation ko satisfy kar sakti hain. Isliye humein boundary (kinaare) par extra information chahiye. Yahi kaam karte hain Dirichlet aur Neumann conditions.
Dirichlet ka matlab: boundary par u u u value fix kar do. Jaise rod ke dono ends ko 0 ∘ 0^\circ 0 ∘ Neumann ka matlab: boundary par slope / flux (∂ u / ∂ n \partial u/\partial n ∂ u / ∂ n ∂ u / ∂ n = 0 \partial u/\partial n = 0 ∂ u / ∂ n = 0 D irichlet = value (Door height), N eumann = No-flow/slope.
Jab separation of variables se solve karte ho, to boundary condition decide karti hai ke kaunse modes allowed hain. Dirichlet se sine series milti hai (sin ( n π x / L ) \sin(n\pi x/L) sin ( nπ x / L ) n = 1 , 2 , … n=1,2,\dots n = 1 , 2 , … cosine series milti hai (cos ( n π x / L ) \cos(n\pi x/L) cos ( nπ x / L ) n = 0 , 1 , 2 , … n=0,1,2,\dots n = 0 , 1 , 2 , … n = 0 n=0 n = 0 average temperature par settle ho jaata hai (kyunki koi heat bahar gaya hi nahi).
Sabse important galti se bacho: Neumann ka matlab "u = 0 u=0 u = 0 nahi hota — uska matlab slope/flux fix hota hai. Aur pure Neumann problem ka solution sirf ek constant tak unique hota hai, kyunki sirf derivatives constrained hain — ek constant add karo to derivatives same rehte hain. Exam mein yeh do points mark le aate hain!
