Laplace on rectangle — separation of variables

WHAT is the problem?

WHY only one nonzero side at a time? Laplace's equation is linear and homogeneous, so sums of solutions are solutions. If all four sides are nonzero, split into four sub-problems each with three zero edges, solve each, and add. So mastering the one-side case masters everything.

HOW: derive it from scratch

Step 1 — Separate

Assume $u(x,y)=X(x)Y(y)$ . Plug in: $X''(x)Y(y)+X(x)Y''(y)=0.$ Divide by $X(x)Y(y)$ (legal where neither is zero): $\frac{X''}{X}+\frac{Y''}{Y}=0 \quad\Longrightarrow\quad \frac{X''}{X}=-\frac{Y''}{Y}.$

$\frac{X''}{X}=-\lambda,\qquad \frac{Y''}{Y}=\lambda.$

Step 2 — Choose the sign using the homogeneous direction

We have $u(0,y)=u(a,y)=0$ , i.e. $X(0)=X(a)=0$ . Two zero boundary conditions in $x$ ⇒ we need an oscillating $X$ (a sine), which forces $\lambda>0$ . Write $\lambda=k^2$ .

Step 3 — Solve the $X$ eigenvalue problem

$X''+k^2X=0 \Rightarrow X=A\cos kx + B\sin kx.$ $X(0)=0 \Rightarrow A=0$ . So $X=B\sin kx$ . $X(a)=0 \Rightarrow \sin ka=0 \Rightarrow ka=n\pi$ , $n=1,2,3,\dots$

$\boxed{k_n=\frac{n\pi}{a},\qquad X_n(x)=\sin\frac{n\pi x}{a}}$

These are the eigenfunctions; $\lambda_n=(n\pi/a)^2$ the eigenvalues.

Step 4 — Solve $Y$ with the matching $\lambda$

$Y''-k_n^2 Y=0 \Rightarrow Y=C\cosh\frac{n\pi y}{a}+D\sinh\frac{n\pi y}{a}.$ Apply $u(x,0)=0 \Rightarrow Y(0)=0 \Rightarrow C=0$ . So $Y_n(y)=\sinh\frac{n\pi y}{a}.$

Step 5 — Superpose and match the last edge

Each $u_n=\sin\frac{n\pi x}{a}\sinh\frac{n\pi y}{a}$ solves Laplace with three zero edges. Sum them: $u(x,y)=\sum_{n=1}^\infty B_n\,\sin\frac{n\pi x}{a}\,\sinh\frac{n\pi y}{a}.$ Impose the final condition $u(x,b)=f(x)$ : $f(x)=\sum_{n=1}^\infty \Big(B_n\sinh\frac{n\pi b}{a}\Big)\sin\frac{n\pi x}{a}.$ This is just the Fourier sine series of $f$ . The bracket is the coefficient: $B_n\sinh\frac{n\pi b}{a}=\frac{2}{a}\int_0^a f(x)\sin\frac{n\pi x}{a}\,dx.$

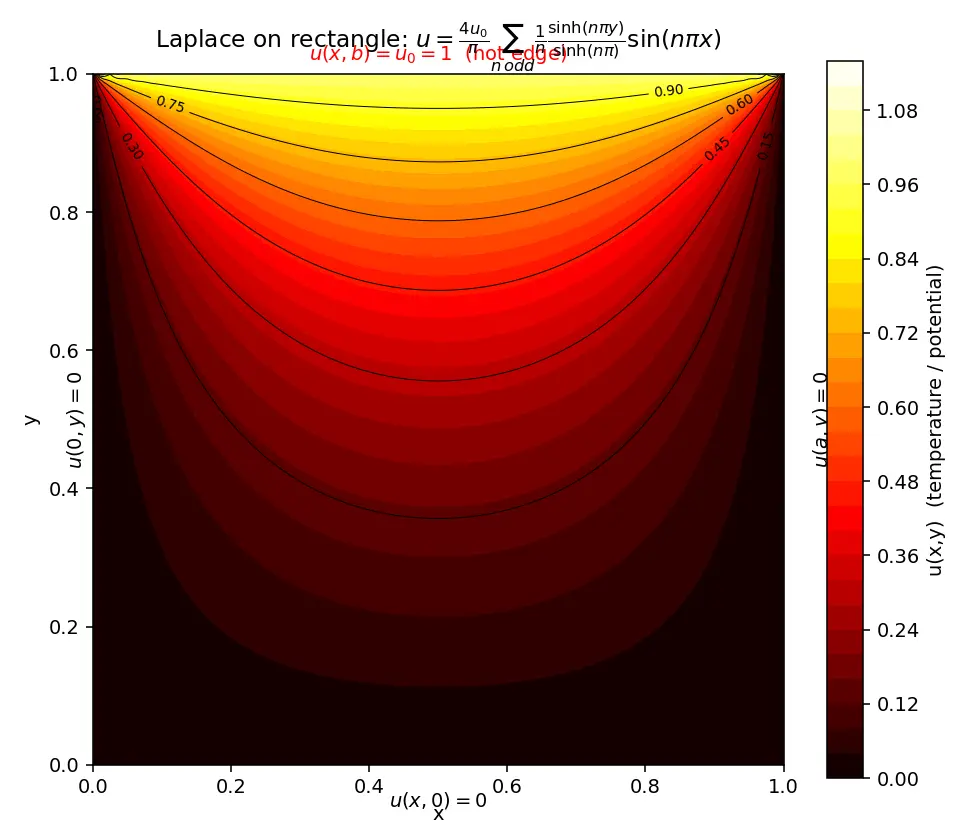

Figure — Laplace on rectangle — separation of variables

Worked examples

Worked example Example 1 — constant top edge

$f(x)=u_0$ Square plate $a=b=1$ , $u(x,1)=u_0$ , other three sides $0$ . Coefficient integral. $\int_0^1 u_0\sin(n\pi x)\,dx = u_0\cdot\frac{1-\cos n\pi}{n\pi}=\frac{u_0(1-(-1)^n)}{n\pi}$ . Why this step? Matching the top edge is a Fourier sine expansion of the constant $u_0$ . This is $0$ for even $n$ , and $\frac{2u_0}{n\pi}$ for odd $n$ . Divide by $\sinh n\pi$ (the $Y$ normalization at $y=b=1$ ): $B_n=\frac{2}{\sinh n\pi}\cdot\frac{u_0(1-(-1)^n)}{n\pi}.$ Why? Because $u(x,b)$ carries the factor $\sinh\frac{n\pi b}{a}$ that must be peeled off. Answer: $u(x,y)=\frac{4u_0}{\pi}\sum_{n\ \text{odd}}\frac{1}{n}\,\frac{\sinh(n\pi y)}{\sinh(n\pi)}\,\sin(n\pi x).$ Sanity check: at $y=1$ the sinh ratio $=1$ , giving the classic square-wave Fourier series for $u_0$ . ✓ At $y=0$ , $\sinh 0=0\Rightarrow u=0$ . ✓

Worked example Example 3 — nonzero LEFT edge instead

$u(0,y)=g(y)$ , other three sides zero, on $0<x<a,0<y<b$ . Why this step? Now the homogeneous direction is $y$ (two zero edges at $y=0,b$ ), so swap roles: eigenfunctions $\sin\frac{n\pi y}{b}$ , and the $x$ -solution is hyperbolic. Because the nonzero edge is at $x=0$ (not $x=a$ ), use $\sinh\frac{n\pi (a-x)}{b}$ so it vanishes at $x=a$ : $u(x,y)=\sum_n B_n\,\frac{\sinh\frac{n\pi(a-x)}{b}}{\sinh\frac{n\pi a}{b}}\,\sin\frac{n\pi y}{b},\quad B_n=\frac{2}{b}\int_0^b g(y)\sin\frac{n\pi y}{b}\,dy.$ Why the shifted argument? We need the hyperbolic factor $=0$ on the opposite (zero) edge $x=a$ and $=1$ ·matching on $x=0$ . Choosing $\sinh\frac{n\pi(a-x)}{b}$ does exactly that.

Recall Feynman: explain to a 12-year-old

Imagine a metal plate that's cold (0°) on three sides and hot on the top. After a while the heat spreads out and settles. We want to know how warm each inside point is. The smart trick: pretend the temperature is "a left-right pattern" times "an up-down pattern." The left-right pattern must be $0$ at both side-walls, so it's a wave that fits exactly (like a guitar string: 1 hump, 2 humps, 3 humps...). The up-down pattern must die away as you go down toward the cold bottom — that's the $\sinh$ , which is $0$ at the bottom and grows toward the hot top. Add up all the guitar-string waves with the right loudness to match the top edge — done!

Recall — Active flashcards

#flashcards/maths

Why does the separation constant have to be a constant?

One side depends only on

x

, the other only on

y

; equal for all

x,y

⇒ both equal a common constant.

Which direction gets sine eigenfunctions and why?

The direction with TWO homogeneous (zero) boundaries; two zero endpoints force oscillation, only sines vanish at both.

What are the eigenvalues/eigenfunctions for

X(0)=X(a)=0

\lambda_n=(n\pi/a)^2

X_n=\sin(n\pi x/a)

n=1,2,\dots

Why

\sinh

(not

\cosh

or sine) in the

y

-direction here?

Sign of

\lambda

is fixed positive by

x

, giving

Y''=k^2Y

⇒ hyperbolic; need

Y(0)=0

so pick

\sinh

since

\sinh 0=0

Final form of

u(x,y)

for top edge

f(x)

\sum_n B_n\sin\frac{n\pi x}{a}\sinh\frac{n\pi y}{a}

Formula for

B_n

B_n=\dfrac{2}{a\sinh(n\pi b/a)}\int_0^a f(x)\sin\frac{n\pi x}{a}\,dx

How do you handle all four edges nonzero?

Split into four problems (each one nonzero edge), solve separately, superpose (linearity).

f(x)=5\sin(3\pi x/a)

, what is

u

5\,\dfrac{\sinh(3\pi y/a)}{\sinh(3\pi b/a)}\sin\frac{3\pi x}{a}

(single mode, no integral).

What goes wrong if you use

\cosh

for

Y

\cosh 0=1\ne0

, violates

u(x,0)=0

Physical meaning of Laplace's equation?

Steady state; each point's value is the average of its neighbours (no sources, no time change).

Connections

Fourier sine series — the engine that computes $B_n$ .
Separation of variables — the general method (also used for Heat equation 1D, Wave equation 1D).
Sturm–Liouville eigenvalue problems — why $\sin(n\pi x/a)$ are orthogonal eigenfunctions.
Hyperbolic functions sinh cosh — the decaying/growing $y$ -profiles.
Superposition principle — splitting the four-edge problem.
Harmonic functions and mean value property — the "average of neighbours" picture.
Heat equation 1D — same eigenfunctions, but $e^{-\lambda t}$ instead of $\sinh$ .

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, Laplace equation $u_{xx}+u_{yy}=0$ ka matlab hai ek steady state — jaise ek metal plate jiska temperature ab settle ho gaya, ya electric potential. Har andar ke point ki value uske aas-paas ke points ka average hoti hai. Humein chaaron edges pe values di jaati hain (boundary conditions) aur andar ka pattern nikaalna hota hai.

Trick simple hai: maan lo $u(x,y)=X(x)\cdot Y(y)$ — yaani ek "left-right pattern" times ek "up-down pattern". Isse ek mushkil PDE do aasaan ODE ban jaati hain. Jis direction mein do zero edges hain, wahan solution ek sine wave hota hai (jaise guitar ki string — 1 hump, 2 hump...), kyunki sirf sine hi dono ends pe zero ho sakta hai. Doosri direction mein, jahan ek hi zero edge hai, solution sinh hota hai — kyunki $\sinh 0=0$ aur woh exponentially grow/decay karta hai, oscillate nahi. Yaad rakho: "do zero sing, ek zero swing".

Last step: nonzero edge $f(x)$ ko match karne ke liye sabhi sine modes ko jod do — yeh bilkul Fourier sine series hai. Coefficient $B_n$ nikaalte waqt yaad rakho ki usmein $\sinh(n\pi b/a)$ ka factor divide karna hai, warna galat answer aayega. Agar $f(x)$ already ek single sine ho (jaise $5\sin 3\pi x$ ), toh integral karne ki zaroorat hi nahi — seedha ek hi mode! Yeh 80/20 wala point exam mein bahut kaam aata hai. Agar chaaron edges nonzero hain, toh linearity se chaar alag problems mein tod do, har ek solve karo, phir add kar do.
