CMake — CMakeLists.txt, add_executable, add_library, target_link_libraries

1. The core vocabulary

2. A minimal, complete project (derive it piece by piece)

Worked example Smallest valid CMakeLists.txt

cmake_minimum_required(VERSION 3.16)   # line 1
project(Calc LANGUAGES CXX)            # line 2
add_executable(calc main.cpp)          # line 3

Why line 1? CMake's behaviour ("policies") changes between versions. Declaring the minimum version makes builds reproducible and silences a hard error. It must be first.

Why line 2? project() names the project, sets up the compiler for the listed LANGUAGES (here C++), and defines variables like ${PROJECT_SOURCE_DIR}. Without it CMake assumes C and C++ and warns you.

Why line 3? This declares a target named calc built from main.cpp. The target name is an internal handle; the actual file is calc (or calc.exe).

Intuition Why "out-of-source" builds?

You run CMake from a separate build/ folder so generated junk never pollutes your source.

cmake -S . -B build      # configure: read CMakeLists, generate build files into build/
cmake --build build      # build: actually invoke the compiler

WHAT happens in two phases: configure (CMake runs your script) then build (the generator runs the compiler). Editing CMakeLists.txt re-triggers configure automatically.

3. Libraries and linking — the heart of it

Worked example Two-target project with a library

Files: math/add.cpp, math/add.h, app/main.cpp

cmake_minimum_required(VERSION 3.16)
project(Calc LANGUAGES CXX)

add_library(mathlib STATIC math/add.cpp)          # (A)
target_include_directories(mathlib PUBLIC math)    # (B)

add_executable(calc app/main.cpp)                  # (C)
target_link_libraries(calc PRIVATE mathlib)        # (D)

Why (A)? Bundle reusable code as a target, not loose files. Now many programs can reuse it. Why (B) PUBLIC? add.h is part of mathlib's interface — anyone linking mathlib needs to #include "add.h". PUBLIC means "I need this dir and so do my users." calc therefore can find add.h without writing its own include_directories. Why (D) PRIVATE? calc is an executable — nothing links against it, so propagation past it is meaningless. PRIVATE is the correct, minimal choice.

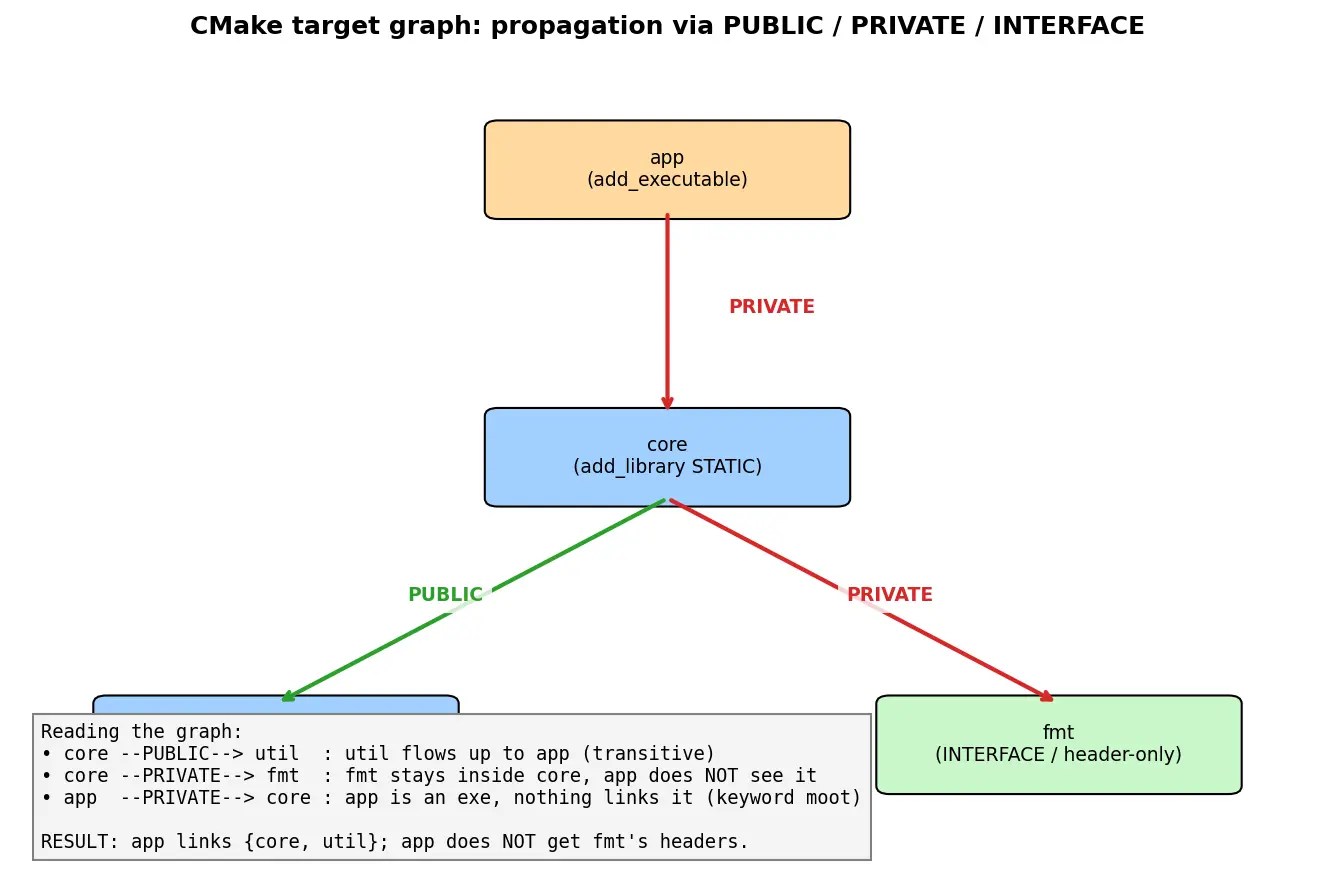

Figure — CMake — CMakeLists.txt, add_executable, add_library, target_link_libraries

4. Transitive dependency derivation (Forecast-then-Verify)

Worked example Three-level chain

add_library(util  STATIC util.cpp)
add_library(core  STATIC core.cpp)
add_executable(app app.cpp)

target_link_libraries(core PUBLIC  util)   # core's headers expose util
target_link_libraries(app  PRIVATE core)

Forecast: Does app link util? Reason it out: core → util is PUBLIC, so util is part of core's interface. When app links core, the PUBLIC parts of core (including util) flow into app. Verify: ✅ Yes — app links both core and util, and gets util's include dirs.

Now flip it: if it were target_link_libraries(core PRIVATE util), then util is hidden inside core's .cpp. app would link core but not see util's headers (correct, since it shouldn't need them).

5. Common mistakes (Steel-man each)

6. Active recall

Recall Answer before expanding

What are CMake's two build phases? → configure then build.
Which command builds something runnable vs linkable? → add_executable vs add_library.
You expose a dependency in your header. PUBLIC, PRIVATE, or INTERFACE? → PUBLIC.
Header-only library? → add_library(... INTERFACE) + link INTERFACE.
How does CMake decide link order? → from the dependency graph, automatically.

CMake's role in one phrase

A meta build-system that generates native build files; it doesn't compile.

What must be the first command in CMakeLists.txt

cmake_minimum_required(VERSION x.y).

Command to build a runnable program

add_executable(name sources...).

Command to build a linkable library

add_library(name [STATIC|SHARED|INTERFACE] sources...).

Command to declare a dependency between targets

target_link_libraries(target <KEYWORD> deps...).

PRIVATE meaning in TLL

Used only in my implementation; not propagated to users.

PUBLIC meaning in TLL

Used by me AND propagated to anyone linking me.

INTERFACE meaning in TLL

Not used by me; only propagated to my users (header-only).

STATIC vs SHARED library

STATIC (.a/.lib) copied into the binary; SHARED (.so/.dll) loaded at runtime.

Out-of-source build commands

cmake -S . -B build then cmake --build build.

Why prefer target_include_directories over include_directories

Former is target-scoped & propagates correctly; latter leaks into every target.

If A links B PUBLIC and C links A, does C see B

Yes — PUBLIC deps are transitive through A to C.

Recall Feynman: explain to a 12-year-old

Imagine you're building with LEGO. CMake is the instruction booklet writer, not the builder. You tell it: "I want a spaceship (program) and it needs the engine block (library)." CMake writes down the exact step-by-step order so a robot (the compiler) can build it on any table — your desk, your friend's, a factory. When you say the engine block "comes with its own wires that the whole spaceship needs," that's PUBLIC: those wires get shared. If the wires stay hidden inside the engine, that's PRIVATE. You only describe what connects to what; CMake handles the messy order of bolting things together.

Connections

Makefiles — the low-level files CMake generates.
Ninja build system — a faster generator backend (cmake -G Ninja).
Static vs Dynamic Linking — what STATIC/SHARED actually mean at link/runtime.
Compilation Pipeline preprocess-compile-assemble-link — TLL controls the link stage.
Header files and Include Guards — why include dir propagation matters.
Package Management find_package — how external libs become targets you can link.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, CMake khud kuch compile nahi karta — woh ek meta build-system hai. Tum CMakeLists.txt me sirf describe karte ho ki kya banana hai, aur CMake usse asli build files (Makefile ya Ninja) generate karta hai jo har platform pe sahi chalti hai. Do main cheezein banti hain: add_executable se ek chalne wala program, aur add_library se ek library jise dusre targets link karte hain. Isko "target-centric" soch — har cheez (include dirs, flags, dependencies) target ke saath target_* commands se jodi jaati hai, global variables se nahi.

Sabse important concept hai target_link_libraries ke saath PUBLIC / PRIVATE / INTERFACE. Simple sawaal pucho: "yeh dependency mere header me dikhti hai ya sirf mere .cpp me?" Agar sirf .cpp me use hoti hai → PRIVATE (apne paas rakho, users ko mat do). Agar header me expose hoti hai → PUBLIC (mujhe bhi chahiye aur mere users ko bhi). Agar tumhare paas khud koi .cpp hi nahi (header-only lib) → INTERFACE (sirf users ko deta hoon). Yeh keyword decide karta hai ki dependency transitively aage propagate hogi ya nahi.

Yaad rakho mnemonic: "PUB shares, PRIV hides, INTER gives." Aur ek badi galti se bacho — purane tutorials wale include_directories() aur link_libraries() global commands mat use karo; woh har target me leak ho jaate hain. Hamesha target_include_directories aur target_link_libraries use karo sahi keyword ke saath. Link order ki tension mat lo — CMake dependency graph se khud sahi order nikalta hai, tum sirf batao kaun kis pe depend karta hai. Build aise: cmake -S . -B build phir cmake --build build — out-of-source taaki source folder ganda na ho.
