Type sizes — sizeof, platform dependency, stdint.h (int32_t etc.)

WHY does C leave sizes unspecified?

WHAT the standard actually guarantees

Formula How many distinct values fit

An unsigned integer with $N$ bits stores values $0 \dots 2^{N}-1$ . A signed two's-complement integer stores $-2^{N-1} \dots 2^{N-1}-1$ .

Derivation from scratch: $N$ bits = $N$ independent on/off switches. Each switch doubles the combinations, so total patterns $= \underbrace{2\times2\times\cdots\times2}_{N} = 2^N$ . Unsigned: count from $0$ , so the largest is $2^N-1$ . Signed two's-complement: we spend the top bit as a sign region, splitting the $2^N$ patterns into $2^{N-1}$ negatives and $2^{N-1}$ non-negatives → range $[-2^{N-1},\,2^{N-1}-1]$ . $\text{bytes} = \frac{N}{\text{CHAR\_BITS}} = \frac{N}{8}\ \text{(on normal machines)}$

Common ABIs (the platform dependency)

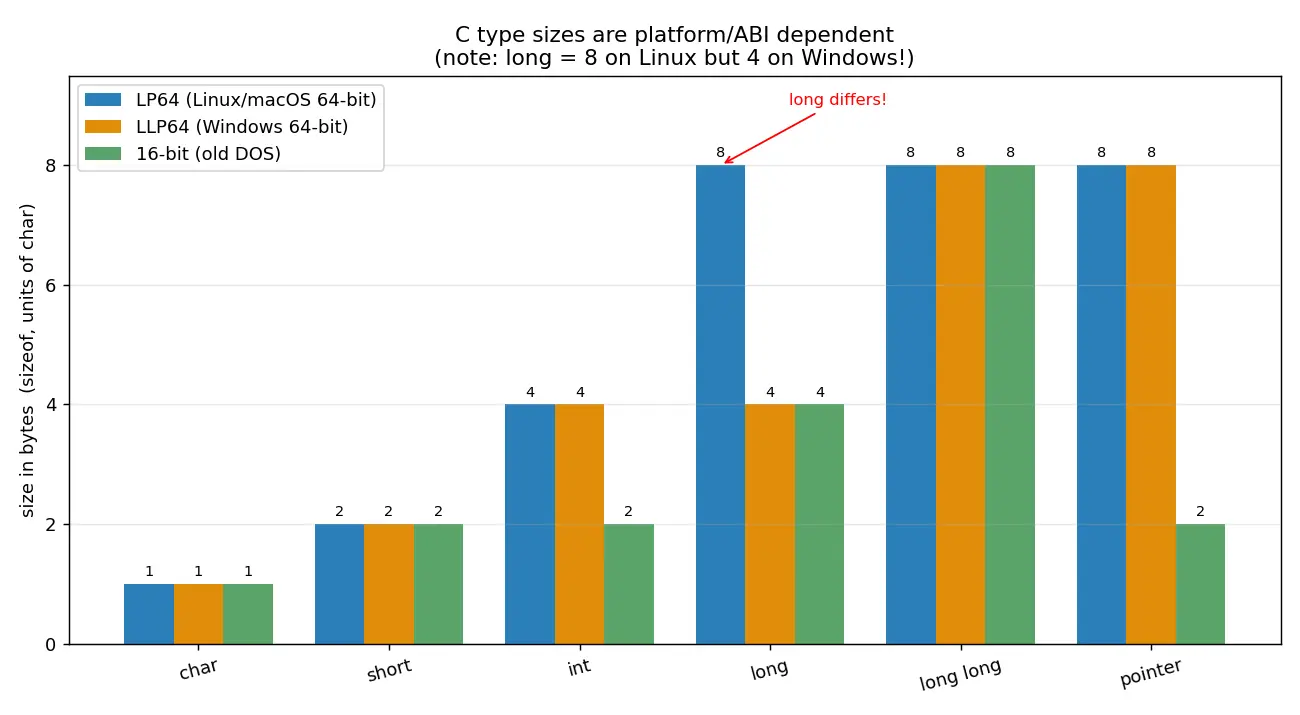

Figure — Type sizes — sizeof, platform dependency, stdint.h (int32_t etc.)

Type	LP64 (Linux/macOS 64-bit)	LLP64 (Windows 64-bit)	16-bit (old DOS)
`char`	1	1	1
`short`	2	2	2
`int`	4	4	2
`long`	8	4	4
`long long`	8	8	8
pointer	8	8	2/4

HOW to measure: `sizeof`

Worked example Measuring on your machine

#include <stdio.h>
int main(void) {
    printf("char  = %zu\n", sizeof(char));
    printf("int   = %zu\n", sizeof(int));
    printf("long  = %zu\n", sizeof(long));
    printf("ptr   = %zu\n", sizeof(void*));
    int a[10];
    printf("array = %zu, n=%zu\n", sizeof a, sizeof a / sizeof a[0]);
    return 0;
}

Why sizeof a / sizeof a[0]? Total bytes ÷ bytes-per-element = element count — a portable way to get array length that does not depend on int size. (Warning: only works on real arrays, not on a pointer parameter, where the array has "decayed".)

HOW to be safe: `stdint.h`

Worked example Network / file format struct

#include <stdint.h>
typedef struct {
    uint16_t port;     // exactly 2 bytes, every platform
    uint32_t ip;       // exactly 4 bytes
    int64_t  timestamp;// exactly 8 bytes
} Packet;

Why this step? A packet on the wire has a fixed byte layout. If you used int/long, the struct's bytes would differ between Windows and Linux and the two machines couldn't talk. int32_t nails the layout.

Mistakes (Steel-manned)

Active recall

Recall Forecast-then-Verify: before reading the table, what is

sizeof(long) on 64-bit Windows? 4 bytes (LLP64). On 64-bit Linux it's 8 (LP64). The whole point of the lesson.

Recall Why is

sizeof(char) == 1 always true? Because sizeof is defined to count in units of char. A char is "1 char" by definition, regardless of how many bits it has.

Recall Feynman: explain to a 12-year-old

Imagine boxes for holding numbers. C says "I'll give you a box, and it'll be at least this big, but on a small toy computer it might be smaller and on a big computer bigger." That's int. If you need a box that's exactly 4 slots wide no matter which computer — so two computers can mail boxes to each other and they line up perfectly — you ask for int32_t. sizeof is just a ruler that measures how many tiny slots a box uses.

Flashcards

What does sizeof measure and in what units?

Storage size of a type/object, in units of char (so sizeof(char)==1); result type is size_t.

Is sizeof a function or operator?

An operator, evaluated at compile time.

Minimum guaranteed width of int in C?

At least 16 bits.

What is the size ordering the standard guarantees?

char ≤ short ≤ int ≤ long ≤ long long.

On 64-bit Linux (LP64), sizeof(long)?

8 bytes.

On 64-bit Windows (LLP64), sizeof(long)?

4 bytes.

Which header gives int32_t, uint8_t, etc.?

<stdint.h>.

When should you use int32_t instead of int?

When you need an exact, platform-independent width (network packets, file formats, hardware registers).

Value range of a signed N-bit two's-complement integer?

-2^{N-1}

2^{N-1}-1

Value of UINT32_MAX?

2^{32}-1 = 4294967295

Correct printf specifier for sizeof?

%zu (size_t).

Why can sizeof(arr)/sizeof(arr[0]) fail in a function?

Array parameters decay to pointers, so sizeof returns pointer size, not array size.

Difference between int_least32_t and int_fast32_t?

least = smallest type ≥32 bits; fast = fastest type ≥32 bits.

Is plain char signed or unsigned?

Implementation-defined; use unsigned char/uint8_t for guaranteed 0–255.

Connections

Two's complement & integer overflow
Integer promotion & usual arithmetic conversions
Pointers and array decay
Struct padding & alignment
Endianness & serializing data
printf format specifiers
size_t and ptrdiff_t

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, C language ek important cheez clearly nahi batati: int, long waghaira ka exact size kitna hoga. Woh sirf minimum guarantee deti hai (jaise int kam se kam 16-bit) aur ek ordering (char ≤ short ≤ int ≤ long). Asli size depend karta hai compiler + CPU + OS pe — isko ABI kehte hain. Isi wajah se same code different machine pe alag behave kar sakta hai. Classic trap: 64-bit Linux pe long = 8 bytes, lekin 64-bit Windows pe long = sirf 4 bytes. Agar aapne maan liya ki long hamesha 8 hai, to Windows pe bug aa jayega.

sizeof ek operator hai (function nahi), jo compile-time pe bata deta hai ki koi type kitne char-units leta hai. Isliye sizeof(char) hamesha 1 hota hai — kyunki measurement hi char ke units mein hoti hai. Print karte waqt %zu use karo, kyunki return type size_t hota hai (unsigned).

Jab aapko exact width chahiye — network packet, file format, hardware register — tab #include <stdint.h> karke int32_t, uint8_t, int64_t use karo. Inke naam mein hi number likha hai, to size guaranteed hai har platform pe. Mnemonic simple: jis type ke naam mein number hai (32, 64) uska size pakka; jiske naam mein number nahi (int, long) uska size pakka nahi.

Ek aur common galti: function ke andar sizeof(arr)/sizeof(arr[0]) se array length nikalna. Function mein array pointer ban jata hai (decay), to sizeof pointer ka size deta hai, array ka nahi — count galat aata hai. Isliye length alag se pass karo. Ye chhoti chhoti baatein hi 80% portability bugs bachati hain.
