Variants — multi-tape TM, non-deterministic TM, all equivalent

WHY do we care about variants?

WHAT changes between variants: number of tapes, number of heads, direction of tape, whether transitions are unique (deterministic) or branching (non-deterministic).
WHY it matters: if a tiny tweak gave new power, "computable" would be an arbitrary, fragile notion. Instead every reasonable tweak is equivalent ⇒ the boundary of computability is a real, model-independent thing.
HOW we prove equivalence: build a simulator. To show model $B$ is no stronger than model $A$ , write an $A$ -machine that, given $B$ 's description, reproduces every step of $B$ . Equivalence = simulation in both directions.

Variant 1 — The Multi-tape TM

Theorem: every multi-tape TM has an equivalent single-tape TM

Worked example Simulation:

$k$ tapes → 1 tape Idea: store all $k$ tapes side-by-side on one tape, separated by a delimiter #, and mark each head position with a dotted version of the symbol.

Single tape contents represent $\# \,\dot{a}_1 a_2 a_3 \,\#\, b_1 \dot{b}_2 \,\#\, \dot{c}_1 c_2 \#$ where dots ( $\dot{x}$ ) show where each virtual head sits.

To simulate one step of the $k$ -tape machine:

Scan left→right across all blocks, recording (in the finite-state control) the $k$ dotted symbols. Why this step? The real $\delta$ needs to read all heads simultaneously; one sweep gathers them.
Now the control knows the tuple $(\dot a_1,\dot b_2,\dot c_1)$ , so it computes $\delta$ . Why? $\delta$ is a finite table; once you hold the read symbols, the new symbols / moves are determined.
Second sweep: at each dotted cell write the new symbol and shift the dot one cell left or right per the move. Why? This applies the simultaneous update.
If a virtual head moves onto a # (the block was too short), shift everything right to insert a blank, growing that virtual tape. Why? Virtual tapes are unbounded; the one real tape must make room.

Conclusion: the single-tape machine produces the same outputs, so it recognizes the same language. ✔

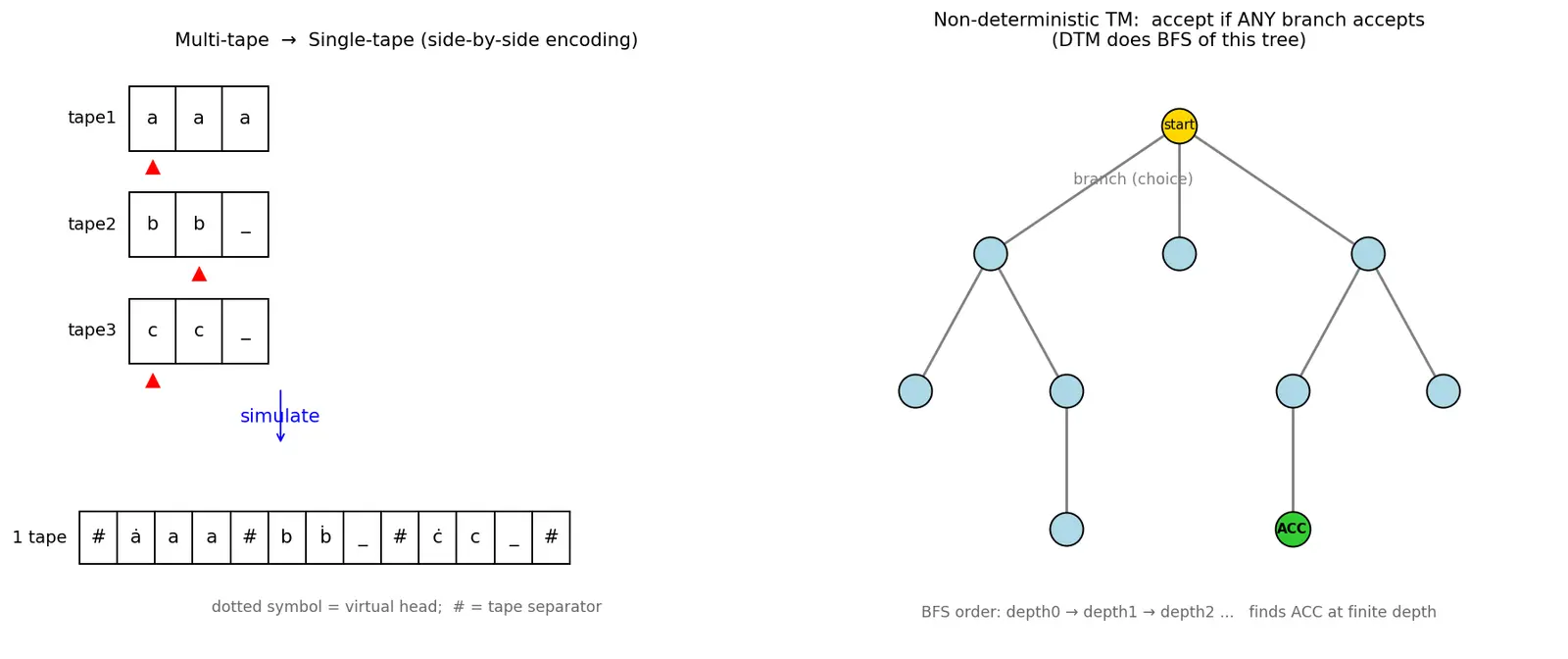

Figure — Variants — multi-tape TM, non-deterministic TM, all equivalent

Variant 2 — The Non-deterministic TM (NTM)

Theorem: every NTM has an equivalent deterministic TM (DTM)

Worked example Simulation: NTM → DTM by breadth-first search of the tree

Why not depth-first? A wrong guess might lead to an infinite non-accepting branch; DFS could get stuck there forever and miss a nearby accepting branch. BFS explores all branches at depth $d$ before depth $d+1$ , so any accepting branch at finite depth is eventually found.

Use a 3-tape DTM (we already proved 3-tape ≡ 1-tape):

Tape 1: the original input $w$ (read-only, never altered). Why? We must restart each branch from the same input.
Tape 2: working tape — a copy of $w$ on which we simulate one chosen branch.
Tape 3: the address of the current branch: a string over $\{1,\dots,b\}$ where $b$ is the max number of choices in any $\delta$ entry. The string 2 1 3 means "at step 1 take choice 2, step 2 take choice 1, step 3 take choice 3."

Loop:

Copy tape 1 → tape 2. Why? Fresh start for this branch.
Simulate the NTM on tape 2, using tape 3 to decide which choice to take at each step. If a digit on tape 3 exceeds the number of available choices (invalid branch), abort this branch.
If this branch accepts → DTM accepts. Why? One accepting branch suffices.
Otherwise increment tape 3 to the next address (lexicographic over $\{1..b\}^*$ , shortest first) and repeat. Why shortest-first? That's the BFS order guaranteeing we never skip a finite accepting branch.

Result: the DTM accepts iff some branch accepts ⇒ same language. ✔

Why all of these collapse to one model

Recall Feynman: explain it to a 12-year-old

Imagine a kid solving a maze with one notebook page and a pencil. Now give a richer kid three notebook pages, or let them magically split into copies that each try a different turn. The rich kids finish faster. But here's the cool part: the one-page kid can copy what the rich kids do — draw three little boxes on the one page (pretend pages), or try every path one after another, slowly but surely. So in the end, any maze the rich kids can solve, the one-page kid can also solve — just slower. Same brain power, different speed. That's why all Turing machines, fancy or plain, can solve exactly the same problems.

Active-recall flashcards

What is the transition function type of a

k

-tape TM?

\delta:Q\times\Gamma^k \to Q\times\Gamma^k\times\{L,R\}^k

— reads

k

symbols at once, writes

k

, moves all

k

heads independently.

How does a single tape simulate

k

tapes?

Store the

k

tape contents side-by-side separated by #, mark each virtual head with a dotted symbol; one sweep reads all heads, a second sweep writes updates and moves dots, shifting right to grow a virtual tape.

What is the time slowdown of multi-tape → single-tape simulation?

Quadratic:

O(t(n)^2)

, because used tape is

O(t(n))

long and each step takes ~2 full sweeps.

What is the acceptance rule for a non-deterministic TM?

w

iff at least one branch of the computation tree reaches an accept state.

Why must the NTM→DTM simulation use BFS, not DFS?

DFS can fall into an infinite non-accepting branch and never explore a nearby accepting one; BFS explores all depth-

d

nodes first, guaranteeing any finite accepting branch is found.

What does the 3rd tape store in the NTM→DTM simulation?

The branch "address" — a string over

\{1..b\}

telling which choice to take at each step; we iterate these in shortest-first (BFS) order.

What is the time cost of NTM→DTM simulation and why?

2^{O(t(n))}

, because the computation tree has up to

b^{t(n)}

nodes and the DTM may visit them all.

Does non-determinism add computational power?

No — it recognizes exactly the same languages as deterministic TMs. It may change efficiency, never computability.

What does "robustness" of the TM model mean?

Reasonable changes to the definition (tapes, non-determinism, two-way tape) do not change the class of decidable/recognizable languages.

Which famous thesis is supported by all variants being equivalent?

The Church–Turing thesis: anything effectively computable is computable by a single-tape deterministic TM.

Connections

Turing Machine — formal definition
Church–Turing Thesis
Decidability and Recognizability
Time Complexity and Big-O
P vs NP problem
Non-determinism in Finite Automata (NFA = DFA)
Universal Turing Machine

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, Turing machine ka basic version ek single tape pe chalta hai. Ab sawaal ye hai: agar hum machine ko aur "powerful" bana dein — jaise multiple tapes de dein, ya use guess karne ki magical power de dein (non-deterministic) — to kya wo aise problems solve kar legi jo basic wali nahi kar sakti? Jawab hai: NAHI. Speed badal sakti hai, lekin kya solve ho sakta hai wo same rehta hai. Isko hum simulation se prove karte hain.

Multi-tape ka case: socho 3 tapes hain. Hum un teeno ko ek hi tape pe side-by-side rakh dete hain, beech mein # separator daal ke, aur har virtual head ko ek "dotted" symbol se mark kar dete hain. Ek step simulate karne ke liye single tape do baar scan karta hai — pehle saare heads padhne ke liye, phir naye symbols likhne aur dots ko move karne ke liye. Cost thoda badhta hai ( $O(t(n)^2)$ , yaani quadratic), par power bilkul same.

Non-deterministic TM ek tree ki tarah branch karti hai — har step pe kai choices. Accept tab hota hai jab koi ek bhi branch accept kar de. Deterministic machine isko BFS (breadth-first search) se imitate karti hai: ek 3rd tape pe branch ka "address" likh ke har possible path try karti hai, chhoti depth se shuru karke. DFS isliye nahi karte kyunki ek galat branch infinite chal sakti hai aur machine wahin atak jaati. Cost yahan exponential ho jaata hai ( $2^{O(t(n))}$ ) — aur yahi P vs NP question ka dil hai!

Bottom line: tapes badhao ya guesses badhao, reach same rehti hai, sirf ghadi (time) complain karti hai. Yahi robustness Church–Turing thesis ka proof hai — "computable" ek solid, model-independent cheez hai.
