NFA to DFA conversion — subset construction

WHAT is the problem?

WHY is this possible at all? Because both NFA and DFA recognise exactly the regular languages — they have equal power. The NFA is just more convenient to write; the DFA is more mechanical to run.

The two helper operations

HOW — the algorithm

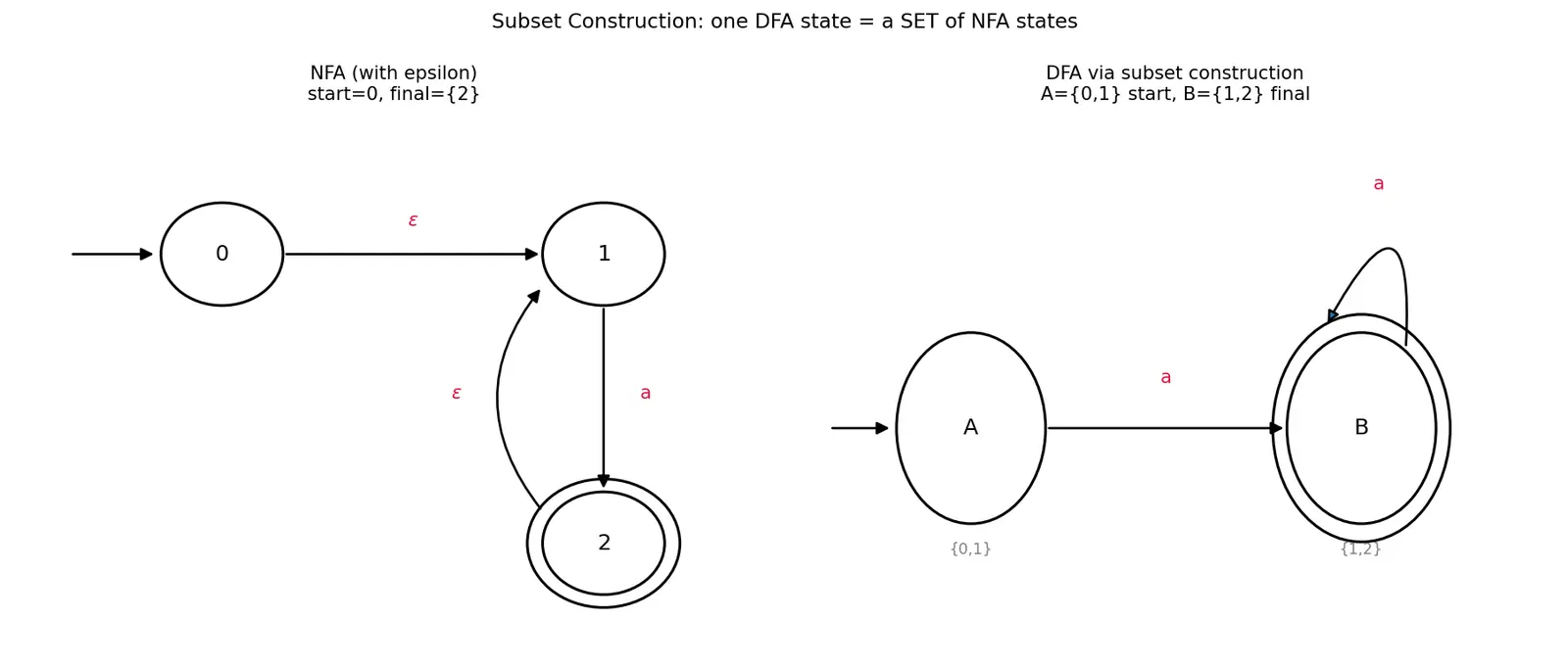

Figure — NFA to DFA conversion — subset construction

Worked Example 1 (no ε)

NFA over $\Sigma=\{a,b\}$ , states $\{q_0,q_1\}$ , start $q_0$ , final $\{q_1\}$ : $\delta_N(q_0,a)=\{q_0,q_1\}$ , $\delta_N(q_0,b)=\{q_0\}$ , $\delta_N(q_1,b)=\{q_1\}$ . (This accepts strings containing an $a$ followed eventually by a $b$ … let's just build it.)

DFA state	on $a$	on $b$
$A=\{q_0\}$ (start)	$\{q_0,q_1\}=B$	$\{q_0\}=A$
$B=\{q_0,q_1\}$ (accept)	$\{q_0,q_1\}=B$	$\{q_0,q_1\}=B$

Why $A \xrightarrow{a} B$ ? MOVE $(\{q_0\},a)=\{q_0,q_1\}$ , no ε so ECLOSE leaves it. New state → call it $B$ . Why is $B$ accepting? $B \cap F = \{q_0,q_1\}\cap\{q_1\}=\{q_1\}\neq\varnothing$ . ✔ Why $B\xrightarrow{b}B$ ? MOVE $(\{q_0,q_1\},b)=\{q_0\}\cup\{q_1\}=\{q_0,q_1\}=B$ .

Only 2 of the possible $2^2=4$ subsets are reachable — we never list unreachable ones.

Worked Example 2 (with ε)

NFA: states $\{0,1,2\}$ , start $0$ , final $\{2\}$ , $\Sigma=\{a\}$ . $\delta(0,\varepsilon)=\{1\}$ , $\delta(1,a)=\{2\}$ , $\delta(2,\varepsilon)=\{1\}$ .

Step 1 — start: $q_0' = \text{ECLOSE}(\{0\}) = \{0,1\}$ . Why? From $0$ an ε-edge goes to $1$ ; from $1$ none. Call this $A=\{0,1\}$ .

Step 2 — $A$ on $a$ : MOVE $(\{0,1\},a)=\{2\}$ (only $1$ has an $a$ -edge). Then ECLOSE $(\{2\})=\{2,1\}=\{1,2\}$ (the ε-edge $2\to1$ ). Call $B=\{1,2\}$ .

Step 3 — $B$ on $a$ : MOVE $(\{1,2\},a)=\{2\}$ , ECLOSE → $\{1,2\}=B$ . Self-loop.

DFA state	on $a$	accept?
$A=\{0,1\}$ (start)	$B$	$\{0,1\}\cap\{2\}=\varnothing$ → no
$B=\{1,2\}$	$B$	contains $2$ → yes

So the DFA accepts $a, aa, aaa, \dots$ i.e. $a^+$ . Trace "aa": $A\xrightarrow{a}B\xrightarrow{a}B$ (accept). ✔ Trace "" : stays at $A$ , reject. ✔

Common mistake Steel-manned common errors

Mistake 1: Forgetting ε-closure on the start state. Why it feels right: "The NFA starts at $q_0$ , so the DFA should start at $\{q_0\}$ ." Clean and obvious. Why it's wrong: the NFA can silently move along ε-edges before reading anything. Fix: start $=\text{ECLOSE}(\{q_0\})$ .

Mistake 2: Applying ε-closure before MOVE but not after. Why it feels right: you closed up at the start, job done. Fix: the correct order each step is $\text{ECLOSE}(\text{MOVE}(S,a))$ — close after every move, every time.

Mistake 3: Generating all $2^n$ subsets up front. Why it feels right: the worst case is $2^n$ , so "list them all." Fix: only create subsets reachable from the start state. Usually far fewer.

Mistake 4: Marking a state accepting only if it equals an NFA final state. Why it feels right: "final means final." Fix: accept if the subset contains any final state ( $S\cap F\neq\varnothing$ ) — the NFA succeeds if any one path accepts.

Mistake 5: Forgetting the dead state $\varnothing$ . If MOVE gives the empty set, you still need a (trap) state that loops to itself and rejects — otherwise the DFA transition is undefined.

Recall Feynman: explain to a 12-year-old

Imagine a maze where, at some forks, a magic robot can split into copies and try every path at once. That's the NFA. A normal robot (DFA) can't split — it walks one path. So instead, the normal robot carries a notebook listing "all the rooms a magic robot could be standing in right now." Each time it reads a letter, it updates the whole list at once. If any room on the list is an exit, it shouts "Accepted!" The notebook's contents = one DFA state. Since there are only finitely many possible lists of rooms, the robot can never get lost forever.

Flashcards

What is one state of the DFA in subset construction?

A set (subset) of NFA states — the cloud of states the NFA could currently be in.

Why is it called the powerset/subset construction?

DFA states are subsets of

Q

, drawn from the power set

\mathcal{P}(Q)

Formula for the DFA start state?

q_0' = \text{ECLOSE}(\{q_0\})

Formula for the DFA transition?

\delta_D(S,a)=\text{ECLOSE}(\text{MOVE}(S,a))

When is a DFA subset-state accepting?

When it contains at least one NFA final state:

S\cap F\neq\varnothing

What is ECLOSE(S)?

All states reachable from S using only ε-transitions (S included).

What is MOVE(S,a)?

Union over

q\in S

\delta_N(q,a)

— states reachable on reading

a

Maximum number of DFA states from an

n

-state NFA?

2^n

(the number of subsets); usually fewer are reachable.

Why does subset construction always terminate?

Only

2^n

possible subsets exist, so finitely many DFA states can be created.

What role does the empty set

\varnothing

play?

The dead/trap state — no NFA states alive, so it rejects and loops to itself.

Correct order of operations each step?

MOVE first, then ECLOSE: ECLOSE(MOVE(S,a)).

Do NFA and DFA recognise the same languages?

Yes — both recognise exactly the regular languages.

Connections

Finite Automata — DFA basics
Finite Automata — NFA and ε-NFA
Regular Expressions to NFA — Thompson's construction
DFA Minimization — Myhill–Nerode
Power Set and Subsets
Closure Properties of Regular Languages
Pumping Lemma for Regular Languages

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, NFA ka kaam hota hai "guess" karna — ek hi waqt mein woh kai states mein ho sakta hai, jaise koi robot maze mein khud ki copies bana ke saare raste ek saath try kare. Par DFA bechara ek hi state mein reh sakta hai, koi splitting nahi. Toh sawaal yeh hai: DFA NFA ko copy kaise kare? Jugaad simple hai — DFA ki ek state ko banao NFA ki states ka ek poora set. Matlab agar NFA abhi $\{q_1,q_3\}$ mein ho sakta hai, toh DFA ki ek single state ka naam hi $\{q_1,q_3\}$ rakh do. Isi liye ise subset (powerset) construction kehte hain.

Do tools yaad rakho. ECLOSE matlab epsilon-closure — bina koi letter padhe, sirf $\varepsilon$ -edges se jahan-jahan pahunch sakte ho. MOVE(S,a) matlab set $S$ ke har state se letter $a$ padh ke jahan jaate ho. Har step ka formula hai $\delta_D(S,a)=\text{ECLOSE}(\text{MOVE}(S,a))$ — pehle MOVE, phir ECLOSE, har baar. Start state hota hai $\text{ECLOSE}(\{q_0\})$ (kyunki shuru mein hi NFA chupke se ε-edges se khisak sakta hai). Aur koi DFA-state accept tab hoti hai jab uske andar koi bhi NFA final state ho, yaani $S\cap F\neq\varnothing$ .

Yeh kyun important hai? Kyunki NFA likhna aasan hota hai par chalane mein "guessing" lagti hai. DFA mechanical aur fast hota hai — har step pe seedha ek hi state. Subset construction proof hai ki NFA aur DFA dono same regular languages pehchante hain. Ek dhyaan ki baat: kabhi bhi shuru mein $2^n$ saare subsets mat banao — sirf woh subsets banao jo start se reachable hain, warna time waste. Aur agar MOVE khaali set de de, toh woh dead state ( $\varnothing$ ) ban jaata hai jo apne aap pe loop kare aur reject kare. Mantra yaad rakho: "START pe CLOSE, phir MOVE-then-CLOSE, final ko TOUCH karo toh accept."
