Different vendors (Cisco, Intel, Microsoft) build different hardware/software. Without a shared blueprint, nothing would interoperate.
Separation of concerns: each layer can be designed, debugged, and replaced independently. You can swap Wi-Fi for Ethernet (Layer 1/2) without touching your web browser (Layer 7).

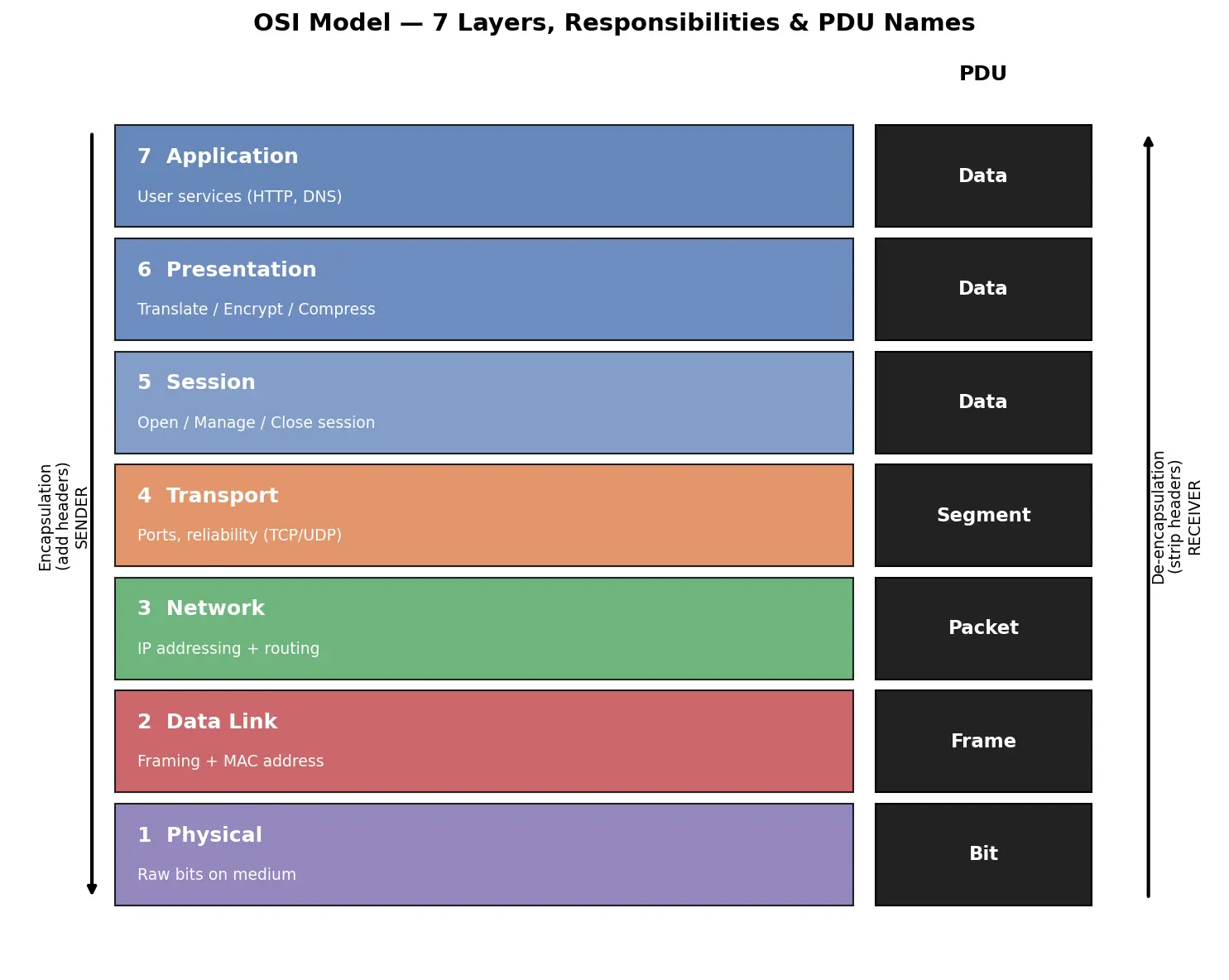

Application, Presentation, Session, Transport, Network, Data Link, Physical
Mnemonic for OSI top→bottom
All People Seem To Need Data Processing
PDU at the Transport layer
Segment (TCP) / Datagram (UDP)
PDU at the Network layer
Packet
PDU at the Data Link layer
Frame
PDU at the Physical layer
Bit
PDU at Application/Presentation/Session
Data
Which layer does a router operate at?
Layer 3 (Network) — uses IP addresses
Which layer does a switch operate at?
Layer 2 (Data Link) — uses MAC addresses
Which layer handles port numbers?
Layer 4 (Transport)
Which layer does encryption/compression/translation?
Layer 6 (Presentation)
Which layer manages sessions/checkpoints/dialog control?
Layer 5 (Session)
What is encapsulation?
Each layer wrapping data from above with its own header (and trailer at L2)
Why does the PDU name change at each layer?
Because each layer adds its own header, creating a new logical unit
Which layer uses logical (IP) addresses?
Layer 3 (Network)
Which layer uses physical (MAC) addresses?
Layer 2 (Data Link)
Mnemonic for PDU chain bits→data
Big Fat Pandas Sleep Deeply (Bit, Frame, Packet, Segment, Data)
Which OSI layers map to TCP/IP's single Application layer?
Application + Presentation + Session
Recall Feynman: explain it to a 12-year-old (click to reveal)
Imagine mailing a birthday gift to a friend in another city. You can't just throw the toy onto the road and hope. So: you wrap the toy (your message), put it in a box, write your friend's house number AND street name on it, the postman carries the box on his bike to the post office, the truck drives it on the highway. At your friend's end, everyone un-does each step backwards until your friend holds the toy. The OSI model is just 7 helpers in a line, each adding one wrapper going out, and removing one wrapper coming in. Different wrapper = different name (Bit, Frame, Packet, Segment, Data).
Dekho, OSI model basically ek 7-layer ka blueprint hai jo batata hai ki ek computer se doosre computer tak data kaise jaata hai. Idea simple hai: ek bada problem ko 7 chhote tukdo me tod do, har layer sirf apna ek kaam kare aur neeche wali layer ko data de de. Sabse upar Application (HTTP, DNS), phir Presentation (encryption/translation), Session, Transport (ports + reliability, TCP/UDP), Network (IP address + routing), Data Link (MAC address + frames), aur sabse neeche Physical (raw bits wire pe). Yaad rakhne ka mnemonic: "All People Seem To Need Data Processing".
Sabse important concept hai encapsulation. Jab data neeche jaata hai, har layer apna ek header laga deti hai — isliye data ka naam badalta rehta hai: Data → Segment → Packet → Frame → Bits. Receiver side pe ulta hota hai (de-encapsulation), header strip hote jaate hain. Naam yaad karne ka trick: "Big Fat Pandas Sleep Deeply".
Exam aur interview dono me ye points kaam aate hain: Router = Layer 3 (IP use karta hai), Switch = Layer 2 (MAC use karta hai), Port numbers = Layer 4, Encryption = Layer 6 (Presentation). Ek common galti — log OSI aur TCP/IP ko same samajh lete hain; nahi, OSI 7 layers ka theoretical model hai, TCP/IP 4 layers ka real-world model hai. Bas yahi clarity tumhe answer me full marks dilayegi.
