Multi-level page tables — why, overhead

WHY do we even need this?

WHAT goes wrong? Let's compute the size of a flat table.

HOW multi-level fixes it

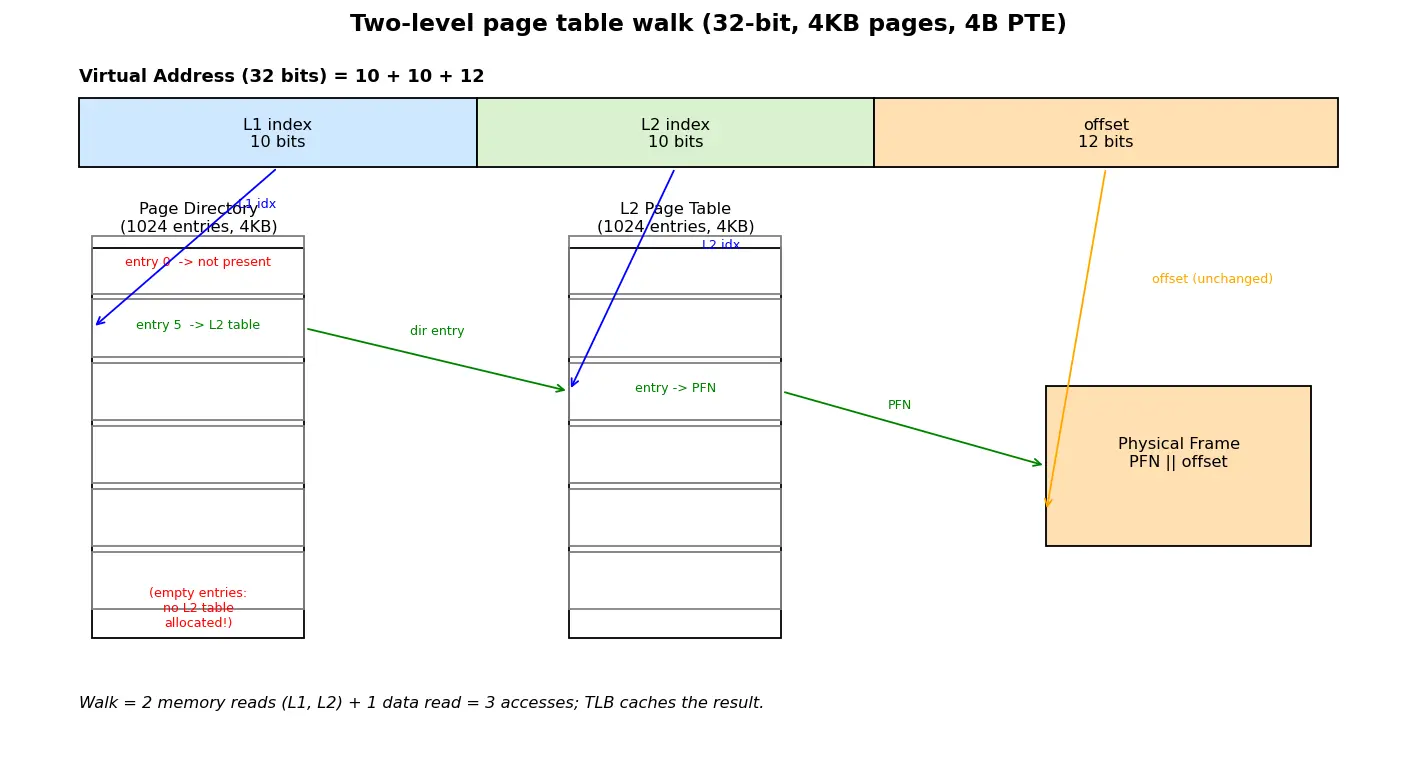

Figure — Multi-level page tables — why, overhead

Formula Splitting the virtual address — derived

For a 2-level scheme with page size $2^{p}$ : $\underbrace{V}_{\text{total}} = \underbrace{a}_{\text{L1 index}} + \underbrace{b}_{\text{L2 index}} + \underbrace{p}_{\text{offset}}$

Why pick $a,b$ this way? We usually want each second-level table to fit in exactly one page so it's easy to allocate/swap.

Entries per page = $\dfrac{2^p}{E}$ ⇒ index bits per level $b = \log_2\!\frac{2^p}{E} = p - \log_2 E$ .

Worked for 32-bit, 4KB, 4B PTE:

$p=12$ , $\log_2 E = 2 \Rightarrow b = 10$ . Each table holds $2^{10}=1024$ entries (fits 4KB).
Remaining for L1: $a = 32 - 10 - 12 = 10$ ⇒ directory has $2^{10}=1024$ entries.
So $32 = 10 + 10 + 12$ . Why? All bits must be accounted for: directory + table + offset.

Overhead: space vs time

Formula Space overhead — best and worst case

Each table is $2^{10}\times 4 = 4\text{KB}$ .

Best case (tiny program touching 1 page): $1\ \text{directory} + 1\ \text{L2 table} = 4\text{KB}+4\text{KB}=8\text{KB}$ vs 4 MB flat — a ~500× saving. Why? All other directory entries say "not present"; their L2 tables don't exist.

Worst case (every page used): $\underbrace{4\text{KB}}_{\text{L1}} + \underbrace{1024\times 4\text{KB}}_{\text{all L2}} = 4\text{KB}+4\text{MB} \approx 4.004\text{MB}$ Why slightly bigger than flat? We pay an extra directory page on top of all the leaf tables. Multi-level is only a win when the table is sparse — which it almost always is.

Formula Time overhead — the real cost

A $k$ -level table needs $k$ memory accesses to walk the tree before the real access: $\text{accesses per reference} = \underbrace{k}_{\text{walk}} + \underbrace{1}_{\text{actual data}}$ For 2-level that's 3 memory accesses instead of 1. Why? Each level is in memory and must be read.

The fix: a TLB (Translation Lookaside Buffer) caches recent VPN→PFN translations, so most references skip the walk entirely: $\text{EAT} = h\cdot(t_{\text{TLB}}+t_{\text{mem}}) + (1-h)\cdot\big((k{+}1)\,t_{\text{mem}}+t_{\text{TLB}}\big)$ where $h$ = TLB hit rate. With $h \to 1$ , multi-level's walk cost nearly vanishes.

Common mistakes

Flashcards

Why is a single-level page table wasteful for a 32-bit space?

It needs one PTE per virtual page (

2^{20}

entries = 4MB per process) even though most pages are unused.

Size formula for a single-level table?

2^{V-p}\times E

bytes, where

V

=addr bits,

p=\log_2(\text{page size})

E

=PTE size.

Why does multi-level save space?

Unused regions are a single "not present" entry in the directory, so their second-level tables are never allocated (sparsity → savings).

How do you split a virtual address for

k

levels?

Add the bits:

V = (\text{L1 bits})+\dots+(\text{Lk bits})+ p

(offset).

Why choose 10/10/12 for 32-bit, 4KB, 4B PTE?

So each second-level table (1024×4B = 4KB) fits exactly in one page; remaining bits go to directory and offset.

Time cost of a

k

-level table per memory reference?

k+1

accesses (

k

for the walk, 1 for the data) — without a TLB.

What hardware hides the walk cost?

The TLB, which caches VPN→PFN; a hit skips the page-table walk.

Worst-case space vs single-level?

Slightly larger — you add directory page(s) on top of all leaf tables; multi-level only wins when sparse.

EAT formula with TLB hit rate

h

h(t_{TLB}+t_{mem}) + (1-h)((k{+}1)t_{mem}+t_{TLB})

Recall Feynman: explain to a 12-year-old

Imagine a giant hotel with a million rooms, and one huge guest list with a line for every room — even empty ones. That list is enormous and mostly blank. Instead, we keep a small floor directory: "Floor 3 has guests, here's its list; Floor 4 is empty — no list at all." To find a person you check the floor directory, then that floor's small list. You only keep lists for floors that actually have people. Looking someone up takes a couple of extra steps, so we keep a sticky-note (the TLB) of the people we looked up recently to go faster.
