BST — worst case O(n) — motivation for balancing

WHAT is the problem?

The whole story of "is a BST fast?" reduces to one question: how big can $h$ get?

WHY does height vary so wildly?

The same set of keys can produce many different tree shapes, depending on insertion order.

Worked example Insert

$1,2,3,4,5$ in increasing order Every new key is bigger than everything so far → it always goes to the right.

Why this step? Each insert compares with the current node; since the key is always larger, it always travels right and never branches. The tree degenerates into a linked list. Here $h = n-1 = 4$ .

Worked example Insert

$3,1,4,2,5$ (a "balanced-ish" order)

Why this step? Inserts now go both left and right, so the tree stays short. Here $h = 2$ , much smaller than $4$ for the same keys.

So the keys are identical, but performance differs by a factor of $n$ — purely from shape.

HOW bad / good can it get? (Derive the bounds)

Worst case height — derive $h = n-1$

Let $h_{\max}(n)$ be the maximum possible height. A path that uses every node, one per level, has:

level $0$ : root (1 node)
level $1$ : 1 node
...
level $n-1$ : 1 node

$h_{\max}(n) = n-1 \quad\Rightarrow\quad \text{worst-case op cost} = O(n)$

Why? With $n$ nodes and one node per level, you need $n$ levels, levels $0$ through $n-1$ , so the longest path has $n-1$ edges. No legal tree can be taller, because a tree with height $\ge n$ would need $\ge n+1$ nodes.

Best case height — derive $h = \lfloor \log_2 n \rfloor$

A level $i$ in a binary tree holds at most $2^i$ nodes (each node has $\le 2$ children, doubling per level). To hold all $n$ nodes in $h+1$ full levels:

$n \le 2^0 + 2^1 + \cdots + 2^{h} = 2^{h+1} - 1$

Why this geometric sum? Level $0$ has $1=2^0$ , level $1$ has $2=2^1$ , ..., level $h$ has $2^h$ at most. Sum of a geometric series with ratio 2: $\sum_{i=0}^{h} 2^i = 2^{h+1}-1$ .

Solving for $h$ :

$n \le 2^{h+1}-1 \;\Rightarrow\; n+1 \le 2^{h+1} \;\Rightarrow\; h \ge \log_2(n+1) - 1$

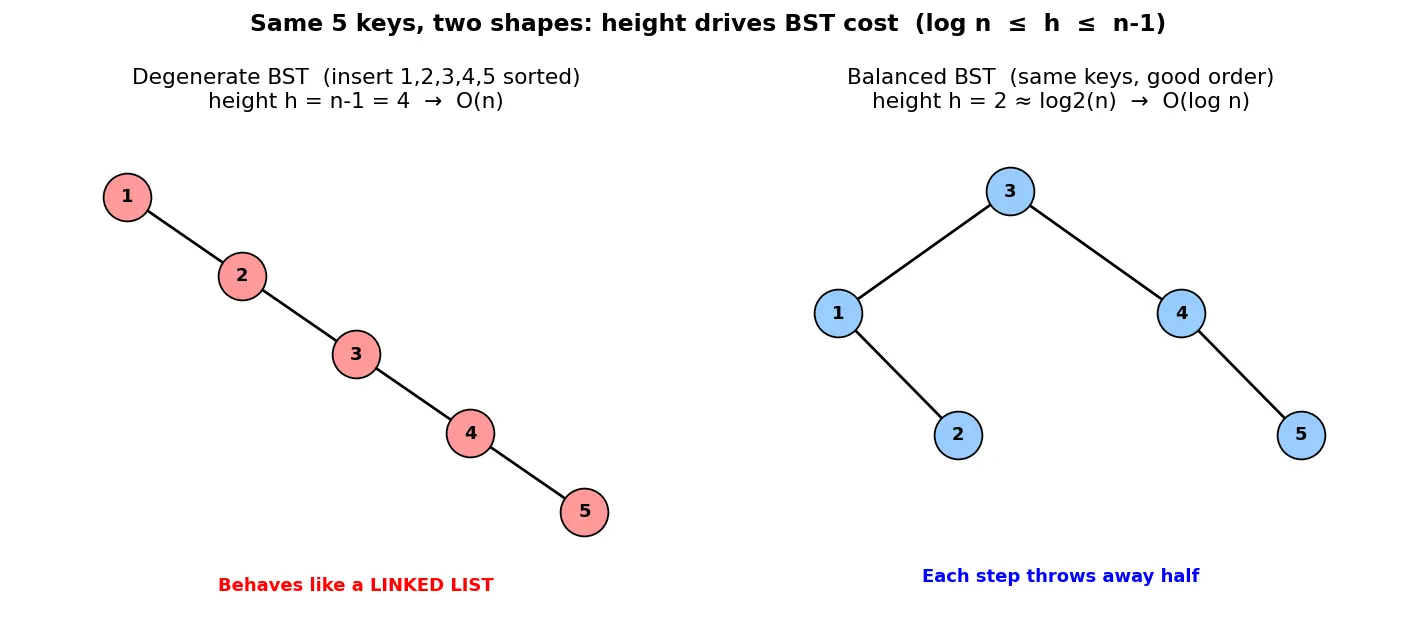

Figure — BST — worst case O(n) — motivation for balancing

WHY this motivates balancing

A plain BST gives no guarantee. If your data arrives sorted (very common — logs, IDs, time series!), you silently fall into the $O(n)$ trap and your "fast" tree is a slow linked list with extra pointers.

Common Mistakes

Active Recall

What determines the cost of search/insert/delete in a BST?

The height

h

of the tree; all are

O(h)

What is the worst-case height of a BST on

n

nodes, and what insertion order causes it?

h = n-1

(i.e.

O(n)

); caused by inserting keys in sorted (increasing or decreasing) order, creating a degenerate "stick".

What is the best-case (minimum) height of a BST on

n

nodes?

\lfloor \log_2 n \rfloor

, achieved when every level is filled (perfectly/completely balanced).

Why does a maximum of

2^i

nodes sit on level

i

Each node has at most 2 children, so node count at most doubles each level:

2^0,2^1,\dots,2^i

Derive the max nodes in a binary tree of height

h

\sum_{i=0}^{h}2^i = 2^{h+1}-1

, a geometric series.

Why does a plain BST NOT guarantee

O(\log n)

Its height depends on insertion order; sorted input degenerates it to a linked list with

h=n-1

What do self-balancing BSTs (AVL, Red-Black) guarantee, and how?

They keep

h=O(\log n)

always by restructuring (rotations) on insert/delete, regardless of input order.

A degenerate BST behaves like which simpler data structure?

A linked list (

O(n)

search).

Recall Feynman: explain to a 12-year-old

Imagine looking for a name in a phone book. If the book is sorted, you flip to the middle and instantly throw away half — that's super fast. A BST is supposed to work the same way: each step throws away half the tree. But if you build the tree by adding names that are already in order (Anna, Bob, Carl, Dan...), the tree grows like a long ladder, one step at a time — nothing gets thrown away! Now finding a name means climbing the whole ladder, one rung at a time. That's slow. So smart people invented "balancing": every time the ladder starts leaning, the tree shuffles itself back into a nice bushy shape, so you always get to throw away half again. Fast forever!

Connections

Binary Search Tree — definition and property
Tree height and depth
Binary Search — divide and conquer
AVL Trees — rotations and balance factor
Red-Black Trees
Linked List — O(n) search
Big-O notation
Geometric series

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, ek BST ka asli kaam hai search ko fast banana — bilkul phone book ki tarah, jahan tum beech mein jaake aadha hissa phenk dete ho. Lekin yeh "aadha phenkna" tabhi chalega jab tree bushy ho, yaani har node ke dono taraf branches faili hon. Agar tree ek seedhi line ban jaaye, toh saara jaadu khatam — wo plain linked list jaisa ban jaata hai jismein search $O(n)$ ho jaata hai.

Yeh hota kyun hai? Kyunki tree ka shape insertion order pe depend karta hai. Agar tum keys ko sorted order mein daalo (1, 2, 3, 4, 5), toh har nayi key purani sabse badi hoti hai, isliye hamesha right side jaati hai — tree ek "stick" ban jaata hai, height $h = n-1$ . Lekin agar order accha ho (jaise 3, 1, 4, 2, 5), toh tree chhota aur bushy rehta hai, height sirf $\log n$ ke aas-paas.

Key formula yaad rakho: BST ka cost = tree ki height ( $O(h)$ ), aur height hamesha $\log_2 n$ se $n-1$ ke beech mein hoti hai. Worst case mein $O(n)$ , best case mein $O(\log n)$ . Problem yeh hai ki plain BST koi guarantee nahi deta — agar tumhara data sorted aaya (logs, IDs, dates mein bahut common!), toh chup-chaap $O(n)$ trap mein gir jaoge.

Isi liye balancing invent hui. AVL aur Red-Black trees automatically rotate karke tree ko bushy rakhte hain, chahe input kaisa bhi ho, taaki height hamesha $O(\log n)$ rahe. Mnemonic simple hai: "Stick is sick, Bush is lush" — seedha tree slow, bushy tree fast. Exam mein 80/20 yahi hai: height = cost, aur balancing height ko log tak push karne ke liye hoti hai.
