Ligands — classification (mono, bi, poly, ambidentate, chelating); denticity

1. The fundamental definition

2. Classification by denticity

Type	Denticity	Donor atoms used	Example
Monodentate (unidentate)	1	1	$Cl^-$ , $H_2O$ , $NH_3$ , $CN^-$
Bidentate	2	2	ethylenediamine (en), oxalate $C_2O_4^{2-}$
Tridentate	3	3	diethylenetriamine (dien)
Tetradentate	4	4	porphyrin core
Hexadentate	6	6	EDTA $^{4-}$
Polydentate	$\ge 2$	many	EDTA, porphyrin (umbrella term)

3. Chelating ligands & the chelate effect

Intuition Why chelates are EXTRA stable — the chelate effect

Compare two reactions of $Ni^{2+}$ that both make 6 Ni–N bonds:

$[Ni(NH_3)_6]^{2+}$ : 6 separate $NH_3$ molecules.
$[Ni(en)_3]^{2+}$ : 3 ethylenediamine (bidentate) molecules.

Bonds are essentially the same strength, so enthalpy is similar. But look at the number of particles: $[Ni(H_2O)_6]^{2+} + 3\,en \rightarrow [Ni(en)_3]^{2+} + 6\,H_2O$ Left side: 4 species → Right side: 7 species. More particles released = more disorder = positive $\Delta S$ . Since $\Delta G = \Delta H - T\Delta S$ , a positive $\Delta S$ makes $\Delta G$ more negative → larger $K$ → more stable complex. This entropy-driven extra stability is the chelate effect.

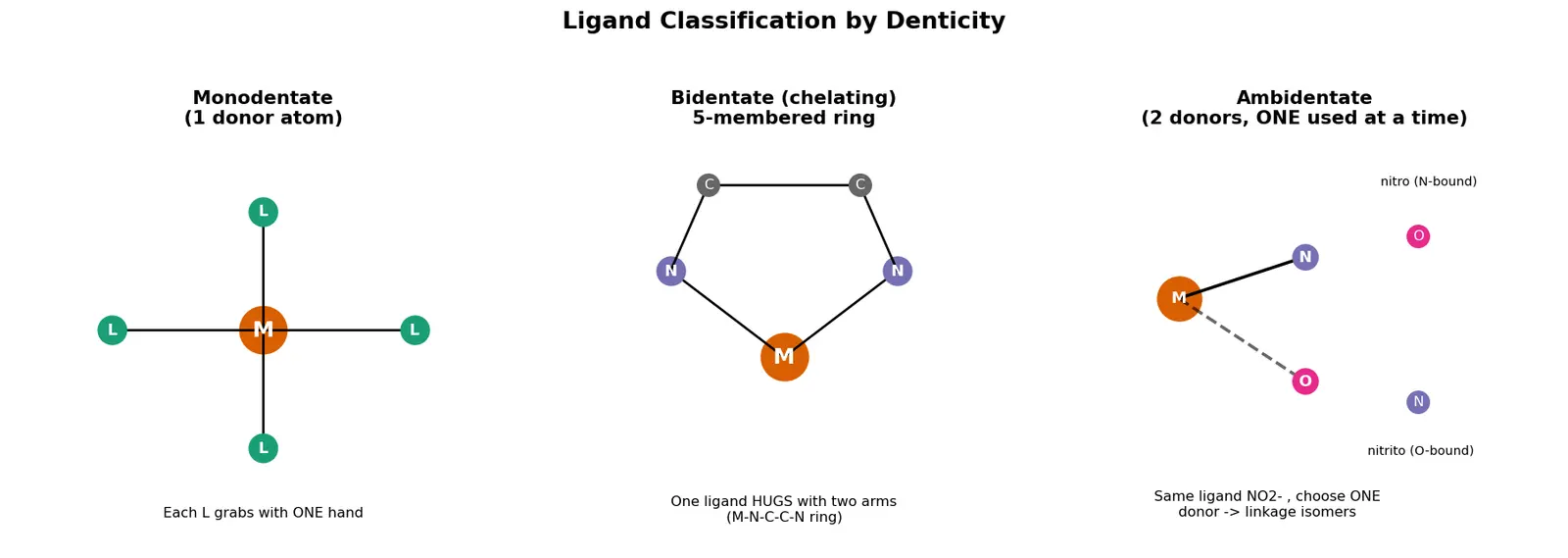

Figure — Ligands — classification (mono, bi, poly, ambidentate, chelating); denticity

4. Ambidentate ligands

Worked example The famous three

Ligand	Bind via X → name	Bind via Y → name
$NO_2^-$	N → nitro ( $-NO_2$ )	O → nitrito ( $-ONO$ )
$SCN^-$	S → thiocyanato	N → isothiocyanato
$CN^-$	C → cyano	N → isocyano

Why this creates isomers: $[Co(NH_3)_5(NO_2)]^{2+}$ (yellow, N-bound) vs $[Co(NH_3)_5(ONO)]^{2+}$ (red, O-bound) are linkage isomers — same formula, different donor atom.

5. Quick worked classification problems

6. Active Recall

Recall Test yourself (peek only after answering)

Define denticity in one sentence.
Why is $[Ni(en)_3]^{2+}$ more stable than $[Ni(NH_3)_6]^{2+}$ ?
Is $SCN^-$ bidentate? Explain.
Coordination number of $[Fe(EDTA)]^-$ ?
Which ring sizes are most stable and why?

Answers: 1) Number of donor atoms of one ligand bonding the same metal simultaneously. 2) Chelate effect — fewer reactant particles → more particles released → positive $\Delta S$ → more negative $\Delta G$ → larger $K$ . 3) No — it's ambidentate monodentate (binds via S or N, one at a time). 4) 6. 5) 5- and 6-membered, minimal strain + entropic favourability.

Recall Feynman: explain to a 12-year-old

Imagine the metal ion is a hand and ligands are people holding it.

A monodentate ligand is one person holding with one hand.
A bidentate/chelating ligand is one person hugging with both arms — much harder to pull away because letting go means breaking two grips at once, and your two arms came as one package. That "hug = hard to break" is the chelate effect.
An ambidentate ligand is a person who could hold with their left OR right hand, but only uses one at a time.

Flashcards

What is a ligand?

An ion/molecule that donates a lone pair to a central metal, forming a coordinate bond (a Lewis base).

Define denticity

Number of donor atoms of one ligand that bond to the same metal simultaneously.

Donor atom of

H_2O

ligand?

Oxygen (it carries the lone pairs).

Denticity of ethylenediamine (en)

2 (bidentate, chelating via two N).

Denticity of oxalate

C_2O_4^{2-}

2 (bidentate via two O).

Denticity of EDTA

^{4-}

6 (2 N + 4 carboxylate O = hexadentate).

What is a chelate?

A polydentate ligand forming a ring including the metal.

What is the chelate effect?

Extra stability of chelates due to favourable (positive) entropy from releasing more particles.

Why positive ΔS for chelation?

One chelating ligand displaces several monodentate ligands → more free particles → more disorder.

Define ambidentate ligand

Monodentate ligand with two possible donor atoms, binding through only one at a time.

N-bound vs O-bound

NO_2^-

names

Nitro (N-bound) vs nitrito (O-bound).

SCN^-

bidentate?

No; ambidentate monodentate — binds via S (thiocyanato) or N (isothiocyanato).

Most stable chelate ring sizes

5- and 6-membered.

Bridging vs chelating distinction

Bridging connects two different metals; chelating rings around one metal.

Coordination number of

[Fe(C_2O_4)_3]^{3-}

6 (3 bidentate oxalates).

Relation of K to ΔG

\Delta G^\circ = -RT\ln K

Connections

Coordination Number — directly computed from denticity × ligand count.
Stability Constants of Complexes — chelate effect quantified.
Linkage Isomerism — arises from ambidentate ligands.
Crystal Field Theory — ligand field strength depends on donor atom.
Lewis Acids and Bases — the bonding foundation.
EDTA Titrations — application of hexadentate chelation.
Werner's Coordination Theory — historical origin of these ideas.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, ligand ka matlab simple hai: koi ion ya molecule jo apna lone pair central metal ko de deta hai aur ek coordinate bond banata hai. Jis atom par lone pair hota hai usko donor atom bolte hain — jaise paani ( $H_2O$ ) me oxygen donor hai, hydrogen nahi. Ab classification ka pura khel ek hi cheez par hai: ligand ke kitne "haath" ek hi metal ko ek saath pakadte hain. Isi count ko denticity kehte hain.

Ek haath wala = monodentate (jaise $Cl^-$ , $NH_3$ ). Do haath wala jo ek hi metal ko pakadke ring bana de = bidentate/chelating (jaise en, oxalate). Bohot saare haath wala = polydentate, jiska superstar hai EDTA (2 nitrogen + 4 oxygen = hexadentate, poora metal ko cage me band kar deta hai). Yaad rakho: denticity tab hi count hoti hai jab donor atoms ek saath, ek hi metal ko pakdein.

Chelate effect sabse important concept hai. $[Ni(en)_3]^{2+}$ , $[Ni(NH_3)_6]^{2+}$ se zyada stable hota hai — bonds toh same strength ke hain (enthalpy similar), par jab 3 en molecules 6 paani ko replace karte hain to total particles badh jaate hain, yaani entropy ( $\Delta S$ ) positive ho jaati hai. $\Delta G = \Delta H - T\Delta S$ me positive $\Delta S$ se $\Delta G$ aur zyada negative, isliye $K$ bada, complex zyada stable. Ye entropy-driven extra stability hi chelate effect hai. 5- ya 6-membered ring sabse stable rehti hai (na zyada strain, na floppy).

Ek common confusion: ambidentate. $NO_2^-$ ya $SCN^-$ me do alag donor atoms hain, par ye ek time pe sirf ek se hi bind karte hain — isliye ye monodentate hain, bidentate nahi! Bas jis atom se bind karein uska naam badal jaata hai (nitro vs nitrito, thiocyanato vs isothiocyanato) — yahi linkage isomerism deta hai. Exam me ye trap bahut aata hai, dhyan rakhna.
