Isotopes of hydrogen — protium, deuterium, tritium

Core Concept

All three isotopes are the same element (1proton defines hydrogen), but differ in neutron count, giving them different mass numbers and nuclear stability.

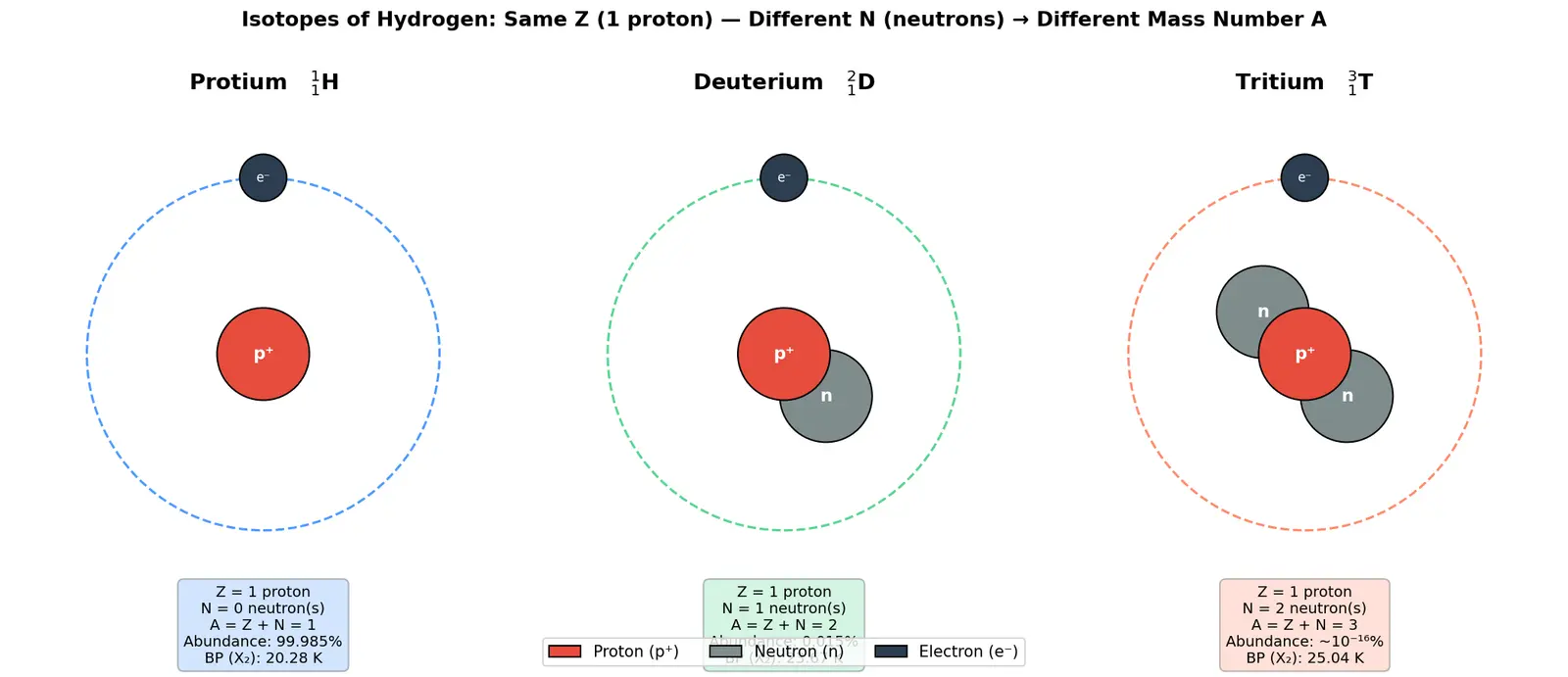

The Three Isotopes

For hydrogen (Z = 1):

• Protium ($^1$H or $^1_1$H): 1 proton, 0 neutrons, A = 1
• Deuterium ($^2$H or D): 1 proton, 1 neutron, A = 2
• Tritium ($^3$H or T): 1 proton, 2 neutrons, A = 3

Derivation: Mass Number and Atomic Structure

Why does mass number = protons + neutrons?

The nucleus contains protons and neutrons (collectively called nucleons). Electrons contribute negligible mass (~1/1836 of a proton).

$A = Z + N$

Where:

• $A$ = mass number (total nucleons)
• $Z$ = atomic number (protons)
• $N$ = neutron number

For protium: $A = 1 + 0 = 1$
For deuterium: $A = 1 + 1 = 2$
For tritium: $A = 1 + 2 = 3$

Why this matters: The extra neutrons add mass but don't change the chemical identity (still 1 electron, same valence). This is why they're isotopes, not different elements.

Natural Abundance and Occurrence

Derivation of why these abundances:

In the early universe (Big Bang nucleosynthesis), hydrogen formed primarily as protium because:

1. Simplest possible nucleus — just one proton, most stable configuration at high temperatures
2. Deuterium formed but most was fused into helium during the hot early universe
3. Tritium is radioactive (half-life 12.3 years), so primordial tritium decayed away

Why this step? Understanding abundance requires knowing nuclear stability. Protium is most stable because:

• No neutron = no possibility of beta decay
• Simplest nuclear configuration minimizes binding energy complexity

Deuterium survives because:

• It's stable (doesn't decay)
• Some escaped fusion into helium
• Continuously produced in cosmic ray interactions (trace amounts)

Tritium exists only as:

• Cosmogenic production (cosmic rays hitting nitrogen/oxygen in atmosphere)
• Anthropogenic sources (nuclear reactors, weapons tests)

Physical Properties Comparison

Example 1: Boiling Point Difference

| Isotope | Molecular Form | Boiling Point | |---------|---------------| | H | H₂ | 20.28 K | | D | D₂ | 23.67 K | | T | T₂ | 25.04 K |

Why does deuterium boil higher than protium?

1. Van der Waals forces depend on molecular mass and polarizability
2. Heavier D₂ molecules move slower at the same temperature (kinetic theory: $\frac{1}{2}mv^2 = \frac{3}{2}k_BT$)
3. Slower movement means molecules spend more time near each other
4. This increases effective intermolecular attraction
5. More energy (higher temperature) needed to overcome these attractions

Mathematical backing:

Root-mean-square velocity: $v_{rms} = \sqrt{\frac{3RT}{M}}$

For protium (M = 2 g/mol) vs deuterium (M = 4 g/mol) at same T: $\frac{v_{D2}}{v_{H_2}} = \sqrt{\frac{M_{H_2}}{M_{D_2}}} = \sqrt{\frac{2}{4}} = \frac{1}{\sqrt{2}} \approx 0.707$

Deuterium molecules move 30% slower, strengthening effective interactions.

Example 2: Kinetic Isotope Effect

When breaking an H-C bond vs D-C bond:

$\text{Rate ratio: } \frac{k_H}{k_D} \approx 6-7$

Derivation from quantum mechanics:

Zero-point energy for a bond: $E_0 = \frac{1}{2}h\nu = \frac{1}{2}h\sqrt{\frac{k}{\mu}}$

Where $\mu$ is reduced mass: $\mu = \frac{m_1 m_2}{m_1 + m_2}$

For C-H bond (approximating C as heavy): $\mu_H \approx m_H = 1 \text{ amu}$ $\mu_D \approx m_D = 2 \text{ amu}$

Why this step? Reduced mass determines vibrational frequency. The bond vibrates like a mass on a spring.

$\frac{E_{0,H}}{E_{0,D}} = \sqrt{\frac{\mu_D}{\mu_H}} = \sqrt{\frac{2}{1}} = \sqrt{2}$

The C-H bond has √2 times higher zero-point energy than C-D.

In transition state, bonds are partially broken. The difference in zero-point energy must be supplied as activation energy:

$\Delta E_a = E_{0,H} - E_{0,D}$

Using Arrhenius equation: $k = Ae^{-E_a/RT}$

$\frac{k_H}{k_D} = e^{(E_{a,D} - E_{a,H})/RT} = e^{\Delta E_{ZPE}/RT}$

At 298 K, this gives $\frac{k_H}{k_D} \approx 7$ for typical C-H bonds.

Why this matters: This kinetic isotope effect is used to:

• Probe reaction mechanisms (if C-H bond breaks in rate-determining step, you see the isotope effect)
• Slow down metabolism (deuterated drugs last longer)
• Trace biochemical pathways

Chemical Properties

BUT: Reaction rates differ (kinetic isotope effect above). The chemistry is qualitatively identical, quantitatively different.

Radioactivity and Nuclear Properties

Tritium is radioactive, undergoing beta-minus decay:

$^3_1H \rightarrow \,^3_2He + e^- + \bar{\nu}_e$

Why does this happen?

Nuclear stability depends on the neutron-to-proton ratio (N/Z):

• Protium: N/Z = 0/1 = 0 (stable, but unusual)
• Deuterium: N/Z = 1/1 = 1 (stable)
• Tritium: N/Z = 2/1 = 2 (too neutron-rich for such a light nucleus)

Derivation of decay energy:

Energy released (Q-value): $Q = (m_{^3H} - m_{^3He} - m_e)c^2$

Using atomic masses:

• $m_{^3H}$ = 3.016049 u
• $m_{^3He}$ = 3.016029 u
• $m_e$ = 0.000549 u

$Q = (3.016049 - 3.016029 - 0.000549) \times 931.5 \text{ MeV/u}$ $Q = (-0.000529) \times 931.5 = 18.6 \text{ keV}$

Why this step? The mass defect converts to kinetic energy of the emitted electron and antineutrino. This is a low-energy beta decay (18.6 keV), making tritium relatively safe — the electrons don't penetrate skin.

Half-life: $t_{1/2} = 12.32$ years

Using decay equation: $N(t) = N_0 e^{-\lambda t}$ $\lambda = \frac{\ln 2}{t_{1/2}} = \frac{0.693}{12.32 \text{ yr}} = 0.0563 \text{ yr}^{-1}$

After 50 years: $N = N_0 e^{-0.0563 \times 50} = N_0 e^{-2.815} = 0.060 N_0$

Only 6% of tritium remains after 50 years (about 4half-lives).

Applications

Deuterium Applications

1. Heavy Water (D₂O) in Nuclear Reactors

   • Why? Deuterium absorbs neutrons much less than protium
   • Neutron absorption cross-section: D₂O = 0.013 barns vs H₂O = 0.664 barns (500× difference!)
   • This means neutrons travel farther in D₂O, sustaining chain reactions better
   • Used as moderator in CANDU reactors

2. NMR Spectroscopy

   • Deuterated solvents (CDCl₃, D₂O) don't interfere with ¹H-NMR signals
   • Why? Deuterium (spin I = 1) has different magnetic moment than protium (spin I = 1/2)
   • Resonates at different frequency, keeping the spectrum clean

3. Metabolic Studies

   • D₂O traces water turnover in body
   • Non-radioactive, so safe for humans
   • Measures total body water, energy expenditure

Tritium Applications

1. Radioluminescent Devices

   • Watch dials, exit signs
   • Beta particles excite phosphor → continuous glow
   • Why tritium? Long half-life (12.3 yr) + low-energy beta (safe, contained)

2. Fusion Fuel

   • D-T fusion: $^2H + \,^3H \rightarrow \,^4He + n +17.6$ MeV
   • Why this reaction? Lowest ignition temperature of fusion reactions
   • Powers experimental fusion reactors (ITER)

3. Biological Tracers

   • Tritiated thymidine tracks DNA synthesis
   • ³H-labeled molecules in drug metabolism studies

Wrong idea: Since deuterium is heavier and tritium (also heavier) is radioactive, deuterium must be slightly radioactive too.

Why it feels right: Progressive pattern — as you add neutrons, things "should" get more unstable.

The truth: Deuterium is perfectly stable. It never decays. Nuclear stability isn't a smooth function of mass; it depends on specific proton-neutron configurations.

Why deuterium is stable: The one neutron provides enough strong nuclear force to bind tightly to the proton without creating instability. The N/Z ratio of 1 is ideal for light nuclei.

The fix: Stability depends on the balance of strong force (binds nucleons) vs electromagnetic repulsion (pushes protons apart) vs the right N/Z ratio. Deuterium hits the sweet spot. Tritium overshoots — too many neutrons for just one proton.

Wrong idea: D₂O is dangerous because it's radioactive or "nuclear material."

Why it feels right: It's called "heavy water," used in nuclear reactors, associated with nuclear weapons programs.

The truth: D₂O is not radioactive at all. Pure D₂O is toxic in large amounts (>50% body water replacement) because:

• Biochemical reactions slow down (kinetic isotope effect)
• Disrupts cell division timing
• Interferes with metabolic pathways

Why this step? It's a chemical/kinetic toxicity, not radiological. Small amounts (like a glass of D₂O) are harmless.

The fix: Don't confuse "nuclear application" with "radioactive." Many nuclear technologies use non-radioactive materials for their mass or neutron properties.

• Protium = 1, No neutrons (none =0)
• Du-terium = 2, One neutron (deutero = two)
• Tri-tium = 3, Two neutrons (tri = three)

Also: "Protium is Plentiful, Deuterium is Double, Tritium is Troubled (radioactive)"

That's hydrogen isotopes! They're all hydrogen (same number of "connection points" for building molecules), but:

• Protium is the hollow one — just the bare minimum (1 proton, no neutrons). It's the most common, like99.9% of all hydrogen.

• Deuterium is the normal one — has a neutron inside giving it double the weight. It's rare but stable, like finding a special LEGO piece in your collection. Makes "heavy water" (D₂O), which is just water but heavier — you could feel the difference if you held two glasses!

• Tritium is the one with the metal weight — two neutrons make it THREE times heavier. But here's the catch: it's unstable and slowly breaks apart (radioactive), turning into helium over about 12 years. It glows in the dark (well, makes things glow), which is why it's in some watch dials.

The cool part? They ALL do the same chemistry (make H₂O, react with oxygen, etc.) because chemistry only cares about electrons, not what's in the nucleus. But they do it at different speeds — like how a heavy truck and light car can both drive the same route, but accelerate differently.

Connections

• Atomic Structure and Isotopes — general isotope concepts
• Nuclear Stability and Binding Energy — why tritium decays
• Kinetic Theory of Gases — explains boiling point differences
• Beta Decay — mechanism of tritium radioactivity
• Heavy Water and Nuclear Reactors — deuterium applications
• NMR Spectroscopy — why deuterated solvents matter
• Nuclear Fusion — D-T reaction in fusion energy
• Chemical Kinetics — kinetic isotope effect derivation

#flashcards/chemistry

What are the three isotopes of hydrogen and their symbols? :: Protium (¹H or H), Deuterium (²H or D), Tritium (³H or T)

Write the beta decay equation for tritium. :::³H → ³He + e⁻ + ν̄ₑ (beta-minus decay producing helium-3)

Name two applications of deuterium. :: 1) Heavy water moderator in nuclear reactors 2) NMR spectroscopy (deuterated solvents) 3) Metabolic studies (any two)
