6.3.2Biotechnology Applications

Explain production of insulin via bacteria

1,862 words8 min readdifficulty · medium

WHAT is insulin (and why its shape matters)


HOW it is done — the Eli Lilly strategy (1983)

Let me derive why each step is needed rather than memorise it:

Why two separate genes and not one pro-insulin gene? Because E. coli can't remove the C-peptide. If we made pro-insulin, we'd be stuck with an inactive product. So we sidestep C-peptide entirely by making A and B directly.

Why join them in vitro (outside the cell)? The disulphide bonds that normally link A and B need to form under controlled chemical conditions. Doing it in a test tube lets us control oxidation and get correct pairing.

Why E. coli? It grows fast, is well understood, and its plasmid machinery is easy to manipulate — a reliable, cheap factory chassis.

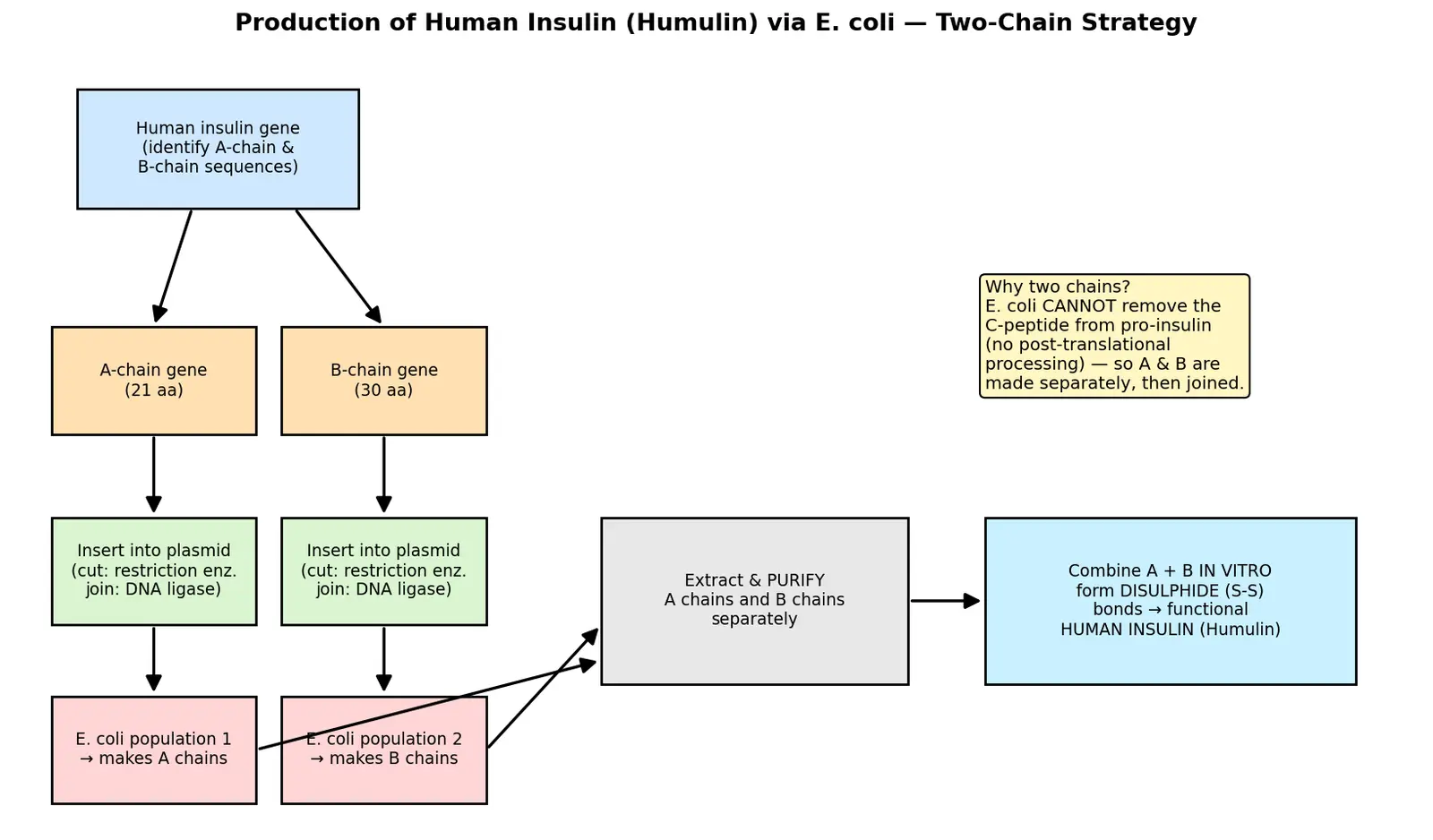

Figure — Explain production of insulin via bacteria

The general recombinant DNA steps (applied here)


Common mistakes (Steel-manned)


Flashcards

How many polypeptide chains does mature human insulin have, and how are they linked?
Two chains (A = 21 aa, B = 30 aa) linked by disulphide bonds.
What is pro-insulin?
The single-chain precursor of insulin containing the extra C-peptide between the B and A chains.
Why can't E. coli directly produce mature insulin from the pro-insulin gene?
Because it cannot remove the C-peptide (lacks post-translational processing enzymes).
What was Eli Lilly's 1983 strategy to make human insulin?
Produce A and B chains separately in two E. coli populations, then combine them in vitro to form disulphide bonds.
Where are the disulphide bonds between A and B chains formed in the industrial process?
In vitro (in a test tube), after extracting the chains from bacteria — not inside the bacteria.
Why is human recombinant insulin better than animal insulin?
It is identical to human insulin (from the human gene), so it causes far fewer allergic reactions and is not supply-limited.
Which enzyme joins the insulin gene into the plasmid?
DNA ligase.
What is the role of restriction enzymes here?
To cut gene and plasmid at specific sites producing complementary sticky ends.
Name the commercial recombinant human insulin.
Humulin (produced by Eli Lilly, 1983).
Why is an antibiotic-resistance gene on the plasmid useful?
It lets us select only bacteria that took up the recombinant plasmid (transformants survive on antibiotic).

Recall Feynman: explain to a 12-year-old

Your body normally makes a sugar-controlling helper called insulin. Some people's bodies can't make it. Insulin is a protein, and proteins are just chains built by reading a "recipe" written in genes. So scientists copied the human insulin recipe and put it inside a tiny bacterium. The bacterium reads the recipe and builds the insulin protein for us — like giving a robot chef a recipe card and letting it cook thousands of meals. One tricky part: real insulin is made of two pieces glued together, and bacteria aren't good at the gluing. So we grow the two pieces in two batches of bacteria, then glue them together ourselves in the lab. Result: cheap, endless, human-identical insulin.


Connections

  • Recombinant DNA Technology — the general toolkit (restriction enzymes, ligase, vectors).
  • Plasmids as Cloning Vectors — why plasmids carry selectable markers.
  • Restriction Enzymes and Sticky Ends — how gene and vector are matched.
  • Bioreactors and Downstream Processing — scale-up, extraction and purification.
  • Diabetes Mellitus — the disease this therapy treats.
  • Post-translational Modification — why bacteria can't process pro-insulin.
  • Gene Therapy — related application of introducing genetic material.

Concept Map

solved by

makes

has

has

joined by

joined by

contains

matures into

E. coli cannot remove

two genes in

produce separately

produce separately

combined in vitro

Animal insulin problems

Genetic engineering

Humulin Eli Lilly 1983

Human insulin

A chain 21 aa

B chain 30 aa

Disulphide bonds

Pro-insulin

C-peptide scaffold

Two-chain strategy

E. coli plasmids

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, insulin ek chhota protein hai jo blood sugar control karta hai. Diabetic logon ka body ye bana nahi paata. Pehle log pig/cow ke pancreas se insulin lete the, par wo mehenga tha, kam padta tha, aur kabhi-kabhi allergy kar deta tha kyunki wo thoda alag hota hai human insulin se. Solution: bacteria (E. coli) ko ek chhoti insulin factory bana do — human insulin ka gene usme daal do, aur wo hamare liye insulin protein bana dega. Isi ko Humulin kehte hain (Eli Lilly, 1983).

Ek dikkat hai. Mature insulin do chains ka bana hota hai — A chain (21 aa) aur B chain (30 aa) — jo disulphide bonds se jude hote hain. Body pehle ek lambi chain pro-insulin banati hai jisme beech me ek extra C-peptide hota hai, jo baad me cut hoke nikal jaata hai. Bacteria itne smart nahi ki wo C-peptide ko cut kar sakein (unme post-translational processing nahi hoti). Isliye agar hum seedha pro-insulin gene de dein, toh inactive product milega.

Iska jugaad ye tha: A chain aur B chain ke liye alag-alag genes banao, dono ko alag-alag E. coli populations me daalo. Ek batch A chain banayega, doosra B chain. Phir dono chains ko extract aur purify karke test tube me (in vitro) milaate hain, jahan sahi disulphide bonds ban jaate hain — aur ban gaya functional human insulin.

Exam tip: yaad rakho "Two Bugs, Two Bits, Bond Better" — do bacteria populations, do chains (A+B) alag banao, phir disulphide bond se jodo. Aur ye bhi — mature insulin me sirf 2 chains hote hain, C-peptide toh remove ho jaata hai.
