Overview

Data augmentation artificially expands training datasets by applying label-preserving transformations to existing images, improving model generalization and reducing overfitting without collecting new data.

Think of it like learning to recognize your friend: you don't memorize one photo, you see them from different angles, lighting, distances. That's what augmentation does for neural networks.

Core Concept: Label-Preserving Transformations

WHY label-preserving matters: If we flip a "dog" image horizontally, it's still a dog. But if we flip an image of text, it becomes unreadable – that transformation would NOT be label-preserving for OCR tasks. This constraint is domain-specific.

WHAT makes a good augmentation: It must create realistic variations that the model might see at test time, without changing the ground truth.

HOW to choose: Ask "Would a human still give this the same label?" and "Could this variation occur naturally?"

Common Augmentation Techniques

1. Geometric Transformations

$\begin{bmatrix} x' \\ y' \end{bmatrix} = \begin{bmatrix} \cos\theta & -\sin\theta \\ \sin\theta & \cos\theta \end{bmatrix} \begin{bmatrix} x - c_x \\ y - c_y \end{bmatrix} + \begin{bmatrix} c_x \\ c_y \end{bmatrix}$

Derivation from first principles:

Start with the problem: We want to rotate point $(x, y)$ by angle $\theta$ around the origin.
Convert to polar: Any point can be written as $(r\cos\phi, r\sin\phi)$ where $r$ is distance from origin, $\phi$ is current angle.
After rotation: The new angle is $\phi + \theta$ , so new coordinates are: $x' = r\cos(\phi + \theta) = r(\cos\phi\cos\theta - \sin\phi\sin\theta)$ $y' = r\sin(\phi + \theta) = r(\sin\phi\cos\theta + \cos\phi\sin\theta)$
Substitute back: Since $x = r\cos\phi$ and $y = r\sin\phi$ : $x' = x\cos\theta - y\sin\theta$ $y' = x\sin\theta + y\cos\theta$
For arbitrary center: Translate to origin, rotate, translate back (the formula above).

WHY this step: The trigonometric addition formulas convert rotation into a linear transformation (matrix multiplication), which is computationally efficient.

Typical range: $\pm 15°$ to $\pm 45°$ depending on domain. Large rotations may move objects partially out of frame.

2. Flipping

where $W$ is image width (0-indexed pixels).

WHY this works: Reverses the x-axis. For vertical flip: $y' = H - y - 1, x' = x$ .

Domain considerations:

Natural images: horizontal flip almost always preserves label
Vertical flip: often preserves label (upside-down dog is still a dog)
Text/medical imaging: may NOT preserve label

3. Scaling and Cropping

Derivation of why this helps:

The model sees objects at different scales (close-up vs far away) and positions (not always centered).

Scale invariance: A 100×100 pixel cat and a 200×200 pixel cat should both be recognized. By varying crop size, we train the model on objects occupying different fractions of the image.
Translation invariance: Cropping from different positions means the model can't rely on "cats are always in the center."
Aspect ratio variation: Real-world images aren't always perfectly square or in the training aspect ratio.

WHY resize after crop: Neural networks expect fixed input size. We crop to create variation, then resize to meet architectural requirements.

4. Color Augmentations

$p' = \alpha \cdot p + \beta$

where $\alpha$ is contrast factor (typically 0.8–1.2) and $\beta$ is brightness offset (typically -30 to +30).

WHY this formula:

$\alpha > 1$ : spreads values apart (increases contrast)
$\alpha < 1$ : compresses values (decreases contrast)
$\beta > 0$ : shifts all values up (brighter)
$\beta < 0$ : shifts all values down (darker)

This is a linear transformation of the intensity space.

$H' = (H + \delta_H) \mod 360°$ $S' = \text{clip}(S \cdot \gamma_S, 0, 1)$ $V' = V \text{ (or adjust similarly to brightness)}$

Derivation:

Hue is circular (0° =360° = red), so we add offset and wrap with modulo.
Saturation is intensity of color (0 = gray, 1 = pure color), multiplied by factor.
This preserves image structure while simulating different lighting conditions.

WHY this helps: Indoor vs outdoor lighting, shadows, camera white balance differences.

Advanced Augmentations

5. Cutout / Random Erasing

Sample rectangle position $(x_0, y_0)$ and size $(w, h)$
Set $I[y_0:y_0+h, x_0:x_0+w] = 0$ (or random values)

WHY this helps – from first principles:

In the real world, objects are often partially occluded. A car might be partly behind a tree, a person's face might be partially covered. Without oclusion training, the model might:

Rely too heavily on one specific part (e.g., always needs to see the full face)
Fail when key features are missing

Cutout forces the network to use multiple distributed features rather than a single discriminative region. It's a form of regularization because it prevents the model from taking shortcuts.

6. MixUp

$\tilde{x} = \lambda x_i + (1-\lambda) x_j$ $\tilde{y} = \lambda y_i + (1-\lambda) y_j$

where $\lambda \sim \text{Beta}(\alpha, \alpha)$ , typically $\alpha = 0.2$ or $0.4$ .

Derivation of why this works:

Standard training: model learns decision boundaries between classes. With MixUp: model learns to output soft probabilities for blended inputs.

This encourages:

Smother decision boundaries: Instead of sharp transitions, gradual confidence changes
Better calibrated predictions: Probabilities better reflect true likelihood
Reduced memorization: Can't memorize specific training examples when they're constantly blended

WHY Beta distribution: $\text{Beta}(\alpha, \alpha)$ is symmetric around 0.5. Lower $\alpha$ pushes $\lambda$ toward 0 or 1 (less mixing), higher $\alpha$ gives more uniform mixing. $\alpha \in [0.2, 0.4]$ is empirically optimal.

Mathematical Framework

$\mathcal{L}(\theta) = \mathbb{E}_{(x,y) \sim P_{\text{train}}}[\ell(f_\theta(x), y)]$

With augmentation:

$\mathcal{L}_{\text{aug}}(\theta) = \mathbb{E}_{(x,y) \sim P_{\text{train}}} \mathbb{E}_{t \sim T}[\ell(f_\theta(tx)), y)]$

Derivation of why this reduces overfitting:

Original problem: $P_{\text{train}}$ is a finite sample, $P_{\text{test}}$ is the true distribution. Gap between them causes overfitting.
With augmentation: Each image $x$ generates many variations $\{t_1(x), t_2(x), ...\}$ . If augmentations are realistic, these variations approximate samples from $P_{\text{test}}$ that are "near" $x$ .
Effective training set size: Instead of $N$ examples, we have $N \times K$ where $K$ is the number of augmentation variations (often infinite if sampled randomly each epoch).
Regularization effect: The model must learn features that are invariant to the transformations $T$ , which are the features that generalize.

WHY expectation over $t$ : Each mini-batch samples different augmentations, so over training we see the full distribution.

Practical Implementation Strategy

Conceptual structure – deriving the composition

Step 1: Random transformations (applied with probability p)

if random() < 0.5: image = horizontal_flip(image)

if random() < 0.3: angle = uniform(-15, 15) # degrees image = rotate(image, angle)

Step 2: Color jittering

brightness_factor = uniform(0.8, 1.2) contrast_factor = uniform(0.8, 1.2) image = adjust_brightness(image, brightness_factor) image = adjust_contrast(image, contrast_factor)

Step 3: Crop and resize (always applied)

scale = uniform(0.08, 1.0) aspect_ratio = uniform(3/4, 4/3) image = random_resized_crop(image, scale, aspect_ratio)

Step 4: Normalization (always applied last)

image = (image - mean) / std


**WHY this order**:
1. Geometric transforms first (they don't depend on pixel values)
2. Color transforms next (before normalization invalidates them)
3. Crop/resize (establishes final spatial dimensions)
4. Normalization last (prepares for network input)

> [!example] Domain-Specific Augmentation: Medical Imaging
> **Scenario**: Chest X-ray classification for pneumonia detection.

**Applicable augmentations**:
- Small rotations (±5°): Patient positioning varies
- Brightness/contrast: Different X-ray machine settings
- Zoom/crop: Different distances, body sizes

**Inappropriate augmentations**:
- Horizontal flip: Heart is on the left! Flipping changes anatomy (situs inversus is rare pathology)
- Vertical flip: No one takes upside-down X-rays
- Strong color changes: X-rays are grayscale, color isn't meaningful
- Cutout over critical regions: Could mask the exact pathology

**WHY this matters**: Wrong augmentations can teach the model unrealistic patterns or destroy diagnostic information.

> [!example] Calculating Effective Dataset Size
> **Given**:
> - Original dataset: 10,000 images
> - Augmentations per epoch:
>   - Random crop: ~100 possible positions
>   - Rotation: uniform from $[-15°, 15°]$ → continuous
>   - Flip: 2 states (flipped/not)
>   - Brightness/contrast: continuous

**Calculation**:
If we sample augmentations randomly each epoch, the probability of seeing the exact same augmented image twice is near zero. Over 100 epochs:

$$N_{\text{effective}} \approx 10000 \times 100 = 1,000,000 \text{ unique augmented images}$$

**WHY this helps**: The model sees100× more "training data" with zero additional collection cost.

---

## Common Mistakes

> [!mistake] Mistake 1: Augmenting Test Data
> **Wrong approach**: Apply random augmentation during inference.

**Why it feels right**: "If augmentation helps training, it should help testing too!"

**The fix**:
- **Training**: Apply random augmentations to learn invariances
- **Testing**: Use original images OR apply Test-Time Augmentation (TTA) systematically

**WHY**: Random augmentation during single-image inference adds noise without the averaging benefits of training. TA is different: predict on multiple augmented versions and average predictions (reduces variance).

**Correct TA**:
$$\hat{y} = \frac{1}{K} \sum_{i=1}^{K} f_\theta(t_i(x_{\text{test}}))$$

> [!mistake] Mistake 2: Non-Label-Preserving Transforms
> **Wrong approach**: Vertical flipping for digit recognition (6 becomes 9), or horizontal flipping medical images with anatomical asymetry.

**Why it feels right**: "More data is always better!"

**The fix**:
- Ask domain experts what variations preserve meaning
- Test on a small set: Do humans still label augmented images correctly?

**Mathematical consequence**: If transformation $t$ doesn't preserve label, we're training on corrupted data:
$$\mathbb{E}_{t}[\ell(f_\theta(t(x)), y)] \text{ is undefined when } t(x) \not\rightarrow y$$

> [!mistake] Mistake 3: Over-Augmentation
> **Wrong approach**: Rotate by±180°, reduce brightness by 90%, crop down to 1% of original area.

**Why it feels right**: "Maximum variation must equal maximum performance!"

**The fix**: Augmentation should create **plausible variations**, not destroy the signal.

**Empirical test**: If accuracy on augmented training set drops significantly, augmentation is too aggressive. Rule of thumb: human accuracy should remain >95% on augmented examples.

---

## Connections
- [[3.4.1-Convolution-operation]: CNs have some built-in translation invariance, augmentation extends this
- [[3.4.8-Dropout-in-neural-networks]]: Both are regularization techniques, often used together
- [[3.4.12-Transfer-learning-CNs]]: Pre-trained models were trained with augmentation, using it fine-tuning maintains consistency
- [[5.2.3-Overfitting-vs-underfitting]]: Augmentation's primary purpose is reducing overfitting
- [[3.4.16-Batch-normalization]: Normalization is always the final step after augmentation
- [[6.14-Generalization-in-ML]]: Augmentation improves generalization by expanding the effective training distribution

---

## Summary

Data augmentation is a **synthetic data generation** technique that applies label-preserving transformations to training images, effectively multiplying dataset size and teaching models to learn invariant features. The core principle is simulating realistic variations that could occur at test time, forcing the network to focus on robust, transferable patterns rather than memorizing training data.

Key augmentation categories: geometric (rotation, flip, crop), photometric (brightness, contrast, color), and modern techniques (cutout, mixup). The mathematical framework shows augmentation as sampling from a transformation distribution, reducing the gap between training and test distributions.

Critical considerations: transformations must preserve labels, be domain-appropriate, and remain within realistic bounds. Augmentation is applied only during training (except for Test-Time Augmentation), and must precede normalization in the pipeline.

---

> [!recall]- Explain to a 12-year-old
> Imagine you're teaching a robot to recognize cats. If you only show it 100 photos of cats, it might memorize those specific photos instead of learning what makes a cat a cat.

So here's the trick: take each photo and create new versions! Tilt it a bit, zoom in, make it brighter or darker, flip it horizontally. Now from 100 photos, you have thousands of versions.

The robot can't memorize anymore – it HAS to learn the real patterns: "pointy ears, whiskers, fur texture." When it sees a cat in the real world (maybe at a different angle or in different lighting), it still recognizes it because it learned the actual concept, not just specific pictures.

That's data augmentation! We're not collecting new photos; we're making smart modifications to the ones we have, so the AI learns better with the same amount of actual data.

---

> [!mnemonic] GRASP Augmentation
> **G**eometric (rotate, flip, crop)
> **R**andom (sample different transforms each epoch)
> **A**ppropriate (domain-specific, label-preserving)
> **S**equential (transforms → normalize → network)
> **P**hotometric (brightness, contrast, color)

---

#flashcards/ai-ml

What is data augmentation? :: Artificially expanding training datasets by applying label-preserving transformations to existing images, improving generalization without collecting new data.

Why does data augmentation reduce overfitting? ::: It increases effective training set size and forces the model to learn invariant features that work across transformations, rather than memorizing specific training examples.

What is the key requirement for an augmentation transformation? ::: It must be label-preserving – the transformed image should still have the same ground-truth label as the original.

Write the rotation matrix for angle θ ::: $\begin{bmatrix} \cos\theta & -\sin\theta \\ \sin\theta & \cos\theta \end{bmatrix}$

What is the formula for brightness/contrast adjustment? ::: $p' = \alpha \cdot p + \beta$ where α is contrast factor and β is brightness offset.

How does MixUp work? ::: Creates synthetic examples by linear interpolation: $\tilde{x} = \lambda x_i + (1-\lambda) x_j$ and $\tilde{y} = \lambda y_i + (1-\lambda) y_j$ where λ ~ Beta(α,α).

Why is horizontal flip NOT appropriate for chest X-rays? ::: The heart is anatomically on the left side; flipping would create an unrealistic reversed anatomy (situs inversus), which is a rare pathology, not a normal variation.

What is the correct order for augmentation pipeline? ::: 1) Geometric transforms 2) Color transforms 3) Crop/resize 4) Normalization (always last).

What is Cutout augmentation? ::: Masking random rectangular regions with zeros or noise, forcing the network to use multiple distributed features and handle occlusion.

Should you augment test data? ::: No, use original images for single predictions. Test-Time Augmentation (TTA) is different: predict on multiple augmented versions and average.

What is the mathematical framework for augmentation? ::: $\mathcal{L}_{\text{aug}}(\theta) = \mathbb{E}_{(x,y) \sim P_{\text{train}}} \mathbb{E}_{t \sim T}[\ell(f_\theta(t(x)), y)]$ – expectation over both data and transformations.

Why does random resized crop help? ::: Provides scale invariance (objects at different sizes) and translation invariance (objects at different positions), simulating real-world variation in object scale and location.

What distribution is used for MixUp λ parameter? ::: Beta(α, α) distribution, typically with α = 0.2 or 0.4, which creates symmetric distribution around 0.5.

Calculate effective dataset size with augmentation ::: Original N images × epochs with different random augmentations ≈ N × epochs of effectively unique training samples (typically 10-100× increase).

## 🖼️ Concept Map

```mermaid
flowchart TD
    DA[Data Augmentation] -->|applies| LPT[Label-Preserving Transforms]
    DA -->|improves| GEN[Generalization]
    DA -->|reduces| OF[Overfitting]
    DA -->|forces learning of| INV[Invariances]
    INV -->|learn concept not| MEM[Memorized Pixels]
    LPT -->|must preserve| LABEL[Semantic Label y]
    LPT -->|domain-specific| CONSTRAINT[Realistic Variations]
    LPT -->|example type| GEO[Geometric Transforms]
    GEO -->|includes| ROT[Rotation by theta]
    ROT -->|expressed as| MAT[Rotation Matrix]
    MAT -->|derived from| POLAR[Polar Coordinates]
    GEN -->|without| NEWDATA[New Data Collection]

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Data augmentation ka matlab hai kium apne existing training images ko transform karke nayi variations create karte hain – bina actually nayi photos collect kiye. Jaise ek dog ki photo ko thoda rotate karo, flip karo, brightness badha do – ab wo dog phir bhi dog hi hai, lekin network ko different angles aur lighting conditions mein dekhne ko milta hai.

Is technique ka sabse bada faida ye hai ki overfitting kam hoti hai.Agar tumhare pas sirf 1000 images hain aur tum unhe directly train karte ho, toh network wo specific images memorize kar sakta hai. Lekin augmentation se har epoch mein slightly different versionskhte hain, toh network ko actual concept seekhna padta hai – "dog kaise dikhta hai" na ki "wo specific1000 photos".

Core idea simple hai: jo bhi transformation apply karo, wo label-preserving hona chahiye. Matlab agar tum dog ko horizontally flip karte ho, wo dog hi rahega. Lekin agar tum digit "6" ko upside-down kar

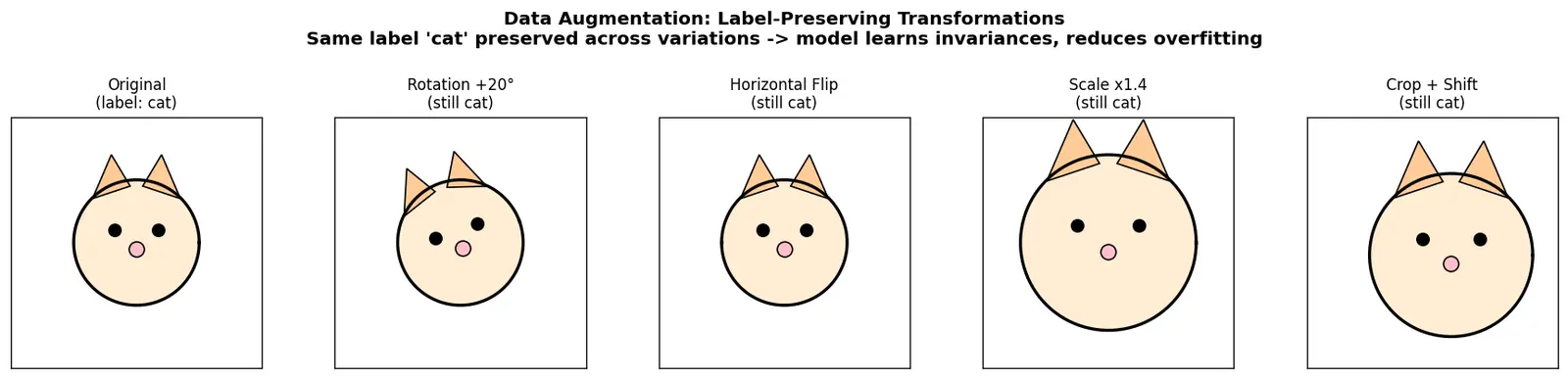

Data augmentation for images
