Jupyter notebooks workflow

What Problem Does Jupyter Solve?

Traditional Python scripts force you into a rigid cycle:

Write all your code
Run the entire file
Check terminal output or log files
Edit and repeat

This is painful for data science because:

You waste time re-running expensive computations just to test one line
You lose intermediate results when the script ends
You can't visualize data alongside the code that created it
Collaborators can't see your reasoning process

Jupyter solves this with cell-based execution: each code block runs independently, keeping its results in memory. You build your analysis step-by-step, seeing outputs immediately, backtracking when needed, and documenting decisions inline.

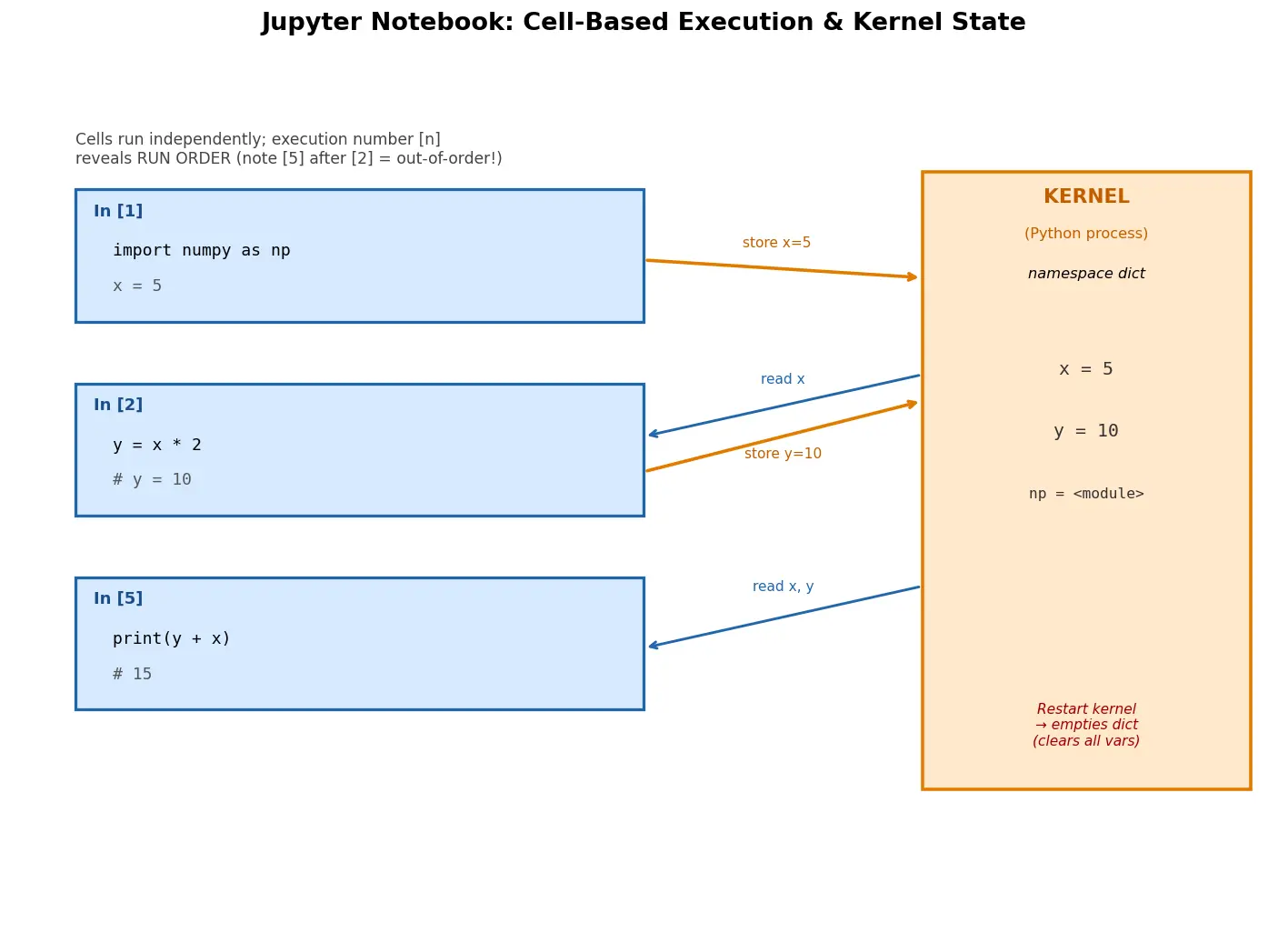

Core Workflow: The Cell Execution Model

How Jupyter Manages State

When you launch a Jupyter notebook:

Kernel starts: A fresh Python interpreter spins up
Persistent memory: All variables stay in memory between cell executions
Out-of-order execution: You can run cells in any order (not just top-to-bottom)
Outputs are saved: Results of the last run are stored in the .ipynb file

Formula

Execution Counter Logic Each cell gets an execution number In [n] where $n$ increments with each run: $\text{Execution Number} = \text{previous max} + 1$

Why? This counter reveals execution order. If you see In [5] above In [12], you know the notebook was run out of order—a common source of confusion.

Derivation of State Persistence: When you run a cell defining x = 5, the kernel's symbol table updates: $\text{kernel\_namespace}[\text{"x"}] = 5$

Future cells access this namespace. Running another cell with y = x * 2 queries the same dictionary:

$y = \text{kernel\_namespace}[\text{"x"}] \times 2 = 5 \times 2 = 10$ This is why restarting the kernel clears everything—it creates a fresh, empty namespace dictionary.

The Five Cell Operations

Operation	Shortcut	What It Does	When to Use
Run cell	`Shift+Enter`	Execute current cell, move to next	Normal workflow
Run in place	`Ctrl+Enter`	Execute, stay in current cell	Testing/debugging same cell
Run all above	-	Execute all cells from top to current	Reproduce state after kernel restart
Restart kernel	`00` (twice)	Kill Python process, start fresh	Clear all variables and imports
Restart & run all	-	Restart + execute top bottom	Verify notebook runs clean

Worked example

Example 1: Building an Analysis Step-by-Step Cell 1 (imports & data loading):

import pandas as pd
import numpy as np
data = pd.read_csv('sales.csv')
data.head()

Why this step? Load dependencies and data first. Because data.head() is the last expression in the cell, its output renders automatically below the cell, confirming the file loaded correctly.

Cell 2 (exploration):

display(data.describe())      # explicit display so it renders
data['revenue'].plot(kind='hist')  # last expression → plot shows

Why this step? Only the last expression in a cell auto-displays. To show describe() AND the histogram, we wrap describe() in display(...) (Jupyter's rich display function), while the plot renders because it's the final line. Quick statistics and visualization help you understand the data distribution before modeling.

Cell 3 (feature engineering):

data['log_revenue'] = np.log1p(data['revenue'])
data['log_revenue'].plot(kind='hist')  # last expression → plot shows

Why this step? Testing a transformation. Because data is still in memory from Cell 1, you can modify it and instantly see the new distribution. The plot renders because it's the last expression. If this looks wrong, you can re-run with a different transformation without reloading the CSV.

Cell 4 (modeling):

from sklearn.linear_model import LinearRegression
X = data[['ad_spend', 'season']]
y = data['log_revenue']
model = LinearRegression().fit(X, y)
print(f"R² = {model.score(X, y):.3f}")

Why this step? The model training is separated so you can tweak features in Cell 3 and re-train without re-importing libraries or reloading data. Note we use print() here—inside f-strings and mid-cell logic, explicit print()/display() is the reliable way to show output.

Worked example

Example 2: Debugging with Cell Execution

You're building a neural network and getting NaN losses. Traditional script approach:

Add print statements throughout train.py
Run entire training loop (20 minutes)
Check where NaNs appear
Edit code, repeat

Jupyter approach: Cell 1: Load model and data (run once)

model = create_model()
train_loader = get_data()
batch = next(iter(train_loader))  # Get one batch

Cell 2: Test forward pass (run multiple times)

output = model(batch['input'])
print(f"Output range: {output.min():.3f} to {output.max():.3f}")
print(f"Any NaN? {torch.isnan(output).any()}")

Why this step? You're testing just the forward pass one batch. Takes 1 second, not 20 minutes. You discover outputs are [-1e20, 1e20]—overflow!

Cell 3: Fix and re-test (modify, re-run Cell 2)

model.final_layer = nn.Linear(512, 10)
torch.nn.init.xavier_uniform_(model.final_layer.weight)
# Now re-run Cell 2 to verify

Why this step? You changed the model in memory. Cell 2's model variable references the same object, so re-running Cell 2 tests your fix instantly.

Workflow Best Practices

1. Cell Organization Principles

Formula

Cell Granularity Heuristic

Each cell should do one conceptual thing. Quantitatively: $\text{Cell length} \approx 5\text{-}15 \text{ lines}$

$\text{Execution time} < 30 \text{ seconds (ideally } < 5\text{s)}$

Why?

Short cells = easier to debug (when a cell fails, you know exactly what broke)
Fast cells = you can re-run without coffee breaks
Long cells often do multiple things, violating single-responsibility principle Derivation: If a cell loads data (2 min), cleans it (3 min), and trains a model (10 min), and the model fails, you waste 5 minutes re-running data steps you know work. Split into three cells:

$\text{Time to debug} = \text{time to re-run broken step} + \text{time to re-run dependencies}$

With split cells, dependencies are in memory—re-running the model cell alone costs only 10 min, not 15.

Good cell structure:

# Cell 1: Imports
import pandas as pd
import matplotlib.pyplot as plt

# Cell 2: Load data
data = pd.read_csv('data.csv')

# Cell 3: Explore
data.describe()

# Cell 4: Clean
data_clean = data.dropna()

# Cell 5: Visualize
plt.scatter(data_clean['x'], data_clean['y'])

Bad cell structure:

# One giant cell
import pandas as pd
import matplotlib.pyplot as plt
data = pd.read_csv('data.csv')
data.describe()
data_clean = data.dropna()
plt.scatter(data_clean['x'], data_clean['y'])
# If the plot fails, you re-run everything including the CSV load

2. Kernel Restart Hygiene

Common mistake

Mistake: "My notebook works for me but not for others" Why it feels right: You ran cells in order 1→5→3→4→2. Cell 2 used a variable defined in Cell 4, which happened to be in memory. The notebook saved successfully, so you think it's fine.

The trap: When your collaborator runs top-to-bottom, Cell 2 executes before Cell 4, causing a NameError. The .ipynb file only saves the last outputs, not the execution order needed to reproduce them.

Fix: Before sharing, do "Restart & Run All". This simulates a fresh reader's experience. If any cell fails, you've found a hidden dependency.

Why this works: Restart & Run All enforces the constraint: $\forall i < j: \text{cell}_i \text{ must not depend on } \text{cell}_j$

This is the only execution order guaranteed to work for others.

3. Markdown Documentation Strategy

Use markdown cells to:

Explain why: # Why use log transform? Revenue is right-skewed, model assumes normality
Section headers: # Data Loading, # Feature Engineering, etc.
Decisions: # Chose RandomForest over XGBoost: RF trains faster, accuracy difference<1%

Worked example

Example 3: Documenting a Modeling Decision

## Model Selection

Tested three models on validation set:
- Logistic Regression: 0.82 AUC
- Random Forest: 0.89 AUC
- XGBoost: 0.90 AUC
**Decision**: Using Random Forest despite slightly lower AUC.
**Reason**: XGBoost training takes 10x longer (30 min vs 3 min) for only 1% improvement. For this weekly retraining pipeline, speed matters more.

Why this step? Three months from now, you (or your teammate) will wonder "Why didn't we use XGBoost?" This markdown cell preserves your reasoning. Note this is a markdown cell (not code), so all the text renders as formatted prose—no execution needed.

Advanced Workflow: Magics and Shell Commands

Jupyter includes special commands (magics) that start with % (line magic) or %% (cell magic):

Formula

Useful Magics

Magic	Purpose	Example
`%timeit`	Benchmark code	`%timeit sum(range(1000))` → "10 µs ± 0.5 µs"
`%%time`	Time entire cell	`%%time` on first line → prints execution time
`%matplotlib inline`	Embed plots	Run once to show plots in notebook
`!`	Shell command	`!ls -lh data/` lists files
`%load_ext`	Load extension	`%load_ext autoreload` for auto-reloading modules
Derivation of `%timeit` accuracy:

%timeit runs your code $n$ times and takes the best of $r$ repetitions:

$\text{time}_{\text{reported}} = \min_{i=1}^{r} \left(\frac{1}{n} \sum_{j=1}^{n} \text{time}_{i,j}\right)$

Default: $r=7$ , $n$ chosen so total time ≈ 0.2 seconds.

Why min and not mean? The minimum filters out noise from background processes. Your code's true speed is the fastest it can run when nothing interferes.

Worked example

Example 4: Profiling to Choose Data Structure

You need fast membership testing. List or set? For a fair benchmark, both containers must hold the same number of items (here 10 000)—otherwise the comparison is meaningless.

Cell 1:

data_list = list(range(10000))
data_set  = set(range(10000))   # SAME size as the list

Cell 2:

%timeit 9999 in data_list   # worst case: scans to the end

Output: ~90 µs ± 5 µs per loop

Cell 3:

%timeit 9999 in data_set

Output: ~40 ns ± 2 ns per loop

Why this step? With identical sizes (10 000 each), the comparison is fair, and set lookup is still thousands of times faster because it is $O(1)$ (hash lookup) versus the list's $O(n)$ linear scan. The side-by-side %timeit gives you hard numbers to justify the choice, and you can keep these cells as documentation.

Common Workflows

Data Science Project Typical Structure

1. Setup & Imports
2. Load Data
3. Exploratory Analysis (multiple cells with plots)
4. Data Cleaning
5. Feature Engineering
6. Train-Test Split
7. Model Training
8. Evaluation
9. Error Analysis
10. Conclusions (markdown)

Protyping → Production Workflow

Prototype in Jupyter: Experiment freely, try different approaches
Consolidate successful cells: Once you know what works, combine related cells
Export to .py: File → Download as → Python Script
Refactor: Convert notebook code to functions, add proper error handling
Keep notebook as documentation: The original notebook shows why you made choices

Keyboard Shortcuts (Efficiency)

Mode	Shortcut	Action
Command mode (blue)	`A`	Insert cell above
	`B`	Insert cell below
	`DD`	Delete cell
	`M`	Convert to markdown
	`Y`	Convert to code
Edit mode (green)	`Esc`	Switch to command mode
	`Ctrl+/`	Comment/uncomment
Both	`Shift+Enter`	Run and advance

Recall

Explain to a 12-year-old

Imagine you're doing math homework, but instead of having to redo the entire problem when you make a mistake, you can fix just one step and keep all the earlier work. That's Jupyter!

A regular Python program is like writing an entire essay in one go—if there's a typo on page 5, you have to reprint all 5 pages. Jupyter is like having one paragraph per page: you can edit page 3 and keep pages 1-2 and 4-5 unchanged.

Each "page" is called a cell. You put a little bit of code in each cell. When you run a cell, the computer remembers what happened. Then you can write the next cell using what the computer remembered. If something breaks, you just fix that one cell and try again—you don't lose your earlier work.

The tricky part: because you can run cells in any order, you might accidentally run Step 5 before Step 2. The computer won't stop you! That's why there's a "restart" button—it's like shaking an Etch A Sketch to clear everything and start fresh.

Connections

1.4.08-Virtual-environments: Always run Jupyter inside a virtual environment to isolate dependencies
1.4.10-NumPy-arrays-basics: NumPy operations display nicely in Jupyter with array visualizations
1.5.01-Pandas-DataFrames: DataFrames render as HTML tables in Jupyter, making exploration natural
1.6.01-Matplotlib-basics: Plots appear inline with %matplotlib inline
2.3.01-Exploratory-data-analysis: EDA workflows are designed around Jupyter's interactive model
4.1.05-Debugging-strategies: Jupyter's cell execution makes step-by-step debugging natural

#flashcards/ai-ml

What is a Jupyter notebook?

An interactive document (.ipynb) mixing code cells, markdown text, and outputs running in a browser connected to a Python kernel

What's the key difference between Jupyter and a Python script?

Jupyter uses cell-based execution with persistent memory—you can run code in chunks and keep intermediate results, unlike scripts that run top-to-bottom once

What does the execution number In [5] tell you?

The cell was the 5th executed in the current kernel session (not necessarily its position in the notebook)

Why restart the kernel before sharing a notebook?

To verify it runs top-to-bottom without hidden dependencies from out-of-order execution

In a code cell with multiple expressions, which one auto-displays?

Only the last expression; earlier ones need explicit print() or display() to render

What keyboard shortcut runs the current cell and advances?

Shift+Enter

How do you insert a cell below the current cell?

Press B in command mode (blue border)

What's the recommended cell length?

5-15 lines doing one conceptual thing, ideally < 30 seconds execution time

What does %timeit do?

Benchmarks code by running it many times and reporting the minimum average execution time

Why use %timeit minimum instead of mean?

The minimum filters background noise—your code's true speed is the fastest it can run uninterrupted

Why must both containers be the same size when benchmarking list vs set lookup?

Otherwise the comparison is unfair—mismatched sizes distort the measured speedup; only equal sizes isolate the O(1) vs O(n) difference

What does !ls do in a Jupyter cell?

Runs the shell command ls (the ! prefix executes shell commands)

What's the danger of out-of-order execution?

Later cells might depend on earlier cells that haven't run yet, making the notebook fail for others running top-to-bottom

What does "Restart & Run All" verify?

That the notebook runs cleanly from top to bottom without hidden state dependencies

What mode lets you insert/delete cells with keyboard shortcuts?

Command mode (blue border, press Esc to enter)

What does %matplotlib inline do?

Configures matplotlib to display plots directly in the notebook below the cell that created them

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, Jupyter notebook ka core idea bilkul simple hai — ye ek aisa interactive document hai jahan tum code, uske results, aur apni explanation sab ek hi jagah rakh sakte ho. Traditional Python script mein tumhe poora file likhna padta hai, phir run karna padta hai, phir terminal mein output check karna padta hai — aur agar ek line galat ho, toh poora program dobara chalao. Data science mein ye bahut painful hai kyunki heavy computations baar-baar chalane mein time waste hota hai. Jupyter isko solve karta hai "cells" ke through — chhote-chhote code blocks jo alag-alag run hote hain, aur unke results memory mein bache rehte hain. Matlab tum step-by-step apna analysis banate ho, har step ka output turant dekhte ho.

Ab sabse important concept hai kernel aur state persistence. Kernel ek background Python process hai jo tumhara code chalata hai. Jab tum ek cell mein x = 5 likhte ho, toh ye value kernel ki memory (namespace) mein store ho jaati hai. Agli cell mein agar tum y = x * 2 likho, toh wo same memory se x uthata hai aur y = 10 de deta hai. Isiliye jab tum kernel restart karte ho, sab variables clear ho jaate hain — kyunki fresh empty namespace ban jaata hai. Aur ye In [n] counter jo har cell ke saath dikhta hai, wo batata hai ki cells kis order mein chale. Agar order gadbad ho jaaye (jaise In [12] ke upar In [5]), toh confusion ho sakti hai.

Ye cheez tumhare liye kyun matter karti hai? Kyunki AI-ML mein tumhe data explore karna, models test karna, aur experiments jaldi-jaldi try karne padte hain. Jupyter isko fast aur visual bana deta hai — tum graph aur code side-by-side dekh sakte ho, apni reasoning likh sakte ho, aur collaborators ko poora thought process samajh aata hai. Bas ek baat yaad rakhna — hamesha "Restart & Run All" karke check karo ki tumhara notebook top-to-bottom clean chalta hai, warna out-of-order execution ki wajah se aisa result aa sakta hai jo dobara reproduce hi na ho. Yehi practice tumhe ek reliable data scientist banayegi.

What Problem Does Jupyter Solve?

Core Workflow: The Cell Execution Model

How Jupyter Manages State

The Five Cell Operations

Workflow Best Practices

1. Cell Organization Principles

2. Kernel Restart Hygiene

3. Markdown Documentation Strategy

Advanced Workflow: Magics and Shell Commands

Common Workflows

Data Science Project Typical Structure

Protyping → Production Workflow

Keyboard Shortcuts (Efficiency)

Connections

Concept Map

Hinglish (regional understanding)

Hinglish (regional understanding)

Go deeper — visual, from zero

Test yourself — Python & Scientific Computing

Connections
